Metal Cable Gland Stainless Steel Cable Gland

IP 68 Stainless Steel Cable Gland

IP 68 Stainless Steel Cable Gland with UL Certificate

This stainless steel cable gland is designed to securely anchor and seal the end of an electrical cable entering an enclosure or piece of equipment. It provides robust mechanical strain relief, excellent corrosion resistance, and reliable ingress protection in harsh industrial, marine or offshore environments.

Ss stainless steel cable gland is one type of metallic cable gland with IP68 and IP69K up to 10bar waterproof function, high temp withstanding could up to 150℃. The size of the ss cable gland is ranging from M8 to M100, it is normally used in hazardous areas because of the superior explosion-proof and corrosion resistance performance.

SS stainless steel cable glands also used widely in modular entry systems, beverage industry, food manufacturing industry, etc.

Ss stainless steel cable gland provides high-grade cable strain relief needs and protection against harsh environmental influence. Stainless steel cable glands applied widely in industries range such as renewable energy, industrial automation, outdoor lighting, and communication base stations. It could enforce the whole system and protect the infrastructure from damage, providing strain relief for applications.

Harsh wash downs, microbes, and bacteria will be resisted to ensure your production line working in a normal state, so the Food & Beverage industry adopts so stainless steel material cable gland as SS304, SS316, and SS316L.

SS stainless steel cable gland made of stainless steel 304 and 316L material, because of their anti-corrosion property is especially stronger than other types of metal, such as brass cable gland, so ss stainless steel cable gland applied as marine waterproof cable gland.

Ss Stainless steel cable gland has all kinds of thread types such as Metric, PG, NPT, and is available with short and long thread entry. Our ss stainless steel cable gland is very cost-effective and also perform in reliability, durability, and performance.

Materials:

  • 304 stainless steel
  • 316L stainless steel (marine grade)
  • Corrosion-resistant
  • Salt spray-resistant

Performance:

  • High tensile strength
  • Torsion resistance
  • Vibration resistance
  • Anti-loosening

Protection:

  • IP68 waterproof
  • Dustproof
  • Moisture-proof
  • Explosion-proof
  • High and low temperature resistant

Applications:

  • Industrial automation
  • Marine
  • Outdoor lighting
  • New energy
  • Machinery
  • Equipment

Key Benefits

  • High strength & corrosion resistance
  • IP68 waterproof & dustproof
  • Heat & cold resistant
  • Easy to install, maintenance-free
  • Global certification: CE, UL, RoHS
Categories
Metal Cable Gland Breathable Cable Gland

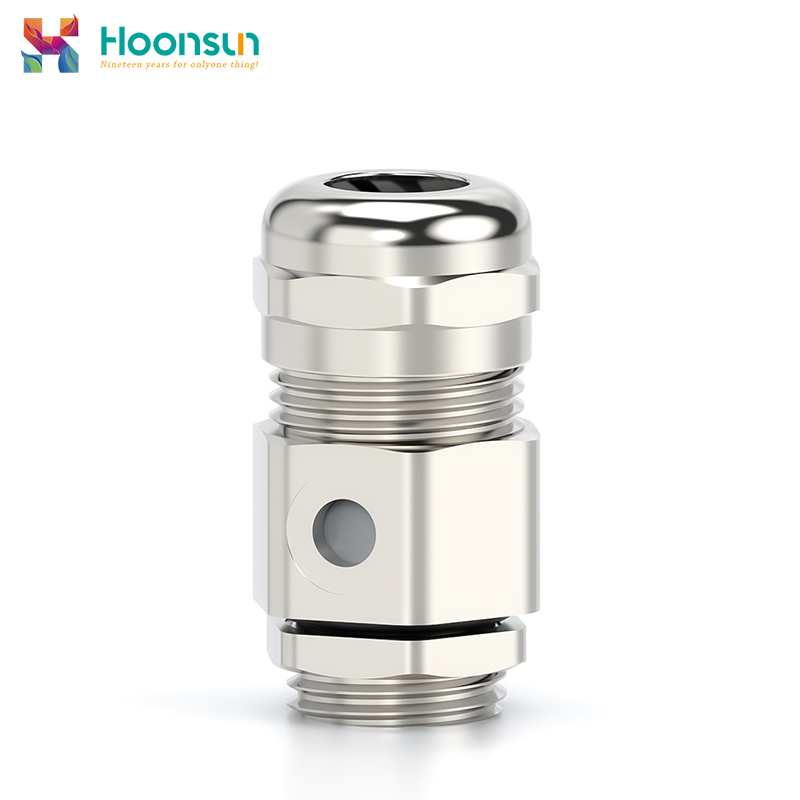

Hoonsun High quality industrial grade IP68 waterproof breathable cable gland air vent cable gland

Hoonsun High quality industrial grade IP68 waterproof breathable cable gland air vent cable gland

Breathable Cable Gland Product Introduction

breathable cable gland and conduit fittings are designed for various industries. Pressure balancing components can improve the quality and reliability of customers’ products. Connectors used in the household appliances and automotive industries are used all over the world.

Their industrial cable glands and accessories can provide strain relief for cables and provide a high degree of dust, dust, water and other liquid protection for electrical and electronic systems.

Most of the metal cable glands and accessories are UL certified, allowing cables to enter the housing, providing strain relief, protecting the inside of the housing from water, dirt and dust, and allowing easy assembly and disassembly of cables and housings.

A high-performance cable entry gland combining strain-relief, sealing and internal pressure-equalisation. The gland features a built-in semi-permeable membrane or venting filter which allows air and water vapour to pass between the inside and outside of the equipment enclosure, while simultaneously blocking ingress of liquids, dust and particulate matter. The result: protection against condensation, internal over- or under-pressure, and moisture-induced damage or corrosion.

Key functions & features:

Ensures secure cable entry into enclosures with integrated clamping and sealing.

Enables pressure equalisation between the interior of the enclosure and the external environment, alleviating stress on seals and structural

Prevents formation of condensation inside the enclosure by permitting moisture/vapour to escape while rejecting liquid water and dust

Maintains high ingress-protection ratings (e.g., IP66/67/68) while providing “breathability”.

Available in various materials (polyamide/nylon, brass, stainless steel), thread types (Metric, PG, NPT) and configurations to suit different industrial applications.

Typical applications:
Industrial enclosures, automation equipment, lighting and outdoor luminaires, marine and offshore systems, control panels, solar inverter or battery systems — anywhere that sealed enclosures are subject to temperature and pressure changes, humidity, or require both cable entry protection and ventilation.

“Cable gland with integrated vent: sealed cable entry + pressure equalisation to prevent condensation and moisture damage.”

PRODUCT PARAMETER
Welcome to Our Website,We Are Happy to Serve You
Fitting Material:   Nickel-platedbrass
Material For Clamping Jaws:   PA66(Nylon),UL94-V2
Material For Sealing Components:   EPDM、Silicone rubber
Protection degree:    In the specified cable outer diameter and the appropriate
o-ring Protection degree can reach IP68,the waterproof
depth reaches 3m-5m
Temperatur:   40℃~100℃,can reach 120℃ in a short time
Heat dissipation permeability:   2400ml/s/[email protected]
Water inlet pressure:   >5bar
Specifications:                                                                                                 unit:mm
规格
Item		 适用范围
Range		 螺纹长度
GL		 螺纹外径
Thread O.D.		 接合长度H
Joint Length		 扳手尺寸
Spanner size		 产品编号
Code
M12×1.5 3-6.5 8 12.0 27 18/14    HX-NF.M12
4-8 8 12.0 27 18/14    HX-NF.M12-8
M16×1.5 3-6.5 8 16.0 27 18    HX-NF.M16-(6)
4-8 8 16.0 27 18    HX-NF.M16
5-10 8 16.0 27 20/18    HX-NF.M16-10
M18×1.5 5-10 8 18.0 29 20    HX-NF.M18
M20×1.5 5-10 8 20.0 32 22 HX-NF.M20-(10)
6-12 8 20.0 32 22    HX-NF.M20
10-14 8 20.0 32 24/22    HX-NF.M20-12
M25×1.5 8-12 9 25.0 35 24/27    HX-NF.M25-(12)
10-14 9 25.0 35 24/27    HX-NF.M25-14
12-16 9 25.0 35 27    HX-NF.M25-16
13-18 9 25.0 35 30/27 HX-NF.M25-18
M32×1.5 13-18 10 32.0 54 35    HX-NF.M32-(18)
15-22 10 32.0 54 35    HX-NF.M32
18-25 10 32.0 54 40/35    HX-NF.M32-25
M40×1.5 18-25 11 40.0 46 40/45    HX-NF.M40-25
22-30 11 40.0 50 45    HX-NF.M40-30
25-33 11 40.0 52 50/45 HX-NF.M40-33
M50×1.5 32-38 13 50.0 55 57/55    HX-NF.M50
M63×1.5 37-44 14 63.0 55 64/68    HX-NF.M63
42-52 14 63.0 55 78/68    HX-NF.M63-52

air vent plugair vent plugair vent plug featuresair vent plug parameterair vent plug parameterair vent plug Permeable Typeair vent plug specificationair vent plug decompositionmetal cable gland EMC used in charging pilesair vent plug excellentair vent plug protectionmetal cable gland EMC companymetal cable gland EMC factory displaymetal cable gland EMC workshopmetal cable gland EMC customersmetal cable gland EMC certificatemetal cable gland EMC packging shipping

Categories
Right Angle 90° cable gland

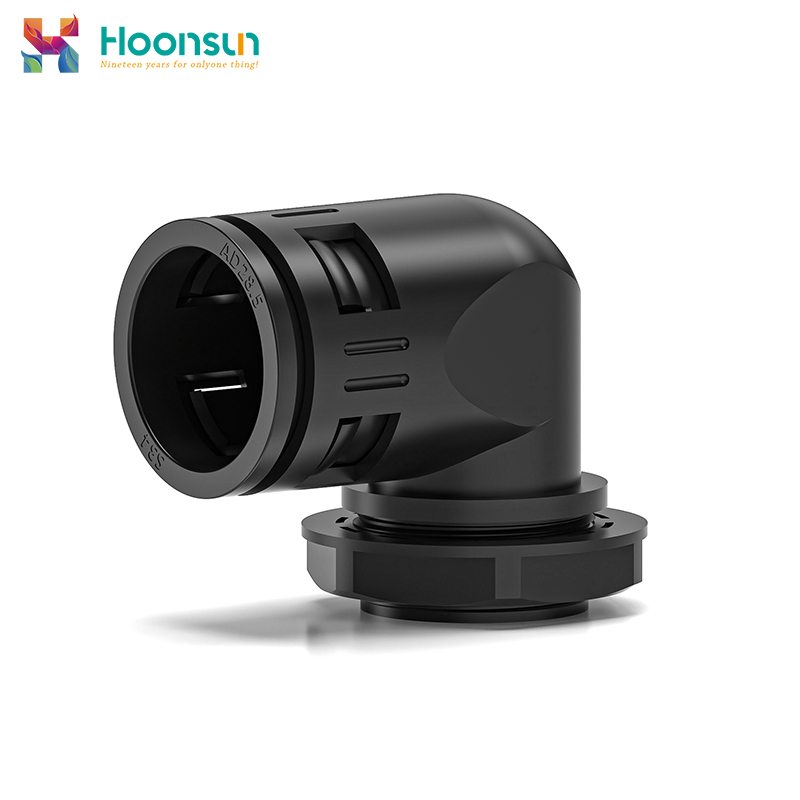

Hoonsun Waterproof cable gland Right Angle Union For Flexible Pipe

Hoonsun Waterproof cable gland Right Angle Union For Flexible Pipe

The Right Angle Union For Flexible Pipe for Flexible Conduit is designed for applications requiring enhanced cable protection and smooth conduit routing. Constructed from high-strength, flame-retardant PA66 nylon, it combines excellent flexibility, toughness, and environmental resistance, making it ideal for use in dynamic or high-movement cable systems.
Featuring a 90° anti-bending design, this connector effectively prevents cable kinking and excessive bending stress, extending the lifespan of cables in automation machinery, robotics, and electrical control systems. The built-in quick-lock mechanism allows for fast, tool-free installation, ensuring a secure and vibration-resistant fit between conduit and equipment housing.
The connector provides IP68 waterproof and dustproof protection, safeguarding cables from moisture, oil, and dust ingress. It also offers superior strain relief, ensuring cable stability in continuous-motion or high-vibration environments.
Available in Metric, PG, and NPT threads, it meets CE, UL, and RoHS standards, ensuring compatibility with global equipment requirements. The Nylon Anti-Bending Quick Connector represents a professional, reliable, and efficient solution for modern conduit management in industrial automation and smart manufacturing systems.

Key Features:
Anti-bending 90° structure for flexible routing
Quick installation with secure locking mechanism
IP68 waterproof and vibration-resistant design
Reinforced PA66 nylon, flame-retardant and durable
Suitable for dynamic and robotic applications
CE / UL / RoHS certified
