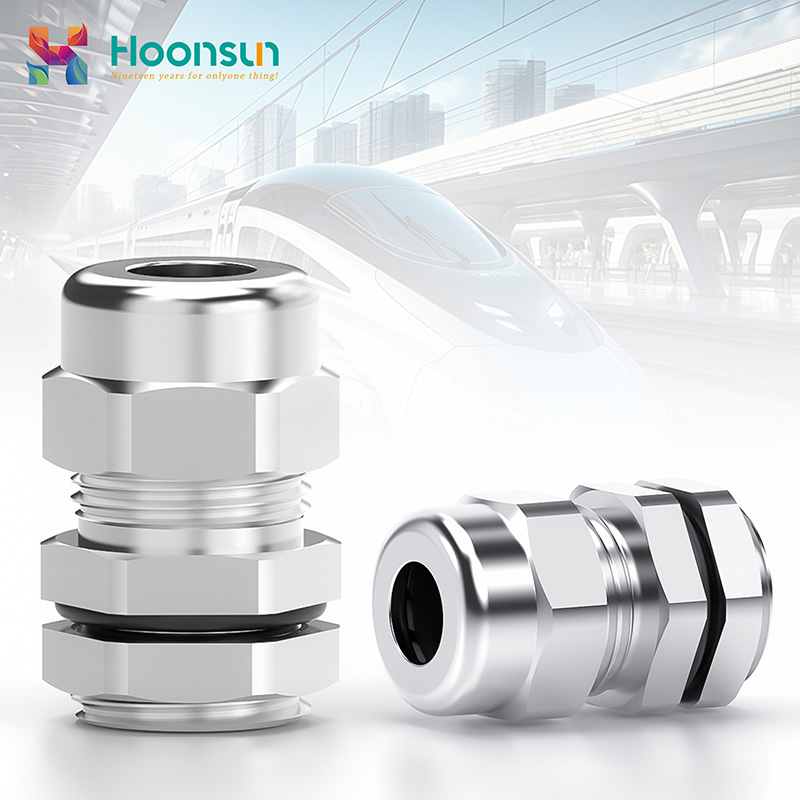

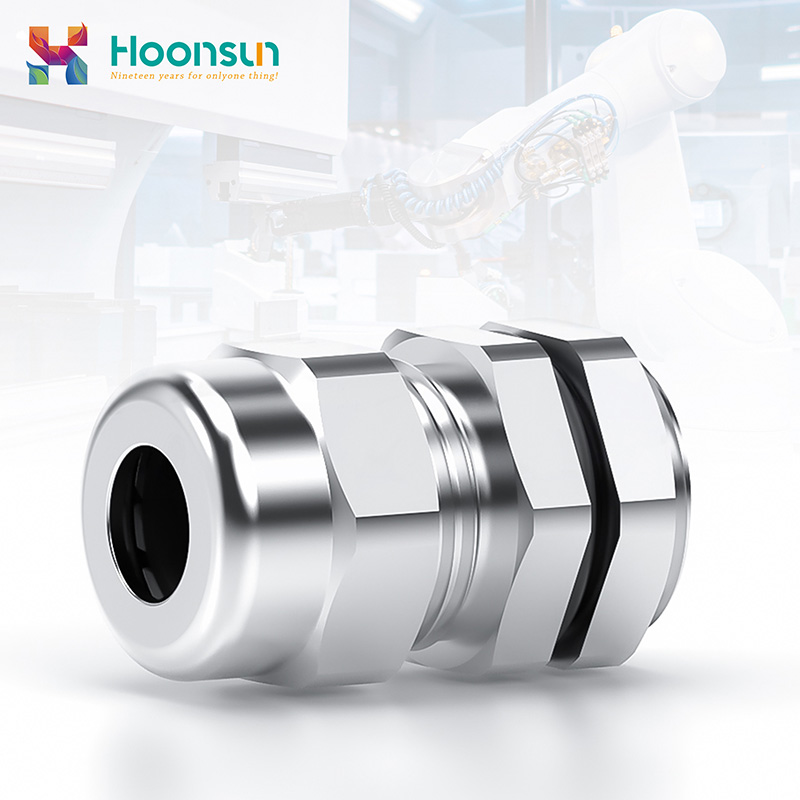

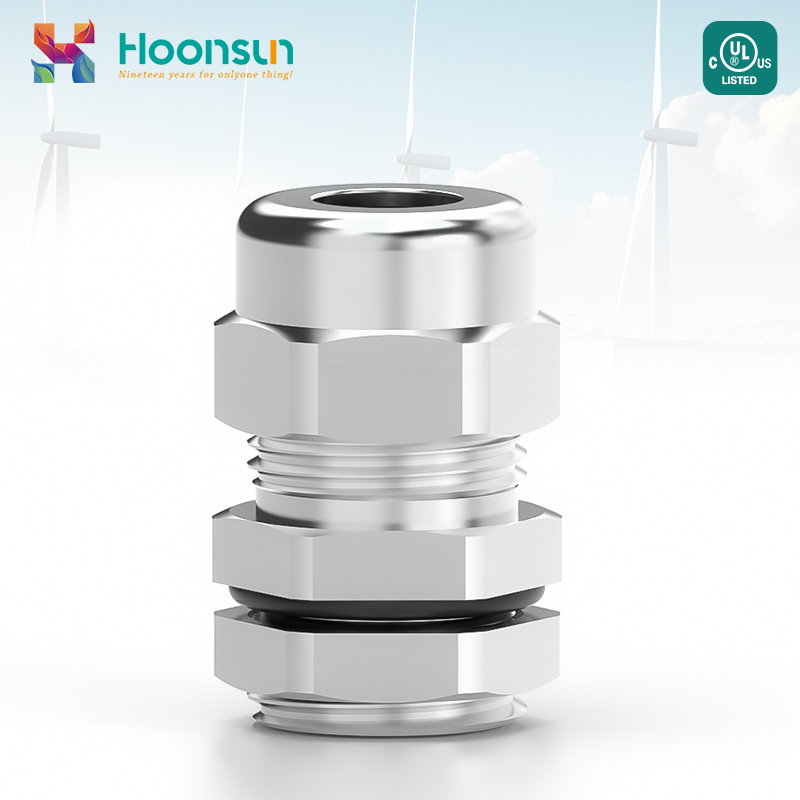

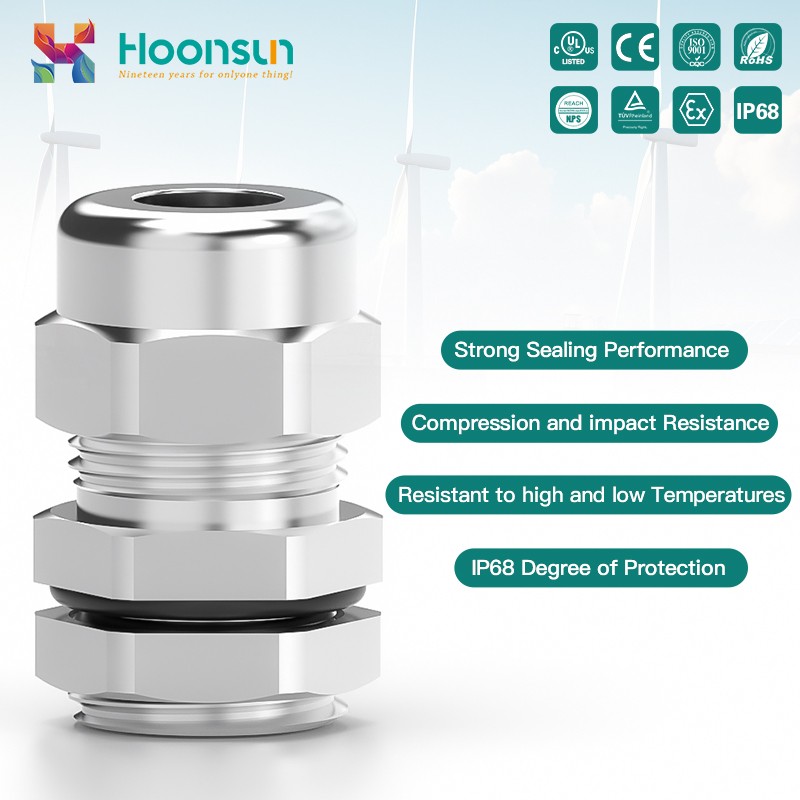

SS Cable Gland
Thread type : M/PG/NPT/G

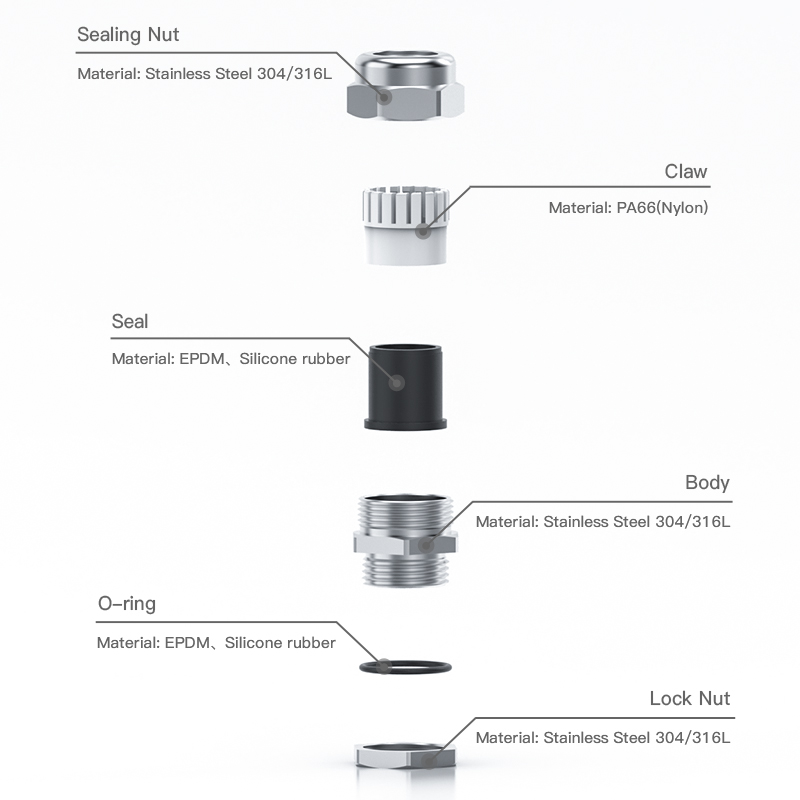

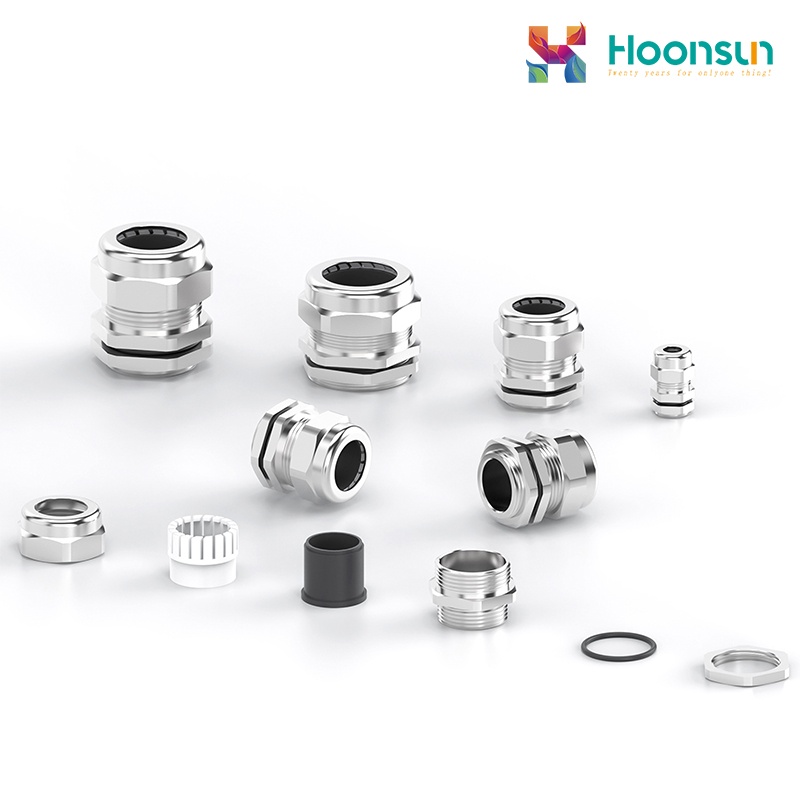

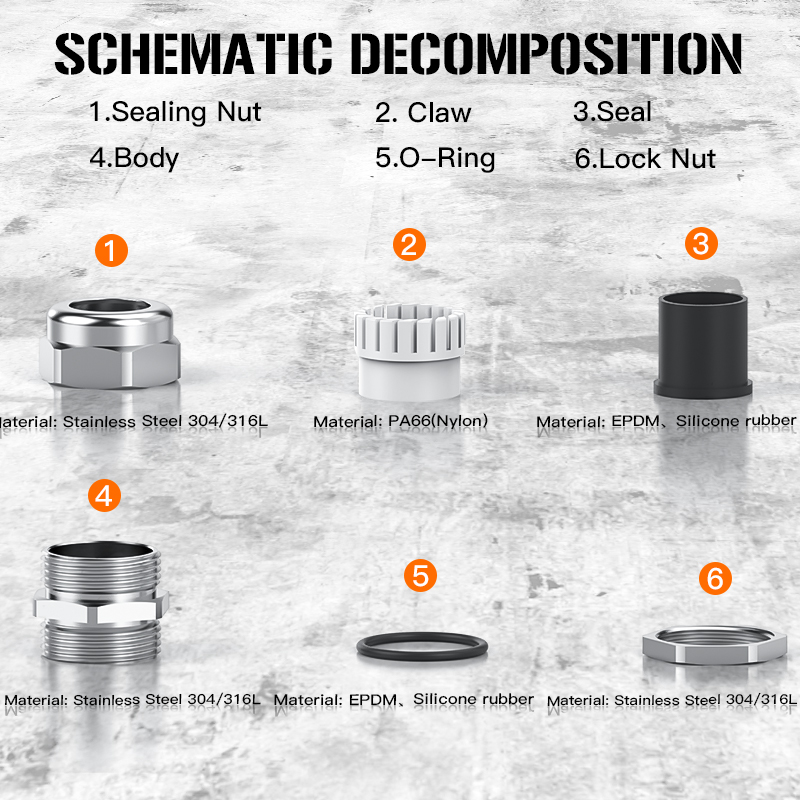

Material：SS304/SS316L
Claw：PA（Nylon），UL94-V2
Hermetic seal：NBR、Silicone rubber
O-Ring：NBR、Silicone rubber
Protection degree：IP68-10 bra

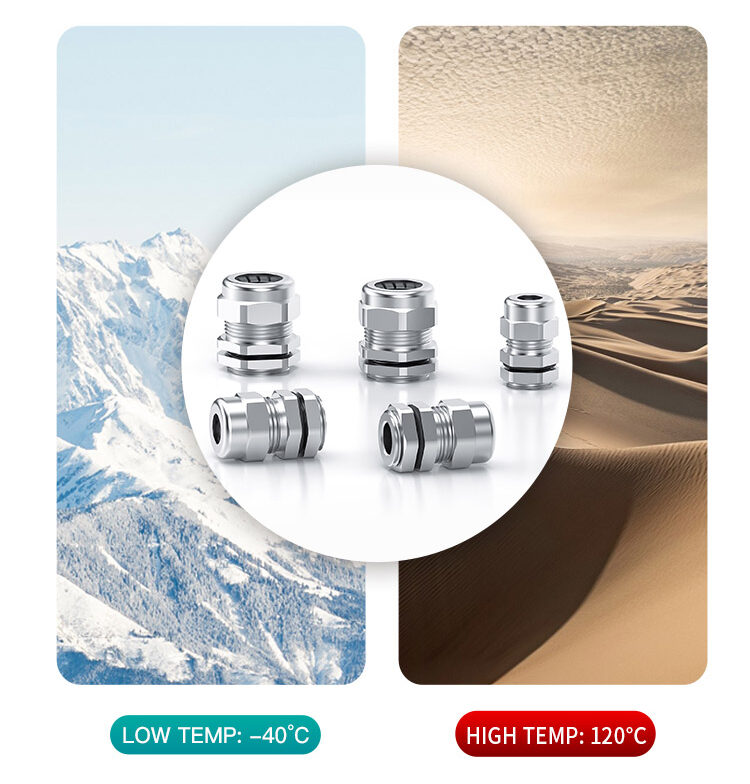

Temperature：Static state：-40℃ to 100℃
Dynamic state：-20℃ to 80℃
Products
Inquiry Now >
VIDEO

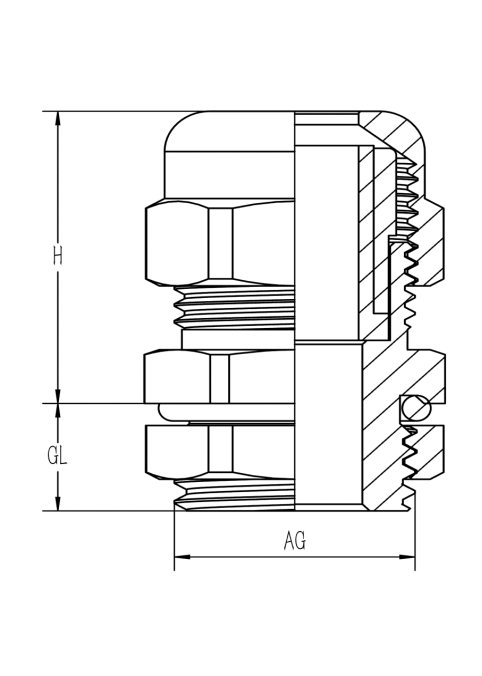

Dimension Drawing
Technical Parameter

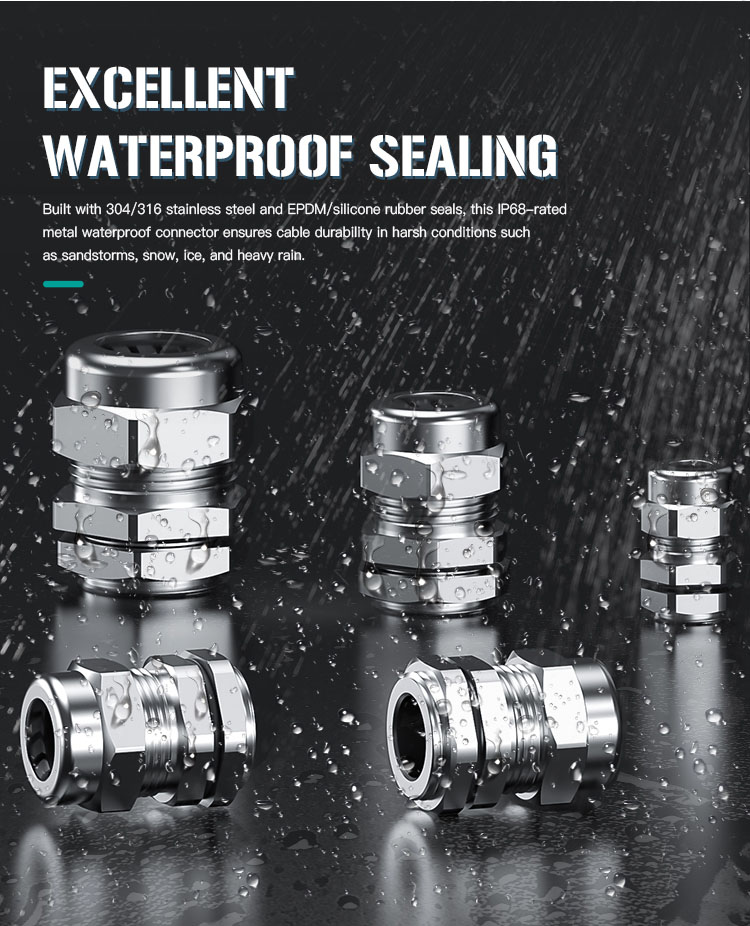

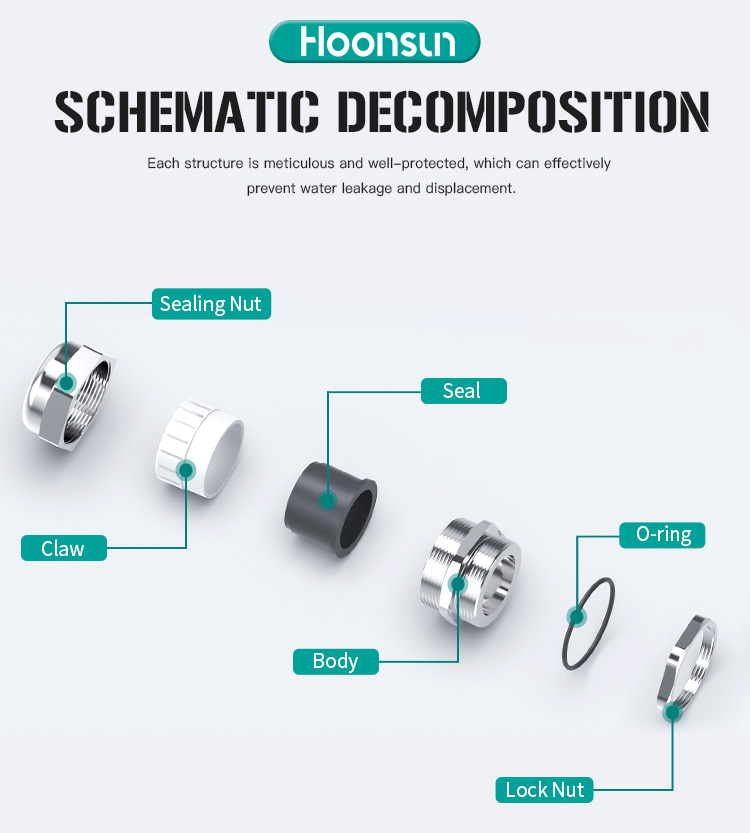

Stainless steel cable gland with clamping claws and sealing design, easy and quick installation through sealing nuts, cable clamping range, high tensile strength, waterproof, dustproof, salt-proof, acid and alkali resistance, corrosion resistance, alcohol resistance, resistance Grease and grease. The metric stainless steel fixing head can provide a controlled and complete seal against environmental displacement for the outer sheath of the cable. This minimizes damage to the cold flow characteristic cable. Stainless steel cable gland is also waterproof, without the need for additional sealing or waterproof casing.
Product features and advantages
- Stainless steel cable gland Uses with PVC/PVC PILC/PVC
- XPLE/PVC cables
- Stainless steel fire protection cover, refer to A2LF
- Suitable for unarmored cables
- Provide certification certificate when needed
Application
- In areas where mechanical and chemical stability are critical
- Chemical industry
- Measurement and control technology
- Machine and equipment manufacturing
- Plant engineering
- With reducing seal insert, to seal cables with smaller outer diameters.
Thread Type ：M
| Item | Range Φ mm |
Tread Length GL mm |
Thread O.D. AG mm |
Joint Length H mm |
Spanner size mm |
Code |
| M8×1 | 2-5 | 5 | 8 | 16 | 12 | HX-SSM8 |
| M10×1 | 3-6.5 | 7 | 10 | 19 | 14 | HX-SSM10 |
| M12×1.5 | 3-6.5 | 7 | 12 | 19 | 14 | HX-SSM12 |
| M12×1.5 | 4-8 | 8 | 12 | 19 | 17/14 | HX-SSM12-8 |
| M14×1.5 | 3-6 | 8 | 14 | 19 | 17 | HX-SSM14-6 |
| M14×1.5 | 4-8 | 8 | 14 | 19 | 17 | HX-SSM14 |
| M16×1.5 | 4-8 | 8 | 16 | 20 | 18 | HX-SSM16 |
| M16×1.5 | 5-10 | 8 | 16 | 21 | 20/18 | HX-SSM16-10 |
| M18×1.5 | 5-10 | 8 | 18 | 21 | 20/21 | HX-SSM18 |
| M18×1.5 | 6-12 | 8 | 18 | 22 | 22/20 | HX-SSM18-12 |
| M20×1.5 | 6-12 | 8 | 20 | 22 | 22 | HX-SSM20 |
| M20×1.5 | 10-14 | 8 | 20 | 23 | 24/22 | HX-SSM20-12 |
| M22×1.5 | 10-14 | 8 | 22 | 23 | 24 | HX-SSM22 |
| M22×1.5 | 12-16 | 8 | 22 | 23 | 27/24 | HX-SSM22-16 |
| M25×1.5 | 10-14 | 9 | 25 | 27 | 24/27 | HX-SSM25-14 |
| M25×1.5 | 12-16 | 9 | 25 | 27 | 27 | HX-SSM25-16 |
| M25×1.5 | 13-18 | 9 | 25 | 27 | 30/27 | HX-SSM25-18 |
| M27×1.5 | 13-18 | 9 | 27 | 27 | 30 | HX-SSM27 |
| M32×1.5 | 13-18 | 10 | 32 | 29 | 35 | HX-SSM32-18 |
| M32×1.5 | 15-22 | 10 | 32 | 29 | 35 | HX-SSM32 |
| M32×1.5 | 18-25 | 10 | 32 | 31 | 40/35 | HX-SSM32-25 |
| M36×1.5 | 15-22 | 10 | 36 | 31 | 40 | HX-SSM36-22 |
| M36×1.5 | 18-25 | 10 | 36 | 31 | 40 | HX-SSM36 |
| M40×1.5 | 18-25 | 11 | 40 | 31 | 40/45 | HX-SSM40-25 |
| M40×1.5 | 22-30 | 11 | 40 | 35 | 45 | HX-SSM40-30 |
| M40×1.5 | 25-33 | 11 | 40 | 37 | 50/45 | HX-SSM40-33 |
| M47×1.5 | 25-33 | 11 | 47 | 37 | 50 | HX-SSM47 |
| M50×1.5 | 32-38 | 12 | 50 | 37 | 57/55 | HX-SSM50 |
| M50×1.5 | 37-44 | 13 | 50 | 38 | 64/55 | HX-SSM50-44 |
| M60×1.5 | 37-44 | 13 | 60 | 38 | 65 | HX-SSM60 |
| M63×1.5 | 37-44 | 13 | 63 | 38 | 64/68 | HX-SSM63 |
| M63×1.5 | 42-52 | 13 | 63 | 42 | 78/68 | HX-SSM63-52 |
| M72×2 | 42-52 | 15 | 72 | 42 | 76/80 | HX-SSM72 |
Thread Type ：PG
| Item | Range | Tread Length | Thread O.D. | Joint Length | Spanner size | Code |
| Φ mm | GL mm | AG mm | H mm | mm | ||
| PG7 | 3-6.5 | 7 | 12.5 | 19 | 14/15 | HX-SSPG7 |
| PG9 | 4-8 | 8 | 15.2 | 20 | 17/18 | HX-SSPG9 |
| PG11 | 5-10 | 8 | 18.6 | 21 | 20/21 | HX-SSPG11 |
| PG13.5 | 6-12 | 8 | 20.4 | 22 | 22/23 | HX-SSPG13.5 |
| PG16 | 10-14 | 8 | 22.5 | 23 | 24/25 | HX-SSPG16 |
| PG21 | 13-18 | 9 | 28.3 | 27 | 30 | HX-SSPG21 |
| PG29 | 18-25 | 10 | 37 | 31 | 40 | HX-SSPG29 |
| PG36 | 25-33 | 11 | 47 | 37 | 50 | HX-SSPG36 |
| PG42 | 32-38 | 13 | 54 | 38 | 60 | HX-SSPG42 |
| PG48 | 37-44 | 14 | 59.3 | 38 | 65 | HX-SSPG48 |
| PG63 | 42-52 | 16 | 72 | 42 | 76/80 | HX-SSPG63 |
Thread Type ：G/NPT
| Item | Range | Tread Length | Thread O.D. | Joint Length | Spanner size | Code |
| Φ mm | GL mm | AG mm | H mm | mm | ||
| G1/4 | 3-6.5 | 7 | 19 | 13.1 | 14 | HX-SSG1/4 |
| G3/8 | 4-8 | 8 | 21 | 16.6 | 17/20 | HX-SSG3/8 |
| G1/2 | 6-12 | 8 | 22 | 20.9 | 22/23 | HX-SSG1/2 |
| G3/4 | 13-18 | 9 | 25 | 26.4 | 30 | HX-SSG3/4 |
| G1 | 18-25 | 10 | 29 | 32.2 | 40 | HX-SSG1/2 |
| G1-1/4 | 25-33 | 11 | 35 | 41.9 | 50 | HX-NPG1-1/4 |
| G1-1/2 | 32-38 | 12 | 37 | 47.8 | 57/55 | HX-NPG1-1/2 |
| G2 | 37-44 | 14 | 38 | 59.6 | 65 | HX-NPG2 |
| G2-1/2 | 42-52 | 16 | 42 | 75.1 | 78 | HX-NPG2-1/2 |
| G3 | 65-70 | 18 | 45 | 88 | 94 | HX-NPG3 |
| NPT1/4 | 3-6.5 | 11 | 19 | 13.6 | 14 | HX-SSNPT1/4 |
| NPT3/8 | 4-8 | 11 | 21 | 17 | 17/20 | HX-SSNPT3/8 |
| NPT1/2 | 6-12 | 13 | 23.5 | 21.2 | 22/24 | HX-SSNPT1/2 |
| NPT3/4 | 13-18 | 13 | 26 | 26.5 | 30 | HX-SSNPT3/4 |
| NPT1 | 18-25 | 16 | 33 | 33.2 | 40 | HX-SSNPT1 |
| NPT1-1/4 | 22-32 | 16 | 37.5 | 41.9 | 50 | HX-SSNPT1 1/4 |
| NPT1-1/2 | 30-38 | 18 | 38.5 | 48 | 55/58 | HX-SSNPT1 1/2 |
| NPT2 | 37-44 | 18 | 40 | 60 | 65 | HX-SSNPT2 |
| NPT2-1/2 | 42-52 | 18 | 40 | 72.6 | 77 | HX-SSNPT2-1/2 |
| NPT3 | 55-61 | 18 | 41 | 88.6 | 94 | HX-SSNPT3 |
