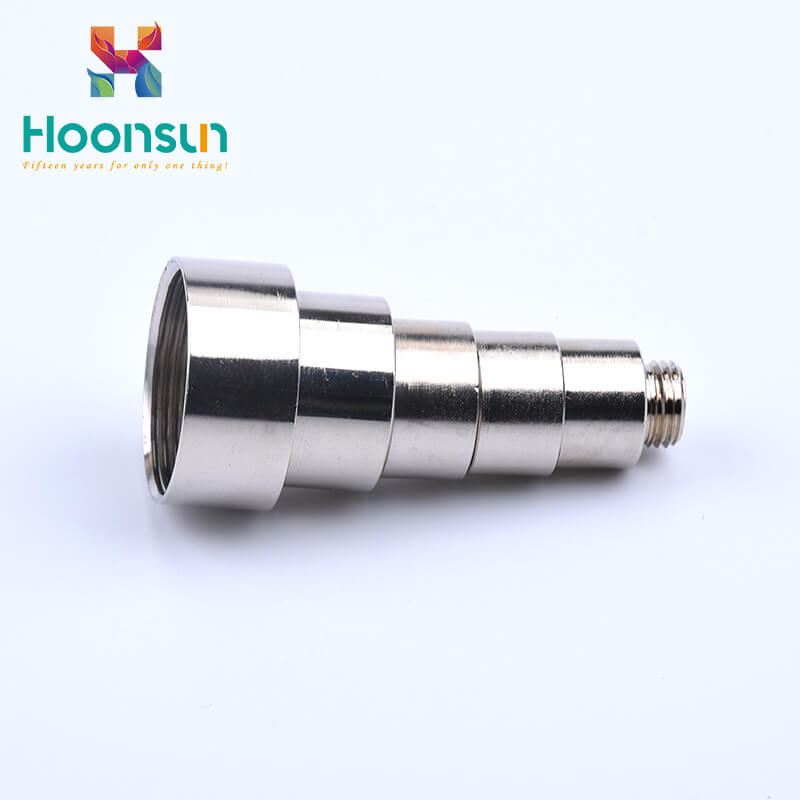

Metal Enlarger-HX
Material：Nickel-plated brass
O-Ring：NBR、Silicone rubber
Protection degree：IP54
Temperature：Static state：-40℃ to 100℃,short time to 120℃
Products
Inquiry Now >
VIDEO
Dimension Drawing
Technical Parameter
Thread Type ：M
| Item | Thread | Thread Length | Joint Length | Spanner size | Code | |
| Outer（mm） | Inner（mm） | GL（mm） | H（mm） | （mm） | ||
| M12-M16 | M12×1.5 | M16×1.5 | 5 | 10.5 | 18 | HX-REM12-M16 |
| M16-M20 | M16×1.5 | M20×1.5 | 5 | 10.5 | 22 | HX-REM16-M20 |
| M20-M25 | M20×1.5 | M25×1.5 | 6 | 11.5 | 27 | HX-REM20-M25 |
| M25-M32 | M25×1.5 | M32×1.5 | 7 | 12 | 34 | HX-REM25-M32 |
| M32-M40 | M32×1.5 | M40×1.5 | 7 | 13 | 42 | HX-REM32-M40 |
| M40-M50 | M40×1.5 | M50×1.5 | 8 | 16 | 52 | HX-REM40-M50 |
| M50-M63 | M50×1.5 | M63×1.5 | 9 | 17 | 66 | HX-REM50-M63 |
Thread Type ：PG
| Item | Thread | Thread Length | Joint Length | Spanner size（mm） | Code | |
| Outer（mm） | Inner（mm） | GL（mm） | H（mm） | |||
| PG7-PG9 | PG7 | PG9 | 6 | 10.5 | 17 | HX-REPG7-PG9 |
| PG9-PG11 | PG9 | PG11 | 6.5 | 10.5 | 20 | HX-REPG9-PG11 |
| PG11-PG13.5 | PG11 | PG13.5 | 6.5 | 10.5 | 22 | HX-REPG11-PG13.5 |
| PG13.5-PG16 | PG13.5 | PG16 | 6.5 | 11 | 24 | HX-REPG13.5-PG16 |
| PG16-PG21 | PG16 | PG21 | 7.5 | 11 | 30 | HX-REPG16-PG21 |
| PG21-PG29 | PG21 | PG29 | 8 | 11 | 39 | HX-REPG21-PG29 |
| PG29-PG36 | PG29 | PG36 | 9 | 13 | 50 | HX-REPG29-PG36 |
| PG36-PG42 | PG36 | PG42 | 10 | 15 | 57 | HX-REPG36-PG42 |
| PG42-PG48 | PG42 | PG48 | 10 | 16 | 64 | HX-REPG42-PG48 |
