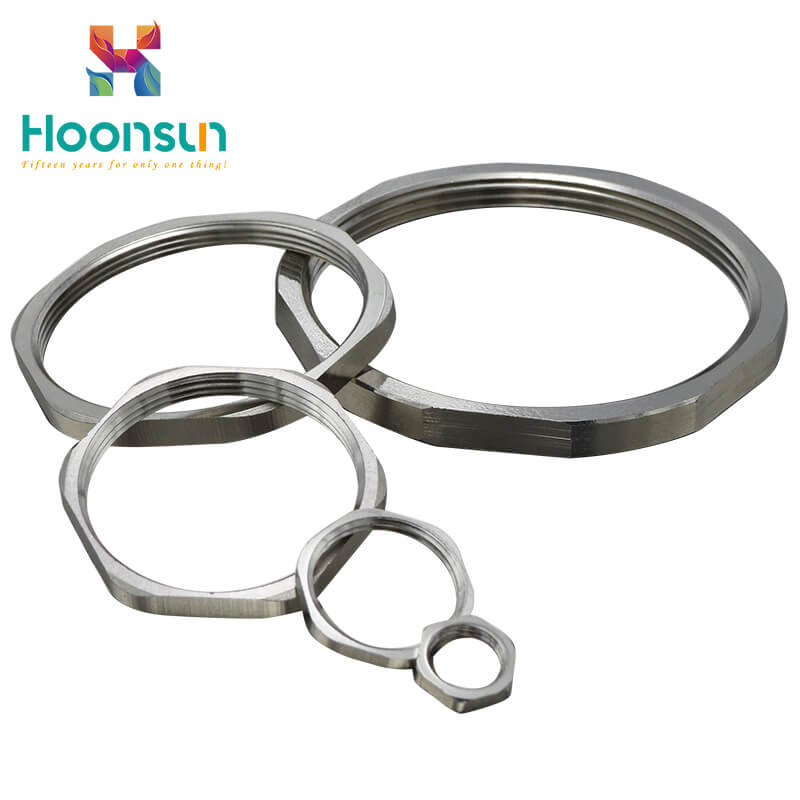

Locknut-HX

Material:Brass,nickel plated

Application:For use with most electrical fittings

Inquiry Now >

VIDEO

video video

Dimension Drawing

Locknut-HX

Technical Parameter

Item Code Thickness Spanner size Item Code Thickness Spanner size
H S H S
M12*1.5 HX-LNM12 3 14 PG7 HX-LNPG7 3 15
M14*1.5 HX-LNM14 3 17 PG9 HX-LNPG9 3 18
M16*1.5 HX-LNM16 3 18 PG11 HX-LNPG11 3 21
M18*1.5 HX-LNM18 3 20 PG13.5 HX-LNPG13.5 3 23
M20*1.5 HX-LNM20 3 22 PG16 HX-LNPG16 3.2 25
M22*1.5 HX-LNM22 3.2 24 PG19 HX-LNP19 3.5 27
M24*1.5 HX-LNM24 3.5 27 PG21 HX-LNPG21 4 30
M25*1.5 HX-LNM25 3.5 27 PG25 HX-LNPG25 4 35
M27*1.5 HX-LNM27 4 30 PG29 HX-LNPG29 4 40
M30*1.5 HX-LNM30 4 32 PG36 HX-LNPG36 5.5 50
M32*1.5 HX-LNM32 4 35 PG42 HX-LNPG42 6 57
M33*1.5 HX-LNM33 4 36 PG48 HX-LNPG48 6.5 64
M36*1.5 HX-LNM36 4 40 PG63 HX-LNPG63 8.5 78
M37*1.5 HX-LNM37 4 40 G1/2 HX-LNG1/2 3 23
M40*1.5 HX-LNM40 4.5 45 G3/4 HX-LNG3/4 4 30
M42*1.5 HX-LNM42 5 45 G1 HX-LNG1 4 40
M47*1.5 HX-LNM47 5.5 50 G1-1/4 HX-LNG1-1/4 5.5 50
M48*1.5 HX-LNM48 5.5 52 G1-1/2 HX-LNG1-1/2 5.5 57
M50*1.5 HX-LNM50 5.5 55 G2 HX-LNG2 6 64
M54*1.5 HX-LNM54 5.5 57 G2-1/2 HX-LNG2-1/2 8.5 78
M60*1.5 HX-LNM60 6 64 G3 HX-LNG3 9 94
M63*1.5 HX-LNM63 6 68 NPT1/2 HX-LNNPT1/2 3 23
M64*2 HX-LNM64 6 68 NPT3/4 HX-LNNPT3/4 4 30
M72*2 HX-LNM72 8.5 78 NPT1 HX-LNNPT1 4 40
M75*2 HX-LNM75 8.5 78 NPT1-1/4 HX-LNNPT1-1/4 5.5 50
M80*2 HX-LNM80 9 88 NPT1-1/2 HX-LNNPT1-1/2 5.5 57
M88*2 HX-LNM88 9 94 NPT2 HX-LNNPT2 6 64
M100*2 HX-LNM100 9 110 NPT2-1/2 HX-LNNPT2-1/2 8.5 78
NPT3 HX-LNNPT3 9 94
