  • Hose Fitting

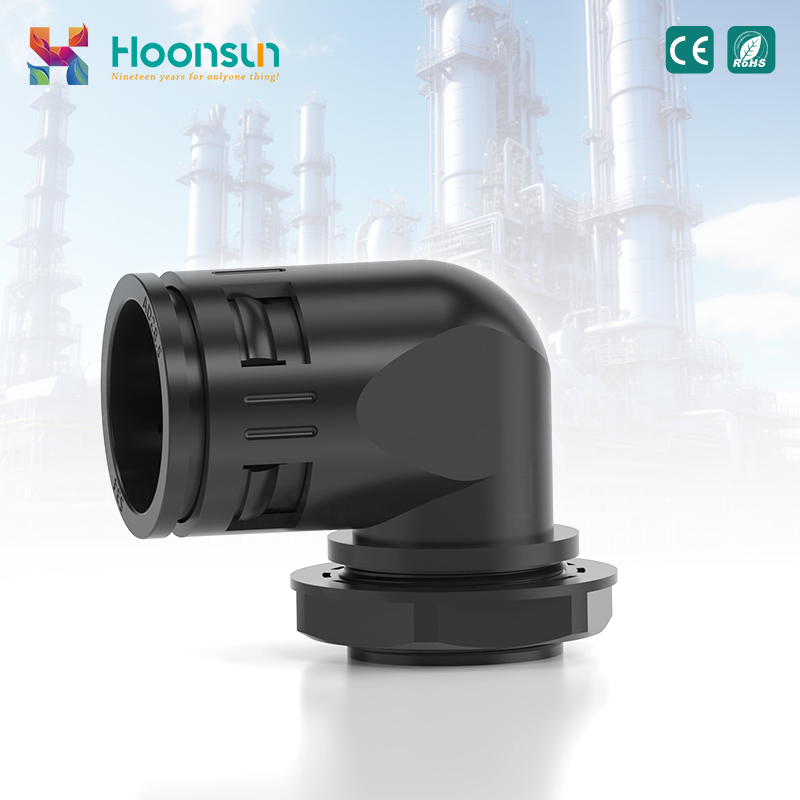

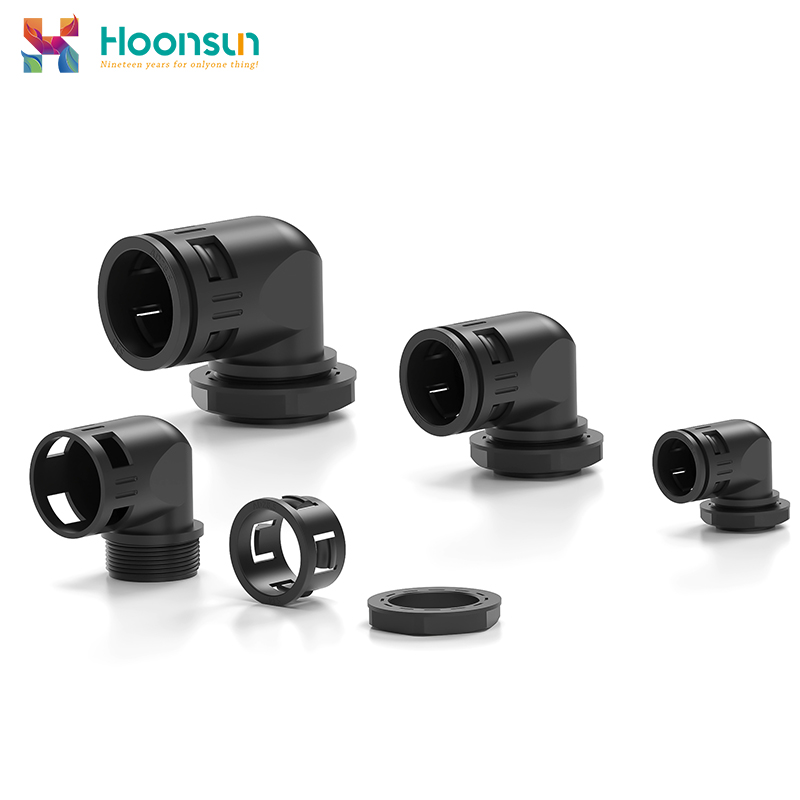

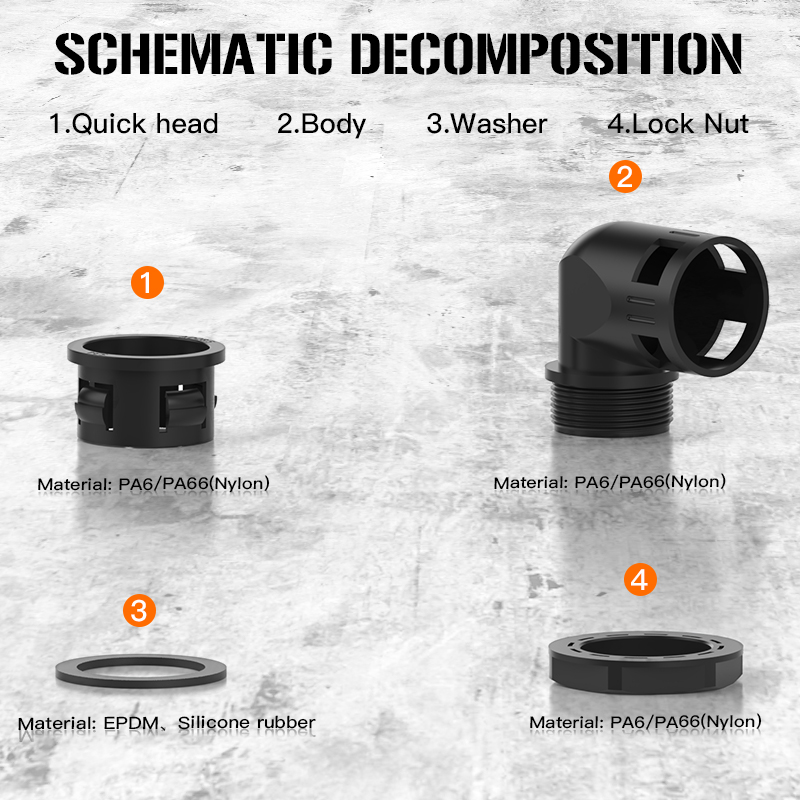

  • Right Angle Union For Flexible Pipe

    Material:PA(NYLON),UL 94 V-2

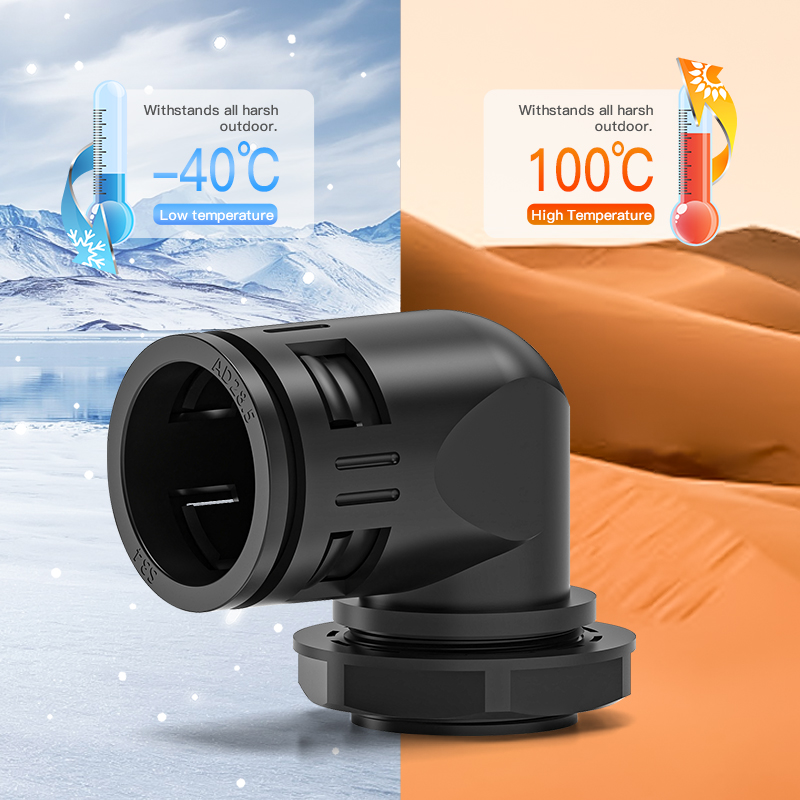

    Temperature:Static state:-40℃ to 100℃,short time to 120℃

    Dynamic state:-20℃ to 80℃, short time to 100℃

    Color customization: Grey,Black,other color customized

    Inquiry Now >

    VIDEO

    video video

    Dimension Drawing

    Right Angle Union For Flexible Pipe

    Technical Parameter

    Thread Type :M

    Item Conduit size Thread OD Thread length Code
    M12×1.5 AD10.0 12 10 HX-NLFM12-10
    M16×1.5 AD13.0 16 11.5 HX-NLFM16-13
    M16×1.5 AD15.8 16 12 HX-NLFM16-15.8
    M20×1.5 AD18.5 20 12 HX-NLFM20-18.5
    M20×1.5 AD21.2 20 13 HX-NLFM20-21.2
    M25×1.5 AD25.0 25 13 HX-NLFM25-25
    M25×1.5 AD28.5 25 13 HX-NLFM25-28.5
    M32×1.5 AD34.5 32 15 HX-NLFM32-34.5
    M40×1.5 AD42.5 40 15 HX-NLFM40-42.5
    M50×1.5 AD54.5 50 15 HX-NLFM50-54.5



    Thread Type :PG

    Item Conduit size Thread OD Thread length Code
    PG7 AD10.0 12.3 10 HX-NLFPG7-10
    PG9 AD13.0 15 11.5 HX-NLFPG9-13
    PG11 AD15.8 18.4 12 HX-NLFPG11-15.8
    PG13.5 AD18.5 20.4 12 HX-NLFPG13.5-18.5
    PG16 AD21.2 22.3 13 HX-NLFPG16-21.2
    PG19 AD25.0 25 13 HX-NLFPG19-25
    PG21 AD28.5 28 13 HX-NLFPG21-28.5
    PG29 AD34.5 36.7 15 HX-NLFPG29-34.5
    PG36 AD42.5 46.7 15 HX-NLFPG36-42.5
    PG48 AD54.5 59 16 HX-NLFPG48-54.5
