Waterproof IP68 Brass Cable Gland – Certified Safety and Superior Reliability

HX Cable Gland presents its high-performance Waterproof IP68 Brass Cable Gland, expertly engineered to deliver maximum protection in harsh and demanding environments. Crafted from premium brass material and tested to meet IP68 waterproof standards, this cable gland offers superior sealing performance that withstands dust, water immersion, and mechanical stress.

Backed by RoHS, CE, REACH, and ISO certifications, this gland is a trusted solution for industries requiring strict compliance and reliability. The modular tightening cap design enables flexible customisation across diverse applications, without changing the core components. It’s the perfect fit for mechanical automation systems, electrical enclosures, marine installations, and industrial control panels.

Key Features:

IP68 Waterproof Rating: Ensures long-term stability in wet and dusty environments

Robust Brass Construction: Corrosion-resistant and mechanically strong

RoHS & ISO Certified: Complies with international safety and environmental standards

Customizable Tightening Cap: Adaptable to varied applications without replacing the gland body

Wide Application Range: Suitable for automation, machinery, marine, and renewable energy industries

Choose HX Cable Gland’s waterproof brass cable gland to ensure safety, longevity, and certified quality across your critical systems.

Thread Specification

This metal double locking cable gland features metric threads ranging from M8 to M63 in standard configurations. To accommodate heavy-duty and large-scale industrial applications, we have extended the range to include super-sized models from M64 to M120.

Materials

• Body: High-quality brass
• Seal Components: Nylon PA66, NBR (nitrile rubber), and silicone rubber
• Surface Treatment: Nickel-plated for enhanced corrosion resistance

Protection & Certification

• Waterproof Rating: IP68 – 10 bar, ensuring excellent resistance to water and dust
• Compliance: Fully certified with CE, RoHS, and REACH standards

Product Features

• High-performance waterproof, dustproof, and corrosion-resistant construction
• Wide clamping range and strong tensile resistance

Reliable sealing performance under harsh conditions such as humidity, salt spray, and acid/alkaline environments
High mechanical strength and long-term durability

Applications

This metal waterproof cable gland is ideal for a wide range of electrical and industrial installations, including:

• LED lighting systems and circuit cable layout
• Electric enclosures and junction boxes
• Manufacturing equipment and robotics cable routing
• EV charging piles, wind power, and solar energy systems

General-purpose use in machinery, automation, marine, oil & gas, nuclear energy, aerospace, and more

Installation & Function

Designed to secure and seal cables, the metal cable gland ensures stable connections in industrial environments. The gland locks the cable on one end, while the other end connects to an equipment panel, junction box, or threaded port.

Primary functions include:

• Maintaining the continuity and integrity of the cable
• Ensuring airtight and waterproof sealing
• Preserving the insulation level of the cable system
• Preventing oil leakage, moisture ingress, and insulation degradation—critical to safe operation

Product Variants

Based on material and function, our cable glands are classified as:

By Material:

• Nylon Cable Glands
• Metal Cable Glands: Brass, Stainless Steel, Zinc Alloy

By Function:

• Waterproof Cable Glands
• Explosion-Proof Cable Glands
• Anti-Bending Glands
• Double Locking Glands
• Plastic Hose & Metal Hose Cable Glands
• Marine Stuffing Boxes

The Large‑Range Brass Cable Gland from HXCableGland delivers versatile and reliable cable sealing solutions for heavy-duty industrial applications:

Premium Construction: CNC-machined, nickel-plated brass body ensures rugged mechanical strength, corrosion resistance, and excellent electrical conductivity

Wide Clamping Flexibility: Available in both M and PG threads, with flexible cable clamping ranges supporting a broad spectrum of diameters—from M12 (4–62 mm) to PG48 (42–52 mm)

Superior IP68 Sealing: Equipped with NBR or silicone O-rings and PA (Nylon UL94‑V2) claws to provide robust waterproofing and dust protection to 10 bar pressure, suitable for static (–40 °C to 100 °C) and dynamic (–20 °C to 80 °C) conditions

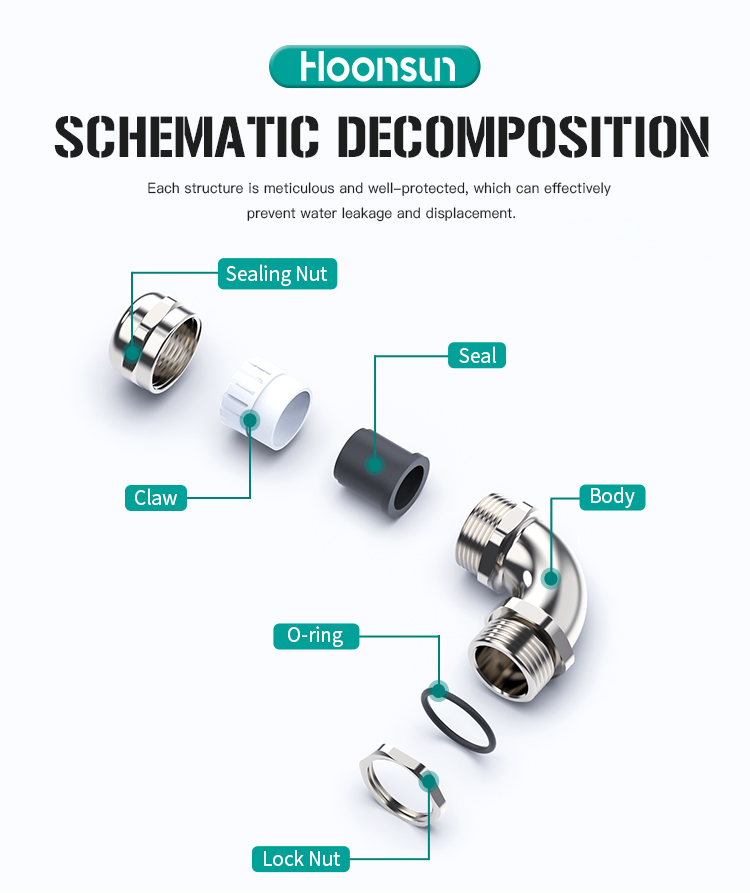

Reliable Installation: Composed of four components (body, sealing ring, clamping claw, and nut), offering a tight, reliable seal with strong strain relief that resists mechanical stress and vibrations

Industrial-Grade Quality: Free from recycled materials; nickel-plated finish resists rust, dust, and corrosion. Ideal for food & beverage, marine, renewable energy, robotics, rail transit, telecom and more

Why Choose the Large‑Range Version?

It’s tailored for evolving installations: accommodates thicker or multiple cables, reduces SKU complexity, and simplifies field assembly—all while delivering signature M‑/PG‑thread compatibility and IP68 protection.

Product application: The direct brass cable gland is an accessory that connects the cable to the power supply, and can fix the cable so that it will not escape. Cable gland devices are divided into different categories, depending on whether the gland is used for general industrial work or requires protection against high temperature or explosion hazards.

Product packaging materials: Suitable cable glands can be armoured or unarmoured. Each type of packing requires a different type of stuffing box. The stuffing box itself can be made of metal, such as brass, aluminium, or plastic; each material is useful in different environments. But the sealing sleeve needs a high degree of protection and maintenance to ensure the safety of the wire. Most direct brass cable gland sealing devices are made of brass, which is considered a general-purpose material that is corrosion-resistant and conductive.

The Metal Tubular Cable Gland is a compact, miniature solution within our gland series, designed with a metric thread comparable to other thread types. It offers exceptional strain relief and an IP68 waterproof rating, tested up to 10 bar. Its space-saving design ensures seamless cable installation in tight or confined areas.

Using method: The Metal Tubular Cable Gland waterproof connector is designed to secure cables while providing reliable sealing. One end locks the cable firmly, while the other connects to an equipment box or an electrical device with an internal thread at the inlet or outlet. Thread type selection should match the application requirements.

Product features and advantages

Nickel-Plated Brass Body: Durable, corrosion-resistant construction for extended lifespan in humid environments.

Nylon Plastic (PA) Clamping Component: Ensures secure cable locking and insulation.

Thread Options: Short Thread Ideal for thin panels or internal-thread openings. Long Thread Perfect for thicker panels; custom extended thread lengths available on request.

Temperature Resistance: Operates efficiently in a static temperature range of -40°C to +100°C, suitable for harsh environments.

Sealing Versatility: Can accommodate cables with smaller outer diameters using a reducing seal insert.

Application

The small-sized brass cable gland is a versatile solution suited for various industries and demanding environments:

• Chemical Industry
• Measurement and Control Technology
• Machinery and Equipment Manufacturing
• Plant Engineering
• Renewable Energy Systems
• Telecommunications
• Marine and Offshore Applications
• Aerospace and Defence
• Food and Beverage Industry
• Healthcare and Pharmaceuticals

This product is engineered to deliver top performance in environments that demand both durability and precision.
