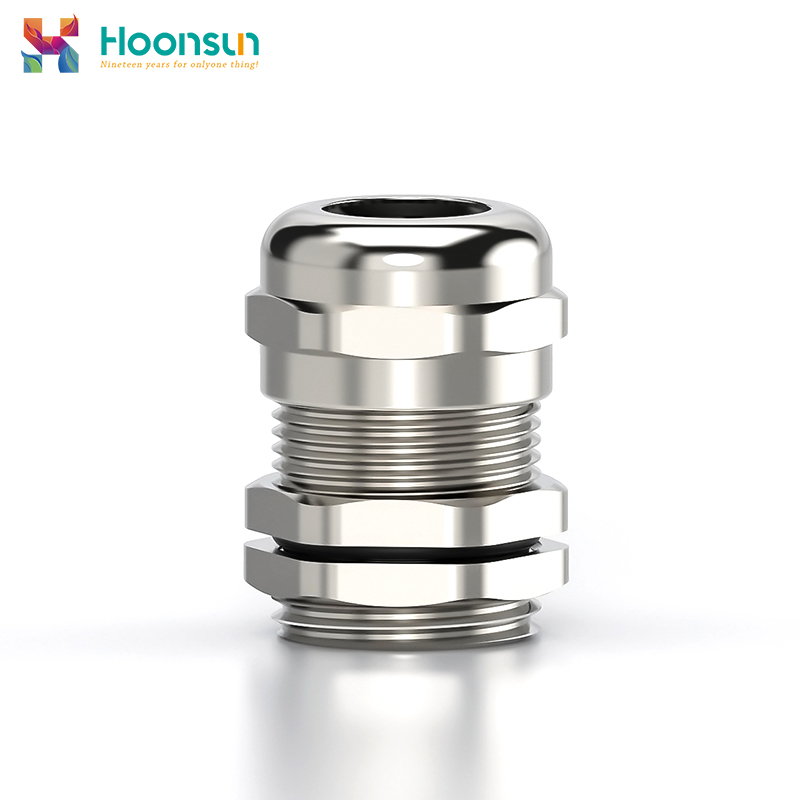

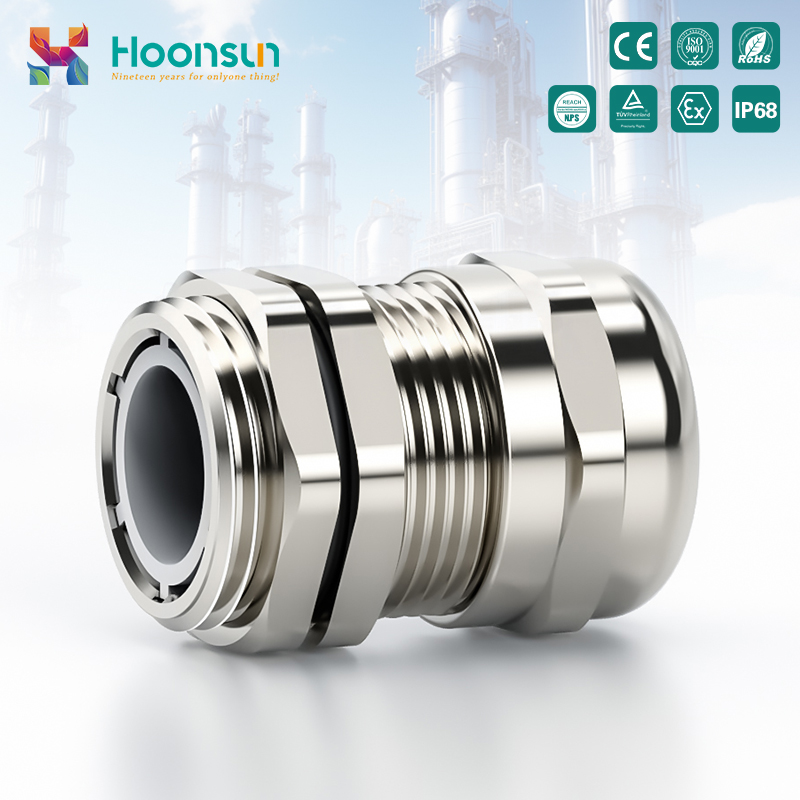

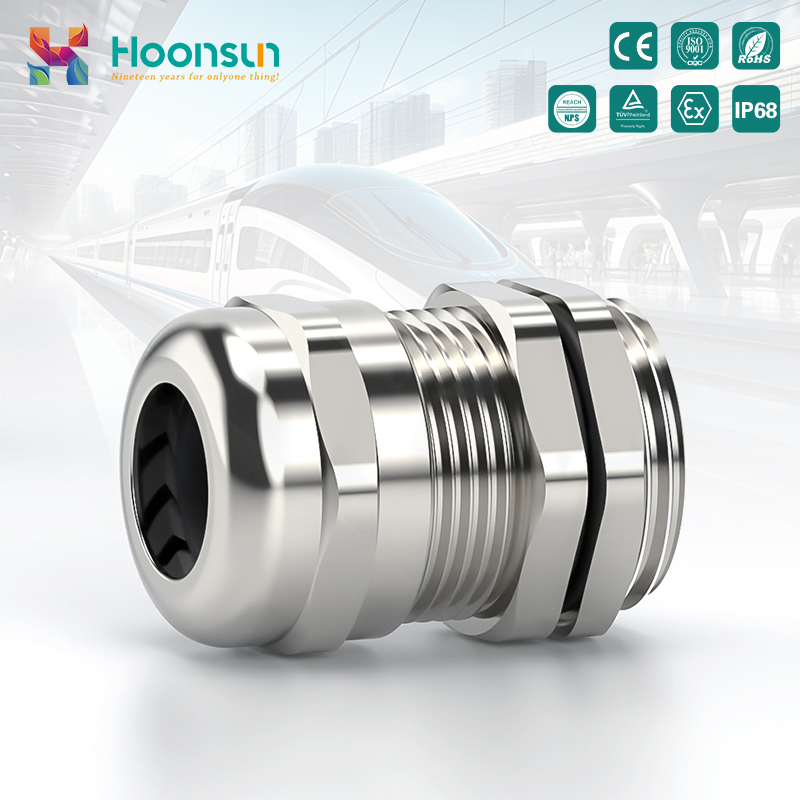

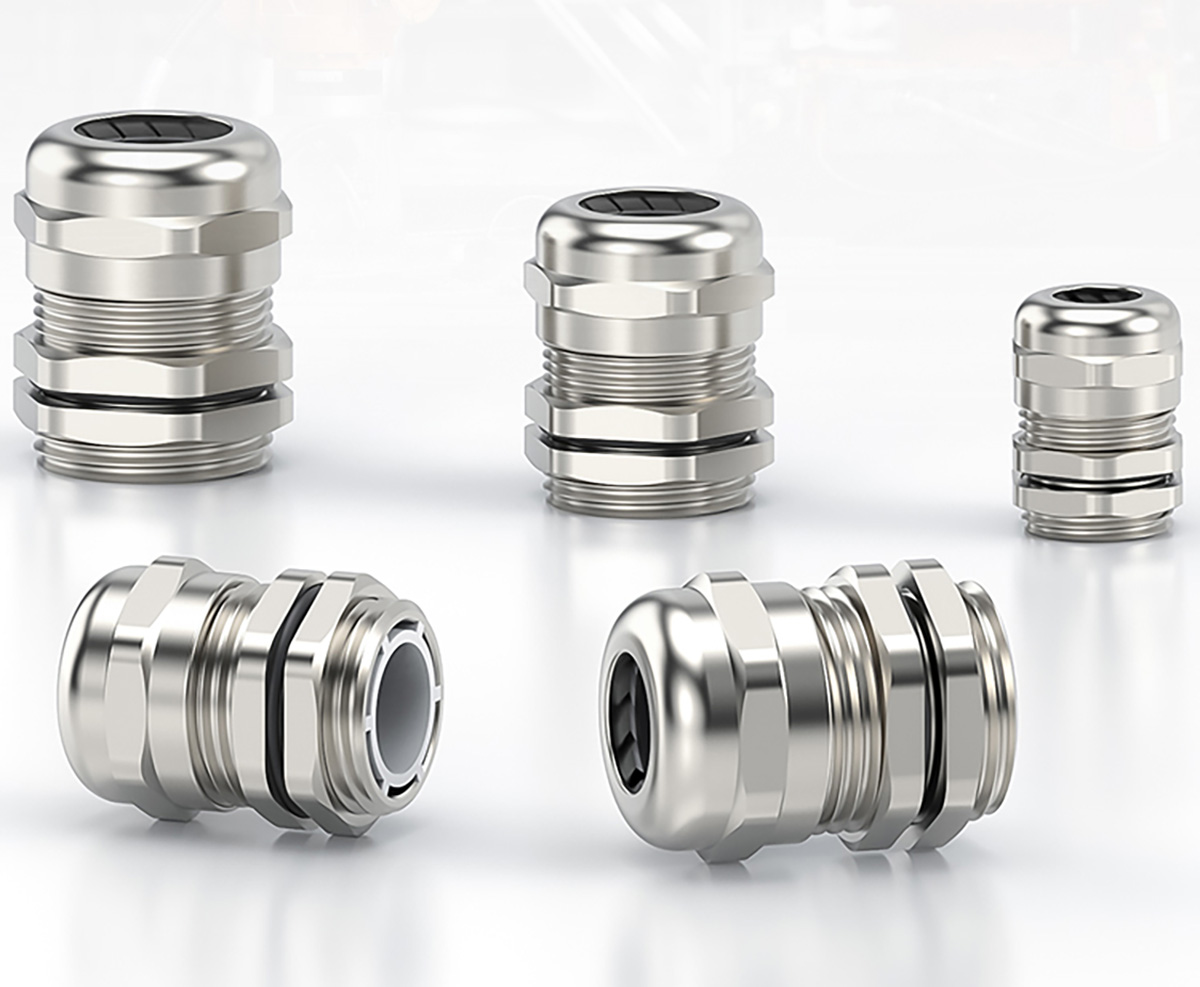

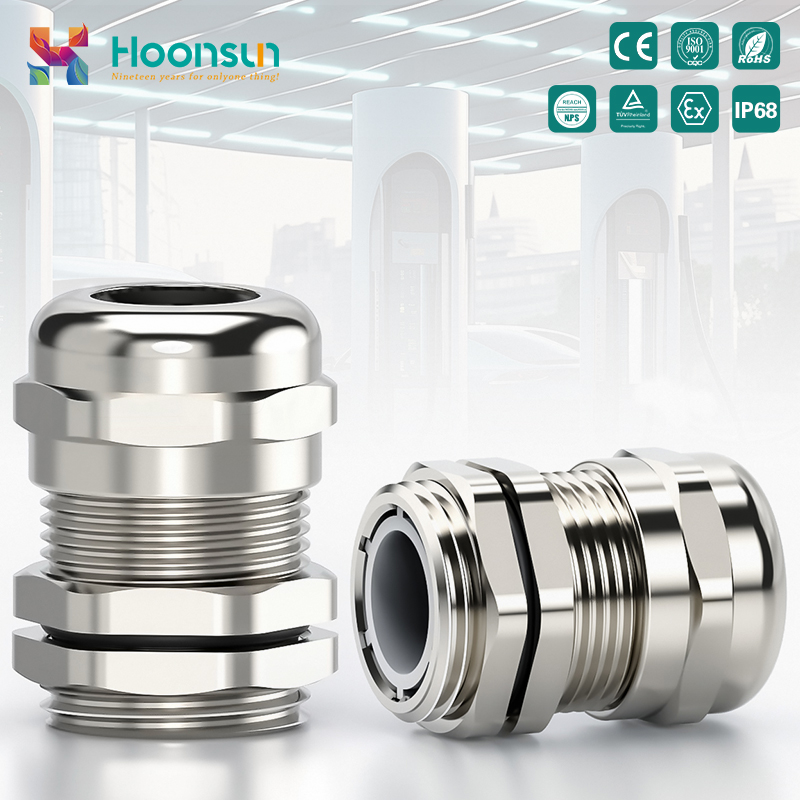

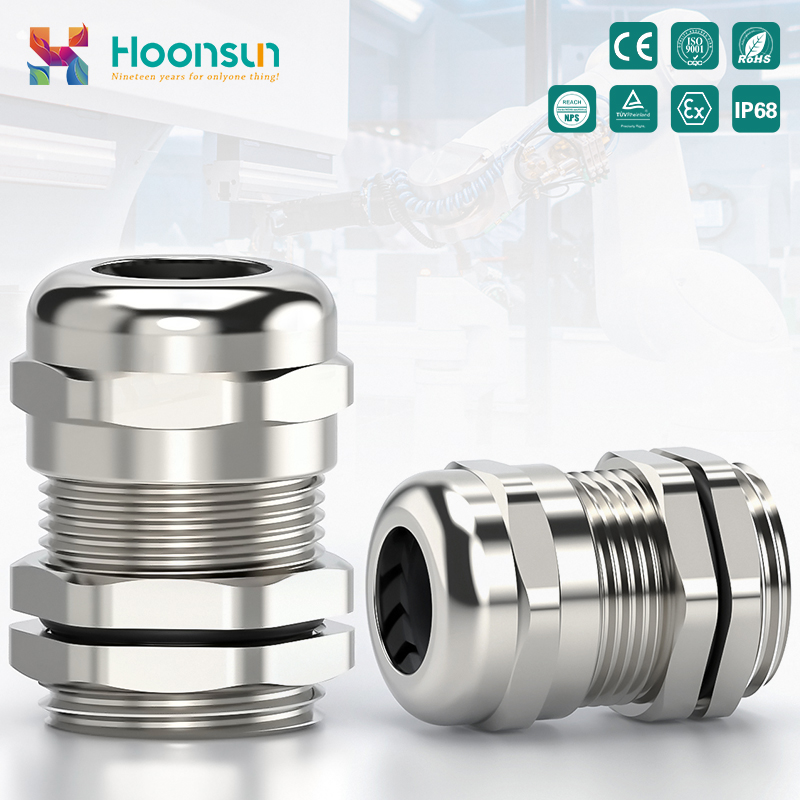

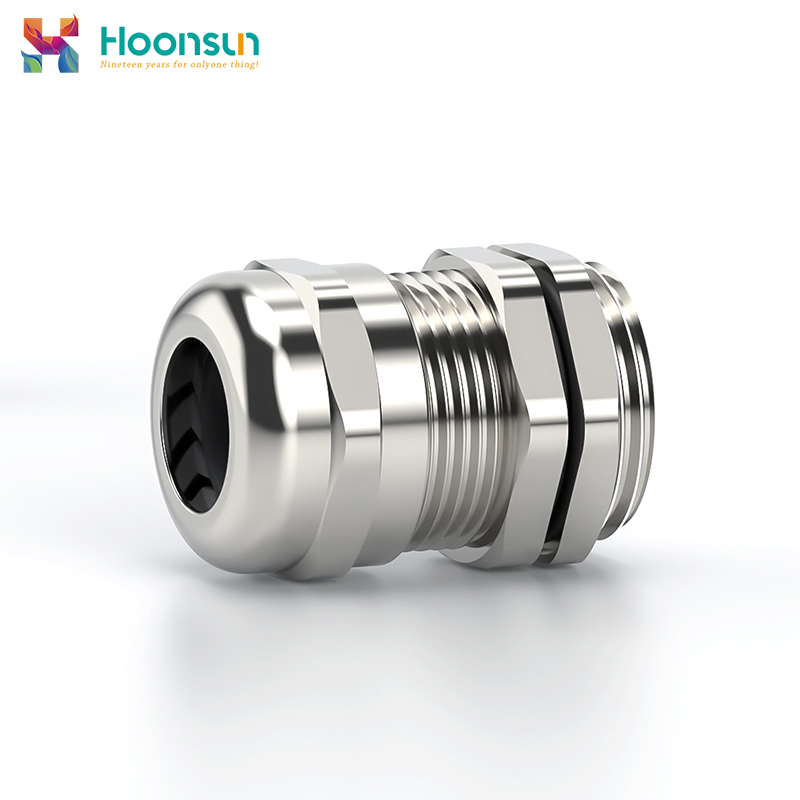

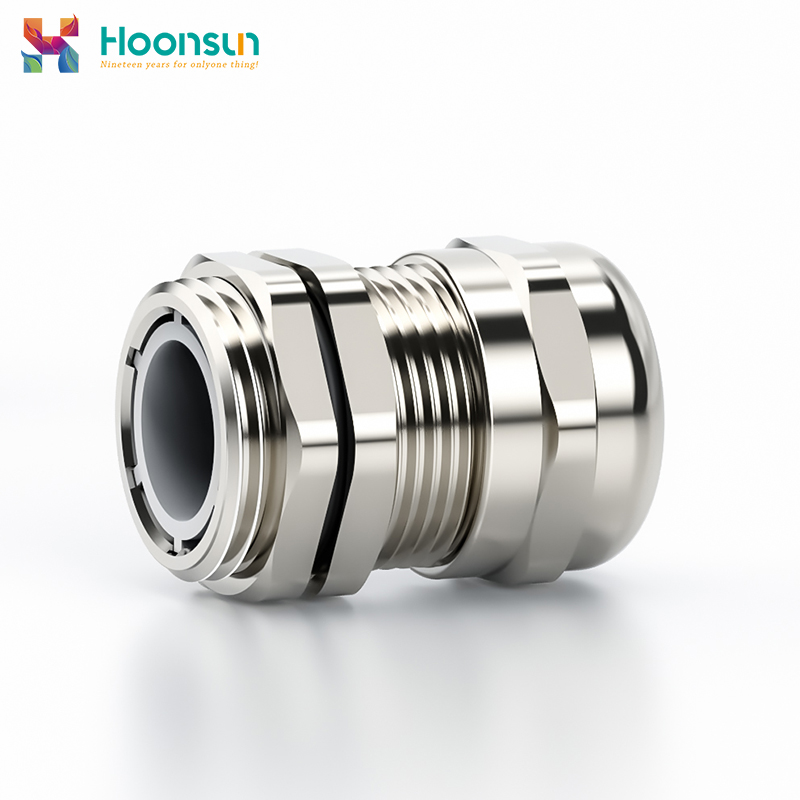

Brass Cable Gland-Direct Type

Thread type : M/PG

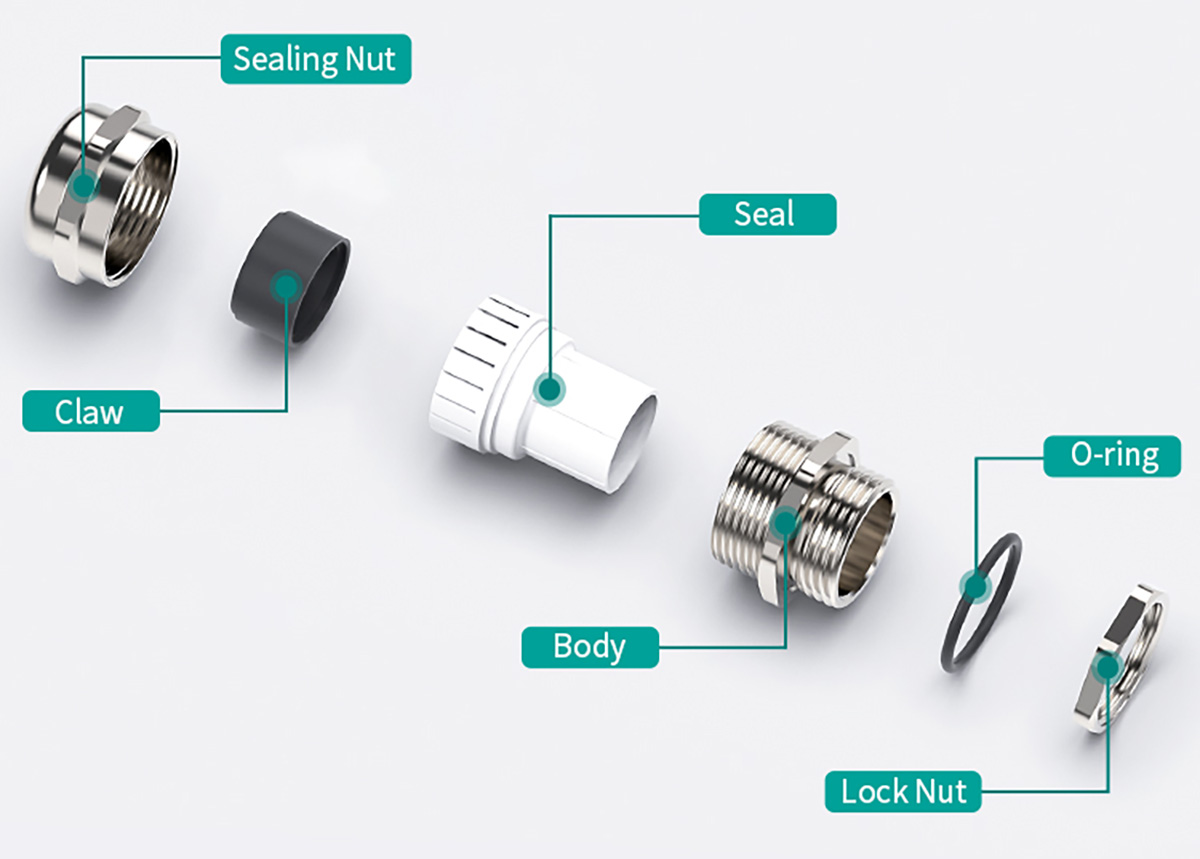

Material:Nickel-plated brass

Claw:PA(Nylon),UL94-V2

Hermetic seal:NBR、Silicone rubber

O-Ring:NBR、Silicone rubber

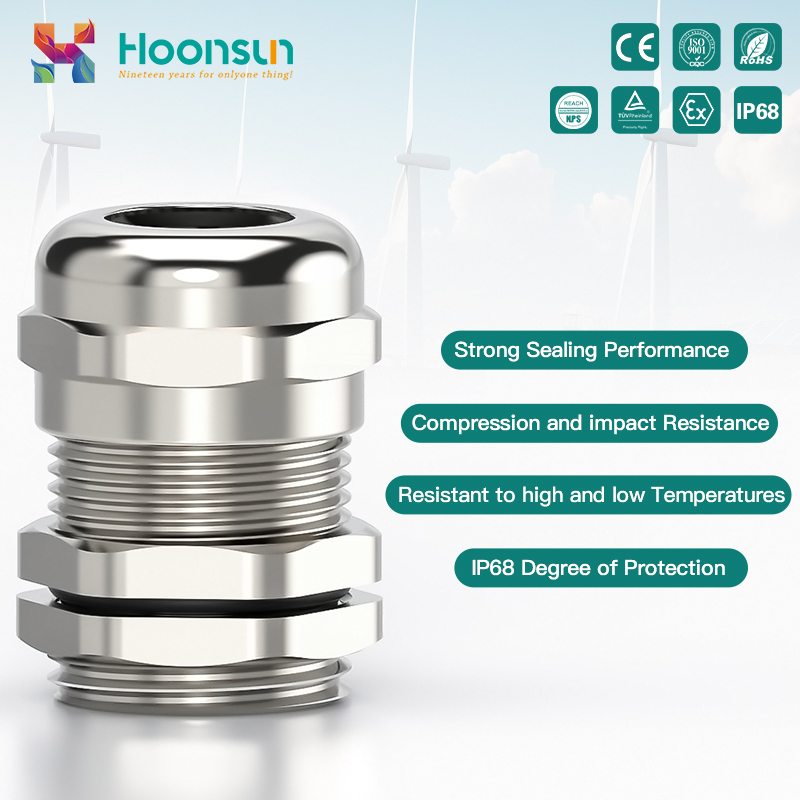

Protection degree:IP68-10 bra

Temperature:Static state:-40℃ to 100℃

                 Dynamic state:-20℃ to 80℃

Inquiry Now >

VIDEO

video video

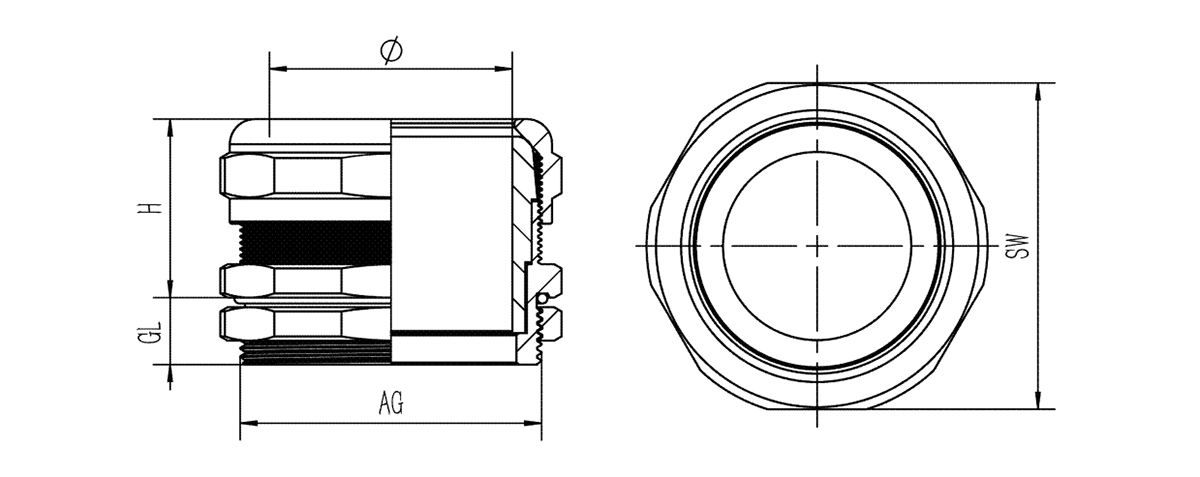

Dimension Drawing

Brass Cable Gland-Direct Type

Technical Parameter

Direct Brass Cable Gland Product Introduction

Product application: The direct brass cable gland is an accessory that connects the cable to the power supply, and can fix the cable so that it will not escape. Cable gland devices are divided into different categories, depending on whether the gland is used for general industrial work or requires protection against high temperature or explosion hazards.

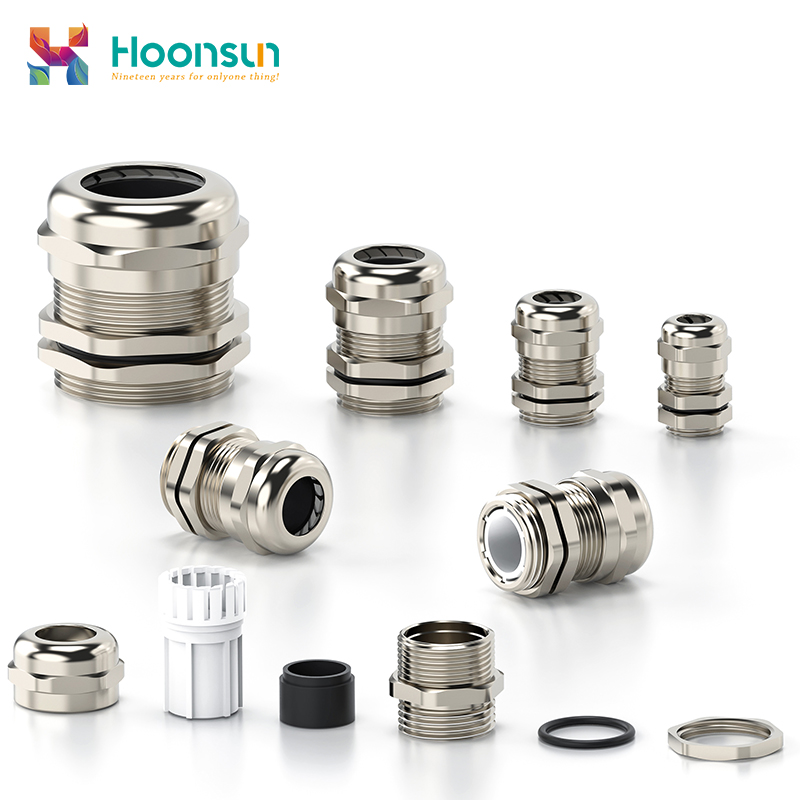

Product packaging materials: Suitable cable glands can be armored or unarmored. Each type of packing requires a different type of stuffing box. The stuffing box itself can be made of metal, such as brass, aluminum, or plastic; each material is useful in different environments. But the sealing sleeve needs a high degree of protection and maintenance to ensure the safety of the wire. Most direct brass cable gland sealing devices are made of brass, which is considered a general-purpose material that is corrosion-resistant and conductive.

Thread Type :M

Item Range Tread Length Thread O.D. Joint Length Spanner size Code
Φ mm GL mm AG mm H mm mm
M12×1.5 3-6.5 6.5 12 17 14 HX-NTM12
M16×1.5 4-8 8 16 19 18 HX-NTM16
M18×1.5 5-10 8 18 21 20 HX-NTM18
M20×1.5 6-12 8 20 22 22 HX-NTM20
M22×1.5 10-14 8 22 23 24 HX-NTM22
M25×1.5 10-14 9 25 25 24/27 HX-NTM25-14
M25×1.5 13-18 9 25 27 30/27 HX-NTM25-18
M27×1.5 13-18 9 27 27 30 HX-NTM27
M32×1.5 15-22 10 32 29 35 HX-NTM32
M36×1.5 18-25 10 36 31 40 HX-NTM36
M40×1.5 18-25 10 40 31 40/45 HX-NTM40-25
M40×1.5 22-30 10 40 35 45 HX-NTM40-30
M48×1.5 25-33 10 48 37 50/52 HX-NTM48
M50×1.5 32-38 10 50 37 57/55 HX-NTM50
M63×1.5 37-44 10 63 38 64/68 HX-NTM63
M72×2 42-52 10 72 44 78 HX-NTM72
M80×2 55-60 15 80 45 88 HX-NTM80



Thread Type :PG

Item Range Tread Length Thread O.D. Joint Length Spanner size Code
Φ mm GL mm AG mm H mm mm
PG7 3-6.5 6.5 12 17 14/15 HX-NTPG7
PG9 4-8 8 16 19 17/18 HX-NTPG9
PG11 5-10 8 18 21 20/21 HX-NTPG11
PG13.5 6-12 8 20 22 22/23 HX-NTPG13.5
PG16 10-14 8 22 23 24/25 HX-NTPG16
PG21 13-18 9 27 27 30 HX-NTPG21
PG29 18-25 10 36 31 40 HX-NTPG29
PG36 25-33 10 48 37 50 HX-NTPG36
PG42 32-38 10 50 37 57 HX-NTPG42
PG48 37-44 10 63 38 64 HX-NTPG48
