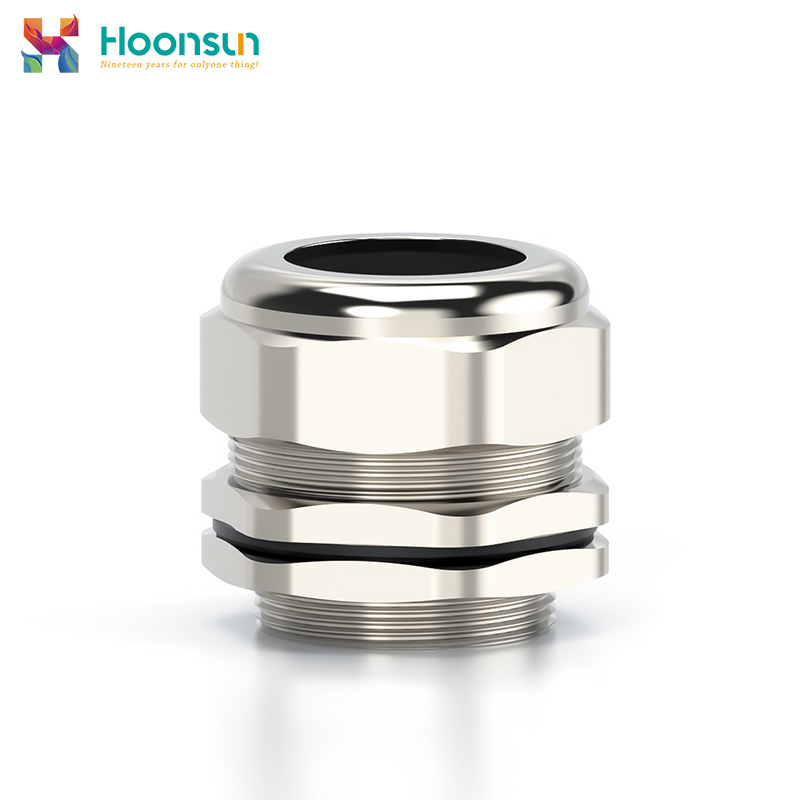

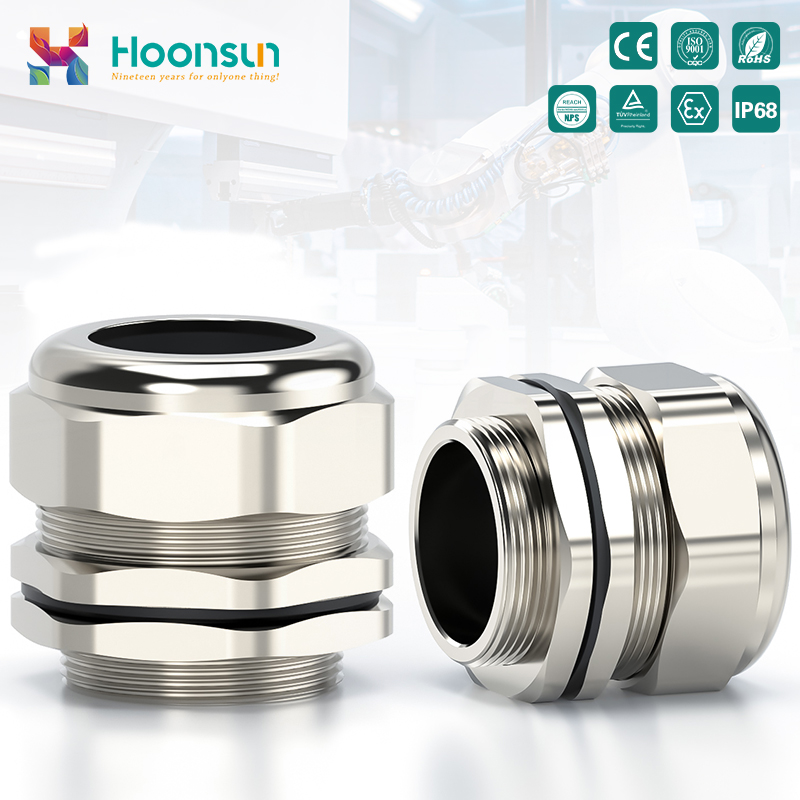

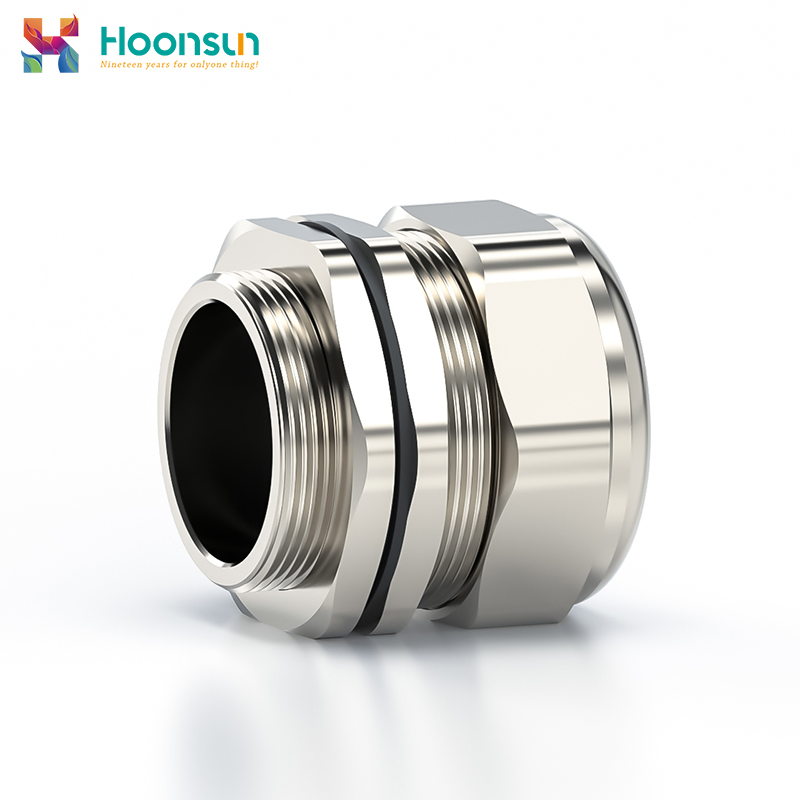

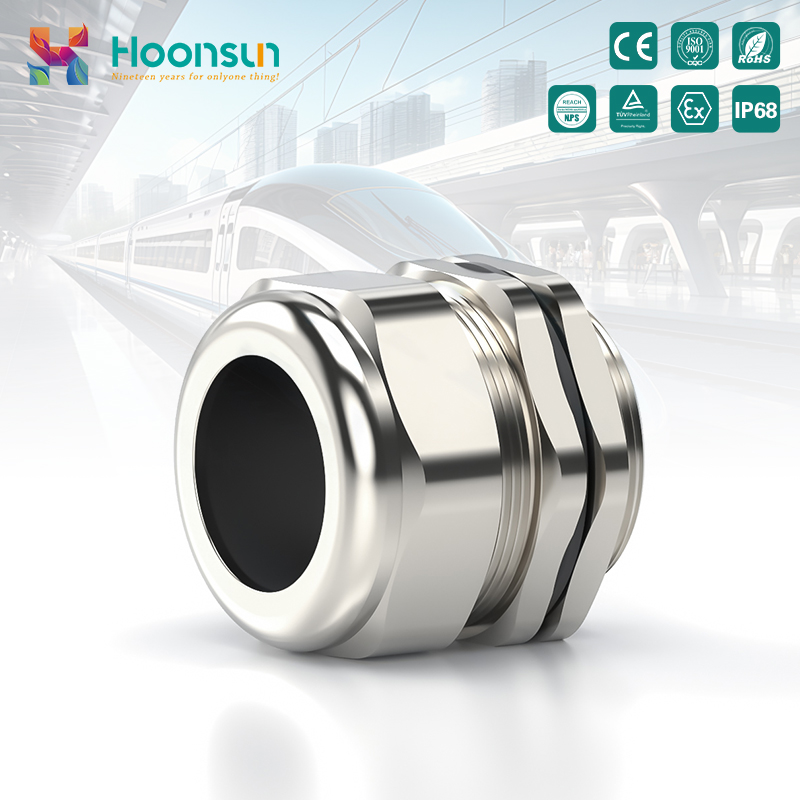

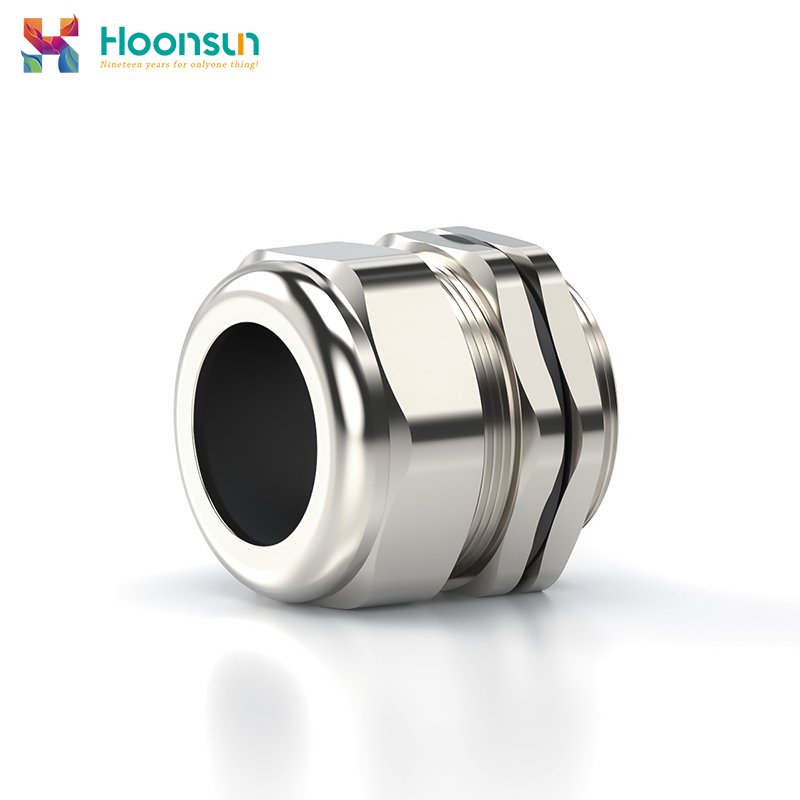

MPG48 Strengthened Type Metal Cable Gland

Code NO.: MPG48 (Other Item Please Contact Me)

Max Temperature: Usually 80℃ (Short Time To 100℃)

Surface Treatment: Electroplating

Colour: Silvery

Factory Report: ISO90001

Model NO.: MPG7 TO MPG48

High Light: Copper cable gland, double compression cable gland

Inquiry Now >

Dimension Drawing

Product Details:

Place of Origin: Zhejiang, China
Brand Name: Hnx cable gland

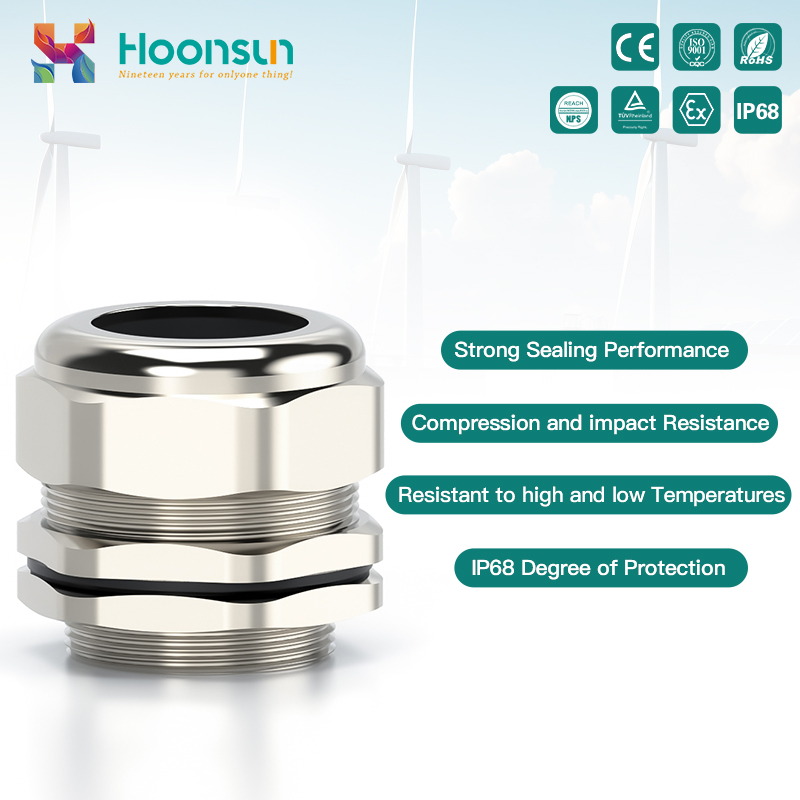

Certification: RoHS, ISO, CE, IP68, REACH
Model Number: MPG Type

Payment & Shipping Terms:

Minimum Order Quantity: 10 Pieces
Price: Negotiation
Packaging Details: 38*25*17mm
Delivery Time: 3-30 Day
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 30000 Pieces/Day

Product details

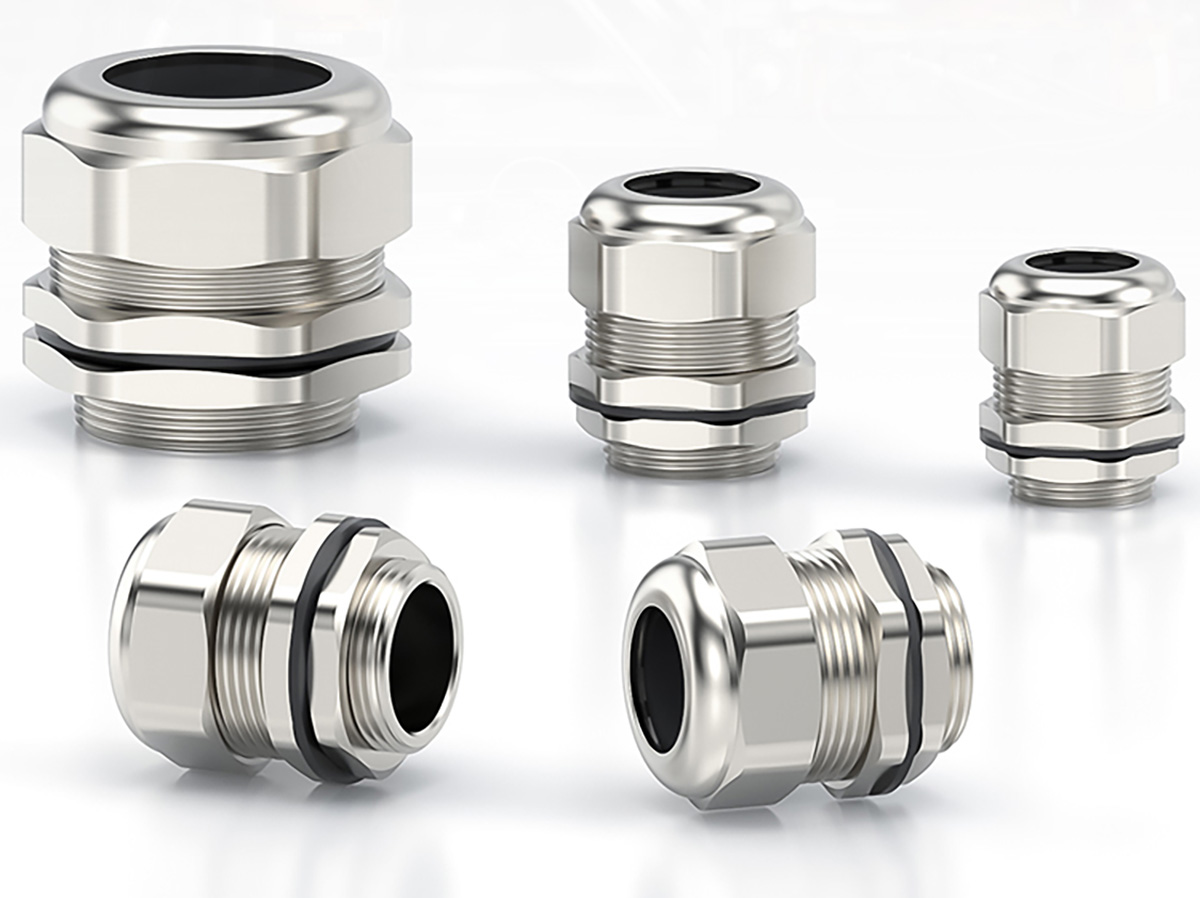

  1. Our products are complete in specifications, with M, PG, G and NPT threads.
  2. We can choose the type according to the thread size of the joint and the diameter of the clamping cable.
  3. The reasonable use of our cable joints within the prescribed scope can effectively improve the tensile and waterproof properties.

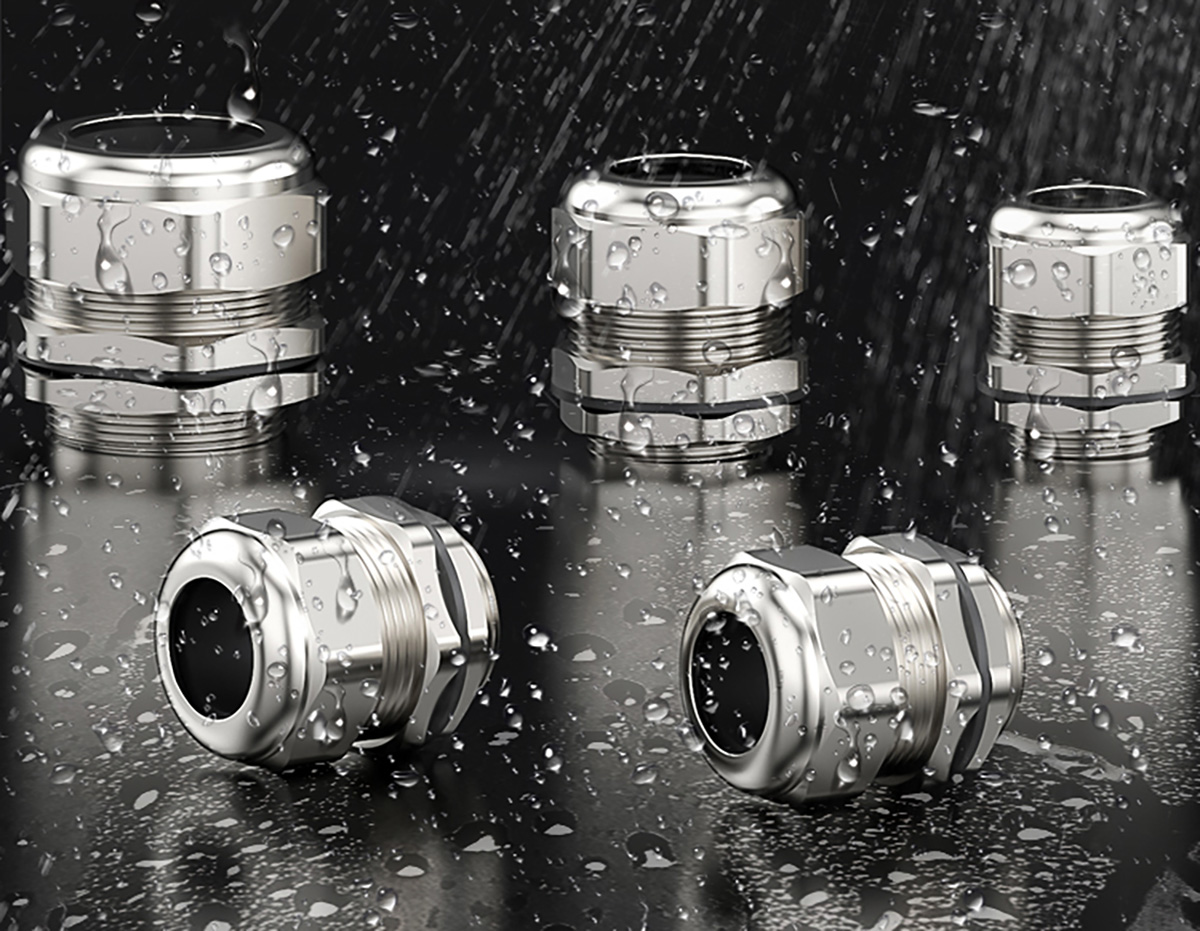

  4. The waterproof grade of our products can reach IP68 and can adapt to static working temperatures of -40 C to -120 C.
  5. The short time can reach 120 degrees C, the adaptation range of the dynamic environment is -20 C -80 C, and the short time can reach 100 degrees C.
  6. Resistance to salt, acid, alcohol, oil and other general solvents, suitable for oil, chemical, mechanical, nuclear power,
  7. shipbuilding, paper, pharmaceutical, food, aerospace and other fields.

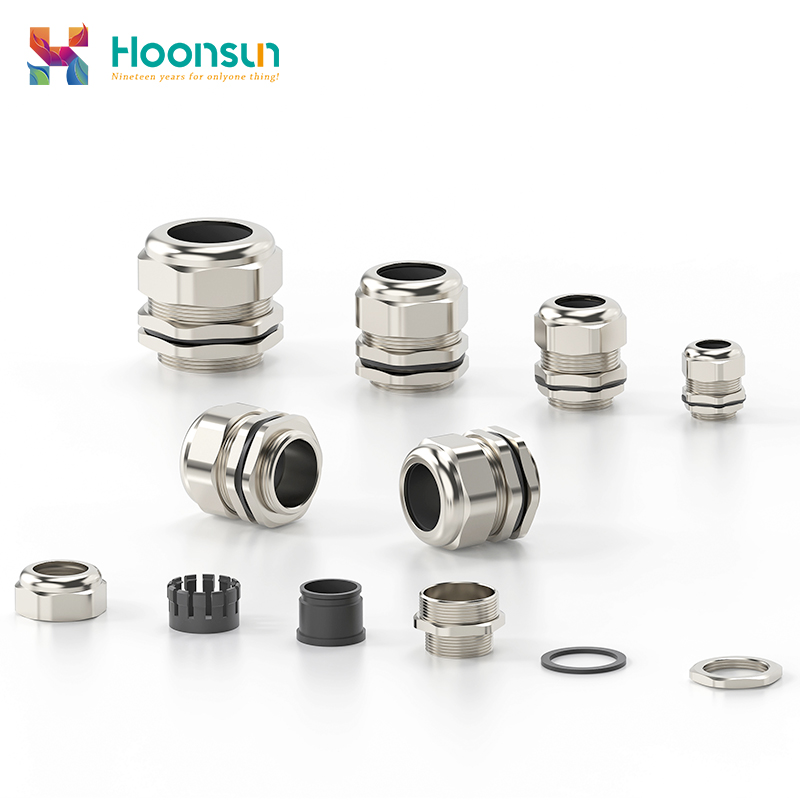

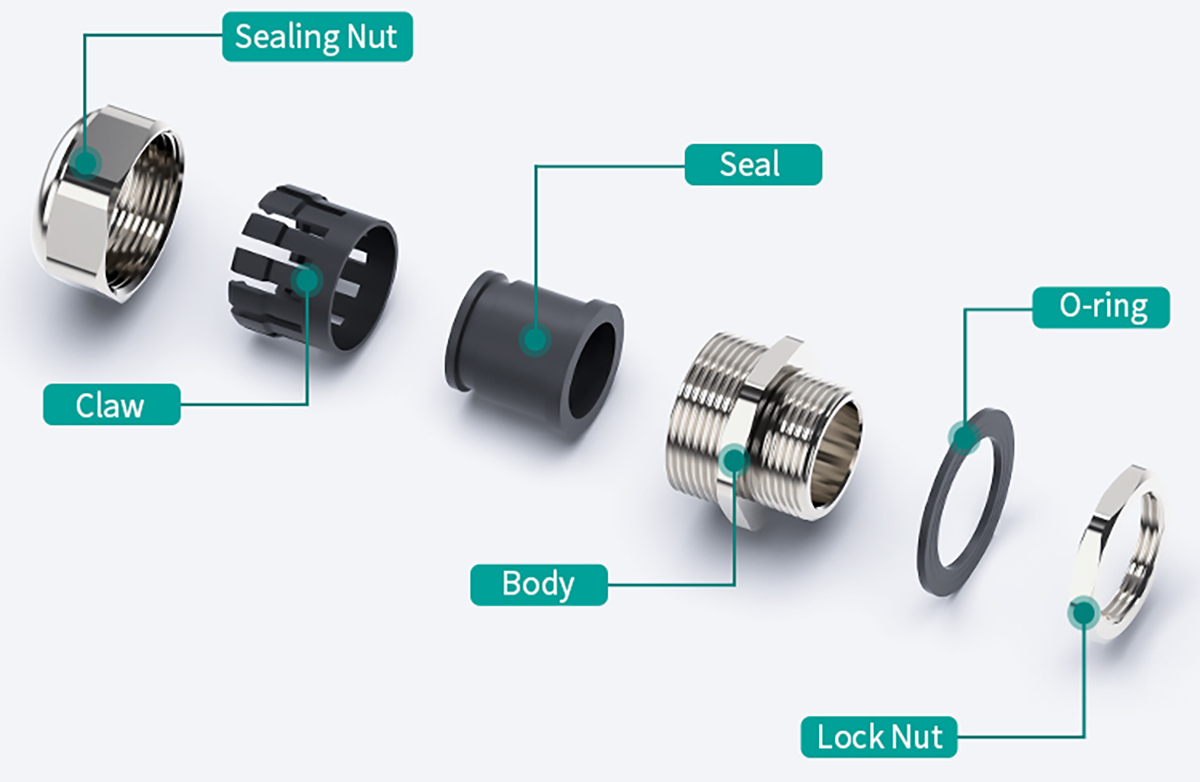

  8. Our products consist of tight nut, seal, clamping jaw, main body, O ring and nut.

Product Introduction

Waterproof metal cable gland type

Large type cable gland, large range type cable gland, small range type cable gland, length type cable gland, strengthened type cable gland, direct type cable gland, multiple-entry type cable gland, high-temperature resistance type cable gland, double locking type cable gland, spiral type cable gland, 90º flexible pipe connector, EMC cable gland, and explosion proof cable gland, etc.

Nylon cable gland type

Conventional type cable gland, split type cable gland, anti-bending cable gland, corrugated tubing cable gland, nylon union for flexible pipe, hose cable gland, etc.

Marine cable gland

DCG single compression type cable gland, JIS standard type cable gland, TJ clamping type cable gland TH welded type cable gland, etc.

Flexible Pipe type

PP/PA flexible pipe, metal flexible pipe, bellows fixed frame, etc.

Vent valve series

Breathable vent plug and breathable cable gland, etc.


Brass reducer, brass enlarger, standard locknut, EMC locknut, brass screw plug and waterproof junction box, etc.

Are you trading company or manufacturer?

We are the factory. Also, we can export the goods by ourselves.

How long is your delivery time?

Generally, we can send out the goods within 3-7 days if the goods are in stock. Or it should be 7-30 days if the goods are not in stock, it is according to your order quantity.

Do you provide samples? Is it free or extra?

Yes, we could offer the samples for free charge but do not pay the cost of freight.

What is your terms of payment?

Payment<= 1000 USD, 100% in advance. Payment>= 1000 USD, 30% T/T in advance, balance before shipment.

How about the after-sale service?

Any feedback or comments are welcomed. We will try to make the best assistant to give you maximum satisfaction.

Technical Parameter

Item Range
Φ mm
Tread Length
GL mm
Thread O.D.
AG mm
Joint Length
H mm
Spanner size
MPG7 4-8 8 12.5 18.5 18 HX-NPMPG7
MPG9 5-10 9 15.2 21.5 22 HX-NPMPG9
MPG11 6-12 9 18.6 24.0 24 HX-NPMPG11
MPG13.5 10-14 9.5 20.4 25.5 27 HX-NPMPG13.5
MPG16 12-16 9.5 22.5 27.0 27 HX-NPMPG16
MPG21 13-18 11 28.3 28.0 30 HX-NPMPG21
MPG29 18-25 12.5 37.0 33.0 40 HX-NPMPG29
MPG36 25-32 15 47.0 35.0 50 HX-NPMPG36
MPG42 32-42 15 54.0 40.0 59 HX-NPMPG42
MPG48 35-45 17 59.3 45.0 67 HX-NPMPG48
