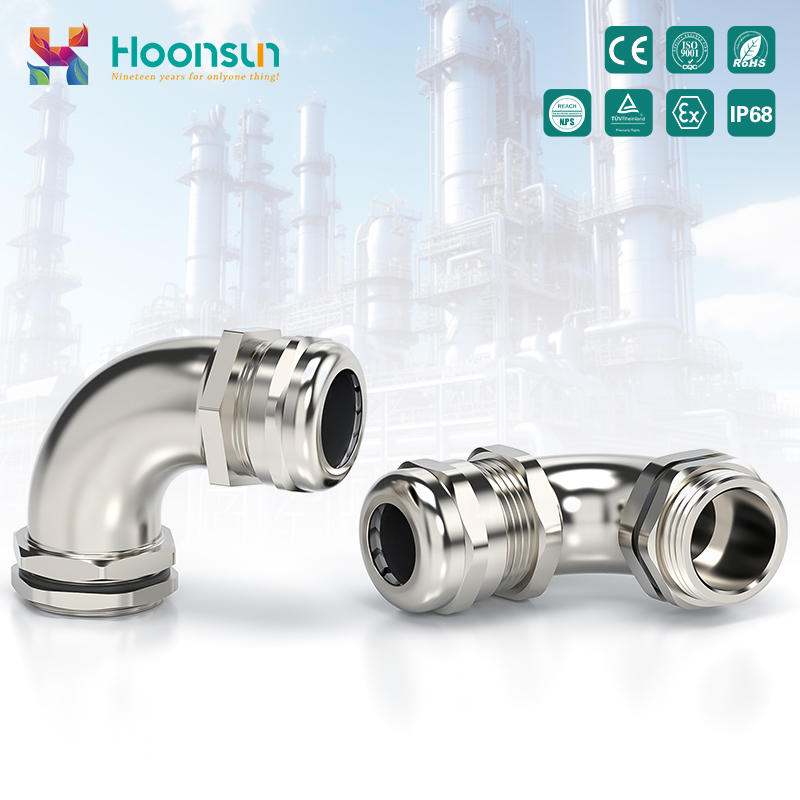

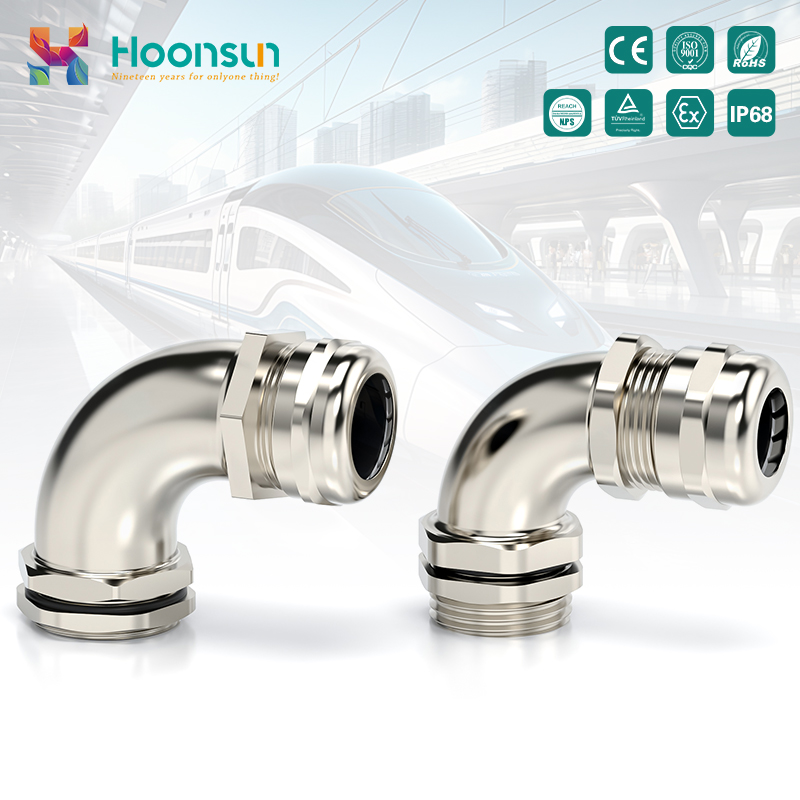

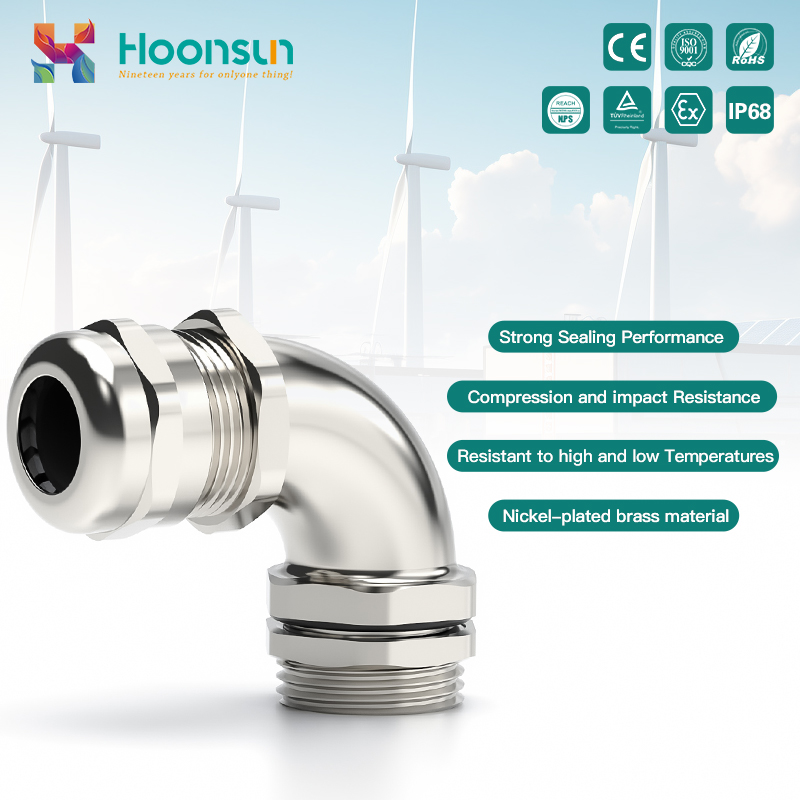

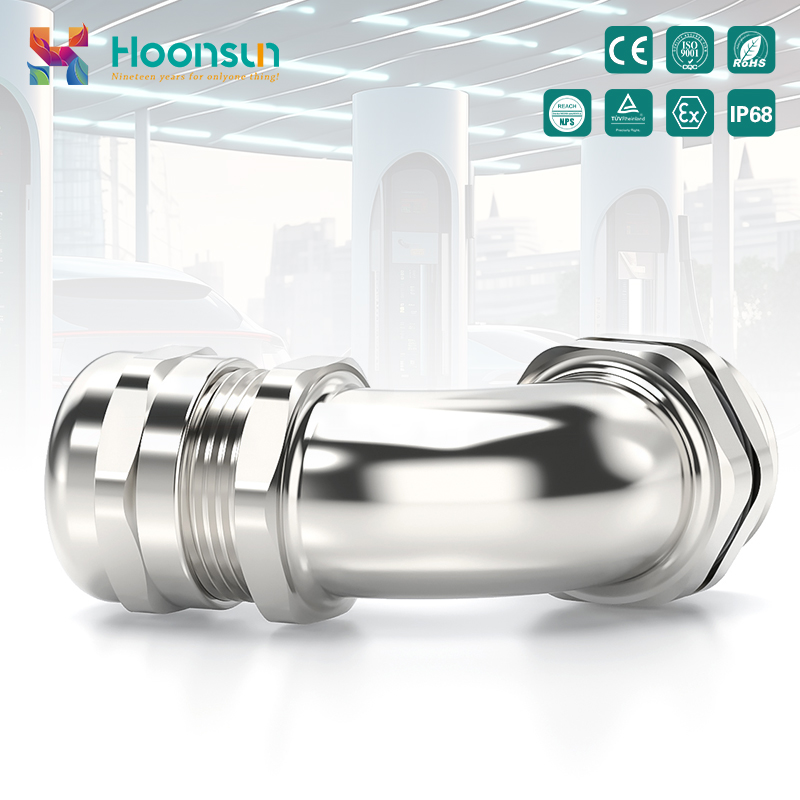

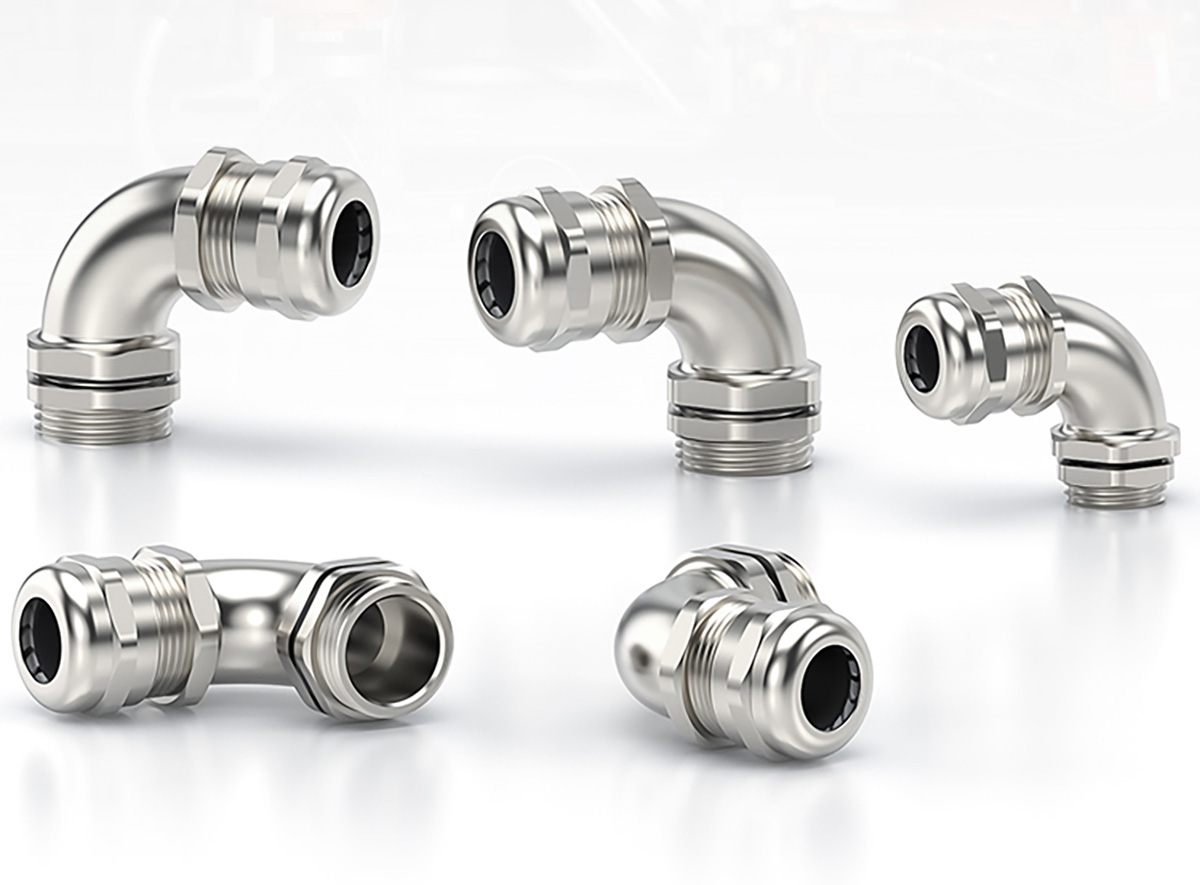

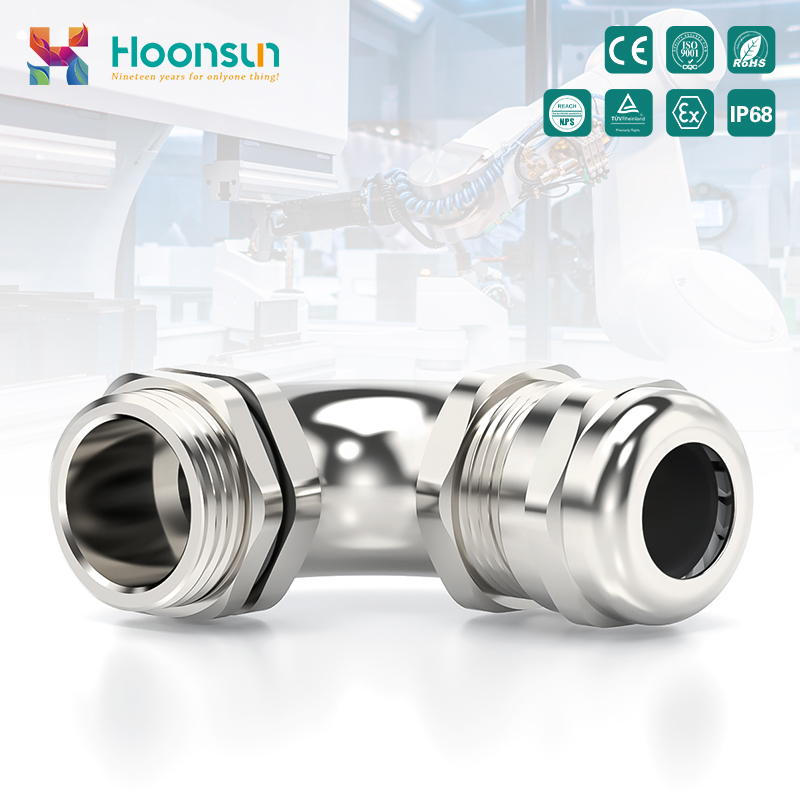

  • 90° Flexible Pipe Fitting

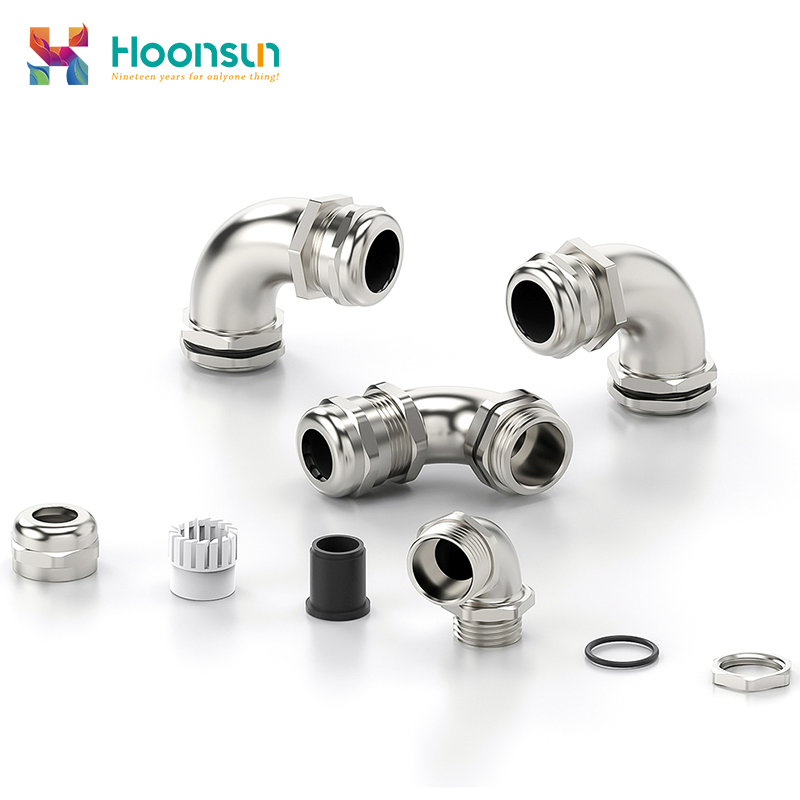

    Material :Nickel plated brass/Stainless steel 304/316L
    Retainer:TPE
    Sealer:modified rubber
    Mouth:galvanized iron sheet/Stainless steel 304

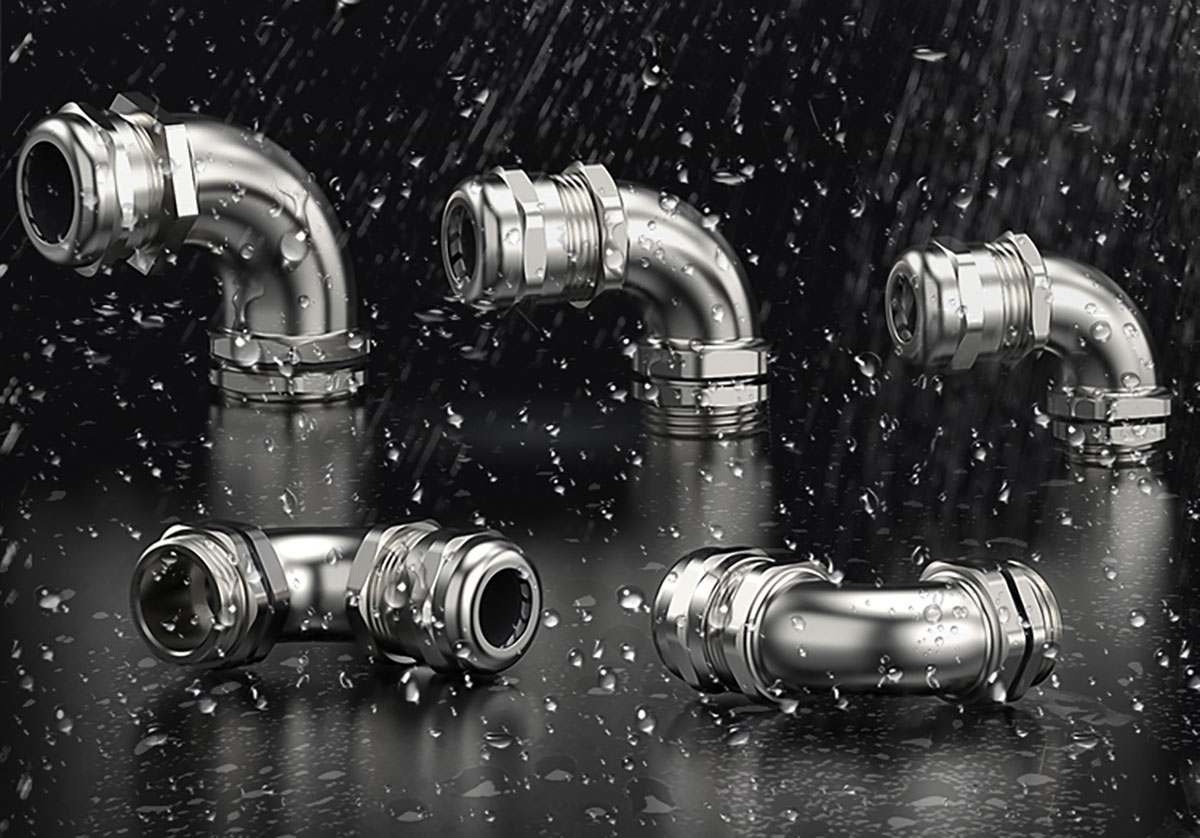

    Protection grade:IP66

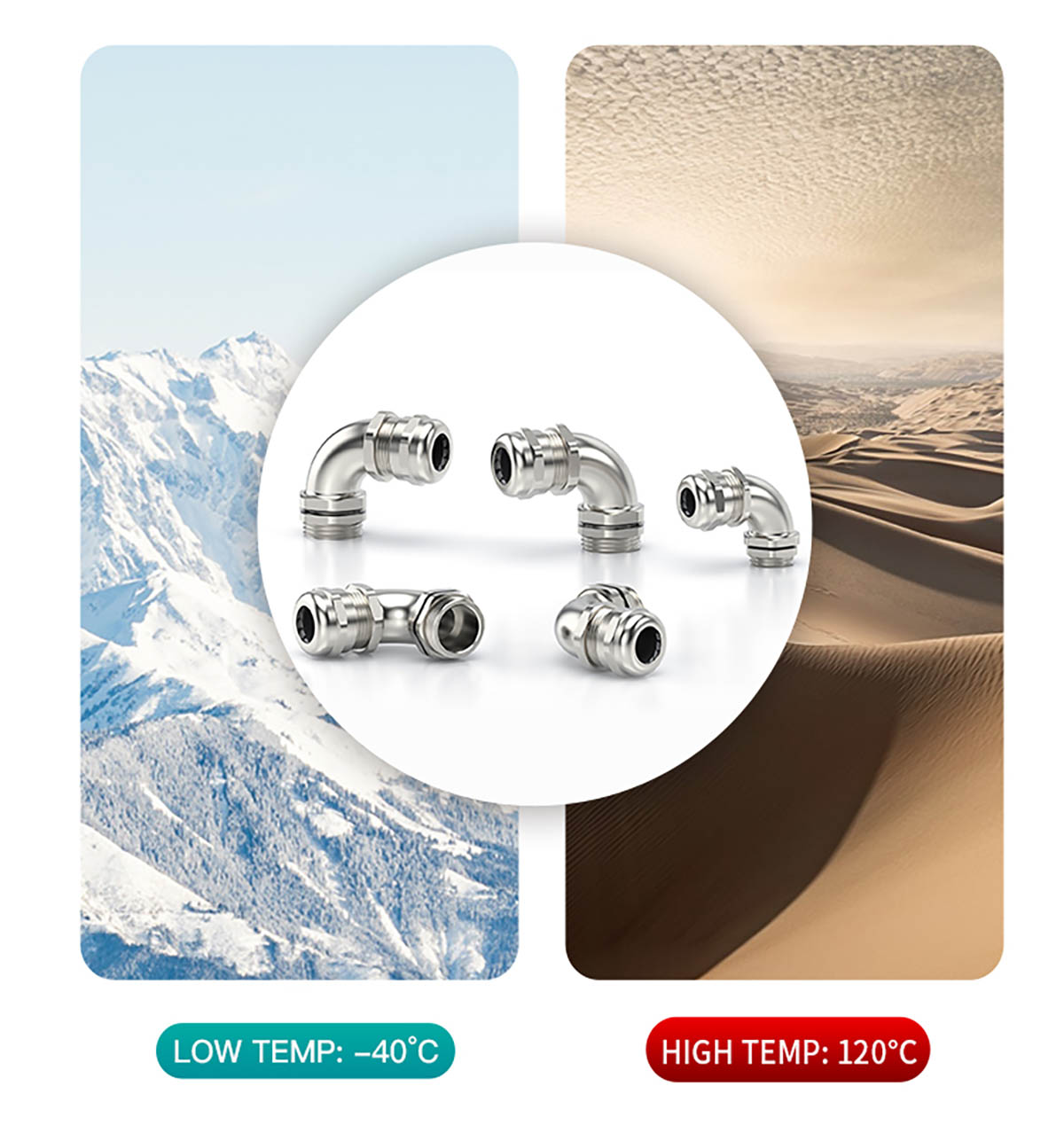

    Temperature range:from -40℃ to 105℃

    90° degree connector is mainly used to connector with SPR-AS flexible conduit.
    45° degree connector is mainly used to connector with SPR-PVC-AS.SPR-PU-AS,metal flexible conduit.

    Inquiry Now >

    VIDEO

    video video

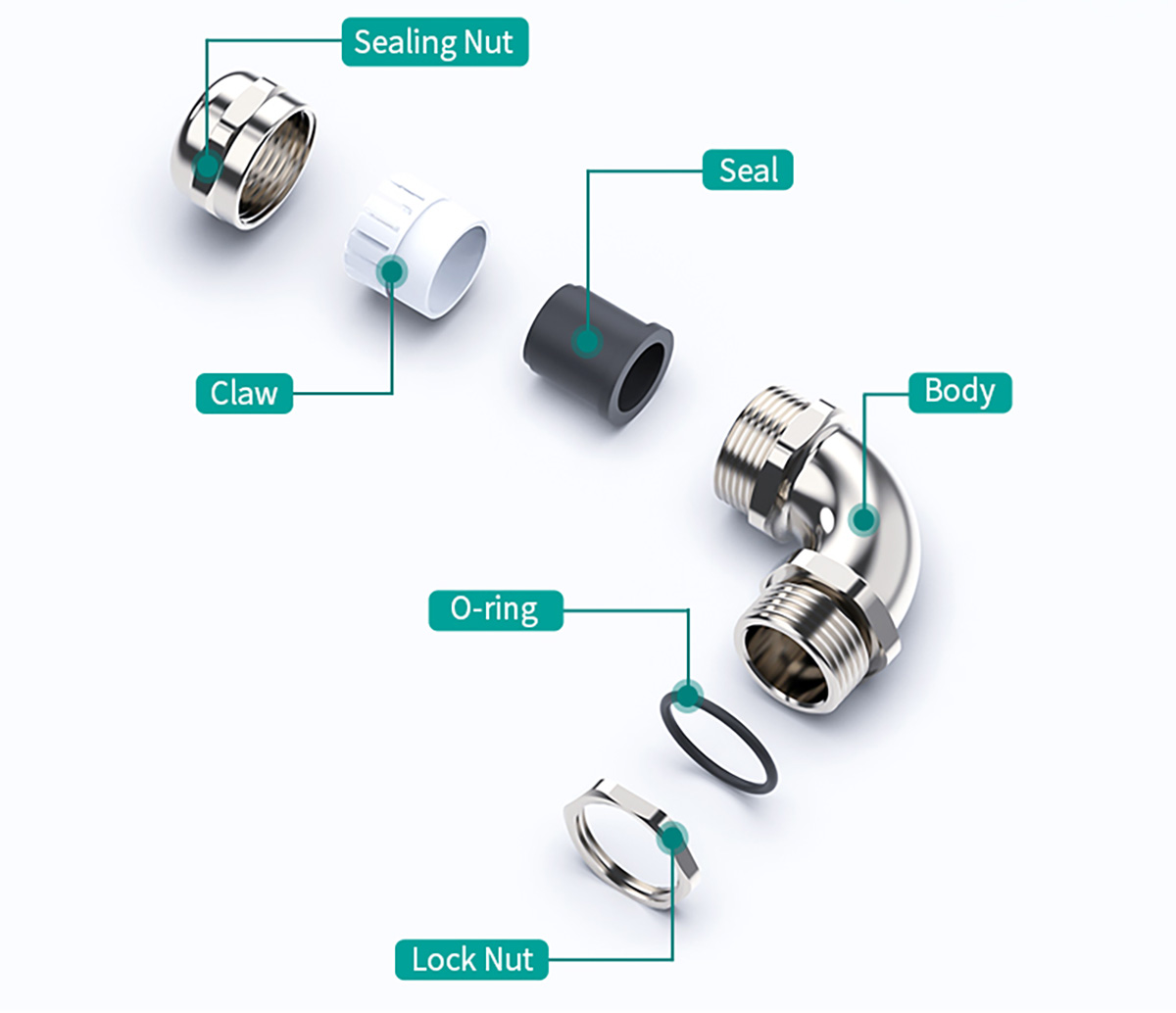

    Dimension Drawing

    90° Flexible Pipe Fitting

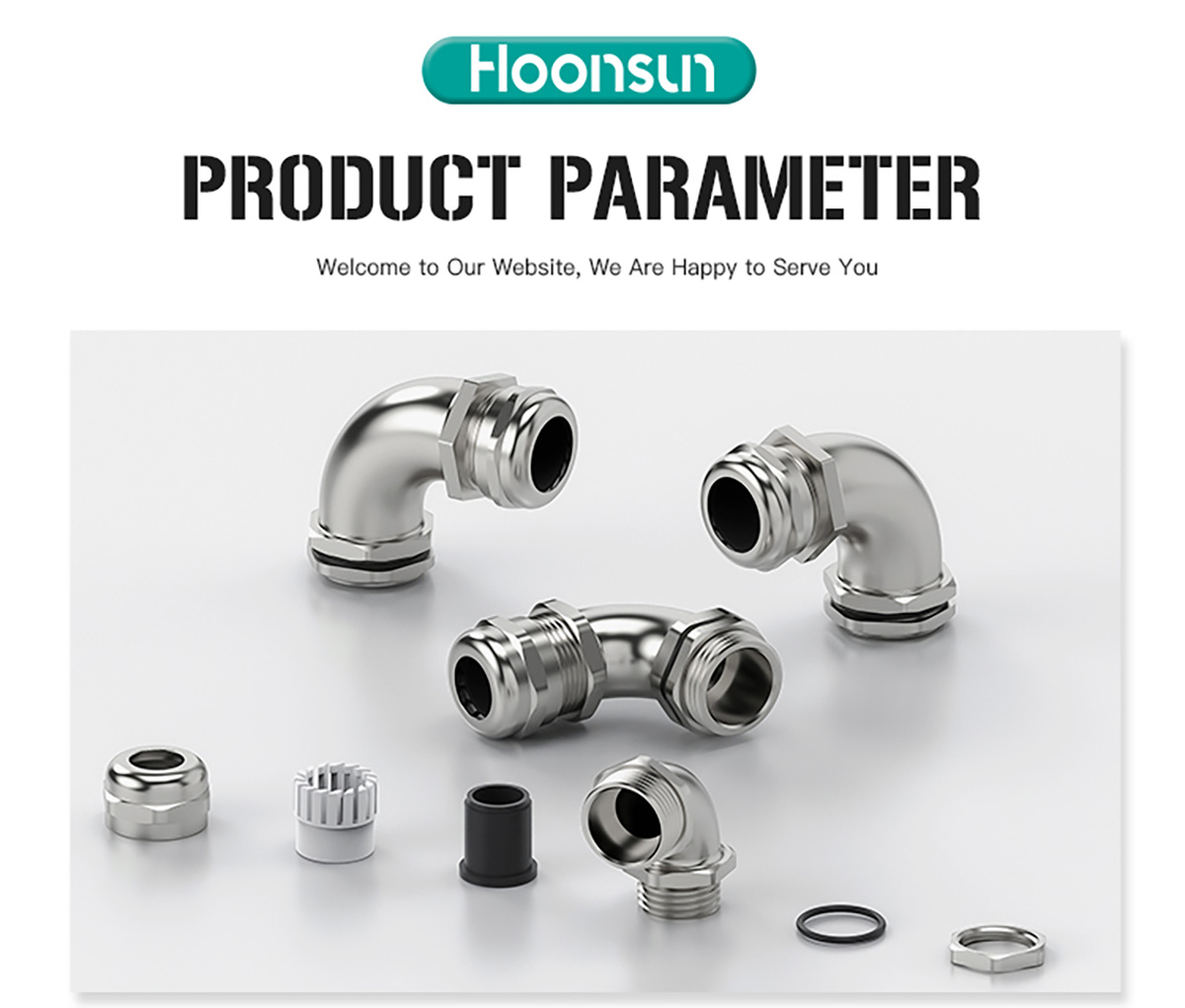

    Technical Parameter

    90° 45° Size Conduit size ΦB
    MM
    GL
    MM
    D
    MM
    Wrench size
    SW  MM
    6.5 6 M12/M14/M16 AD10 19 8 33 17
    10.0 8.5 M14/M16/M18 AD14 24 9 43 21
    12.5 11.5 M18/M20/M22 AD17/AD19 28 10 55 25
    16.5 15.5 M20/M22/25/M27 AD21 32.5 10 56 29
    21.5 20.5 M25/M27/M30/M32 AD27 39 14 73 34
    29.5 27.5 M32/M36/M40/M42 AD36 48 14 90 43
    38.0 36.5 M40/M42/M48/M50 AD45 58 14 105 55
    90° 45° Size Conduit size ΦB
    MM
    GL
    MM
    D
    MM
    Wrench size
    SW  MM
    6.5 6 G1/4″/G3/8″ AD10 19 8 33 17
    10.0 8.5 G3/8″ AD14 24 9 43 21
    12.5 11.5 G3/8″/G1/2″ AD17/AD19 28 10 55 25
    16.5 15.5 G1/2″/G3/4″ AD21 32.5 10 56 29
    21.5 20.5 G3/4″ AD27 39 14 73 34
    29.5 27.5 G1″/G1-1/4″ AD36 48 14 90 43
    38.0 36.5 G1-1/4″/G1-1/2″ AD45 58 14 105 55
    90° 45° Size Conduit size ΦB
    MM
    GL
    MM
    D
    MM
    Wrench size
    SW  MM
    6.5 6 PG7/PG9 AD10 19 8 33 17
    10.0 8.5 PG9/PG11 AD14 24 9 43 21
    12.5 11.5 PG11/PG13.5 AD17/AD19 28 10 55 25
    16.5 15.5 PG13.5/PG16 AD21 32.5 10 56 29
    21.5 20.5 PG16/PG21 AD27 39 14 73 34
    29.5 27.5 PG21/PG29 AD36 48 14 90 43
    38.0 36.5 PG29/PG36 AD45 58 14 105 55
