Place of Origin: Zhejiang, China
Brand Name: Hoonsun waterproof cable gland
Certification: RoHS, ISO, CE, IP68
Model Number: M type
Minimum Order Quantity: 20-100 Pieces
Price: Negotiation
Packaging Details: 38*25*17mm
Delivery Time: 3-30 Day
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 30000 Pieces/Day
Thread specification: The metal double locking cable gland thread specification is a metric thread, the conventional model is M8 to M63. To meet the needs of some industries, we have developed M64 to M120 supermodels.
Material: Brass, Nylon PA66, NBR, Silicone rubber.
Surface treatment: Nickel-plated
Waterproof grade: IP68-10 bar
Authentication: CE, RoHS, REACH

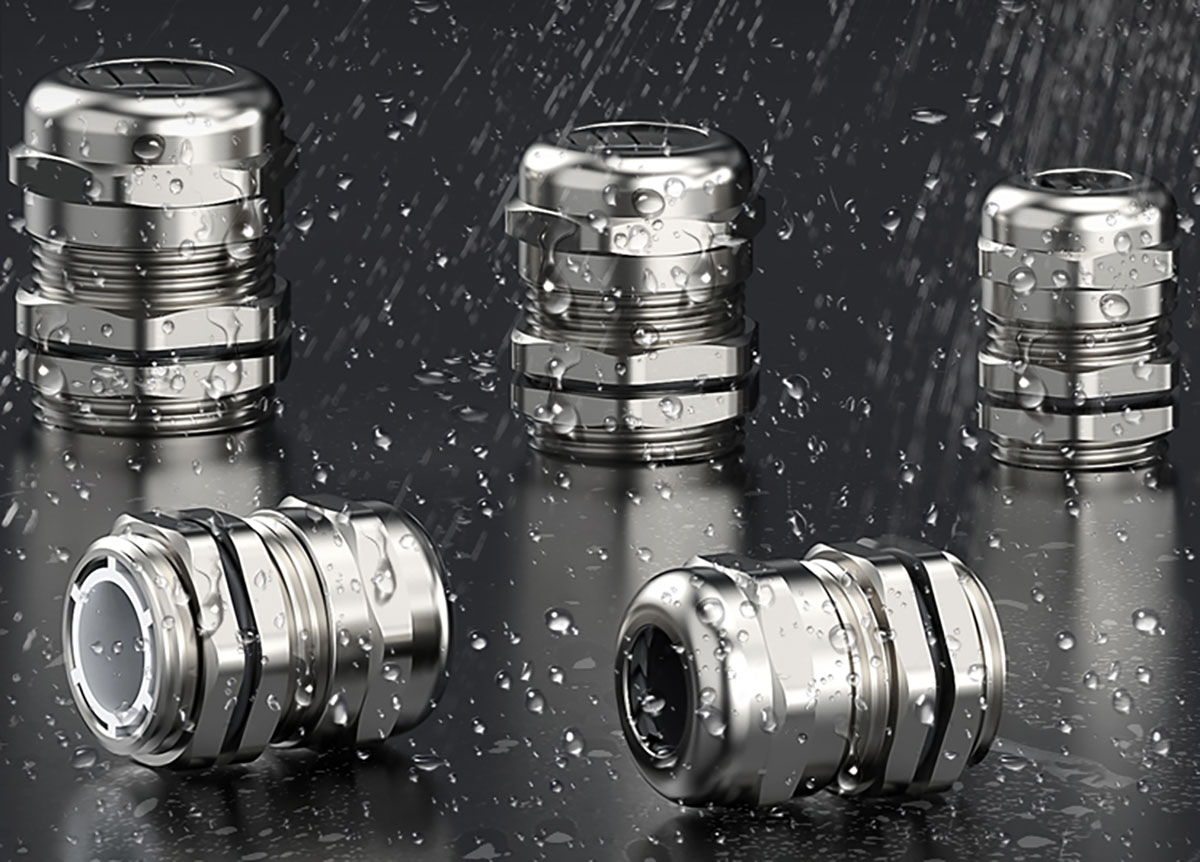

Product performance: Waterproof, dustproof and corrosion-resistant. The diameter of the clamping hose is large and the tensile strength is strong. Under the condition of reasonable use of products, the waterproof level can reach IP68. This product can be waterproof, dustproof, corrosion resistant, high hardness, and can work in damp, salt/acid / alkaline environments.
Uses: To connect the LED lamp line interface, the laying of the circuit cable, and the connection of the electric box cable; it can also be used in the cable connection of the manufacturing industry equipment, the line connection of the robot industry, the connection of the charging pile line, and the application in the new industries such as wind energy and solar energy
Metal cable waterproof gland is the accessory of cable. The products are widely used in oil, chemical, machinery, nuclear power, shipbuilding, paper, pharmaceutical, food, aerospace and other fields.
The gland can lock the cable, and the other end can be connected to the upper part of the equipment box, or screw thread can also be selected.
Access to the import and export of the internal thread on the electric equipment. General mechanical control box, distribution plate, machine.
Wire and cable fixed, can effectively clamp the cable and achieve the purpose of waterproofing.
The main function is to make the line unobstructed, to keep the cable sealed, and to ensure the insulation level of the cable gland to ensure its safe and reliable operation. If the sealing is bad, not only will the oil leakage cause the drying of the oil-impregnated paper, but also the moisture will intrude into the cable, causing the insulation performance of the paper to decrease.
Our products are divided into nylon cable glands and metal cable glands according to the gland material. The metal cable glands are also divided into brass cable glands, stainless steel cable glands and zinc alloy cable glands, etc.
The cable gland is divided into waterproof cable gland, explosion-proof cable gland, anti-bending cable gland, double locking cable gland, plastic hose cable gland, metal hose cable gland and marine stuffing box according to function.

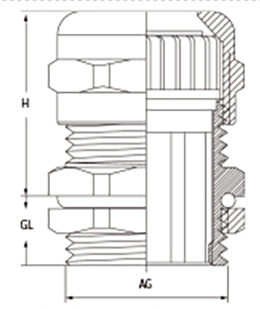

| Item | Range(mm) | GL Thread Length(mm) | AG Thread O.D.(mm) | H Joint Length(mm) | Spanner size(mm) | Code |
| M8×1 | 2-5 | 5 | 8.0 | 13.5 | 12 | HX-NPM8 |
| M10×1 | 3-6.5 | 6.5 | 10.0 | 17 | 14 | HX-NPM10 |
| M12×1.5 | 3-6.5 | 6.5 | 12.0 | 17 | 14 | HX-NPM12 |
| M14×1.5 | 4-8 | 8 | 14.0 | 18 | 17 | HX-NPM14 |
| M16×1.5 | 4-8 | 8 | 16.0 | 19 | 18 | HX-NPM16 |
| M18×1.5 | 5-10 | 8 | 18.0 | 20 | 20 | HX-NPM18 |
| M20×1.5 | 6-12 | 8 | 20.0 | 21 | 22 | HX-NPM20 |
| M22×1.5 | 10-14 | 8 | 22.0 | 22 | 24 | HX-NPM22 |
| M24×1.5 | 10-14 | 9 | 24.0 | 22 | 24/27 | HX-NPM24 |
| M25×1.5 | 10-14 | 9 | 25.0 | 22 | 24/27 | HX-NPM25-14 |
| M25×1.5 | 11-16 | 9 | 25.0 | 25 | 27 | HX-NPM25-16 |
| M25×1.5 | 13-18 | 9 | 25.0 | 27 | 30/27 | HX-NPM25-18 |
| M27×1.5 | 13-18 | 9 | 27.0 | 27 | 30 | HX-NPM27 |
| M30×2 | 13-18 | 9 | 30.0 | 27 | 30/32 | HX-NPM30 |
| M32×1.5 | 15-22 | 10 | 32.0 | 29 | 35 | HX-NPM32 |
| M33×2 | 15-22 | 10 | 33.0 | 29 | 35/36 | HX-NPM33 |
| M36×1.5 | 18-25 | 10 | 36.0 | 31 | 40 | HX-NPM36 |
| M37×1.5 | 18-25 | 10 | 37.0 | 31 | 40 | HX-NPM37 |
| M40×1.5 | 18-25 | 11 | 40.0 | 31 | 40/45 | HX-NPM40-25 |
| M40×1.5 | 22-30 | 11 | 40.0 | 35 | 45 | HX-NPM40-30 |
| M47×1.5 | 25-33 | 11 | 47.0 | 37 | 50 | HX-NPM47 |
| M50×1.5 | 32-38 | 13 | 50.0 | 37 | 57/55 | HX-NPM50 |
| M60×1.5 | 37-44 | 14 | 60.0 | 38 | 64 | HX-NPM60 |
| M63×1.5 | 37-44 | 14 | 63.0 | 38 | 64/68 | HX-NPM63 |
| M64×2 | 37-44 | 14 | 64.0 | 38 | 64/68 | HX-NPM64 |
| M70×2 | 42-52 | 16 | 70.0 | 44 | 78 | HX-NPM7O |
| M72×2 | 15-22 | 10 | 33.0 | 29 | 35/36 | HX-NPM72 |
| M72×2 | 18-25 | 10 | 36.0 | 31 | 40 | HX-NPM72-58 |
| M75×2 | 18-25 | 10 | 37.0 | 31 | 40 | HX-NPM75 |
| M75×2 | 18-25 | 11 | 40.0 | 31 | 40/45 | HX-NPM75-58 |
| M80×2 | 22-30 | 11 | 40.0 | 35 | 45 | HX- NPM80 |
| M88×2 | 25-33 | 11 | 47.0 | 37 | 50 | HX- NPM88 |
| M100×2 | 32-38 | 13 | 50.0 | 37 | 57/55 | HX-NPM100 |
| M120×2 | 37-44 | 14 | 60.0 | 38 | 64 | HX-NPM120 |
