90 Degree Cable Gland: Smart Cable Routing for Demanding Industrial Environments

In modern industrial facilities, every connection point matters. As automation systems become more compact and equipment layouts grow increasingly complex, engineers are often challenged by one simple but critical issue: how to route cables safely in tight spaces without compromising performance.

The 90 degree cable gland has become a practical and highly effective solution for this problem. Designed specifically for confined installations such as control cabinets, robotic joints, hydraulic systems, and automation equipment, a right-angle cable gland allows cables to change direction smoothly while maintaining sealing integrity and mechanical protection.

At Zhejiang Hongxiang Connector Co., Ltd. (Hoonsun), nearly 20 years of experience in industrial connectors have led to the development of a high-performance metal 90 degree cable gland engineered for reliability, durability, and ease of installation.

Why a 90 Degree Cable Gland Matters in Industrial Design?

Traditional straight cable glands work well when there is sufficient space for direct cable routing. However, in real-world industrial environments, space is rarely ideal. Inside compact control panels or near moving mechanical parts, cables may be forced into sharp bends. Over time, excessive bending can cause:

• Internal conductor fatigue
• Insulation damage
• Increased contact resistance
• Premature cable failure

A 90 degree cable gland eliminates this stress by guiding the cable through a controlled right-angle turn. The L-shaped elbow design allows flexible direction changes while reducing tension and friction. This not only improves cable organization but also significantly lowers the risk of failure caused by mechanical strain.

For engineers focused on long-term equipment reliability, this seemingly small structural improvement makes a measurable difference.

Built with Premium Materials for Harsh Conditions

Industrial environments demand more than basic functionality. Moisture, dust, vibration, oil exposure, and temperature fluctuations all challenge the integrity of cable connections.

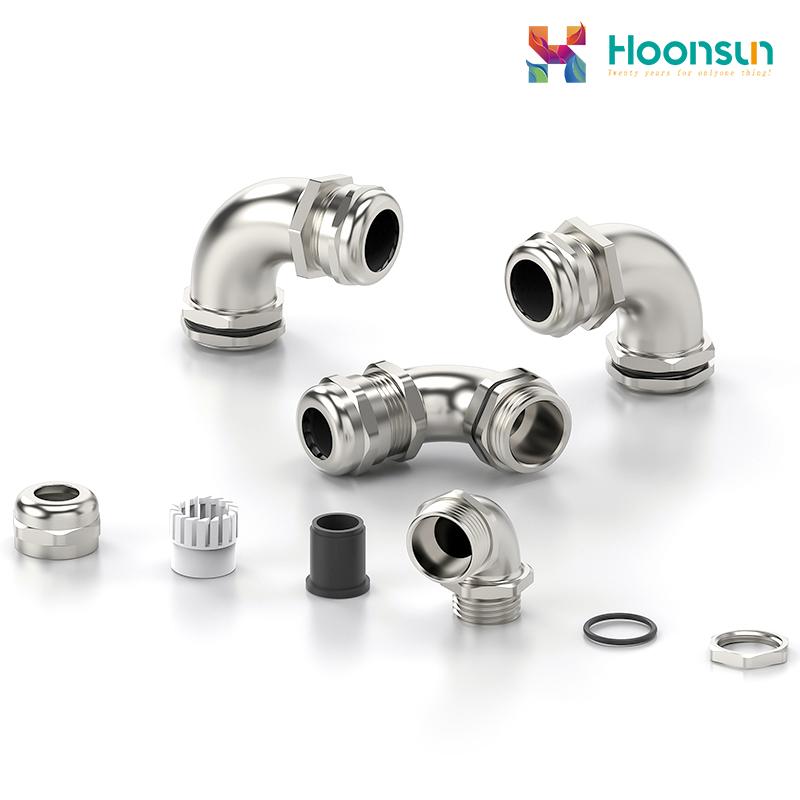

The Hoonsun metal 90 degree cable gland is constructed using:

• Nickel-plated brass housing for strength and corrosion resistance
• PA66 nylon clamping claws compliant with UL94-V2 standards

EPDM or silicone rubber seals and O-rings for superior sealing performance. This material combination creates a durable protective barrier capable of handling demanding applications.

IP68 Waterproof Protection

With an IP68 rating, the gland can withstand water pressure up to 10 bar. Whether installed in humid manufacturing plants, outdoor equipment enclosures, or dust-heavy workshops, it maintains a tight seal that prevents moisture and contaminants from entering the system.

Reliable Temperature Performance

Industrial systems often operate under fluctuating thermal conditions. This 90 degree cable gland supports:

• Static operating temperatures from -40°C to 100°C (up to 120°C short term)
• Dynamic operating temperatures from -20°C to 80°C (up to 100°C short term)

This wide temperature tolerance makes it suitable for hydraulic systems, pneumatic circuits, and industrial automation environments where thermal variation is common.

Thoughtful Structural Design for Long-Term Reliability

High-quality cable management is not only about materials, it’s about structural precision.

Integrated Guide Groove Design

The built-in guide groove directs the cable smoothly through the 90-degree turn, preventing excessive bending that could damage internal cores or insulation. By controlling bend radius at the entry point, the gland helps extend cable service life.

Strong Mechanical Support

The nickel-plated brass housing enhances mechanical strength while offering excellent corrosion resistance. The reinforced structure allows the gland to withstand vibration and impact, making it suitable for equipment that operates under constant movement or heavy mechanical load.

Secure Clamping System

The PA66 clamping claw tightly grips the cable, ensuring a secure connection and reducing contact resistance below industry standards. A precise fit between the gland and the cable not only improves electrical stability but also enhances overall sealing performance.

This attention to detail ensures that the 90 degree cable gland performs consistently throughout the entire lifecycle of the installation.

Designed for Installation Efficiency

In industrial projects, installation time directly impacts cost. Hoonsun’s 90 degree cable gland features a user-friendly threaded connection that is both secure and easy to disassemble. Installation and replacement can be completed without specialized tools, improving efficiency for field technicians and maintenance teams.

For large-scale automation projects, this streamlined design reduces downtime during both initial deployment and future servicing.

Certified Quality and Strict Testing

Safety and compliance are essential in industrial connection systems. Every Hoonsun metal 90 degree cable gland undergoes rigorous inspection and performance testing before delivery.

From raw material selection to final assembly, manufacturing follows international quality management standards. Products meet relevant certification requirements such as ISO and UL, ensuring consistent and reliable performance across global markets.

This strict quality control process guarantees that each unit performs as expected in demanding real-world conditions.

Applications Across High-Demand Industries

With its combination of structural strength, sealing performance, and compact routing capability, the 90 degree cable gland is widely used in:

• Industrial automation systems
• Robotics and motion control equipment
• Hydraulic and pneumatic systems
• Rail transit applications
• Renewable energy installations
• Major infrastructure projects

As Industry 4.0 continues to push equipment toward miniaturization and higher wiring density, right-angle cable routing solutions are becoming increasingly important.

Nearly 20 Years of Connector Expertise

Zhejiang Hongxiang Connector Co., Ltd. has spent almost two decades focusing exclusively on connector innovation. This long-term specialization has built deep technical expertise in designing products that balance mechanical durability, electrical stability, and installation convenience.

Rather than offering generic components, Hoonsun continuously refines its 90 degree cable gland design to meet evolving industry demands. Customized solutions are also available to support specific equipment layouts and performance requirements.

Choosing the Right 90 Degree Cable Gland for Your Project

When selecting a 90 degree cable gland, engineers should consider:

• Environmental sealing requirements (IP rating)
• Operating temperature range
• Mechanical vibration exposure
• Cable diameter compatibility
• Material corrosion resistance
• Certification and compliance standards

A properly specified gland does more than secure a cable, it protects the entire system from avoidable downtime and safety risks.

Conclusion

In complex industrial environments, a cable gland is more than a connector. It is a safeguard for power transmission, signal stability, and long-term equipment performance.

With premium metal construction, intelligent right-angle design, and strict quality control, Hoonsun’s 90 degree cable gland provides a dependable solution for space-constrained installations and harsh operating conditions.

Whether your application involves factory automation, hydraulic machinery, or high-vibration systems, the right-angle cable gland from Hoonsun delivers the stability, efficiency, and peace of mind your project demands.
