In harsh environments such as marine, renewable energy facilities, rail transit systems, and industrial automation, electrical reliability is paramount. A failure at a single cable entry point can jeopardize the entire system, leading to downtime, safety hazards, and high repair costs.
blog
Reliable TJ Series Waterproof cable glands for Marine, Industrial, and Outdoor Use
Author | hongxiang_admin |
February 26, 2026
This is why professional-grade waterproof cable glands play a crucial role. The Hoonsun TJ series waterproof connectors are designed to provide long-term reliability, superior sealing performance, and mechanical durability under harsh conditions.
This article will explain why the TJ series connectors are a reliable solution, their structural design, and their most effective application areas.
What Is the TJ Series Waterproof Cable Gland?
The TJ Series is a metal waterproof cable gland designed to secure and seal cables as they pass through equipment enclosures.
Its primary function is to:
- Protect internal electrical components from water, dust, and contaminants
- Maintain mechanical stability under vibration and thermal stress
- Ensure long-term system reliability in outdoor or harsh environments
- Unlike basic plastic cable glands, the TJ Series is built for industrial and mission-critical applications where failure is not an option.
Hoonsun Cable Gland: Engineering Experience and Global Certifications
The TJ Series is developed and manufactured by Hoonsun cable gland, a company established in 2006 with a long-term focus on cable gland research, development, and production.
Hoonsun cable gland’s products are manufactured in accordance with German DIN standards and hold multiple international certifications, including:
- IATF 16949 (automotive quality management)
- CE
- ATEX
- IP68
It is worth mentioning that our products have been used in high-reliability projects such as the Liaoning aircraft carrier, underscoring their suitability for extreme environments.
Key Design Features of the TJ Series Cable Gland

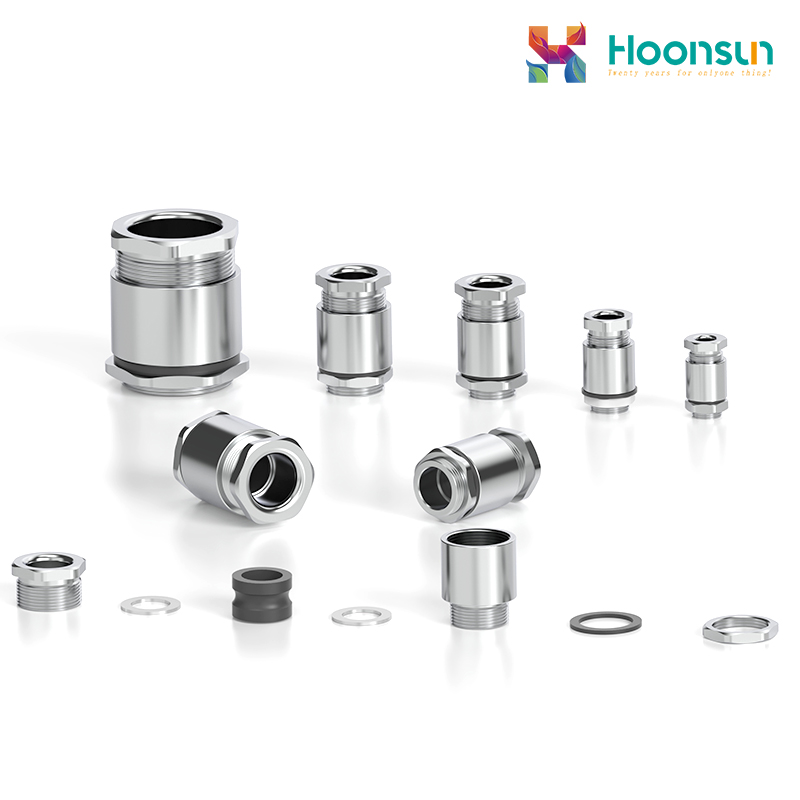

1. Robust Metal Construction
The connector body is manufactured from nickel-plated or chrome-plated brass, providing:
- High mechanical strength
- Excellent corrosion resistance
- Long service life in marine and industrial environments
This metal construction makes the TJ Series far more durable than standard polymer alternatives, especially in applications exposed to salt spray, vibration, or temperature fluctuations.
2. Advanced Sealing Materials
Sealing performance is achieved using NBR (nitrile rubber) or silicone rubber gaskets, selected for:
- Strong elasticity
- Resistance to oil, moisture, and aging
- Stable sealing under temperature changes
These materials ensure a tight seal around the cable, even after long-term use.
3. High-Level Environmental Protection
The TJ Series offers protection ratings up to IP68, meaning:
- Complete protection against dust ingress
- Resistance to continuous water immersion
For less demanding environments, basic models with IP54 protection are also available, allowing flexible selection based on application needs
4. Secure G-Type Thread Locking System
The connector uses a G-type threaded locking mechanism, which provides:
- Reliable mechanical fixation
- Easy installation and maintenance
- Strong resistance to loosening under vibration
This locking system is especially important in mobile or dynamic environments such as ships, trains, and outdoor machinery.
5. Wide Cable and Temperature Range
The TJ Series supports a cable diameter range from 5 mm to 57 mm, covering:
- Signal cables
- Control cables
- Power cables
Its operating temperature range of -40°C to +100°C allows reliable performance in both cold and high-heat environments, making it suitable for year-round outdoor use.

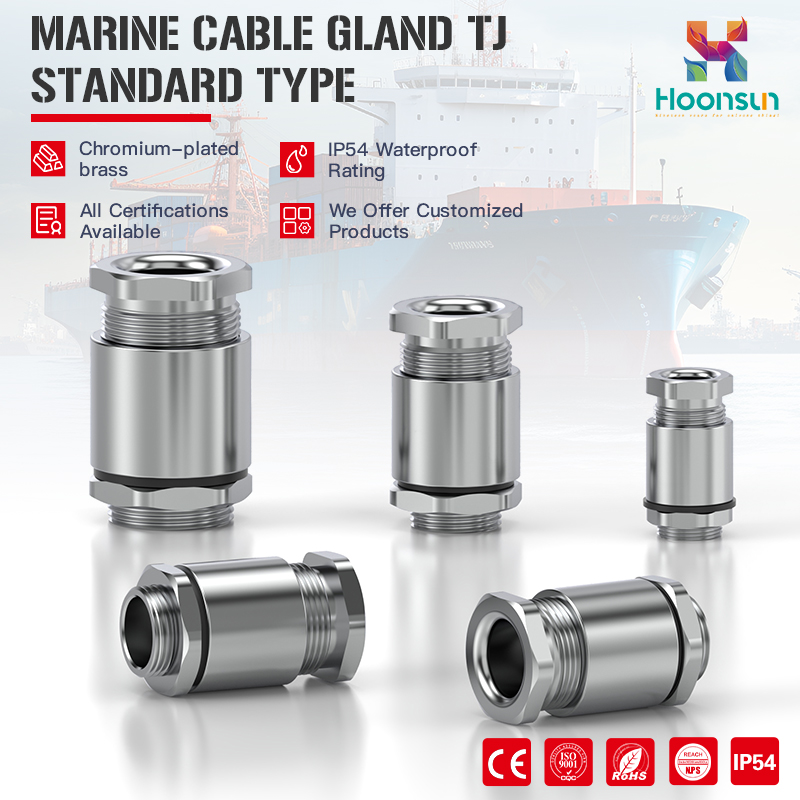

Where Are TJ Series Connectors Commonly Used?
Thanks to their sealing performance, durability, and compliance with international standards, TJ Series waterproof connectors are widely used across multiple industries.
Marine Engineering Applications
Marine environments expose equipment to moisture, salt spray, vibration, and temperature changes. TJ Series connectors are commonly installed in:
- Deck-mounted equipment
- Cabin junction boxes
- Shipboard electrical enclosures
Their corrosion-resistant metal body and IP68 sealing help prevent water ingress that could lead to electrical failure or safety hazards.
Renewable Energy Systems
Renewable energy installations often operate outdoors for decades with minimal maintenance.
The TJ Series is widely used in:
- Photovoltaic (PV) junction boxes
- Wind turbine electrical systems
- Electric vehicle (EV) charging equipment
The combination of wide temperature tolerance and waterproof sealing ensures stable performance under sun exposure, rain, snow, and wind.
Industrial Automation and Outdoor Control Panels
In industrial settings, connectors must withstand dust, vibration, and frequent operation.
TJ Series connectors are commonly applied in:
- Outdoor control cabinets
- Automated production lines
- Industrial machinery enclosures
Their secure locking system prevents cable loosening, while the metal housing protects against mechanical damage.
Rail Transit Systems
Rail systems require components that can handle constant vibration and changing environmental conditions.
TJ Series connectors are used in:
- Train electrical cabinets
- Trackside control equipment
Reliable cable sealing helps ensure uninterrupted operation and compliance with safety standards.
Why Choose the TJ Series Over Standard Cable Glands?
Compared to basic cable glands, the TJ Series offers several advantages:
- Higher protection levels (up to IP68)
- Metal construction for durability and corrosion resistance
- Certified quality and international compliance
- Broad application range across critical industries
For systems where downtime, maintenance, or failure carries high costs, these advantages translate directly into long-term value.
Conclusion
The Hoonsun’s TJ series waterproof connectors are designed for professionals who require reliable cable protection in harsh environments. With their robust and durable materials, advanced sealing design, wide operating range, and proven track record in a variety of demanding applications, this series provides reliable solutions for marine, renewable energy, industrial, and rail transportation systems.
Choosing the right cable gland is not just about selecting components, but about selecting system reliability. The TJ series is designed to provide stable and long-lasting operational assurance for applications where performance is truly critical.
FAQ
Q What materials are used in TJ series cable glands?
TJ series cable glands are made from nickel-plated or chrome-plated brass, with sealing gaskets made of NBR or silicone rubber for durability and reliable sealing.
Q What cable diameter range does the TJ series support?
The TJ series cable gland supports cable diameters from 5 mm to 57 mm, making it suitable for signal, control, and power cables.
Q What temperature range can TJ series cable glands operate in?
TJ series cable glands are designed to operate reliably in temperatures ranging from -40°C to +100°C.
Q Where are TJ series cable glands commonly used?
They are widely used in marine engineering, renewable energy systems, industrial automation, rail transit, and outdoor electrical equipment.
Q Are TJ series cable glands suitable for marine environments?
Yes. Their corrosion-resistant metal construction and IP68 sealing make them suitable for marine applications such as deck equipment and shipboard junction boxes.
Q What thread type does the TJ series cable gland use?
The TJ series cable gland uses a G-type threaded locking system, ensuring secure installation and resistance to vibration.
Q Does the TJ series cable gland comply with international standards?
Yes. TJ series cable glands comply with DIN standards and are certified with CE, ATEX, IATF 16949, and IP ratings.
Q What is the main advantage of using a metal cable gland instead of plastic?
Metal cable glands like the TJ series offer higher mechanical strength, better corrosion resistance, and longer service life, especially in harsh or outdoor environments.
