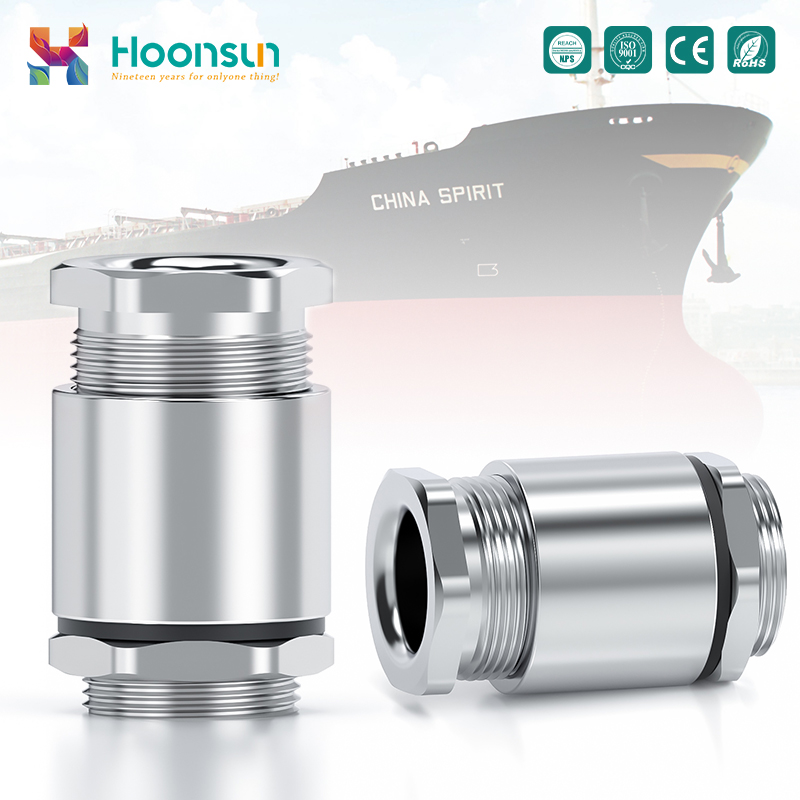

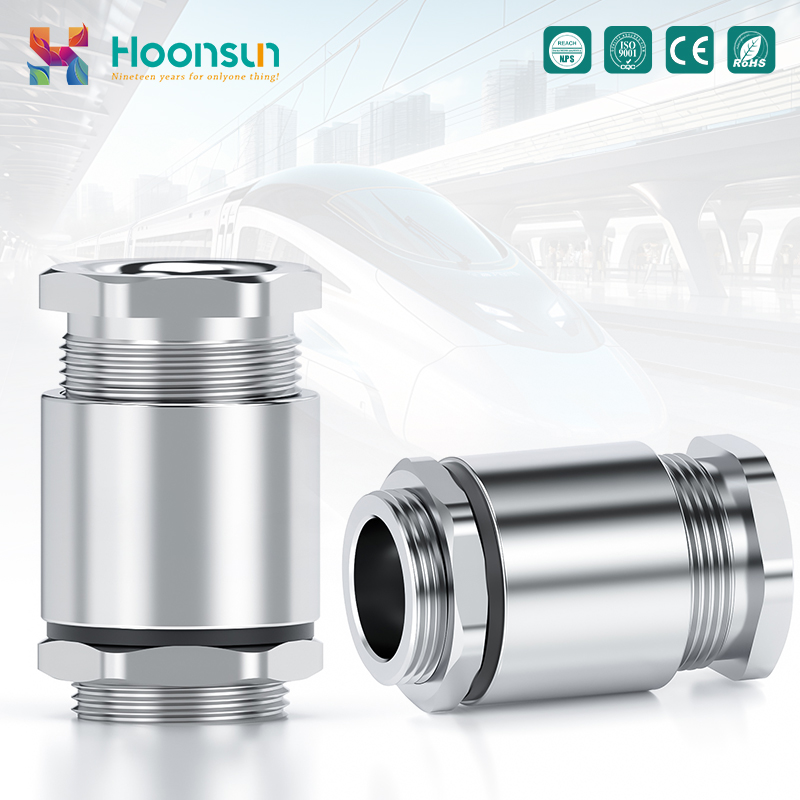

  • Marine Cable Gland -TJ Clamping Type

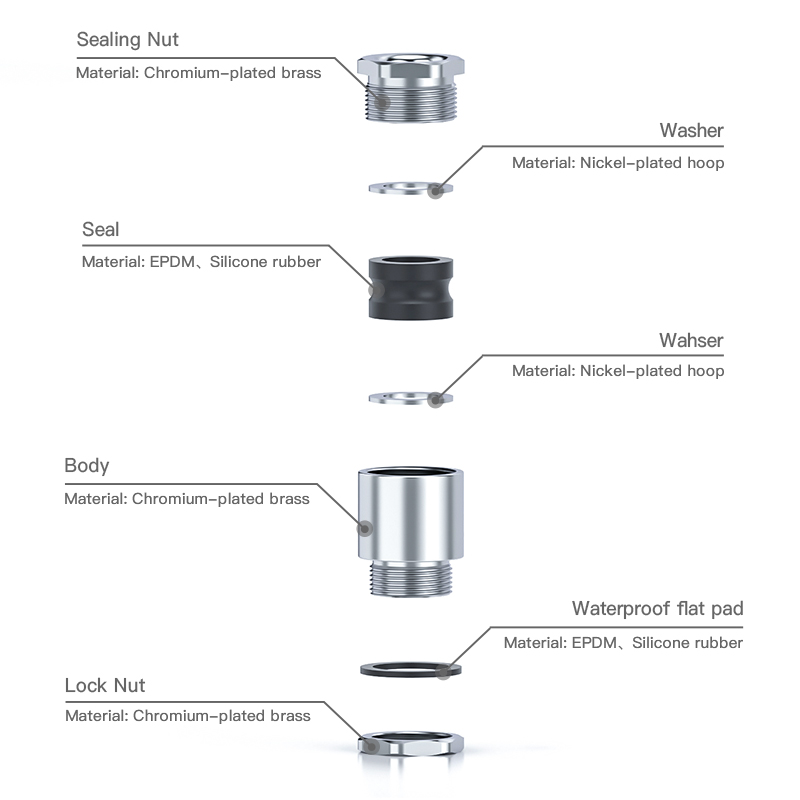

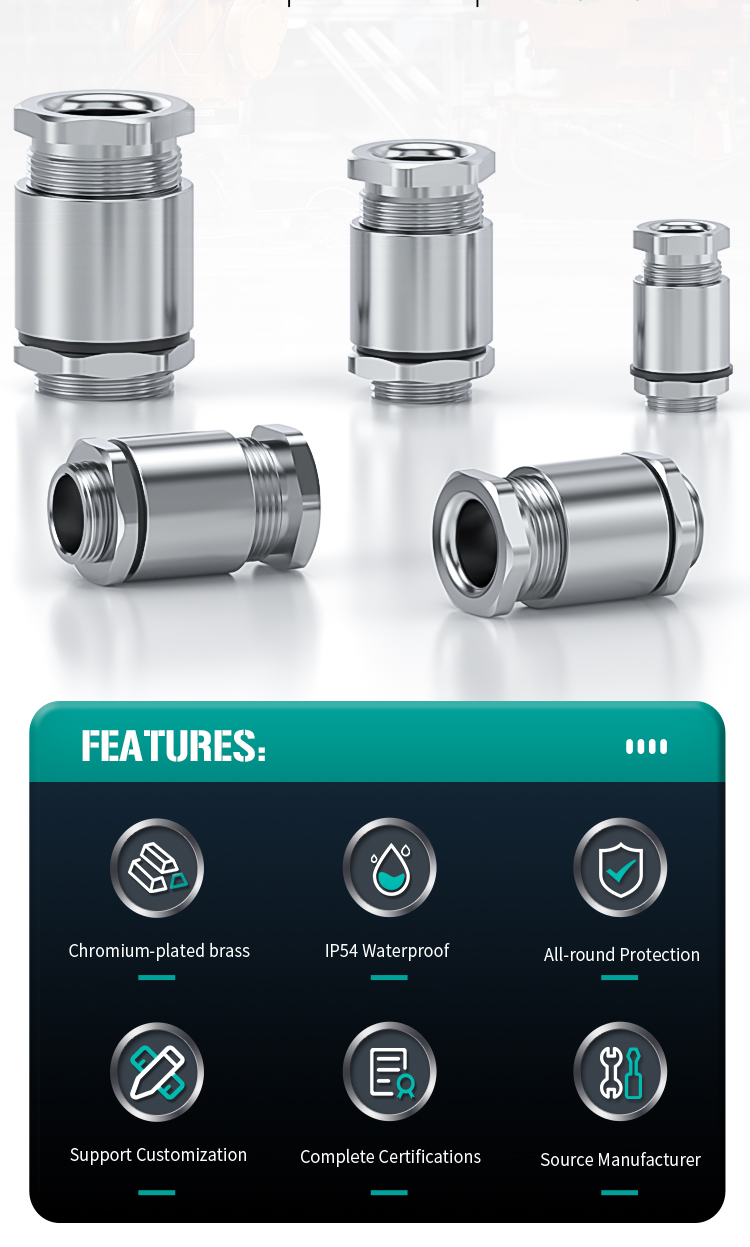

    Material:Chromium-plated brass
    Hermetic seal:NBR、Silicone rubber
    O-Ring:NBR、Silicone rubber
    Metal Washer:Nickel-plated hoop

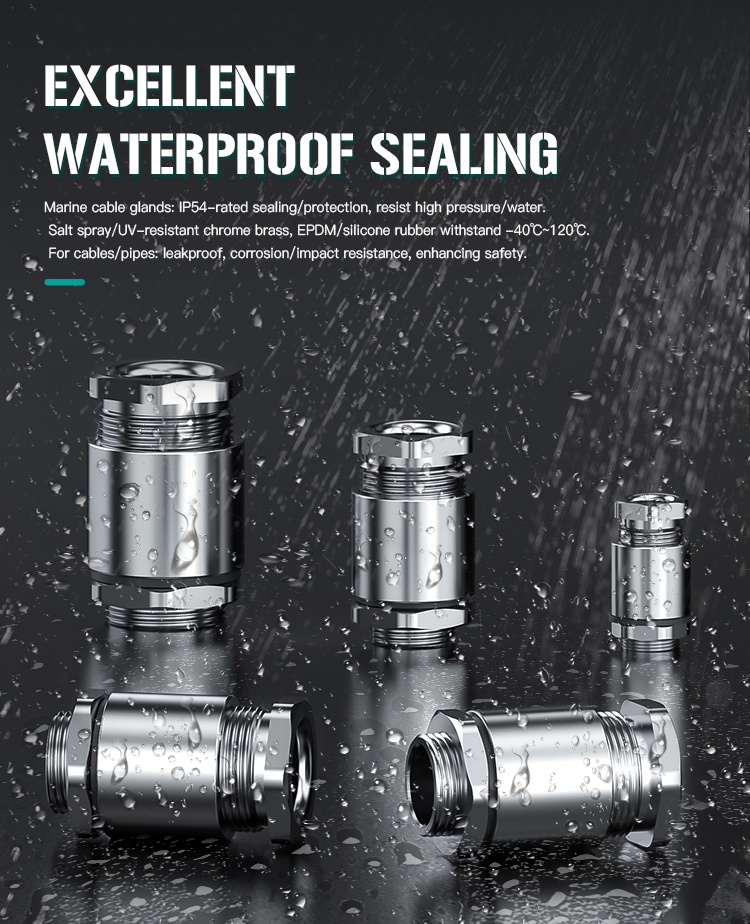

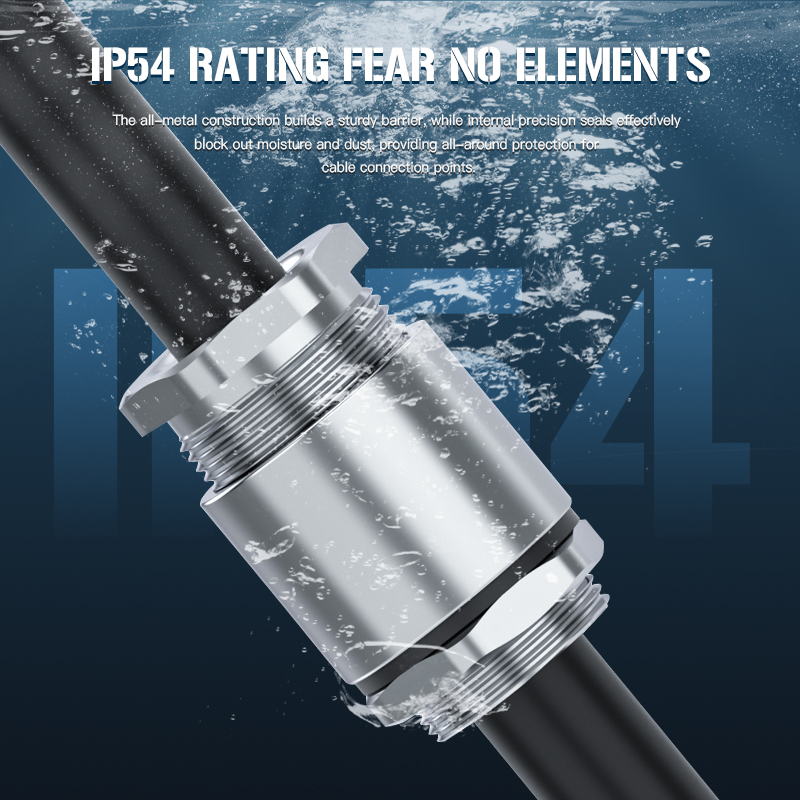

    Protection degree:IP54

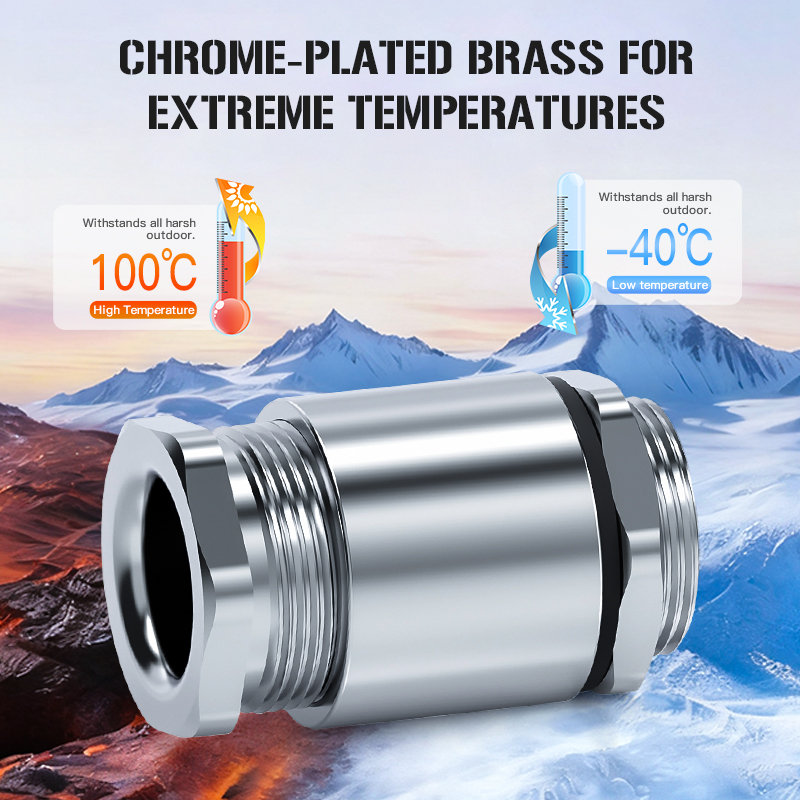

    Temperature:Static state:-40℃ to 100℃,short time to 120℃
    Dynamic state:-20℃ to 80℃, short time to 100℃

    Inquiry Now >

    VIDEO

    video video

    Dimension Drawing

    Marine Cable Gland -TJ Clamping Type Marine Cable Gland -TJ Clamping Type

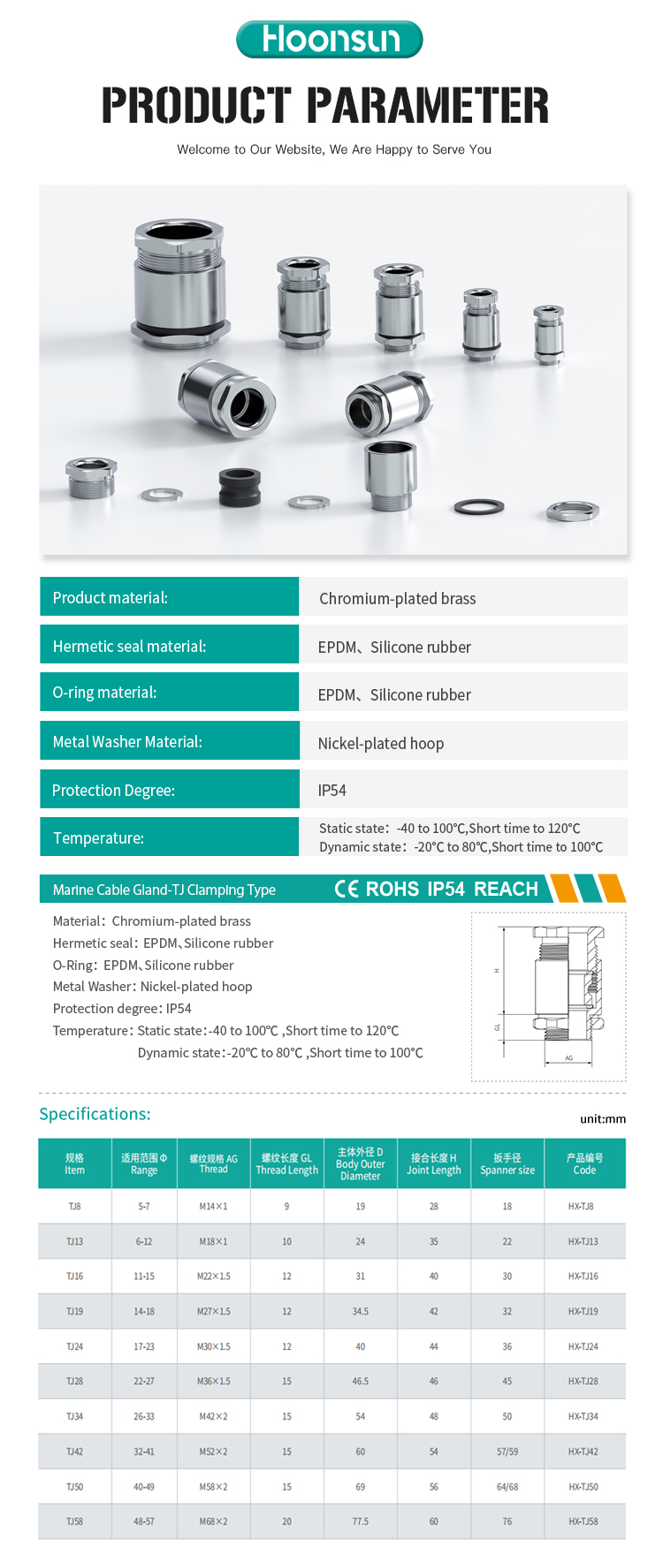

    Technical Parameter


    Item

    Range

    Thread

    GL

    Thread O.D.

    Joint Length

    Spanner size

    Code
    D d
    TJ 8 5-7 M16×1 M14×1 9 14 32 18 HX-TJ8
    TJ 13 6-12 M20×1 M18×1 10 18 35 22 HX-TJ13
    TJ 16 11-15 M27×1.5 M22×1.5 12 22 40 30 HX-TJ16
    TJ 19 14-18 M30×1.5 M27×1.5 12 27 42 32 HX-TJ19
    TJ 24 17-23 M35×1.5 M30×1.5 12 30 44 36 HX-TJ24
    TJ 28 22-27 M42×2 M36×1.5 15 36 46 45 HX-TJ28
    TJ 34 26-33 M47×2 M42×2 15 42 49 50 HX-TJ34
    TJ 42 32-41 M55×2 M52×2 15 52 54 57/59 HX-TJ42
    TJ 50 40-49 M62×2 M58×2 15 58 56 64/68 HX-TJ50
    TJ 58 48-57 M71×2 M68×2 20 68 56 76 HX-TJ58
