How to Choose the Right Cable Gland and Connector for Your Project?

The primary difference between cable glands and connectors is their roles in electrical systems. A cable gland, also known as a cable connector, secures and seals cable ends, offers strain relief and protects against environmental elements. It is essential for securely terminating cables.

A connector is crucial for linking circuits, allowing conductors to be easily joined or separated, thus enabling electrical connections between devices. While cable glands focus on terminating cables and providing environmental protection, connectors ensure smooth electrical connectivity within a system.

Understanding these differences is important in choosing the right product for your specific application. In this article, we will explore the definitions of cable glands and cable connectors, as well as the functions and uses of each.

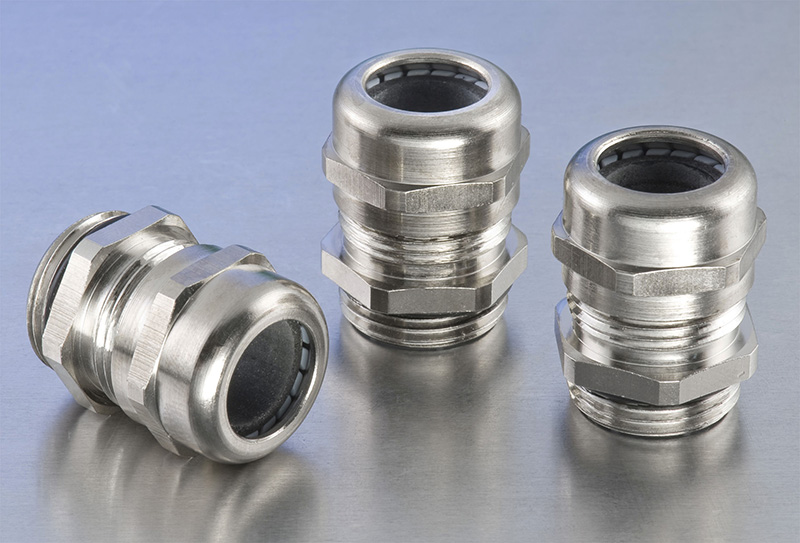

What is a cable gland?

A cable gland, or cable strain relief or cable gland, is a mechanical device used to secure and protect the ends of cables and entry points into electrical enclosures, equipment, or machinery.

It relieves strain on cables by firmly holding them in place and preventing them from being pulled or twisted, thus protecting the cables and their connections from damage. Cable glands also prevent environmental factors such as dust, moisture, and other contaminants from affecting the performance and life of the cables.

Cable glands come in a variety of types, sizes, and materials to accommodate different cable sizes and applications. They are commonly used in industries such as manufacturing, energy, telecommunications, and construction to ensure the safe and reliable operation of electrical systems. They are also used in industrial, commercial, and outdoor applications where cables need to be passed through enclosures or panels.

Key features of cable glands

Cable glands are widely used in various industries, including manufacturing, telecommunications, and energy. Wherever electrical cables need to be terminated securely and protected against environmental factors.

The following are some of the main features of cable glands:

Protection: Cable glands secure cables and prevent them from being pulled out or damaged, ensuring the safety of cables and connected equipment.

Seal: Cable glands create a seal that blocks moisture, dust, and contaminants from entering and causing damage.

Strain relief: Cable glands securely secure cables, reducing bending and pulling, and extending the life of the cable. This is especially important in industrial environments or where cables may be subject to movement or tension.

Easy installation: Cable glands are designed to quickly install onto cable entry points, facilitating efficient installation. They are typically threaded so they can be screwed onto equipment, providing a secure and tight connection.

Variety: Cable glands are available in a variety of sizes and materials, such as plastic, brass, stainless steel, and aluminium, to suit a variety of applications and environments. For example, there are glands designed specifically for armoured cables. There are glands for hazardous environments (explosion-proof glands) and weatherproof glands for outdoor use.

Versatility: Cable glands can be used in industrial, commercial, and residential environments and are essential for cable management and installation.

Environmental protection: Cable glands help seal the entry point of the cable, protecting it from dust, moisture, and other contaminants. This is critical to maintaining the integrity and functionality of the electrical connection.

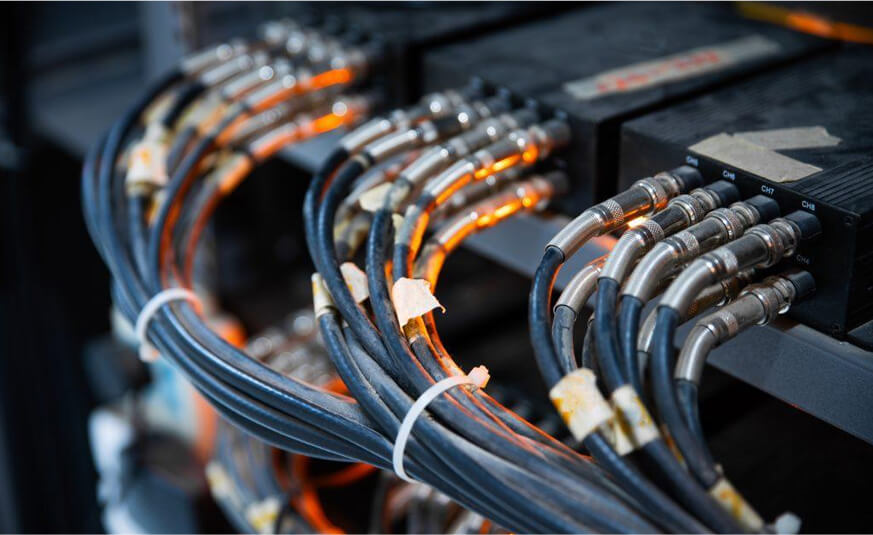

What is a cable connector?

A cable connector is a device used to connect one cable to another or to connect a cable to a device such as a computer or TV. Cable connectors come in a variety of shapes and sizes and are designed to ensure a safe and secure connection between cables and devices. They provide electrical continuity between connected cables or devices and may also provide features such as waterproofing or insulation.

There are several different types of cable connectors, each with its own specific purpose and design. Some common types of cable connectors include coaxial connectors (commonly used for TV and internet connections) and USB connectors (used to connect devices such as printers, cameras, and external hard drives to computers).

Cable connectors are an essential part of any modern technology setup, and it is important to choose the right type of connector for your specific needs to ensure a smooth and efficient connection between devices.

Key features of cable connectors

Versatility: Cable connectors demonstrate adaptability by safely connecting cables to a wide range of equipment and industries.

Durability: Made of metal or plastic, cable connectors are typically built to withstand harsh conditions, including exposure to dust, moisture, chemicals, and mechanical stress.

Easy installation and maintenance: Industrial connectors are often designed to be easy to install and maintain, allowing for quick and efficient connection and disconnection during equipment setup, repair, or replacement.

Secure connections: They ensure reliable connections that minimize signal loss and interference. This is important for maintaining continuity of power or signal in industrial processes, where interruptions can have serious consequences.

Weather resistance: Many connectors are weather-resistant and suitable for outdoor use in rain, snow, or extreme temperatures. Sealing features help maintain the integrity of electrical connections in challenging environments.

Compatibility: Available in a variety of shapes and sizes to fit different cables and equipment.

Different types of cable connectors

So how many types of cable glands are there? Most cable accessories have factors like materials, armor compatibility, and specific application requirements. Here are some of the most common characteristics of cable accessories organized by category:

The most fundamental difference between cable gland designs is their materials

1. Material Characteristics

The most fundamental difference between cable gland designs is their materials. Some of the most common materials used for cable gland sleeves include:

Metal: Metal cable gland sleeves come in stainless steel, aluminum, and nickel-plated brass, offering rigid stability, long-term durability, and excellent electrical and thermal conductivity. These materials are ideal for applications requiring high chemical stability and mechanical strength.

Plastic: Plastic cable glands, made from polyamide or nylon, are valued for their versatility and resistance to corrosive substances. Their adaptable design and resistance to saltwater, mild acids, and oils make them ideal for various industries.

2. Armor Compatibility Characteristics

A key distinction among cable strain reliefs is their suitability for armoured or unarmored cables. Notably, industrial cable glands accommodate both.

Armored: Armored cables feature an extra protective layer to reduce damage, making them perfect for high-risk environments. This protection typically includes single wire, braided wire, or double steel tape armour. Cable glands for armoured cables are specially designed to ensure compatibility and seamless integration.

Unarmored: Unarmored cables have a simpler design without extra mechanical protection, suitable for low-risk environments. Cable glands for these cables are less complex than those for armoured cables, as they don’t require strict performance standards.

3. Application-Specific Capabilities of Cable Connectors

Another way to define types of cord grips is by the protection they provide or their ability to meet requirements in a specific environment.

Application-specific cable connectors include:

Electromagnetic Compatibility (EMC): Electromagnetic interference (EMI) disrupts electronic components, while electromagnetic compatibility (EMC) is the equipment’s ability to resist EMI. EMC cable gland bushings are used for shielding cables to ensure this protection. These clamps shield the cable’s terminal end, offering comprehensive EMI defence.

Marine or Waterproof Cable Connectors: Waterproof cable connectors ensure reliable seals for cables interfacing with enclosures. Waterproof cable glands typically consist of multiple components that penetrate enclosure walls. When assembled, they form a seal by compressing the wall between the gland components and clamping around the cable. The tightening process guarantees waterproof properties, making these glands essential for marine equipment, wastewater treatment facilities, and other applications requiring robust waterproof protection.

Cable Gland Bushings: Various wire clamps are used in electrical applications, but what are cable gland bushings and how do they differ? Cable connectors, usually metal, offer voltage relief or grounding, protecting connections from short circuits.

Fireproof Cable Gland: Fire-resistant cable glands are designed to prevent fire and explosions, crucial for any fire-risk applications. Specialized variants also provide explosion-proof and fireproof features for industrial use.

What is the use of cable connectors?

Cable connectors are essential for secure, reliable connections between cables or devices, ensuring stable electrical conductivity. Used in electronics, telecommunications, and audio-visual equipment, they are vital for signal and power transmission, maintaining system integrity.

Cable connectors, including USB, HDMI, Ethernet, coaxial, and XLR, are meticulously engineered for specific purposes. They ensure the seamless and efficient functionality of electronic devices and systems.

The key difference between cable gland and connector

The primary distinction between cable glands and connectors lies in their respective functions: cable glands are engineered to secure and safeguard the termination points of cables, while connectors are designed to facilitate the connection of two or more cables.

Cable glands secure cable entry into enclosures, providing strain relief and protection from moisture, dust, and environmental factors. Used in industrial, commercial, and residential settings, they ensure safe and reliable electrical connections.

Connectors join cables to enable efficient transfer of electrical signals or power between devices. Varieties include USB, HDMI, and XLR connectors, essential in electronics, telecommunications, and audio/video systems.

In summary, cable glands are used to secure and protect the ends of cables, while connectors are used to connect two or more cables together.

Conclusion

The main difference between cable glands and connectors is their function and purpose. Cable glands are designed to provide strain relief, sealing, and grounding for cables, while connectors allow for easy and safe connection of cables. Understanding the difference between these two components is essential to ensure proper installation and maintenance of electrical systems.
