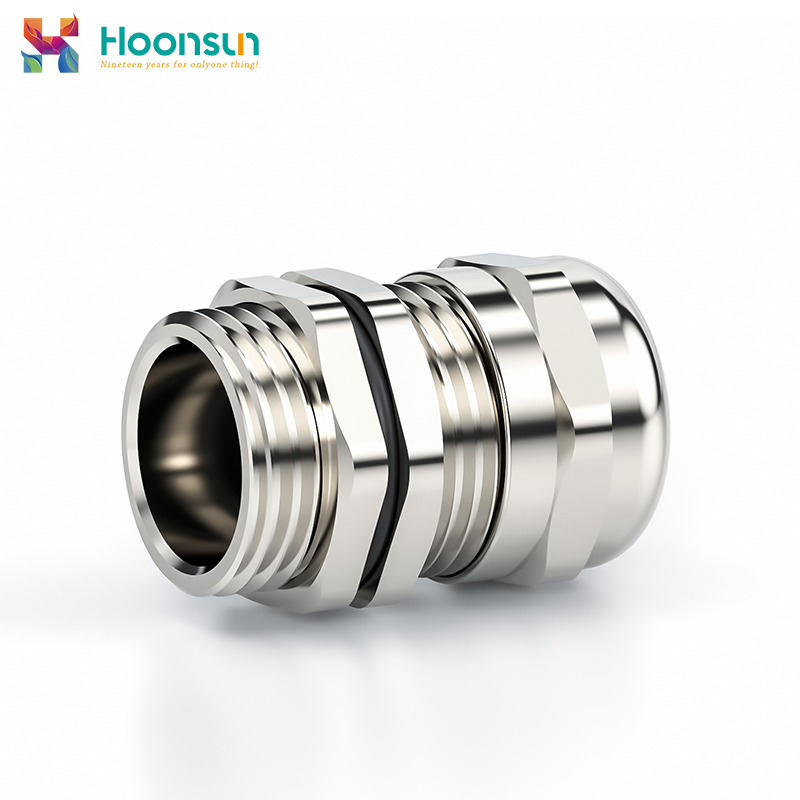

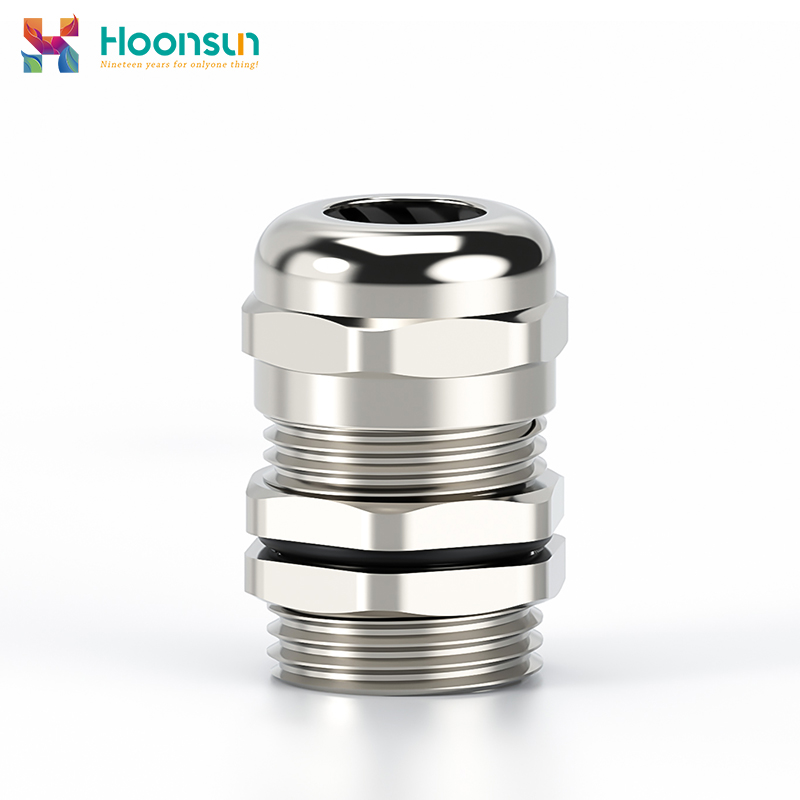

Type: Metal Cable Gland- Length Type
Max Temperature: 120℃
Surface Treatment: Electroplating
Colour: Silvery
Factory Report: ISO90001
Model NO..: MG12-MG63
Highlight: Copper cable gland, double compression cable gland

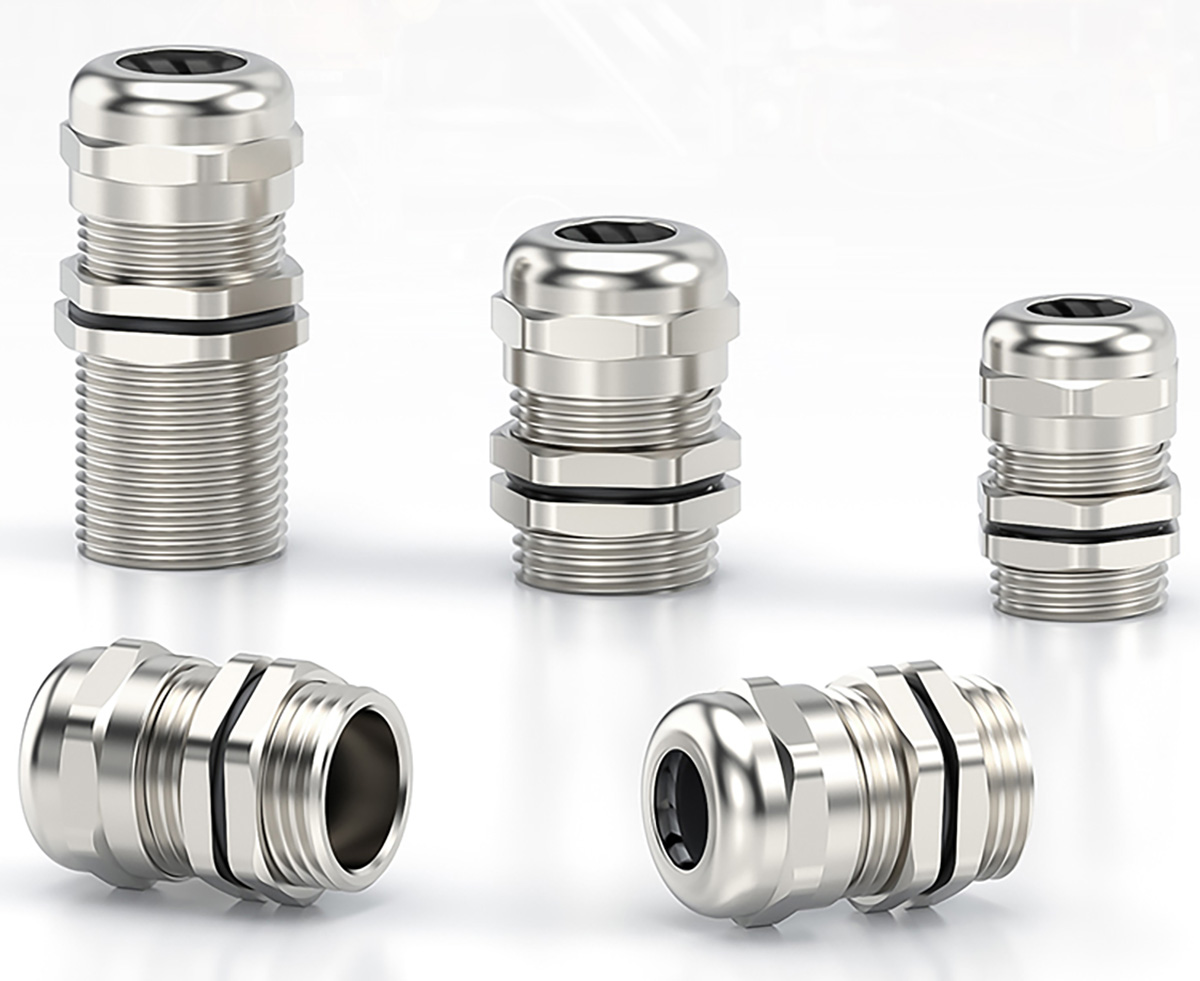

Our products are complete in specifications, with M, PG, G and NPT threads.
We can choose the type according to the thread size of the joint and the diameter of the clamping cable.
The reasonable use of our cable joints within the prescribed scope can effectively improve the tensile and waterproof properties.
The waterproof grade of our products can reach IP68 and can adapt to the static working temperature of -40 C to -120 C.
The short time can reach 120 degrees C, the adaptation range of the dynamic environment is -20 C -80 C, and the short time can reach 100 degrees C.
Resistance to salt, acid, alcohol, oil and other general solvents, suitable for oil, chemical, mechanical, nuclear power,
Shipbuilding, paper, pharmaceutical, food, aerospace and other fields.

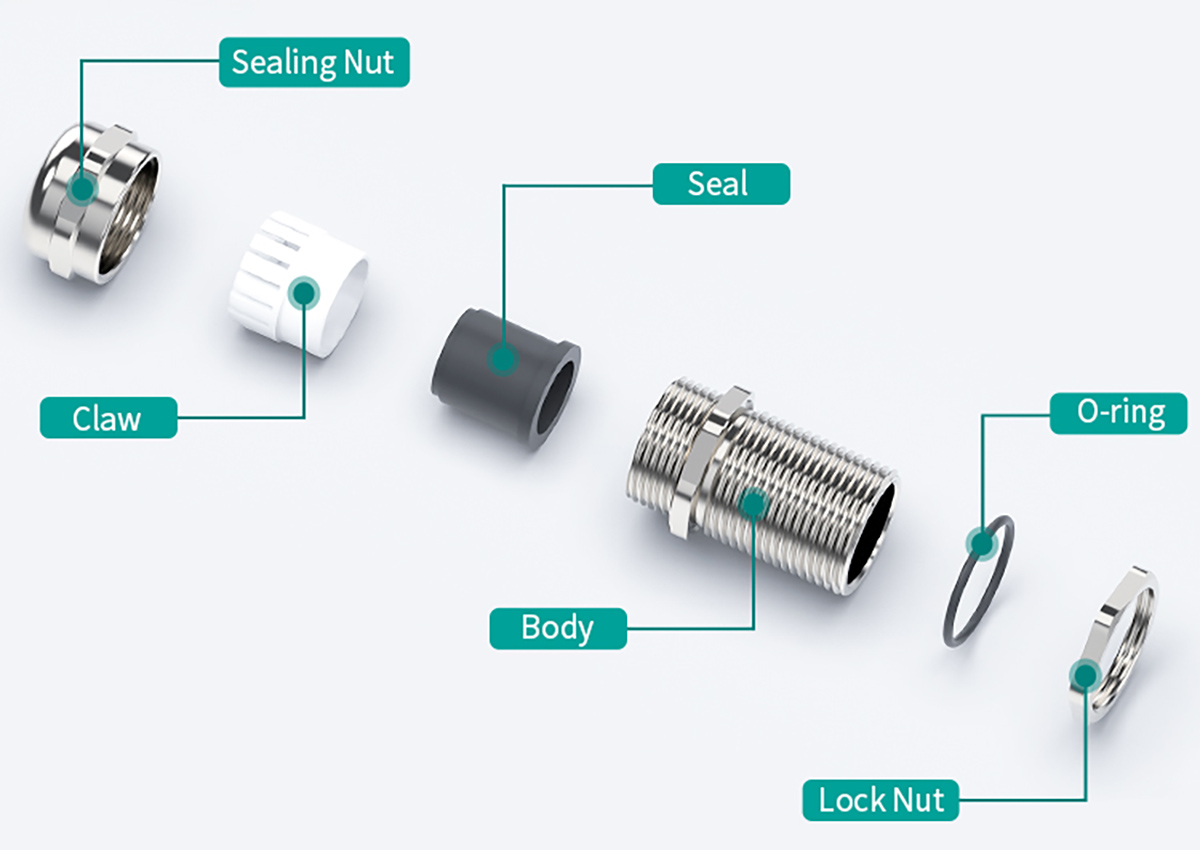

Our products consist of a tight nut, a seal, a clamping jaw, a main body, an O-ring and a nut.
Large type cable gland, large range type cable gland, small range type cable gland, length type cable gland, strengthened type cable gland, direct type cable gland, multiple-entry type cable gland, high-temperature resistance type cable gland, double locking type cable gland, spiral type cable gland, 90º flexible pipe connector, EMC cable gland, and explosion proof cable gland, etc.
Conventional type cable gland, split type cable gland, anti-bending cable gland, corrugated tubing cable gland, nylon union for flexible pipe, hose cable gland, etc.
DCG single compression type cable gland, JIS standard type cable gland, TJ clamping type cable gland, TH welded type cable gland, etc.
PP/PA flexible pipe, metal flexible pipe, bellows fixed frame, etc.
Breathable vent plug and breathable cable gland, etc.
Brass reducer, brass enlarger, standard locknut, EMC locknut, brass screw plug and waterproof junction box, etc.
| Place of Origin: | Zhejiang, China |
| Brand Name: | Hnx cable gland |
| Certification: | RoHS, ISO, CE, IP68, REACH |
| Model Number: | MG Type |
| Minimum Order Quantity: | 10 Pieces |
| Price: | Negotiation |
| Packaging Details: | 38*25*17mm |
| Delivery Time: | 3-30 Day |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 30000 Pieces/Day |
We are the factory. Also, we can export the goods by ourselves.
Generally, we can send out the goods within 3-7 days if the goods are in stock. Or it should be 7-30 days if the goods are not in stock, it is according to your order quantity.
Yes, we could offer the samples for free charge but do not pay the cost of freight.
Payment<=1000USD, 100% in advance. Payment>= 1000 USD, 30% T/T in advance, balance before shipment.
Any feedback or comments are welcomed. We will try to make the best assistant to give you maximum satisfaction.
| Item | Range Φ mm |
Tread Length GL mm |
Thread O.D. AG mm |
Joint Length H mm |
Spanner size mm |
Code |
| M12×1.5 | 4-8 | 8 | 12.0 | 18.5 | 18 | HX-NP.M12 |
| M16×1.5 | 5-10 | 9 | 16.0 | 21.5 | 22 | HX-NP.M16 |
| M20×1.5 | 10-14 | 9.5 | 20.0 | 25.5 | 27 | HX-NP.M20 |
| M25×1.5 | 13-18 | 11 | 25.0 | 28 | 30 | HX-NP.M25 |
| M32×1.5 | 18-25 | 12.5 | 32.0 | 33 | 40 | HX-NP.M32 |
| M40×1.5 | 25-32 | 15 | 40.0 | 35 | 50 | HX-NPM40 |
| M50×1.5 | 32-42 | 15 | 50.0 | 40 | 59 | HK-NP.M50 |
| M63×1.5 | 35-45 | 17 | 63.0 | 45 | 67 | HX-NPM63 |
| Item | Range Φ mm |
Tread Length GL mm |
Thread O.D. AG mm |
Joint Length H mm |
Spanner size mm |
Code |
| PG7 | 4-8 | 8 | 12.5 | 18.5 | 18 | HXNP.PG7 |
| PG9 | 5-10 | 9 | 15.2 | 21.5 | 22 | HXNP.PG9 |
| PG11 | 6-12 | 9 | 18.6 | 24 | 24 | HX-NP.PG11 |
| PG13.5 | 10-14 | 9.5 | 20.4 | 25.5 | 27 | HXNP.PG13.5 |
| PG16 | 12-16 | 9.5 | 22.5 | 27.0 | 27 | HXNP.PG16 |
| PG21 | 13-18 | 11 | 28.3 | 28 | 30 | HXNP.PG21 |
| PG29 | 18-25 | 12.5 | 37.0 | 33 | 40 | HX-NP.PG29 |
| PG36 | 25-32 | 15 | 47.0 | 35 | 50 | HX-NP.PG36 |
| PG42 | 32-42 | 15 | 54.0 | 40 | 59 | HXNP.PG42 |
| PG48 | 35-45 | 17 | 59.3 | 45 | 67 | HXNP.PG48 |
| Fitting Material: | Nickel-platedbrass |  |
| Material For Clamping Jaws: | IPA66(Nylon),UL94-V2 | |
| Material For Sealing Components: | EPDM、Silicone rubber | |
| O-ring Material: | EPDM、Silicone rubber | |
| Protection Degree: | IP68-10 bar | |
| Temperature: | Static state:-40 to 100℃,Short time to 120℃ Dynamic state:-20℃to 80℃,Short time to 100℃ |
It is widely used in mechanical automation, new energy vehicles, wind power energy storage, electronic communications, marine and aviation, nuclear power plants, and various other scenarios

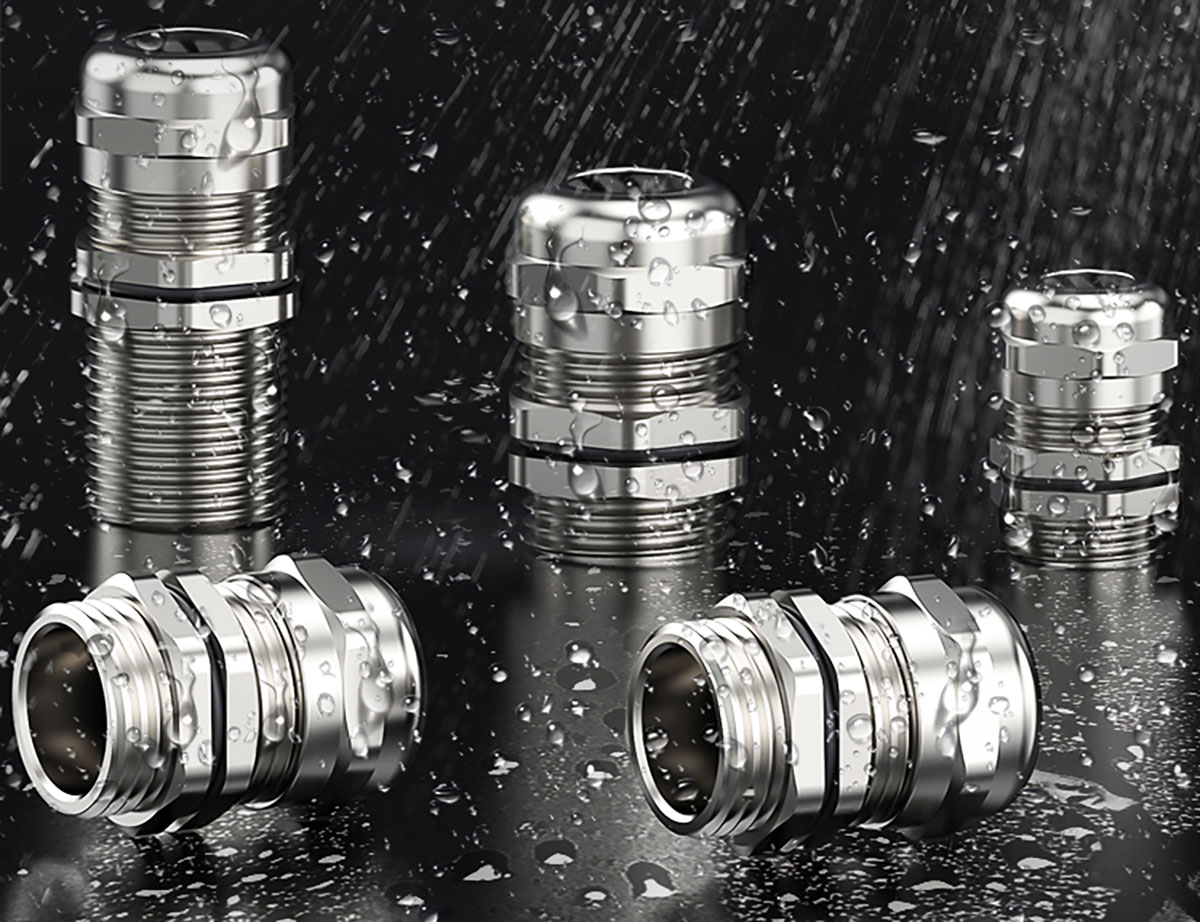

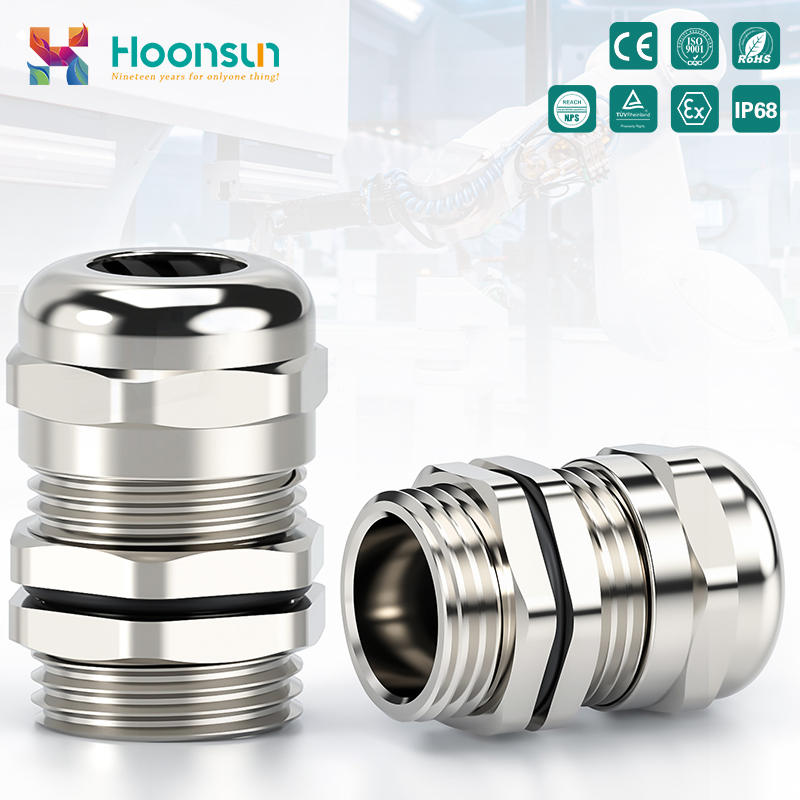

Built with nickel-plated brass and EPDM/silicone rubber seals, this IP68-rated metal waterproof connector guarantees cable durability in harsh conditions like sandstorms, snow, ice, and heavy rain.
It can be dust-proof, salt-proof, acid-alkaline, alcohol-grease and general solvent, suitable for outdoor harsh environments Plug and play, convenient and fast.
