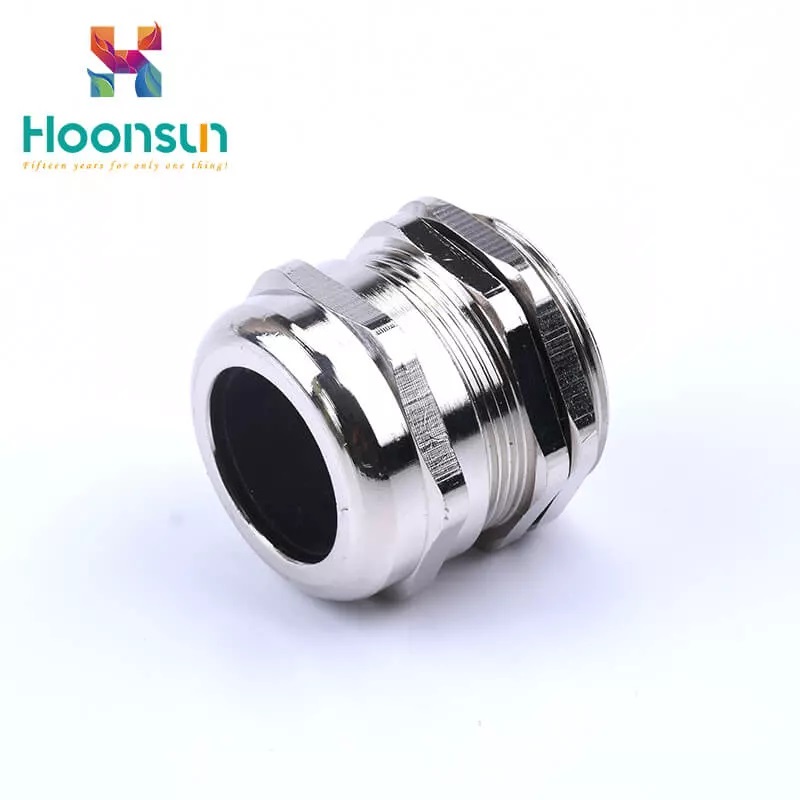

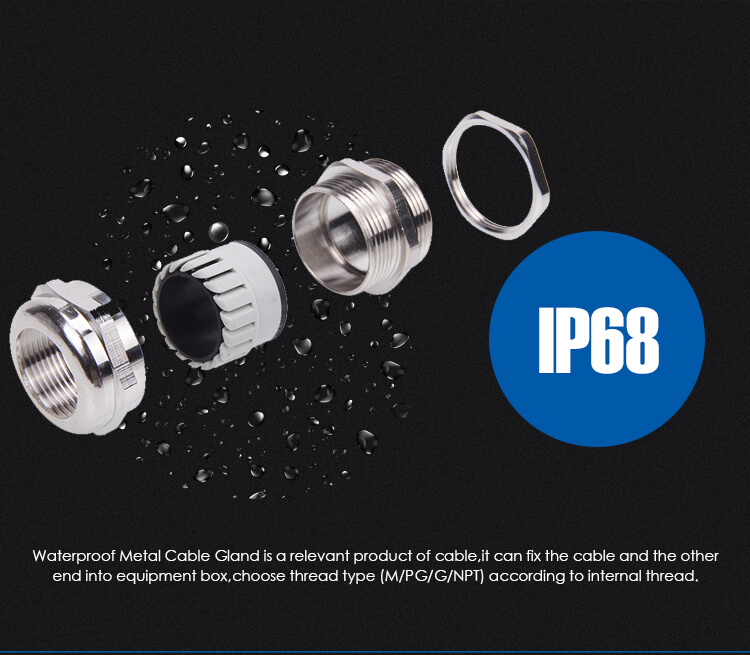

High Quality Waterproof Ip68 Metal Longer Thread Type Cable Gland

Model: HX-NP

Code: 8547901000

Thread type: Metric thread type

Hermetic seal: NBR, Silicone rubber

Material: Brass, nickel plated

Claw: PA

Sealing and sealing ring: NBR

Approvals: CE, ROHS, REACH

Protection degree: IP68

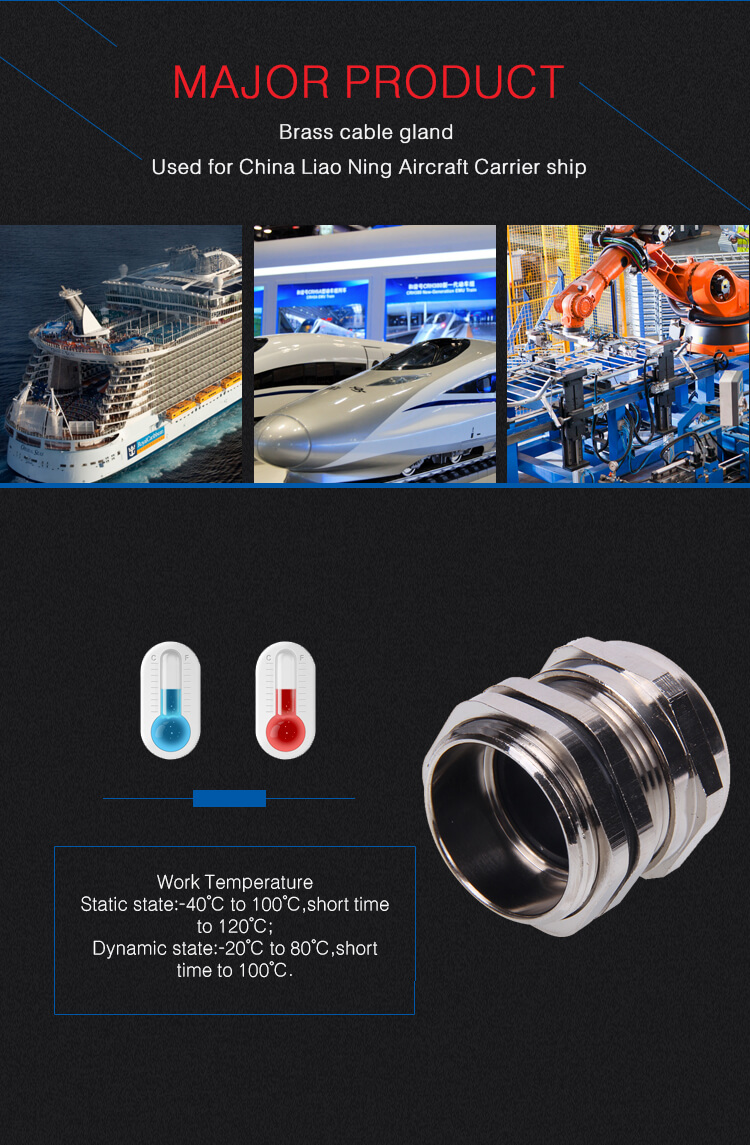

Temperature resistance: -40℃-100℃, short time to 120℃

Size: M8-M63 PG7-PG48 G1/4″-G3″ NPT1/4″-NPT2-1/2″

Inquiry Now >

VIDEO

video video

Dimension Drawing

High Quality Waterproof Ip68 Metal Longer Thread Type Cable Gland

High Quality Waterproof Ip68 Metal Longer Thread Type Cable Gland

High Quality Waterproof Ip68 Metal Longer Thread Type Cable Gland

High Quality Waterproof Ip68 Metal Longer Thread Type Cable Gland

Technical Parameter

Thread Type :M

ltem Range
(mm)
GL
Thread Length
(mm)
AG
Thread o.D.
(mm)
H
Joint Length
(mm)
Spanner size
(mm)
Code
M8×1 2-5 5 8.0 13.5 12 HX一NPM8
M10×1 3-6.5 6.5 10.0 17 14 HX一NPM10
M12×1.5 3-6.5 6.5 12.0 17 14 HX一NPM12
M14×1.5 4-8 8 14.0 18 17 HX一NPM14
M14×1.5 5-10 8 14.0 20 20/17 HX一NPM14
M16×1.5 4-8 8 16.0 19 18 HX一NPM16
M18×1.5 5-10 8 18.0 20 20 HX一NPM18
M20×1.5 6-12 8 20.o 21 22 HX一NPM20
M22×1.5 10-14 8 22.o 22 24 HX一NPM22
M24×1.5 10-14 9 24.0 22 24/27 HX一NPM24
M25×1.5 10-14 9 25.0 22 24/27 HX一NPM25-14
M25×1.5 11-16 9 25.0 25 27 HX一NPM25-16
M25×1.5 13-18 9 25.0 27 so/27 HX一NPM25-18
M27×1.5 13-18 g 27.o 27 3o HX一NPM27
M30×2 13-18 9 30.o 27 3o/32 HX一NPM30
M32×1.5 15-22 10 32.o 29 35 HX一NPM32
M33×2 15-22 10 33.o 29 35/36 HX一NPM33
M36×1.5 18-25 10 36.0 31 40 HX一NPM36
M37×1.5 18-25 10 37.0 31 40 HX一NPM37
M40×1.5 18-25 11 40.0 31 40/45 HX一NPM40-25
M40×1.5 22-30 11 40.0 35 45 HX一NPM40-30
M47×1.5 25-33 11 47.0 37 50 HX一NPM47
M50×1.5 32-38 13 50.0 37 57/55 HX一NPM50
M60×1.5 37-44 14 60.o 38 64 HX一NPM60
M63×1.5 37-44 14 63.0 38 64/68 HX一NPM63



Thread Type :PG

Thread Range
mm
GL
mm
Thread O.D.
mm
Joint Length
mm
Spanner size
mm
Code
PG7 2-5 6.5 12.5 17 14/15 HX-NPPG7-5
PG7 3-6.5 6.5 12.5 17 14/15 HX-NPPG7
PG9 3-6.5 8 15.2 19 17/18 HX-NPPG9-6.5
PG9 4-8 8 15.2 19 17/18 HX-NPPG9
PG11 4-8 8 18.6 21 20/21 HX-NPPG11-8
PG11 5-10 8 18.6 21 20/21 HX-NPPG11
PG13.5 5-10 8 20.4 22 22/23 HX-NPPG13.5-10
PG13.5 6-12 8 20.4 22 22123 HX-NPPG13.5
PG16 6-12 8.5 22.5 23 24125 HX-NPPG16-12
PG16 10-14 8.5 22.5 23 24/25 HX-NPPG16
PG21 12-16 9 28.3 27 30 HX-NPPG21-16
PG21 13-18 9 28.3 27 30 HX-NPPG21
PG29 15-22 10 37.0 31 40 HX-NPPG29-22
PG29 18-25 10 37.0 31 40 HX-NPPG29
PG36 23-30 11 47.0 37 50 HX-NPPG36-30
PG36 25-33 11 47.0 37 50 HX-NPPG36
PG42 30-35 13 54.0 37 57 HX-NPPG42-35
PG42 32-38 13 54.0 37 57 HX-NPPG42
PG48 35-40 14 59.3 38 64 HX-NPPG48-40
PG48 37-44 14 59.3 38 64 HX-NPPG48



Thread Type :G/NPT

ltem Range
(mm)
GL
Thread Length
(mm)
AG
Thread o.D.
(mm)
H
Joint Length
(mm)
Spanner size
(mm)
code
G1/4” 3-6.5 6.5 13.1 13.5 15 HX-NPG1/4
G3/8″ 4-8 8 16.6 17 19 HX-NPG3/8
G112” 6-12 8 20.9 22 22/23 HX-NPG1/2
G3/4” 13-18 9 26.4 25 30 HX-NPG3/4
G1” 18-25 10 32.2 29 40 HX-NPG1
G1-1/4” 25-33 11 41.9 35 50 HX-NPG1-114
G1-12” 32-38 12 47.8 37 57/55 HX-NPG1-1/2
G2″ 37-44 14 59.6 38 65 HX-NPG2
G2-1/2” 42-52 16 75.1 42 78 HX-NPG2-112
G3” 65-70 18 88 45 94 HX-NPG3
NPT1/4″ 3-6.5 6.5 13.1 13.5 15 HX-NPNPT114
NPT3/8” 4-8 8 16.6 17 19 HX-NPNPT3/8
NPT1/2” 6-12 8 20.9 22 22/23 HX-NPNPT1/2
NPT3/4” 13-18 9 26.4 25 30 HX-NPNPT3/4
NPT1” 18-25 10 32.2 29 40 HX-NPNPT1
NPT1-1/4′ 25-33 11 41.9 35 50 HX-NPNPT1-1/4
NPT1-1/2′ 32-38 12 47.8 37 57/55 HX-NPNPT1-1/2
NPT2” 37-44 14 59.6 38 65 HX-NPNPT2
NPT2-1/2〉 42-52 16 75.1 42 78 HX-NPNPT2-1/2
