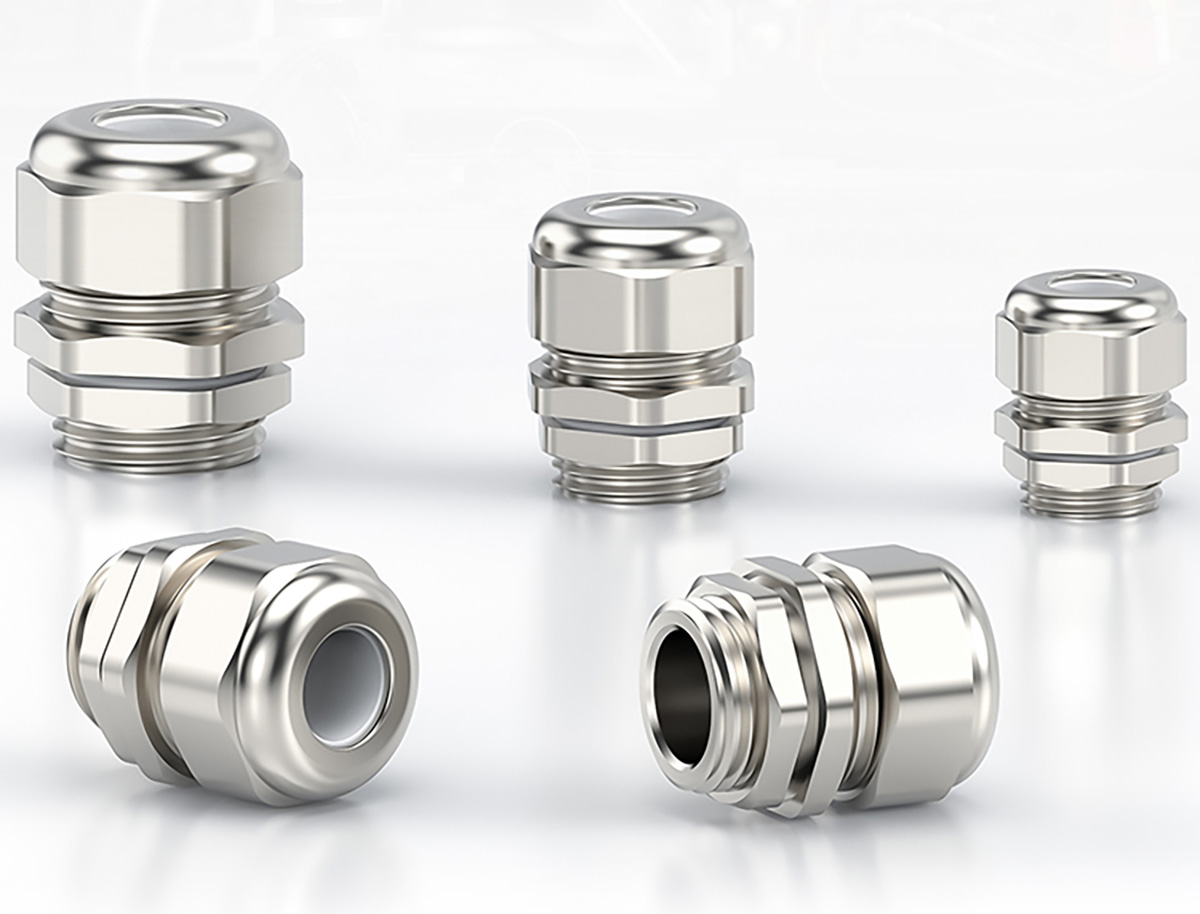

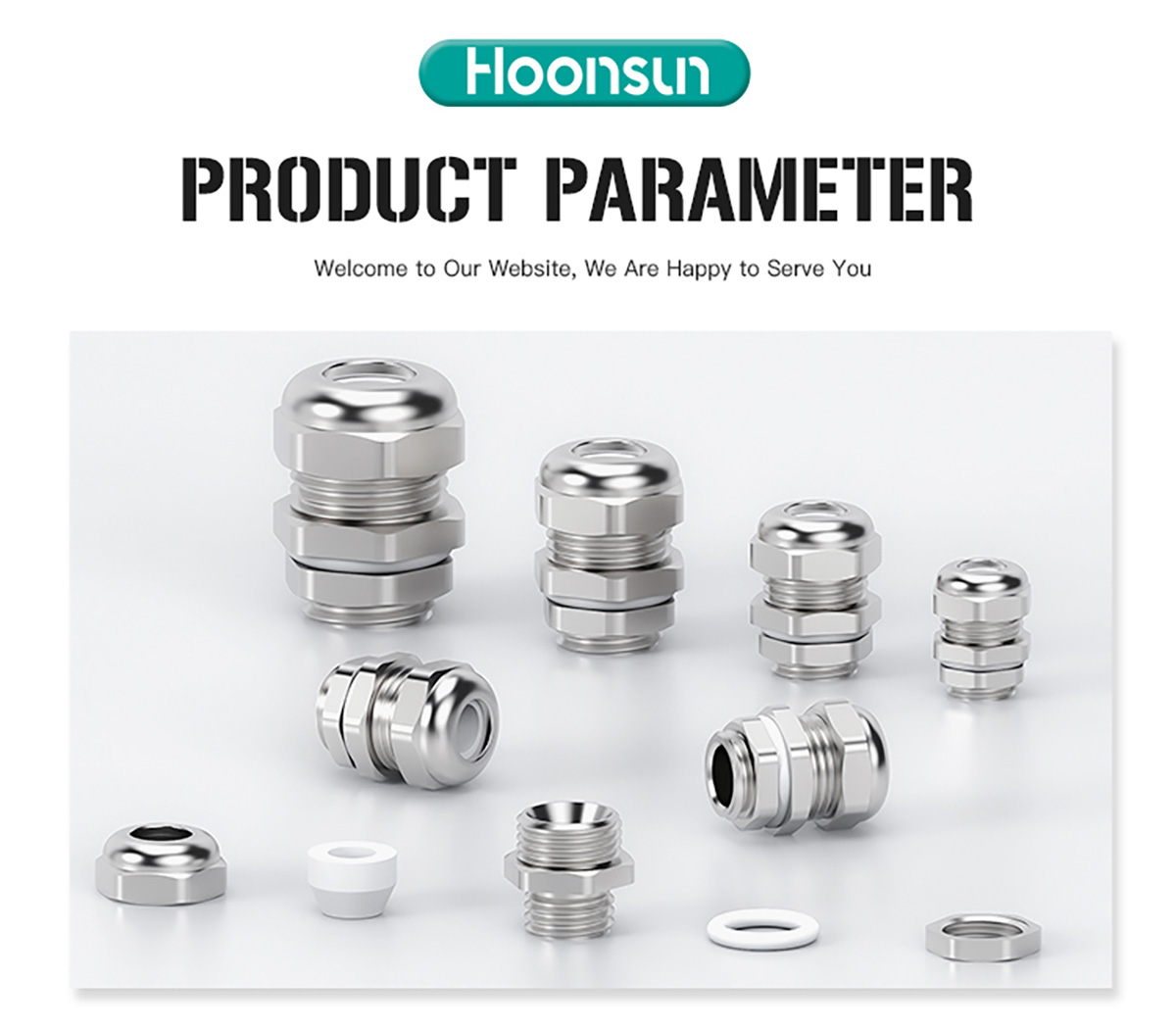

Model: HX-NP
Code: 8547901000
Thread type: Metric thread type
Hermetic seal: NBR, Silicone rubber
Material: Brass, nickel plated
Claw: PA
Sealing and sealing ring: NBR
Approvals: CE, ROHS, REACH

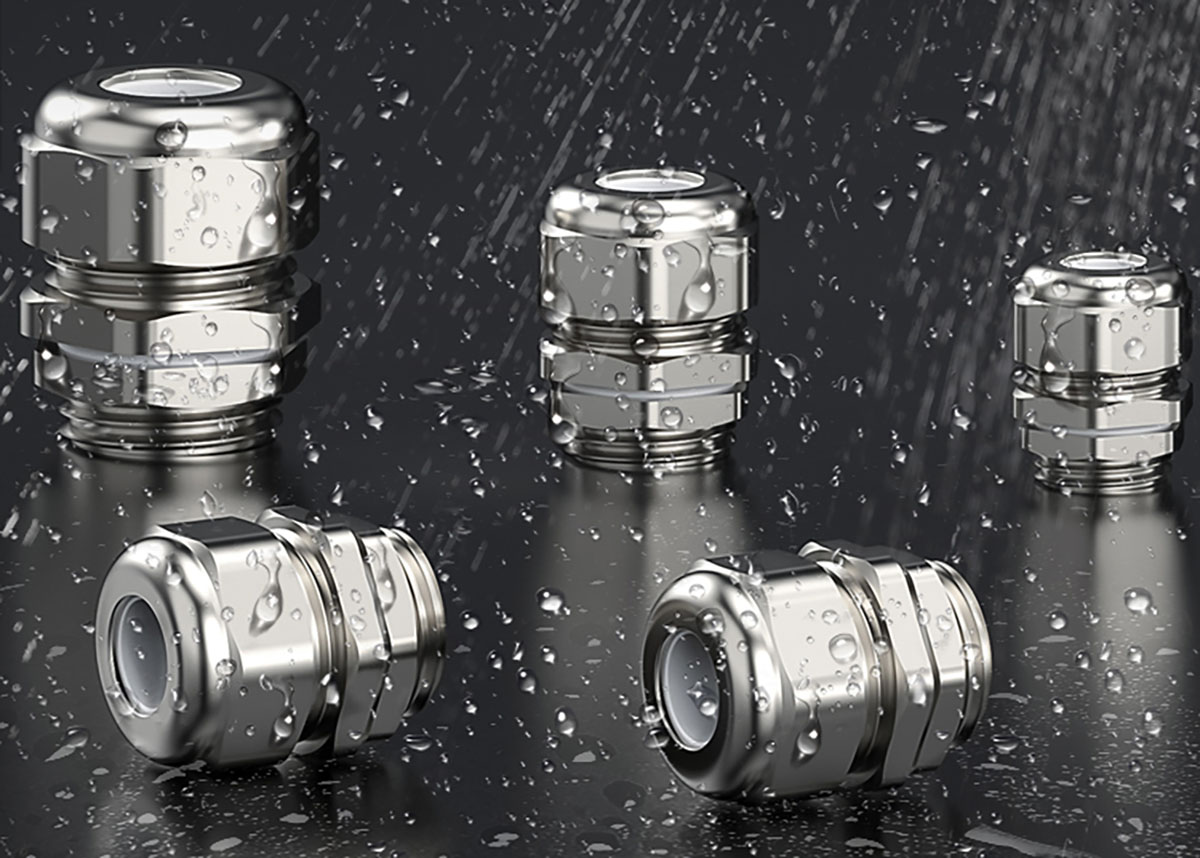

Protection degree: IP68
Temperature resistance: -40℃-100℃, short time to 120℃
Size: M8-M63 PG7-PG48 G1/4″-G3″ NPT1/4″-NPT2-1/2″
Thread Type ：M
| ltem | Range (mm) |
GL Thread Length (mm) |
AG Thread o.D. (mm) |
H Joint Length (mm) |
Spanner size (mm) |
Code |
| M8×1 | 2-5 | 5 | 8.0 | 13.5 | 12 | HX一NPM8 |
| M10×1 | 3-6.5 | 6.5 | 10.0 | 17 | 14 | HX一NPM10 |
| M12×1.5 | 3-6.5 | 6.5 | 12.0 | 17 | 14 | HX一NPM12 |
| M14×1.5 | 4-8 | 8 | 14.0 | 18 | 17 | HX一NPM14 |
| M14×1.5 | 5-10 | 8 | 14.0 | 20 | 20/17 | HX一NPM14 |
| M16×1.5 | 4-8 | 8 | 16.0 | 19 | 18 | HX一NPM16 |
| M18×1.5 | 5-10 | 8 | 18.0 | 20 | 20 | HX一NPM18 |
| M20×1.5 | 6-12 | 8 | 20.o | 21 | 22 | HX一NPM20 |
| M22×1.5 | 10-14 | 8 | 22.o | 22 | 24 | HX一NPM22 |
| M24×1.5 | 10-14 | 9 | 24.0 | 22 | 24/27 | HX一NPM24 |
| M25×1.5 | 10-14 | 9 | 25.0 | 22 | 24/27 | HX一NPM25-14 |
| M25×1.5 | 11-16 | 9 | 25.0 | 25 | 27 | HX一NPM25-16 |
| M25×1.5 | 13-18 | 9 | 25.0 | 27 | so/27 | HX一NPM25-18 |
| M27×1.5 | 13-18 | g | 27.o | 27 | 3o | HX一NPM27 |
| M30×2 | 13-18 | 9 | 30.o | 27 | 3o/32 | HX一NPM30 |
| M32×1.5 | 15-22 | 10 | 32.o | 29 | 35 | HX一NPM32 |
| M33×2 | 15-22 | 10 | 33.o | 29 | 35/36 | HX一NPM33 |
| M36×1.5 | 18-25 | 10 | 36.0 | 31 | 40 | HX一NPM36 |
| M37×1.5 | 18-25 | 10 | 37.0 | 31 | 40 | HX一NPM37 |
| M40×1.5 | 18-25 | 11 | 40.0 | 31 | 40/45 | HX一NPM40-25 |
| M40×1.5 | 22-30 | 11 | 40.0 | 35 | 45 | HX一NPM40-30 |
| M47×1.5 | 25-33 | 11 | 47.0 | 37 | 50 | HX一NPM47 |
| M50×1.5 | 32-38 | 13 | 50.0 | 37 | 57/55 | HX一NPM50 |
| M60×1.5 | 37-44 | 14 | 60.o | 38 | 64 | HX一NPM60 |
| M63×1.5 | 37-44 | 14 | 63.0 | 38 | 64/68 | HX一NPM63 |
Thread Type ：PG
| Thread | Range mm |
GL mm |
Thread O.D. mm |
Joint Length mm |
Spanner size mm |
Code |
| PG7 | 2-5 | 6.5 | 12.5 | 17 | 14/15 | HX-NPPG7-5 |
| PG7 | 3-6.5 | 6.5 | 12.5 | 17 | 14/15 | HX-NPPG7 |
| PG9 | 3-6.5 | 8 | 15.2 | 19 | 17/18 | HX-NPPG9-6.5 |
| PG9 | 4-8 | 8 | 15.2 | 19 | 17/18 | HX-NPPG9 |
| PG11 | 4-8 | 8 | 18.6 | 21 | 20/21 | HX-NPPG11-8 |
| PG11 | 5-10 | 8 | 18.6 | 21 | 20/21 | HX-NPPG11 |
| PG13.5 | 5-10 | 8 | 20.4 | 22 | 22/23 | HX-NPPG13.5-10 |
| PG13.5 | 6-12 | 8 | 20.4 | 22 | 22123 | HX-NPPG13.5 |
| PG16 | 6-12 | 8.5 | 22.5 | 23 | 24125 | HX-NPPG16-12 |
| PG16 | 10-14 | 8.5 | 22.5 | 23 | 24/25 | HX-NPPG16 |
| PG21 | 12-16 | 9 | 28.3 | 27 | 30 | HX-NPPG21-16 |
| PG21 | 13-18 | 9 | 28.3 | 27 | 30 | HX-NPPG21 |
| PG29 | 15-22 | 10 | 37.0 | 31 | 40 | HX-NPPG29-22 |
| PG29 | 18-25 | 10 | 37.0 | 31 | 40 | HX-NPPG29 |
| PG36 | 23-30 | 11 | 47.0 | 37 | 50 | HX-NPPG36-30 |
| PG36 | 25-33 | 11 | 47.0 | 37 | 50 | HX-NPPG36 |
| PG42 | 30-35 | 13 | 54.0 | 37 | 57 | HX-NPPG42-35 |
| PG42 | 32-38 | 13 | 54.0 | 37 | 57 | HX-NPPG42 |
| PG48 | 35-40 | 14 | 59.3 | 38 | 64 | HX-NPPG48-40 |
| PG48 | 37-44 | 14 | 59.3 | 38 | 64 | HX-NPPG48 |
Thread Type ：G/NPT
| ltem | Range (mm) |
GL Thread Length (mm) |
AG Thread o.D. (mm) |
H Joint Length (mm) |
Spanner size (mm) |
code |
| G1/4” | 3-6.5 | 6.5 | 13.1 | 13.5 | 15 | HX-NPG1/4 |
| G3/8″ | 4-8 | 8 | 16.6 | 17 | 19 | HX-NPG3/8 |
| G112” | 6-12 | 8 | 20.9 | 22 | 22/23 | HX-NPG1/2 |
| G3/4” | 13-18 | 9 | 26.4 | 25 | 30 | HX-NPG3/4 |
| G1” | 18-25 | 10 | 32.2 | 29 | 40 | HX-NPG1 |
| G1-1/4” | 25-33 | 11 | 41.9 | 35 | 50 | HX-NPG1-114 |
| G1-12” | 32-38 | 12 | 47.8 | 37 | 57/55 | HX-NPG1-1/2 |
| G2″ | 37-44 | 14 | 59.6 | 38 | 65 | HX-NPG2 |
| G2-1/2” | 42-52 | 16 | 75.1 | 42 | 78 | HX-NPG2-112 |
| G3” | 65-70 | 18 | 88 | 45 | 94 | HX-NPG3 |
| NPT1/4″ | 3-6.5 | 6.5 | 13.1 | 13.5 | 15 | HX-NPNPT114 |
| NPT3/8” | 4-8 | 8 | 16.6 | 17 | 19 | HX-NPNPT3/8 |
| NPT1/2” | 6-12 | 8 | 20.9 | 22 | 22/23 | HX-NPNPT1/2 |
| NPT3/4” | 13-18 | 9 | 26.4 | 25 | 30 | HX-NPNPT3/4 |
| NPT1” | 18-25 | 10 | 32.2 | 29 | 40 | HX-NPNPT1 |
| NPT1-1/4′ | 25-33 | 11 | 41.9 | 35 | 50 | HX-NPNPT1-1/4 |
| NPT1-1/2′ | 32-38 | 12 | 47.8 | 37 | 57/55 | HX-NPNPT1-1/2 |
| NPT2” | 37-44 | 14 | 59.6 | 38 | 65 | HX-NPNPT2 |
| NPT2-1/2〉 | 42-52 | 16 | 75.1 | 42 | 78 | HX-NPNPT2-1/2 |
