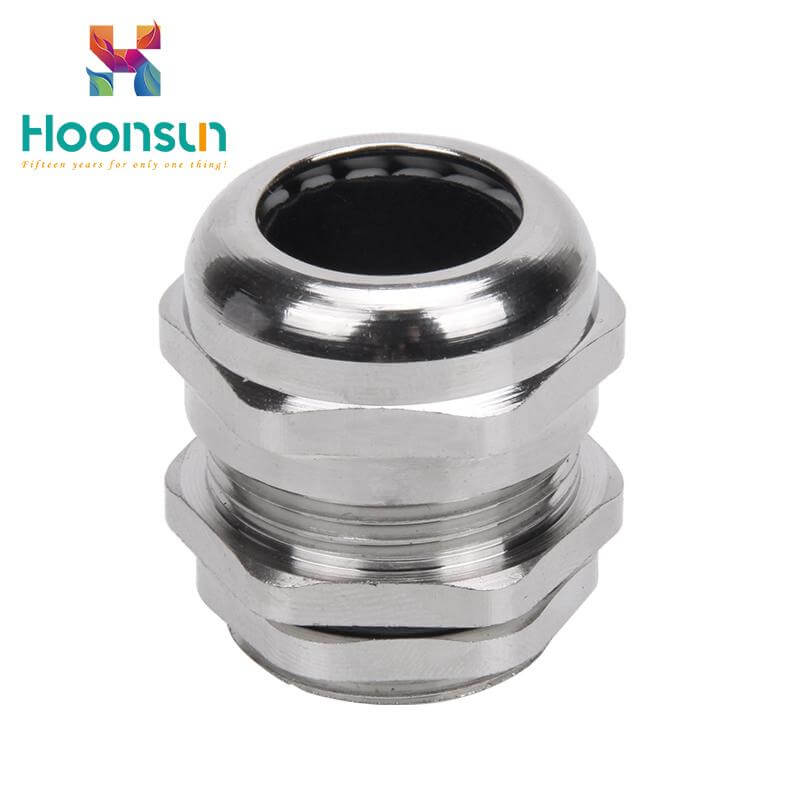

Thread Type : M/PG/NPT/G
Other thread types also available upon request
Material：Nickel-plated brass
Claw：PA（Nylon），UL94-V2
Hermetic seal：NBR、Silicone rubber
O-Ring：NBR、Silicone rubber
Protection degree：IP68-10 bra
Temperature：Static state：-40℃ to 100℃
Dynamic state：-20℃ to 80℃
The main material is brass nickel-plated joints as a whole. Smooth and translucent, strong pressure resistance, good toughness, no odor, waterproof, rust, corrosion resistance, and good performance. The brass cable gland interface is tightly connected and has strong electrical conductivity.
Precision Machining
The brass cable gland parts are processed by CNC machine tools with advanced production technology to ensure the accuracy of each product.
Thread Type ：M
| Item | Range Φ mm |
Tread Length GL mm |
Thread O.D. AG mm |
Joint Length H mm |
Spanner size mm |
Code |
| M8×1 | 2-5 | 5 | 8.0 | 13.5 | 12 | HX-NPM8 |
| M10×1 | 3-6.5 | 6.5 | 10.0 | 17 | 14 | HX-NPM10 |
| M12×1.5 | 3-6.5 | 6.5 | 12.0 | 17 | 14 | HX-NPM12 |
| M14×1.5 | 4-8 | 8 | 14.0 | 18 | 17 | HX-NPM14 |
| M14×1.5 | 5-10 | 8 | 14.0 | 20 | 20/17 | HX-NPM14 |
| M16×1.5 | 4-8 | 8 | 16.0 | 19 | 18 | HX-NPM16 |
| M18×1.5 | 5-10 | 8 | 18.0 | 20 | 20 | HX-NPM18 |
| M20×1.5 | 6-12 | 8 | 20.0 | 21 | 22 | HX-NPM20 |
| M22×1.5 | 10-14 | 8 | 22.0 | 22 | 24 | HX-NPM22 |
| M24×1.5 | 10-14 | 9 | 24.0 | 22 | 24/27 | HX-NPM24 |
| M25×1.5 | 10-14 | 9 | 25.0 | 22 | 24/27 | HX-NPM25-14 |
| M25×1.5 | 11-16 | 9 | 25.0 | 25 | 27 | HX-NPM25-16 |
| M25×1.5 | 13-18 | 9 | 25.0 | 27 | 30/27 | HX-NPM25-18 |
| M27×1.5 | 13-18 | 9 | 27.0 | 27 | 30 | HX-NPM27 |
| M30×2 | 13-18 | 9 | 30.0 | 27 | 30/32 | HX-NPM30 |
| M32×1.5 | 15-22 | 10 | 32.0 | 29 | 35 | HX-NPM32 |
| M33×2 | 15-22 | 10 | 33.0 | 29 | 35/36 | HX-NPM33 |
| M36×1.5 | 18-25 | 10 | 36.0 | 31 | 40 | HX-NPM36 |
| M37×1.5 | 18-25 | 10 | 37.0 | 31 | 40 | HX-NPM37 |
| M40×1.5 | 18-25 | 11 | 40.0 | 31 | 40/45 | HX-NPM40-25 |
| M40×1.5 | 22-30 | 11 | 40.0 | 35 | 45 | HX-NPM40-30 |
| M47×1.5 | 25-33 | 11 | 47.0 | 37 | 50 | HX-NPM47 |
| M50×1.5 | 32-38 | 13 | 50.0 | 37 | 57/55 | HX-NPM50 |
| M60×1.5 | 37-44 | 14 | 60.0 | 38 | 64 | HX-NPM60 |
| M63×1.5 | 37-44 | 14 | 63.0 | 38 | 64/68 | HX-NPM63 |
| M64×2 | 37-44 | 14 | 64.0 | 38 | 64/68 | HX-NPM64 |
| M70×2 | 42-52 | 16 | 70.0 | 44 | 78 | HX-NPM70 |
| M72×2 | 42-52 | 16 | 72.0 | 44 | 78 | HX-NPM72 |
| M72×2 | 48-58 | 16 | 72.0 | 44 | 78 | HX-NPM72-58 |
| M75×2 | 42-52 | 16 | 75.0 | 44 | 78/80 | HX-NPM75 |
| M75×2 | 48-58 | 16 | 75.0 | 44 | 78/80 | HX-NPM75-58 |
| M80×2 | 55-62 | 18 | 80.0 | 45 | 88 | HX-NPM80 |
| M88×2 | 65-70 | 18 | 88.0 | 45 | 94 | HX-NPM88 |
| M100×2 | 78-84 | 20 | 100.0 | 53 | 110 | HX-NPM100 |
| M120×2 | 78-84 | 20 | 120 | 53 | 110/130 | HX-NPM120 |
Thread Type ：PG
| Thread | Range mm |
GL mm |
Thread O.D. mm |
Joint Length mm |
Spanner size mm |
Code |
| PG7 | 3-6.5 | 6.5 | 12.5 | 17 | 14/15 | HX-NPPG7 |
| PG9 | 4-8 | 8 | 15.2 | 19 | 17/18 | HX-NPPG9 |
| PG11 | 5-10 | 8 | 18.6 | 21 | 20/21 | HX-NPPG11 |
| PG13.5 | 6-12 | 8 | 20.4 | 22 | 22/23 | HX-NPPG13.5 |
| PG16 | 10-14 | 8.5 | 22.5 | 23 | 24/25 | HX-NPPG16 |
| PG21 | 13-18 | 9 | 28.3 | 27 | 30 | HX-NPPG21 |
| PG29 | 18-25 | 10 | 37.0 | 31 | 40 | HX-NPPG29 |
| PG36 | 25-33 | 11 | 47.0 | 37 | 50 | HX-NPPG36 |
| PG42 | 32-38 | 13 | 54.0 | 37 | 57 | HX-NPPG42 |
| PG48 | 37-44 | 14 | 59.3 | 38 | 64 | HX-NPPG48 |
Thread Type ：G/NPT
| Thread | Range | GL | Thread O.D. mm |
H Joint Length mm |
Spanner size | Code |
| G1/4〃 | 3-6.5 | 6.5 | 13.1 | 13.5 | 15 | HX-NPG1/4 |
| G3/8〃 | 4-8 | 8 | 16.6 | 17 | 19 | HX-NPG3/8 |
| G1/2〃 | 6-12 | 8 | 20.9 | 22 | 22/23 | HX-NPG1/2 |
| G3/4〃 | 13-18 | 9 | 26.4 | 25 | 30 | HX-NPG3/4 |
| G1〃 | 18-25 | 10 | 32.2 | 29 | 40 | HX-NPG1 |
| G1-1/4〃 | 25-33 | 11 | 41.9 | 35 | 50 | HX-NPG1-1/4 |
| G1-1/2〃 | 32-38 | 12 | 47.8 | 37 | 57/55 | HX-NPG1-1/2 |
| G2〃 | 37-44 | 14 | 59.6 | 38 | 65 | HX-NPG2 |
| G2-1/2〃 | 42-52 | 16 | 75.1 | 42 | 78 | HX-NPG2-1/2 |
| G3〃 | 65-70 | 18 | 88 | 45 | 94 | HX-NPG3 |
| Thread | Range | GL | Thread O.D. mm |
H Joint Length mm |
Spanner size | Code |
| NPT1/4〃 | 3-6.5 | 6.5 | 13.1 | 13.5 | 15 | HX-NPNPT1/4 |
| NPT3/8〃 | 4-8 | 8 | 16.6 | 17 | 19 | HX-NPNPT3/8 |
| NPT1/2〃 | 6-12 | 8 | 20.9 | 22 | 22/23 | HX-NPNPT1/2 |
| NPT3/4〃 | 13-18 | 9 | 26.4 | 25 | 30 | HX-NPNPT3/4 |
| NPT1〃 | 18-25 | 10 | 32.2 | 29 | 40 | HX-NPNPT1 |
| NPT1-1/4〃 | 25-33 | 11 | 41.9 | 35 | 50 | HX-NPNPT1-1/4 |
| NPT1-1/2〃 | 32-38 | 12 | 47.8 | 37 | 57/55 | HX-NPNPT1-1/2 |
| NPT2〃 | 37-44 | 14 | 59.6 | 38 | 65 | HX-NPNPT2 |
| NPT2-1/2〃 | 42-52 | 16 | 75.1 | 42 | 78 | HX-NPNPT2-1/2 |
