Thread type : Metric thread type M/PG/G
Material：Nickel-plated brass
Claw：PA66（Nylon），UL94-V2
Hermetic seal：EPDM、Silicone rubber
O-Ring：EPDM、Silicone rubber
Protection degree：IP68-10 bar
Temperature：Static state：-40℃ to 100℃ ,Short time
Dynamic state：-20℃ to 80℃ ,Short time to 100℃

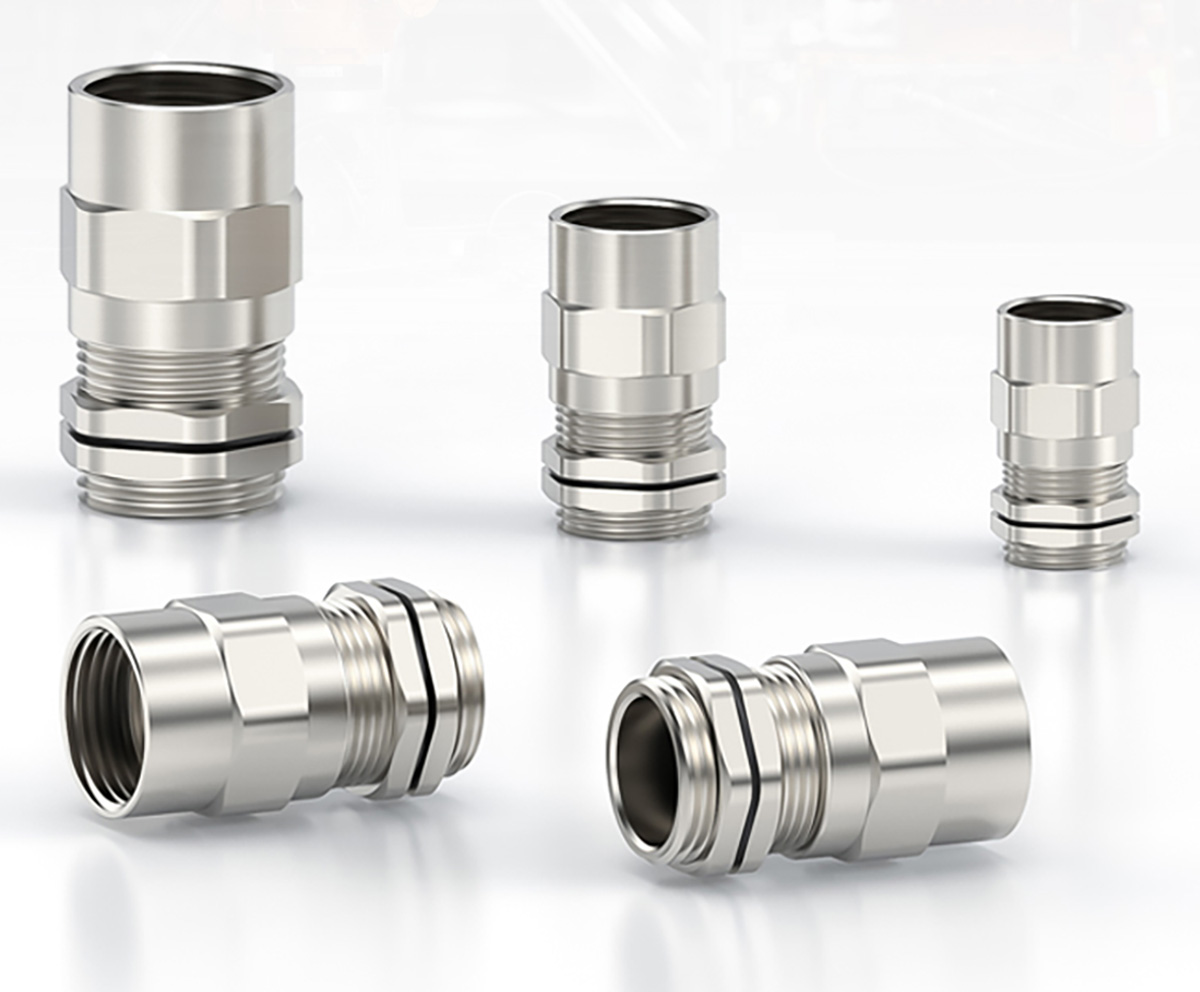

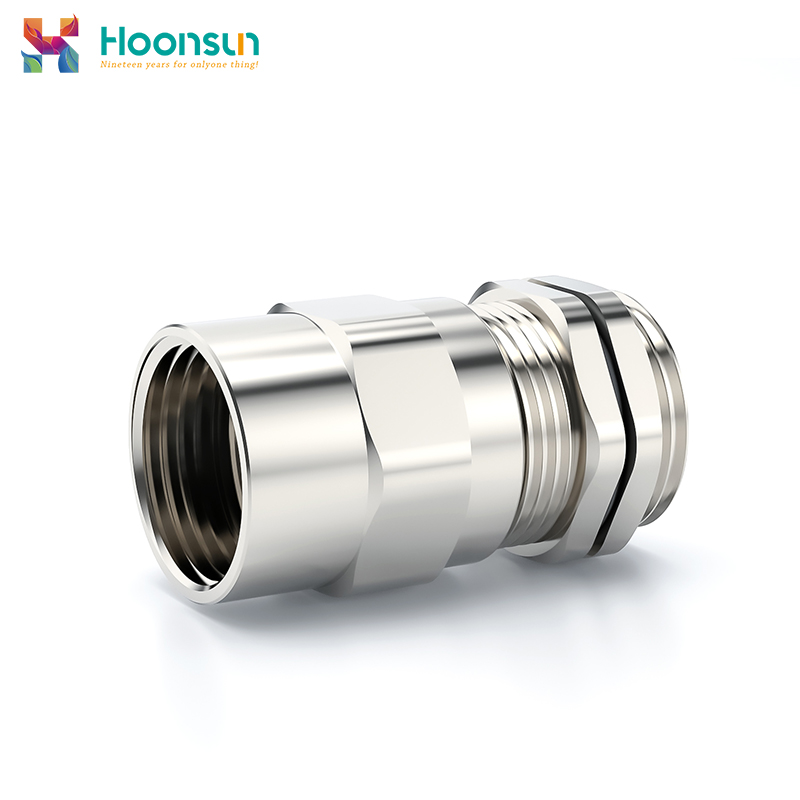

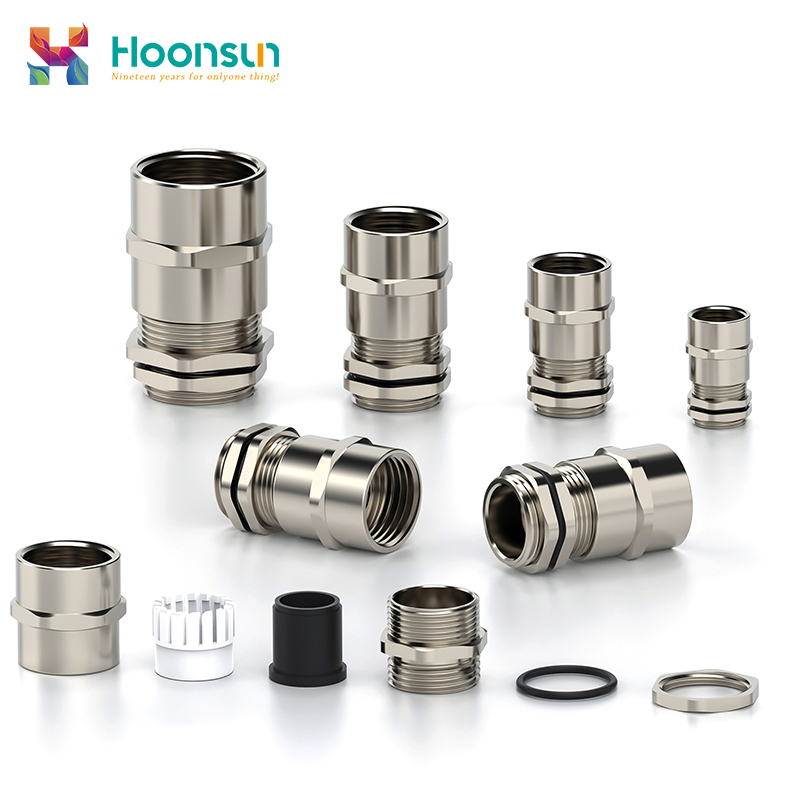

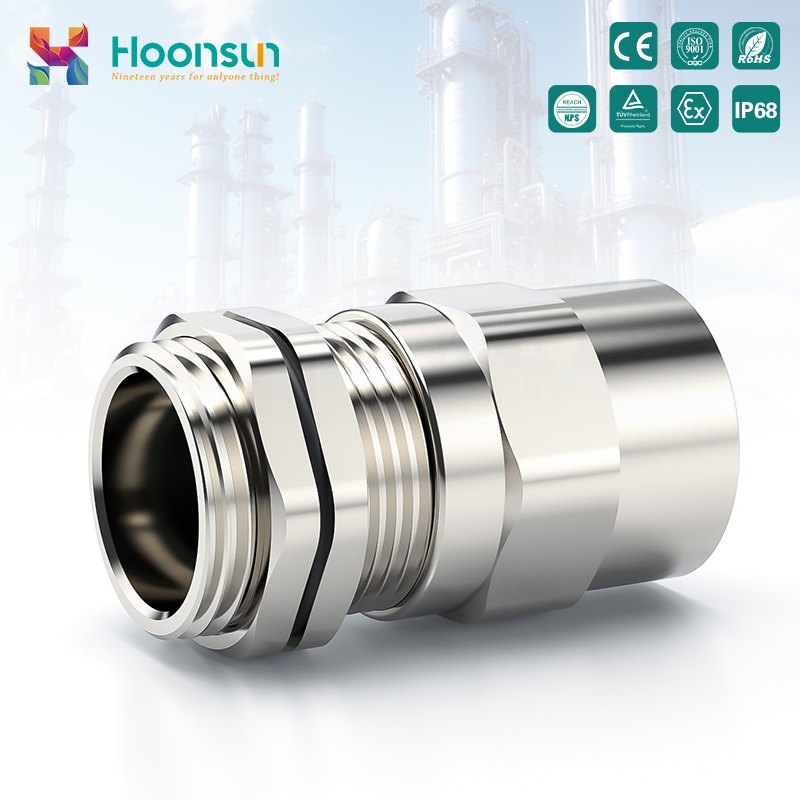

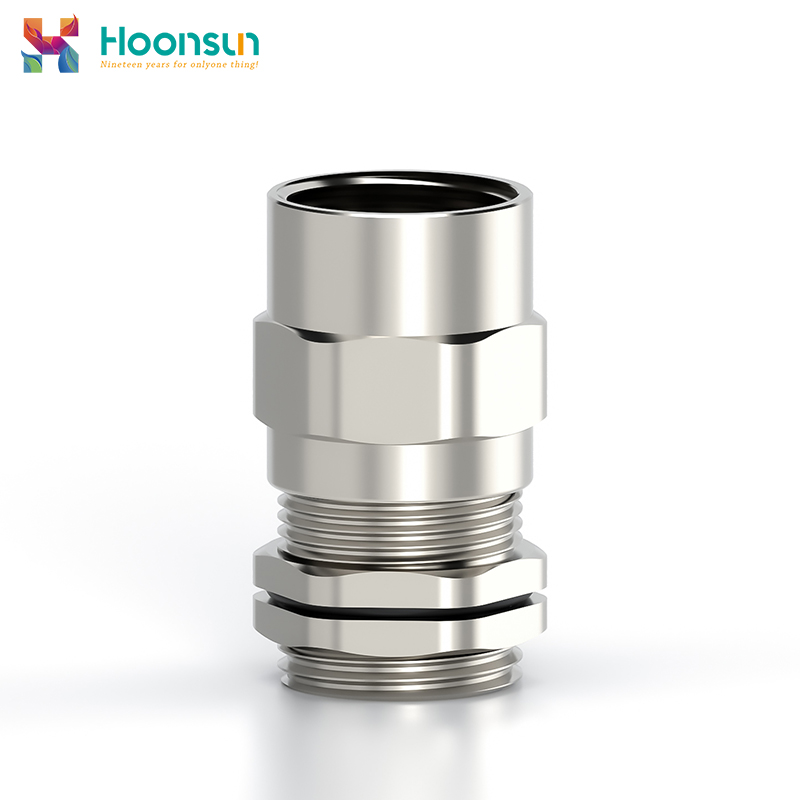

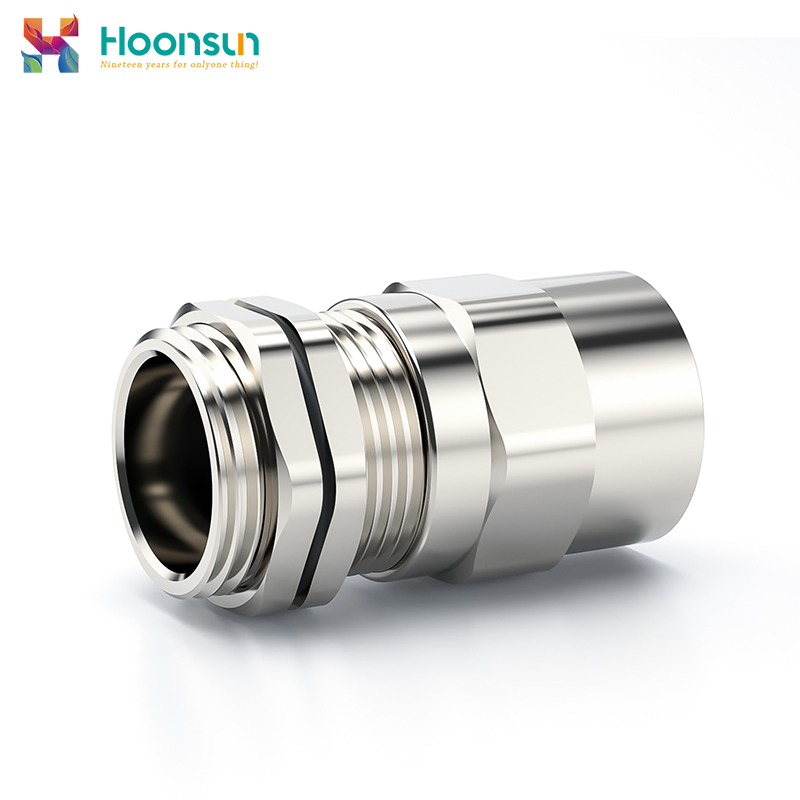

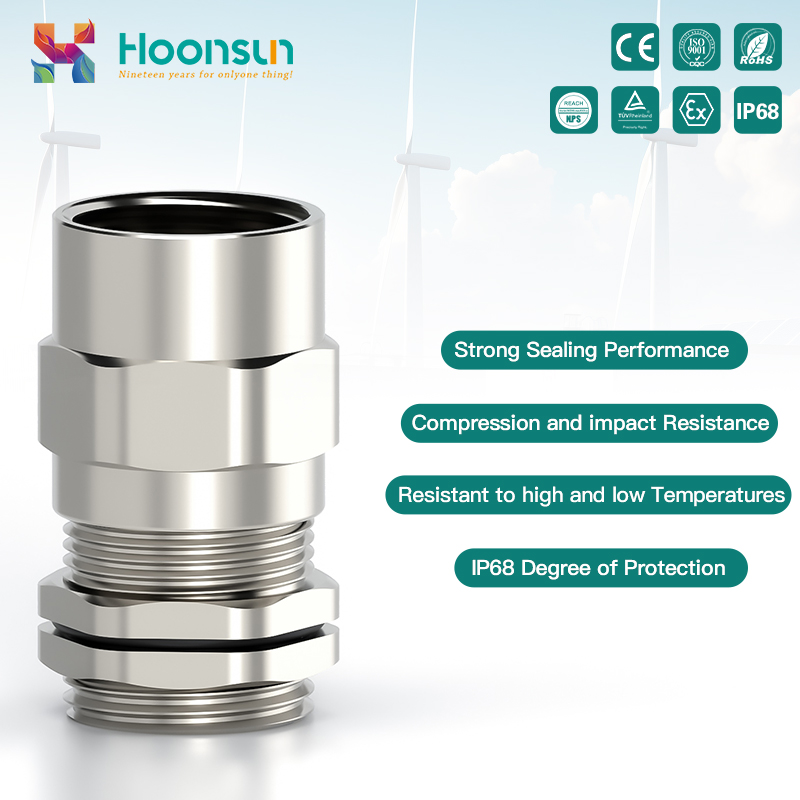

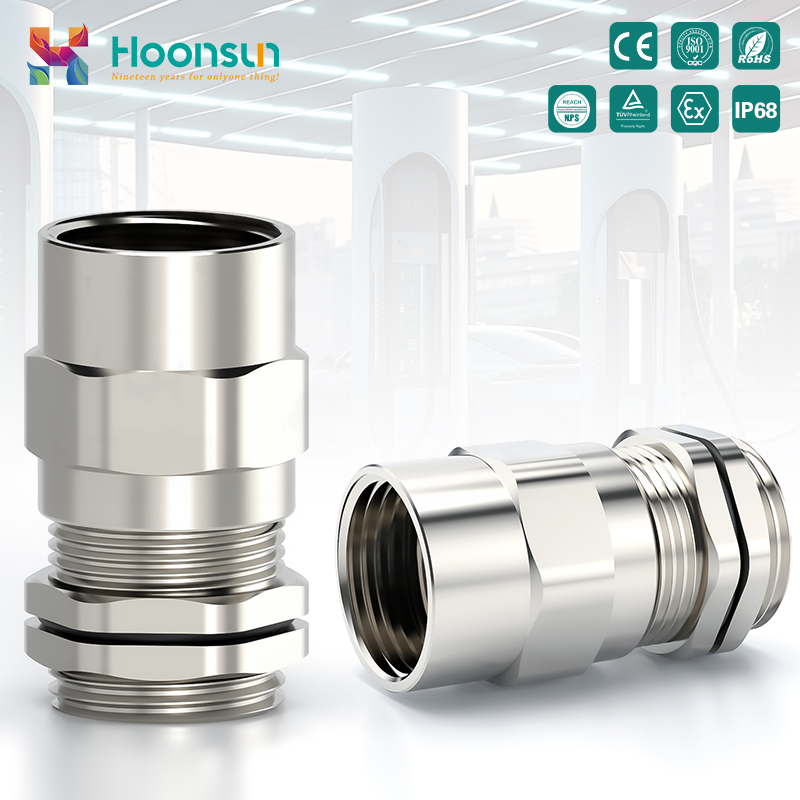

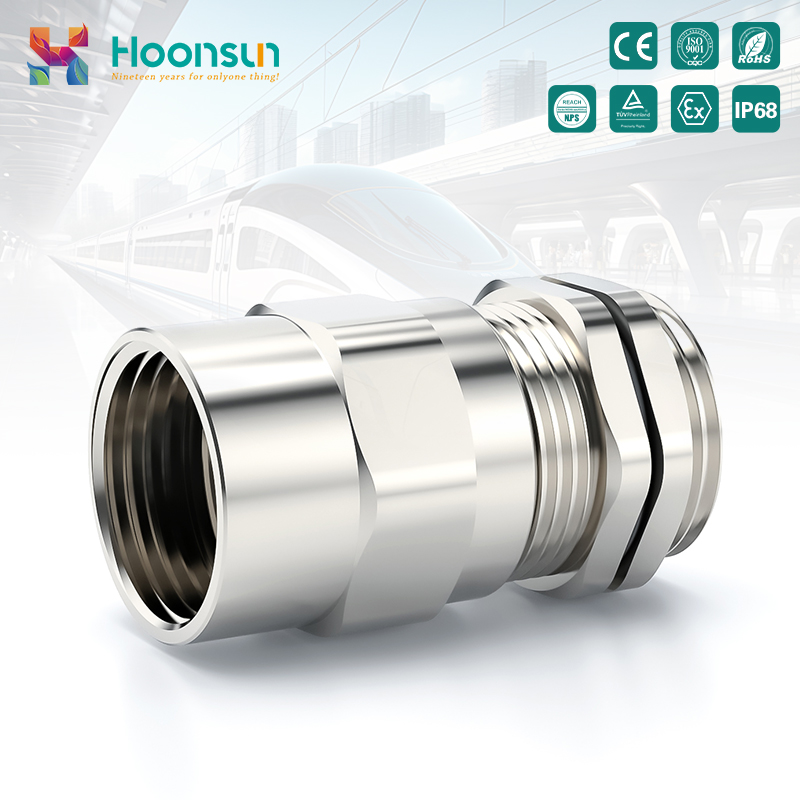

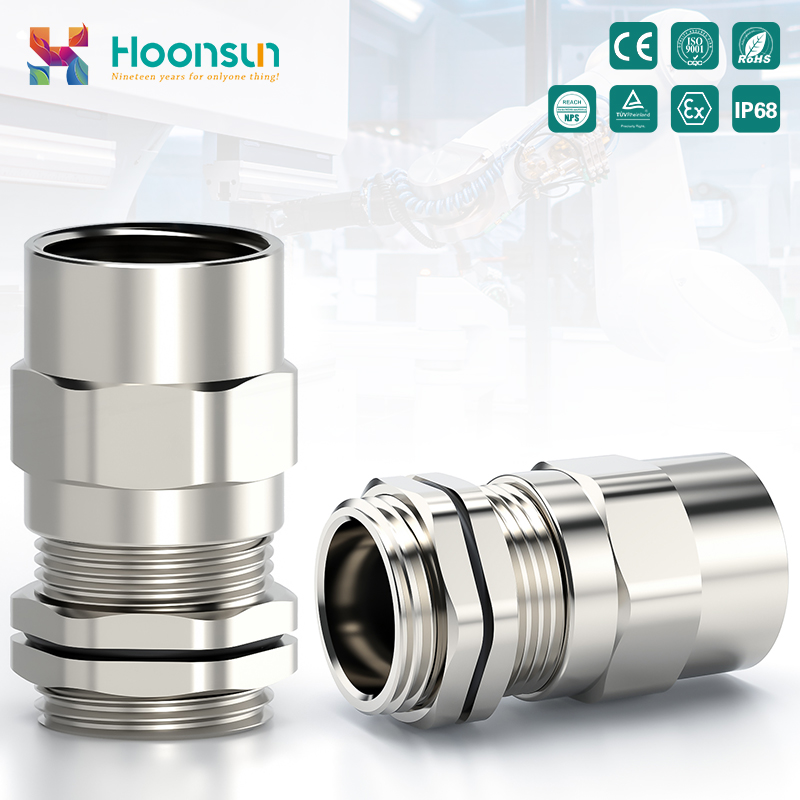

The Metal Tubular Cable Gland is a compact, miniature solution within our gland series, designed with a metric thread comparable to other thread types. It offers exceptional strain relief and an IP68 waterproof rating, tested up to 10 bar. Its space-saving design ensures seamless cable installation in tight or confined areas.
Using method: The Metal Tubular Cable Gland waterproof connector is designed to secure cables while providing reliable sealing. One end locks the cable firmly, while the other connects to an equipment box or an electrical device with an internal thread at the inlet or outlet. Thread type selection should match the application requirements.
Nickel-Plated Brass Body: Durable, corrosion-resistant construction for extended lifespan in humid environments.
Nylon Plastic (PA) Clamping Component: Ensures secure cable locking and insulation.
Thread Options: Short Thread Ideal for thin panels or internal-thread openings. Long Thread Perfect for thicker panels; custom extended thread lengths available on request.

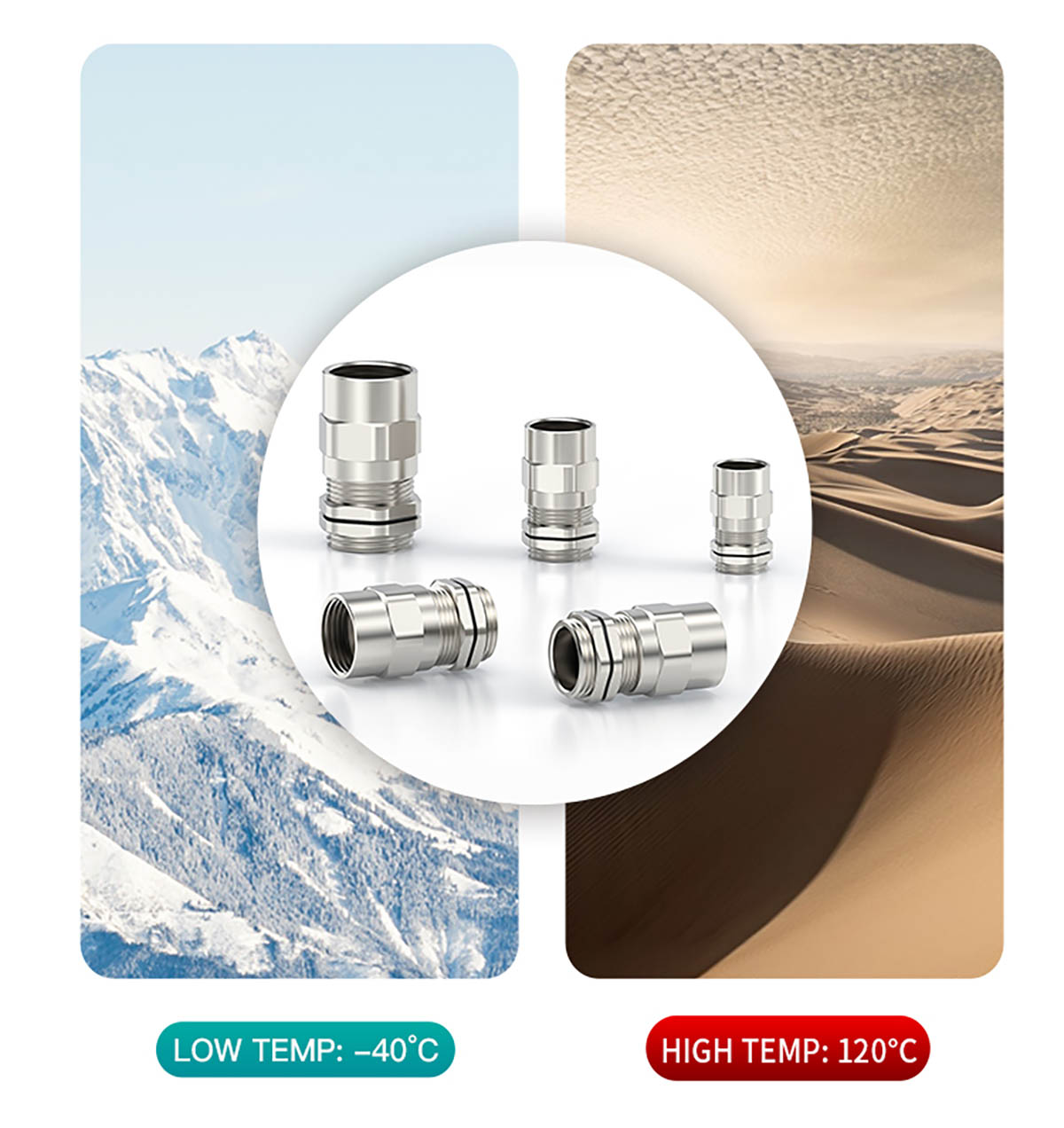

Temperature Resistance: Operates efficiently in a static temperature range of -40°C to +100°C, suitable for harsh environments.
Sealing Versatility: Can accommodate cables with smaller outer diameters using a reducing seal insert.
The small-sized brass cable gland is a versatile solution suited for various industries and demanding environments:
This product is engineered to deliver top performance in environments that demand both durability and precision.
 |
||||||

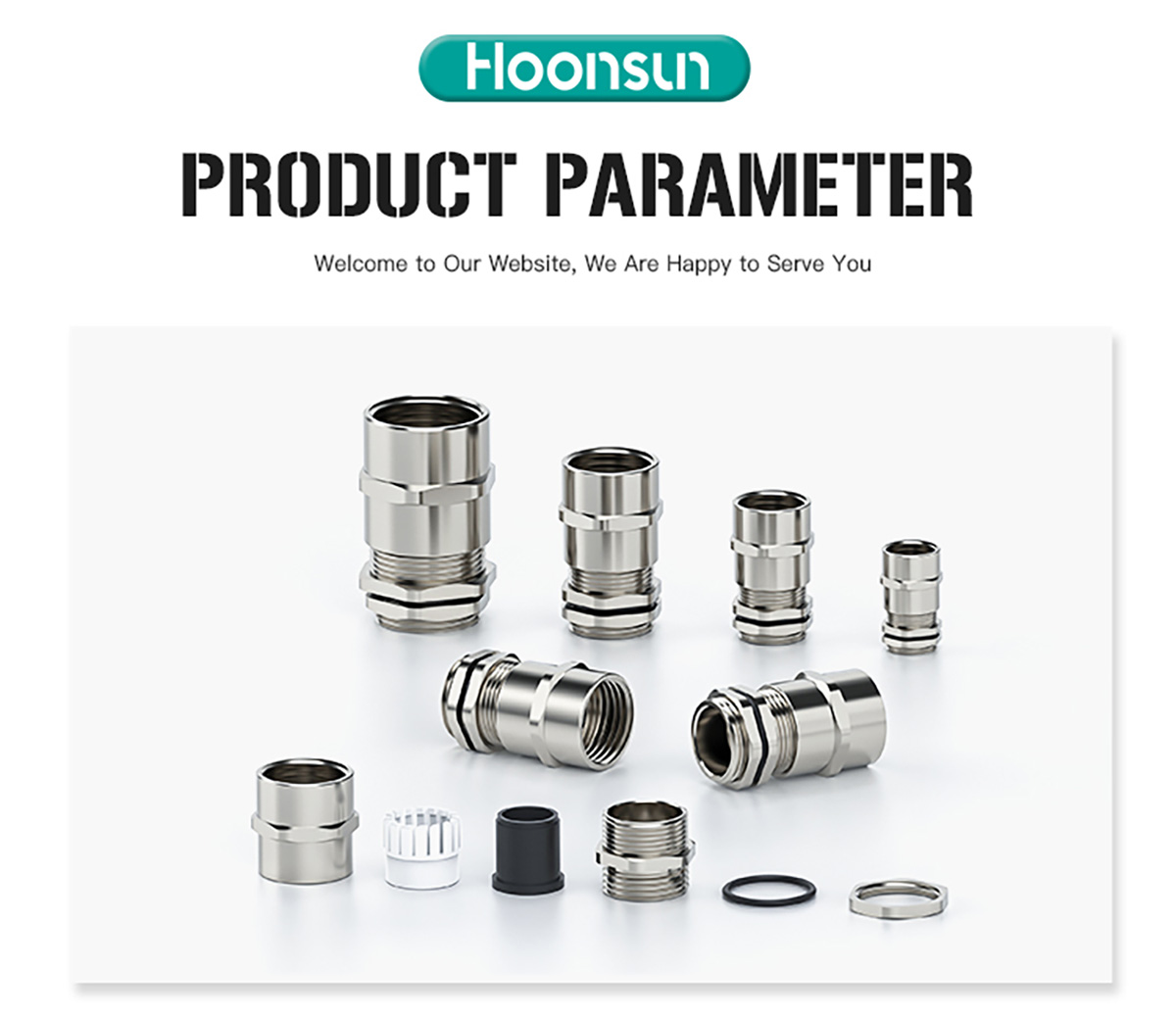

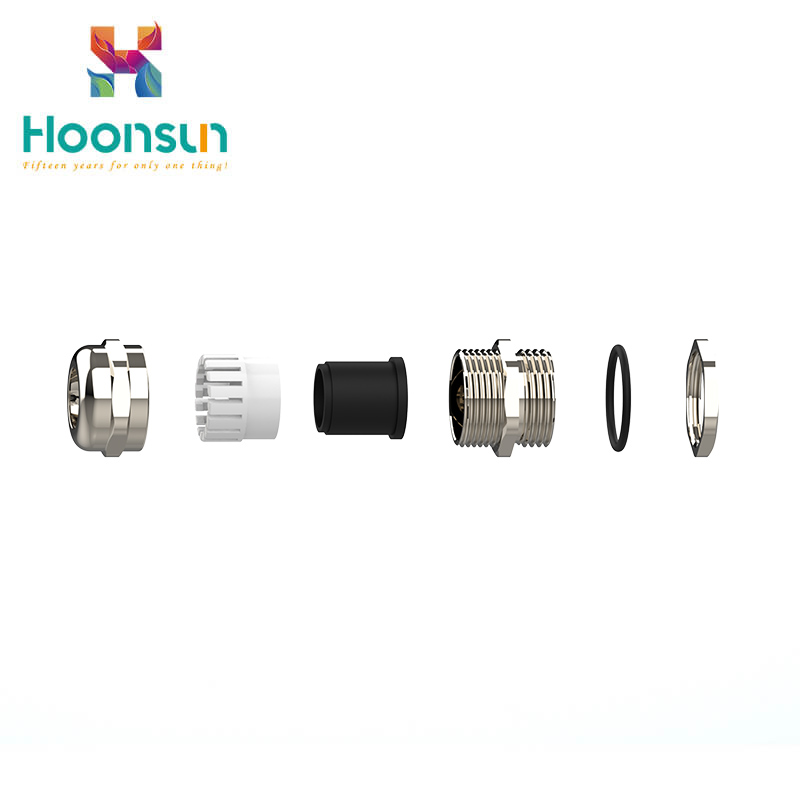

| PRODUCT PARAMETER | ||||||
| Welcome to Our Website. We Are Happy to Serve You | ||||||
| Fitting Material: | Nickel-platedbrass | |||||
| Material For Clamping Jaws: | IPA66(Nylon), UL94-V2 | |||||
| Material For Sealing Components: | EPDM、Silicone rubber | |||||
| O-ring Material: | EPDM、Silicone rubber | |||||
| Protection Degree: | IP68-10 bar | |||||
| Temperature: | Static state: -40 to 100℃, Short time to 120℃ Dynamic state: -20℃ to 80℃,Short time to 100℃ |
|||||
| Specifications: | unit: mm | |||||
| Item | Range Φ mm |
Tread Length GL mm |
Thread O.D. AG mm |
Joint Length H mm |
Spanner size mm |
Code |
| M10×1.0 | 3-6.5 | 6.5 | 10.0 | 17 | 14 | HX-NP.M10 |
| M12×1.5 | 2-5 | 6.5 | 12.0 | 17 | 14 | HXNP.M12-15) |
| M12×1.5 | 3-6.5 | 6.5 | 12.0 | 17 | 14 | HX-NP.M12 |
| M12×1.5 | 4-8 | 8 | 12.0 | 18 | 17/14 | HX-NP.M12-8 |
| M14×1.5 | 3-6 | 8 | 14.0 | 18 | 17 | HX-NP.M14-(6) |
| M14×1.5 | 4-8 | 8 | 14.0 | 18 | 17 | HX-NP.M14 |
| M14×1.5 | 5-10 | 8 | 14.0 | 19 | 20/17 | HX-NP.M1410 |
| M16×1.5 | 3-6 | 8 | 16.0 | 19 | 18 | HXNP.M16-(6) |
| M16×1.5 | 4.8 | 8 | 16.0 | 19 | 18 | HX-NP.M16 |
| M16×1.5 | 5-10 | 8 | 16.0 | 19 | 20/18 | HXNP.M16-10 |
| M18×1.5 | 4-8 | 8 | 18.9 | 20 | 20 | HX-NP.M18-(8) |
| M18×1.5 | 5-10 | 8 | 18.0 | 20 | 20 | HX-NP.M18 |
| M18×1.5 | 6-12 | 8 | 18.0 | 21 | 20 | HX-NP.M18-12 |
| M20×1.5 | 5-10 | 8 | 20.0 | 21 | 22 | HX-NP.M20-(10) |
| M20×1.5 | 6-12 | 8 | 20.0 | 21 | 22 | HX-NP.M20 |
| M20×1.5 | 10-14 | 8 | 20.0 | 22 | 24/22 | HX-NP.M20-14 |
| M20×1.5 | 12-16 | 8 | 20.0 | 25 | 2722 | HX-NP.M20-16 |
| M22×1.5 | 4-8 | 8 | 22.0 | 22 | 24 | HX-NP.M22-8) |
| M22×1.5 | 8-12 | 8 | 22.0 | 22 | 24 | HX-NP.M22-(12) |
| M22×1.5 | 10-14 | 8 | 22.0 | 22 | 24 | HX-NP.M22 |
| M22×1.5 | 12-16 | 8 | 22.0 | 25 | 27/24 | HX-NP.M22-16 |
| M24×1.5 | 8-12 | 9 | 24.0 | 22 | 24/27 | HX-NP.M24-(12) |
| M24×1.5 | 10-14 | 9 | 24.0 | 22 | 24/27 | HX-NP.M24 |
| M24×1.5 | 12-16 | 9 | 24.0 | 22 | 27 | HX-NP.M24-16 |
| M25×1.5 | 10-14 | 9 | 25.0 | 22 | 24/27 | HX-NP.M25-14 |
| M25×1.5 | 12-16 | 9 | 25.0 | 25 | 27 | HX-NP.M25-16 |
| M25×1.5 | 13-18 | 9 | 25.0 | 27 | 30/27 | HX-NP.M25-18 |
| M25×1.5 | 15-22 | 9 | 25.0 | 29 | 35/27 | HX-NP.M25-22 |
| M27×1.5 | 12-16 | 9 | 27.0 | 27 | 30 | HX-NP.M27-(16) |
| M27×1.5 | 13-18 | 9 | 27.0 | 27 | 30 | HX-NP.M27 |
| M28×1.5 | 13-18 | 9 | 28.0 | 27 | 30 | HX-NP.M28 |
| M30×1.5 | 13-18 | 9 | 30.0 | 27 | 30/32 | HX-NP.M30 |
| M30×1.5 | 15-22 | 9 | 30.0 | 29 | 35/32 | HX-NP.M30-22 |
| M32×1.5 | 13-18 | 10 | 32.0 | 29 | 35 | HX-NP.M32-(18) |
| M32×1.5 | 14-20 | 10 | 32.0 | 29 | 35 | HX-NPM32-(20) |
| M32×1.5 | 15-22 | 10 | 32.0 | 29 | 35 | HX-NP.M32 |
| M32×1.5 | 18-25 | 10 | 32.0 | 31 | 40/35 | HX-NP.M32-25 |
| M33×1.5 | 15-22 | 10 | 33.0 | 29 | 35/36 | HX-NP.M33 |
| M36×1.5 | 18-25 | 10 | 36.0 | 31 | 40 | HX-NP.M36 |
| M37×1.5 | 18-25 | 10 | 37.0 | 31 | 40 | HX-NP.M37 |
| M40×1.5 | 18-25 | 11 | 40.0 | 31 | 40/45 | HX-NP.M40-25 |
| M40×1.5 | 22-30 | 11 | 40.0 | 35 | 45 | HX-NP.M40-30 |
| M40×1.5 | 25-33 | 11 | 40.0 | 37 | 50/45 | HX-NP.M40-33 |
| M42×1.5 | 22-30 | 11 | 42.0 | 35 | 45 | HX-NP.M42 |
| M47×1.5 | 18-25 | 11 | 47.0 | 37 | 50 | HX-NP.M47-(25) |
| M47×1.5 | 22-30 | 11 | 47.0 | 37 | 50 | HX-NP.M47-(30) |
| M47×1.5 | 25-33 | 11 | 47.0 | 37 | 50 | HX-NPM47 |
| M48×1.5 | 25-33 | 11 | 48.0 | 37 | 50/52 | HX-NP.M48 |
| M50×1.5 | 30-35 | 13 | 50.0 | 37 | 57/55 | HX-NP.M50-35) |
| M50×1.5 | 32-38 | 13 | 50.0 | 37 | 57/55 | HX-NP.M50 |
| M50×1.5 | 3744 | 13 | 50.0 | 38 | 64/55 | HX-NP.M50-44 |
| M54×1.5 | 32-38 | 13 | 54.0 | 37 | 57 | HXNP.M54 |
| M60×1.5 | 3744 | 14 | 60.0 | 38 | 64 | HX-NP.M60 |
| M63×1.5 | 30-35 | 14 | 63.0 | 38 | 64/68 | HXNP.M63-{35) |
| M63×1.5 | 3744 | 14 | 63.0 | 38 | 64/68 | HX-NP.M63 |
| M63×1.5 | 42-52 | 14 | 63.0 | 44 | 78/68 | HX-NP.M63-52 |
| M64×2.0 | 37-44 | 14 | 64.0 | 38 | 64/68 | HX-NP.M64 |
| M70×20 | 42-52 | 16 | 70.0 | 44 | 78 | HX-NP.M70 |
| M72×2.0 | 42-52 | 16 | 72.0 | 44 | 78 | HX-NPM72 |
| M72×2.0 | 48-58 | 16 | 72.0 | 44 | 78 | HX-NP.M72-58 |
| M72×2.0 | 55-62 | 16 | 72.0 | 45 | 88/78 | HX-NP.M72-62 |
| M75×2.0 | 42-52 | 16 | 75.0 | 44 | 78/80 | HX-NP.M75 |
| M75×2.0 | 48-58 | 16 | 75.0 | 44 | 78/80 | HX-NP.M75-58 |
| M80×2.0 | 55-62 | 18 | 80.0 | 45 | 88 | HXNP.M80 |
| M88×2.0 | 65-70 | 18 | 88.0 | 45 | 94 | HX-NP.M88 |
| M90×2.0 | 65-70 | 18 | 90.0 | 45 | 94 | HX-NPM90 |
| M100×2.0 | 78-84 | 20 | 100.0 | 53 | 110 | HXNPM100 |
| M110×2.0 | 82-88 | 20 | 110.0 | 53 | 120 | HX-NP.M110 |
| M120×2.0 | 88-95 | 20 | 120.0 | 53 | 130 | HX-NP.M120 |
| Thread specifications can be customized | ||||||
|
||||||
| PRODUCT PARAMETER | ||||||
| Welcome to Our Website. We Are Happy to Serve You | ||||||
| Fitting Material: | Nickel-platedbrass | |||||
| Material For Clamping Jaws: | IPA66(Nylon), UL94-V2 | |||||
| Material For Sealing Components: | EPDM、Silicone rubber | |||||
| O-ring Material: | EPDM、Silicone rubber | |||||
| Protection Degree: | IP68-10 bar | |||||
| Temperature: | Static state: -40 to 100℃, Short time to 120℃ Dynamic state: -20℃ to 80℃,Short time to 100℃ |
|||||
| Specifications: | unit: mm | |||||
| Item | Range Φ mm |
Tread Length GL mm |
Thread O.D. AG mm |
Joint Length H mm |
Spanner size mm |
Code |
| PG7 | 2-5 | 6.5 | 12.5 | 17 | 14/15 | HXNP.PG7-(5) |
| PG7 | 3-6.5 | 6.5 | 12.5 | 17 | 14/15 | HXNP.PG7 |
| PG7 | 48 | 8 | 12.5 | 19 | 17/15 | HXNP.PG7-8 |
| PG9 | 3-6 | 8 | 15.2 | 19 | 17/18 | HX-NP.PG9-(6) |
| PG9 | 48 | 8 | 15.2 | 19 | 17/18 | HX-NP.PG9 |
| PG9 | 5-10 | 8 | 15.2 | 21 | 20/18 | HX-NP.PG9-10 |
| PG11 | 48 | 8 | 18.6 | 21 | 20/21 | HX-NP.PG11-(8) |
| PG11 | 5-10 | 8 | 18.6 | 21 | 20/21 | HX-NP.PG11 |
| PG11 | 6-12 | 8 | 18.6 | 22 | 22/21 | HX-NPPG11-12 |
| PG13.5 | 5-10 | 8 | 20.4 | 22 | 22/23 | HX-NP.PG13.5-(10) |
| PG13.5 | 6-12 10-14 |
88 | 20.4 20.4 |
2223 | 22/23 24/23 |
HX-NP.PG13.5 HX-NP.PG13.5-14 |
| PG16 | 6-12 10-14 |
88 | 22.5 22.5 |
2323 | 24/25 24/25 |
HX-NP.PG16-(12) HX-NR.PG16 |
| PG16 | 12-16 | 8 | 22.5 | 27 | 27/25 | HX-NP.PG16-16 |
| PG19 | 10-14 | 9 | 25.0 | 25 | 24/27 | HX-NR.PG19 |
| PG19 | 12-16 | 9 | 25.0 | 25 | 27 | HX-NPPG19-16 |
| PG21 | 48 | 9 | 28.3 | 27 | 30 | HX-NP.PG21-(8) |
| PG21 | 12-16 | 9 | 28.3 | 27 | 30 | HX-NP.PG21-(16) |
| PG21 | 13-18 | 9 | 28.3 | 27 | 30 | HX-NP.PG21 |
| PG21 | 15-22 | 9 | 28.3 | 29 | 35/30 | HX-NP.PG21-22 |
| PG25 | 15-22 | 10 | 32.0 | 29 | 35 | HX-NP.PG25 |
| PG29 | 15-22 | 10 | 37.0 | 31 | 40 | HX-NP.PG29-(22) |
| PG29 | 18-25 | 10 | 37.0 | 31 | 40 | HX-NP.PG29 |
| PG29 | 22-30 | 10 | 37.0 | 35 | 50/45 | HX-NP.PG29-30 |
| PG36 | 18-25 | 11 | 47.0 | 37 | 50 | HX-NP.PG36-(25) |
| PG36 | 25-33 | 11 | 47.0 | 37 | 50 | HX-NP.PG36 |
| PG36 | 32-38 | 11 | 47.0 | 37 | 57/50 | HX-NP.PG36-38 |
| PG42 | 30-35 | 13 | 54.0 | 37 | 57 | HX-NP.PG42-(35) |
| PG42 | 32-38 | 13 | 54.0 | 37 | 57 | HX-NP.PG42 |
| PG48 | 3744 | 14 | 59.3 | 38 | 64 | HX-NP.PG48 |
| PG48 | 42-52 | 14 | 59.3 | 38 | 78/64 | HX-NP.PG48-52 |
|
||||||
| PRODUCT PARAMETER | ||||||
| Welcome to Our Website. We Are Happy to Serve You | ||||||
| Fitting Material: | Nickel-platedbrass | |||||
| Material For Clamping Jaws: | IPA66(Nylon), UL94-V2 | |||||
| Material For Sealing Components: | EPDM、Silicone rubber | |||||
| O-ring Material: | EPDM、Silicone rubber | |||||
| Protection Degree: | IP68-10 bar | |||||
| Temperature: | Static state: -40 to 100℃, Short time to 120℃ Dynamic state: -20℃ to 80℃,Short time to 100℃ |
|||||
| Specifications: | unit: mm | |||||
| Item | Range Φ mm |
Tread Length GL mm |
Thread O.D. AG mm |
Joint Length H mm |
Spanner size mm |
Code |
| G1/4 | 3-6.5 | 6.5 | 13.1 | 13.5 | 14/15 | HX-NPG1/4 |
| G3/8 | 48 | 8 | 16.6 | 17 | 18/19 | HX-NP.G3/8 |
| G1/2 | 6-12 | 8 | 20.9 | 22 | 22/23 | HX-NPG1/2 |
| G3/4 | 13-18 | 9 | 26.4 | 25 | 30 | HX-NP.G3/4 |
| G1 | 18-25 | 10 | 33.2 | 29 | 40 | HX-NP.G1 |
| G1-1/4 | 25-33 | 11 | 41.9 | 35 | 50 | HX-NPG1-1/4 |
| G1-1/2 | 32-38 | 12 | 47.8 | 37 | 57/55 | HX-NPG1-1/2 |
| G2 | 37-44 | 14 | 59.6 | 38 | 64 | HX-NP.G2 |
| G2-1/2 | 42-52 | 16 | 75.1 | 42 | 78/80 | HX-NPG2-1/2 |
| G3 | 65-70 | 18 | 87.8 | 45 | 94 | HX-NP.G3 |
| G4 | 88-95 | 20 | 113.0 | 53 | 130 | HX-NP.G4 |
| NPT1/4 | 3-6.5 | 6.5 | 13.6 | 13.5 | 14/15 | HX-NP.NPTI/4 |
| NPT3/8 | 48 | 8 | 17.0 | 17 | 18/19 | HX-NP.NPT3/8 |
| NPT1/2 | 6-12 | 8 | 21.2 | 22 | 22 | HX-NP.NPT1/2 |
| NPT3/4 | 13-18 | 9 | 26.5 | 25 | 30 | HX-NP.NPT3/4 |
| NPT1 | 18-25 | 10 | 33.2 | 29 | 40 | HX-NP.NPT1 |
| NPT1-1/4 | 25-33 | 11 | 41.9 | 35 | 50 | HX-NP.NPT1-1/4 |
| NPT1-1/2 | 32-38 | 12 | 48.0 | 37 | 57 | HX-NPNPT1-1/2 |
| NPT2 | 37-44 | 14 | 60.0 | 38 | 64 | HX-NP.NPT2 |
| NPT2-1/2 | 42-52 | 16 | 72.6 | 42 | 78 | HX-NPNPT2-1/2 |
| standard without nuts which are optional | ||||||

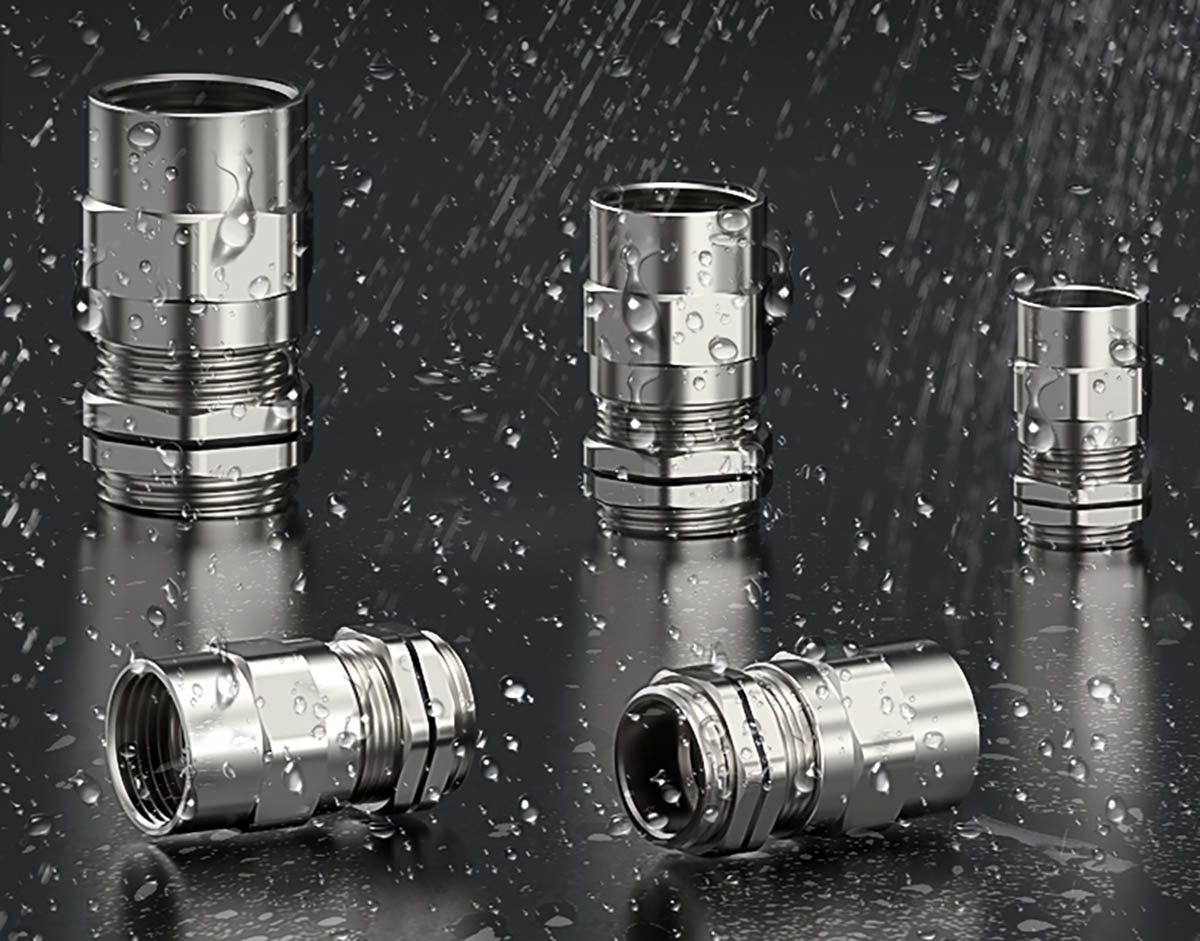

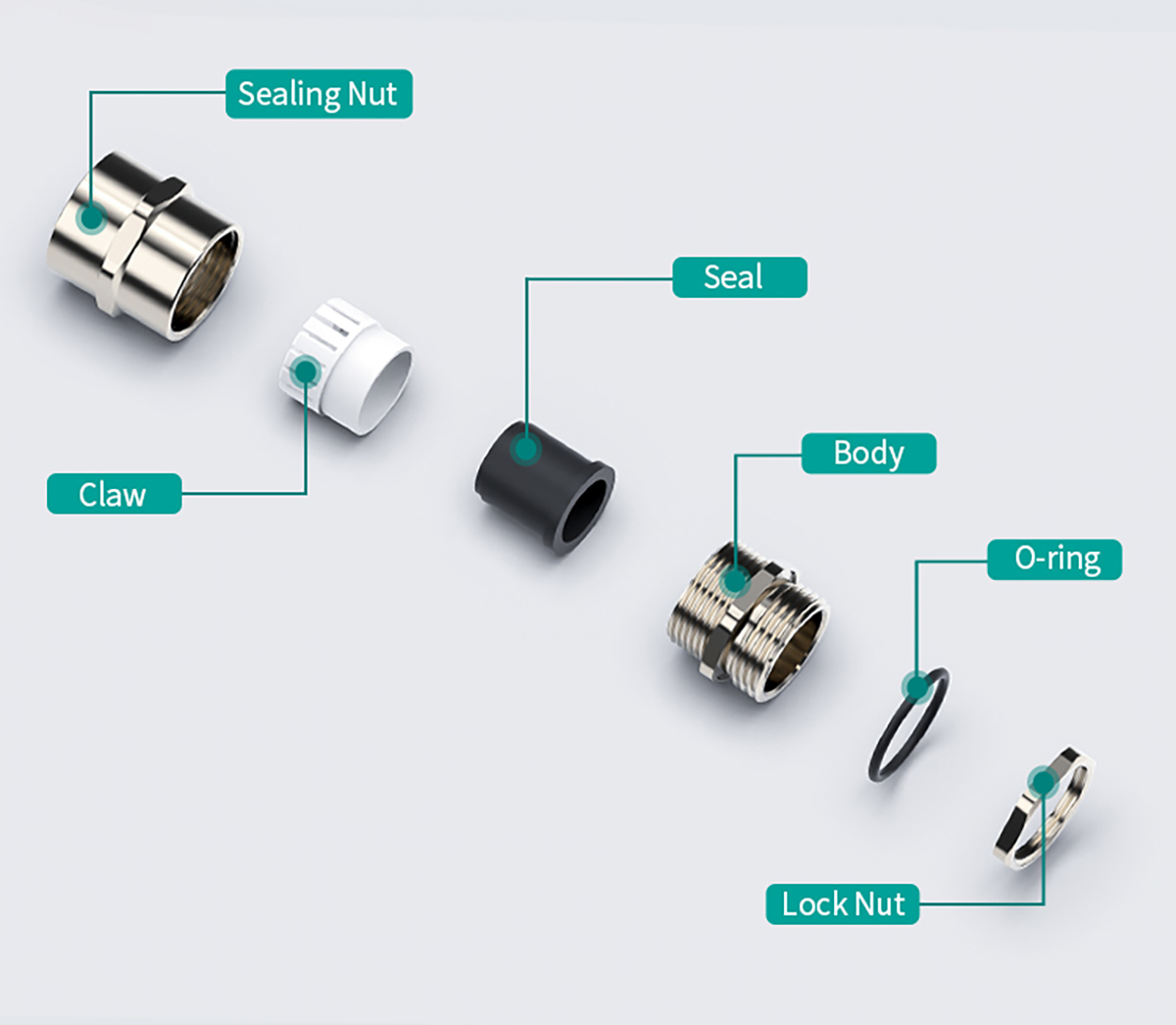

Each structure is meticulous and well-protected, which can effectively prevent water leakage and displacement.
