A Complete Guide to Solar Connectors

Author    |    hongxiang_admin    |    November 24, 2025

When setting up a solar power system, there’s an often overlooked yet crucial component for system performance: the solar connector. Solar connectors act as the bridge connecting solar panels to the rest of the system, ensuring a safe and reliable electrical connection.

Choosing the right solar connector for your system is essential for ensuring its efficiency, safety, and lifespan. This article will guide you through understanding solar connectors, from the types available to the key factors to consider before making a selection.

Solar Connectors

What is a Solar Connector?

At its core, a solar connector is a specialised electrical connection device designed for use in photovoltaic (PV) systems. These connectors are used to link solar panels to other components, such as other panels, inverters, or batteries. They are built to provide a secure and safe electrical connection, minimise energy loss, and withstand harsh outdoor conditions.

A solar connector ensures that your entire system operates efficiently. The quality of the connector can directly affect the overall performance and longevity of the solar array. They are typically rated for high voltage and are weather-resistant to withstand exposure to UV rays, rain, and extreme temperatures.

A Complete Guide to Solar Connectors

Solar DC Connector

Technical Data
Connector system φ4mm
Rated voltage 1000V DCIEc¹100V1500VDCIuu¹
Rated current 17A(1.5mm²)
22A(2.5mm²; 14AWG)
30A(4mm²; 6mm²; 12AWG, 10AWG)
Test voltage 6kV(50HZ, 1min.)
Ambient temperature range -40℃ ~ +90℃(IEC)
-40℃ ~ +75℃(UL)
Upper limiting temperature +105°C(IEC)
Degree of protection, mated IP67
unmated IP2X
Contact resistance of plug connectors 0.5mΩ
Safetyclass Ⅱ
Contact material Messing, verzinnt Copper Alloytin plated
Insulation material PC/PPO
Locking system Snap-in
Flame class UL94-V0
Salt mist spray test, degree of severity 5 IEC 60068-2-52

Why Solar Connectors Matter?

Choosing the right connector is more than just an accessory, it’s crucial for the overall performance and safety of your solar system.

Here’s why these small parts play such a big role:

Energy Efficiency: The main job of a solar connector is to transmit electrical energy with minimal resistance. Poor-quality connectors can increase resistance, resulting in voltage drops and reduced system efficiency. In the long run, this could lead to lower energy output and higher energy costs.

Durability: Solar connectors are exposed to a variety of outdoor elements, including UV rays, rain, dust, and temperature fluctuations. To avoid premature failure or degradation, connectors must be made of high-quality, weather-resistant materials that can handle these conditions over the long term.

Safety: A poor connection can lead to serious issues such as short circuits, overheating, or even fire hazards. Choosing certified connectors ensures that the components in your system are safe and won’t pose risks during operation.

Future-Proofing: With solar systems growing in size and complexity, having reliable connectors allows for easier upgrades, expansions, and maintenance in the future.

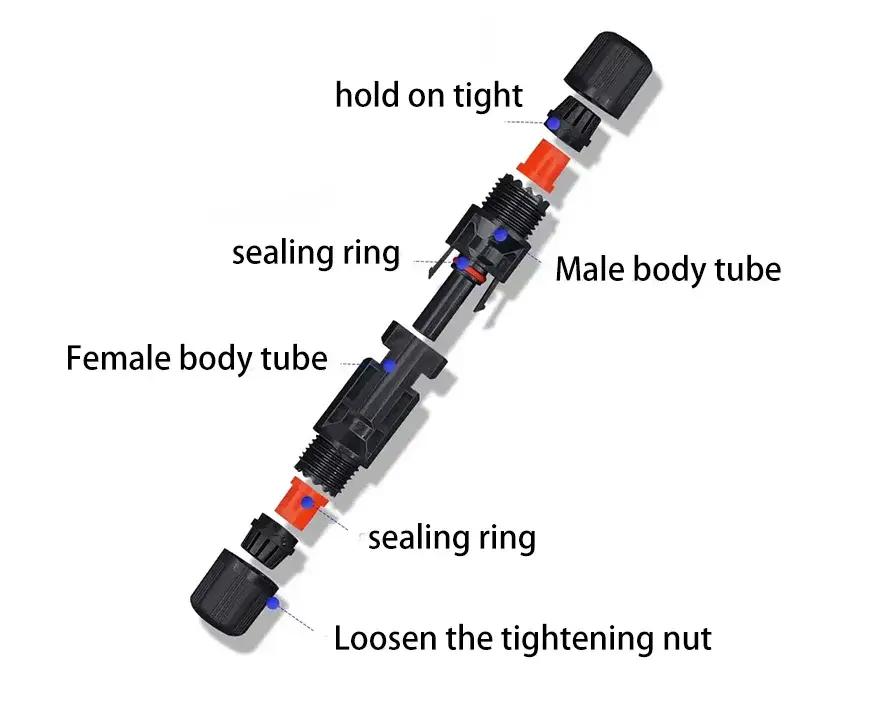

Why Solar Connectors Matter

What to Look for When Choosing Solar Connectors?

When choosing the right connectors for your system, you need to consider several important factors. These factors ensure that your system operates efficiently and safely, especially under harsh conditions.

Current and Voltage Ratings

Solar panels and systems can generate a lot of power, and the connectors need to be able to handle the amount of current and voltage your system will generate. Be sure that the connectors you choose can handle the maximum current and voltage of your setup.

Weatherproofing

Solar connectors should be rated for outdoor use, meaning they should be waterproof and UV resistant. Check for an IP (Ingress Protection) rating of IP67 or higher, which ensures that the connectors are sealed tightly against dust and water.

Material Quality

The materials used in connector manufacturing, such as conductors and housings, must be of the highest quality to prevent corrosion and ensure durability. Conductors are typically made of copper due to its excellent conductivity; while housings are usually made of UV-resistant plastic to ensure durability.

Locking Mechanism

A secure locking mechanism is essential to keep the connectors tightly in place, especially when exposed to outdoor conditions. Without a locking mechanism, connectors can come loose, leading to a loss of power or a dangerous electrical hazard.

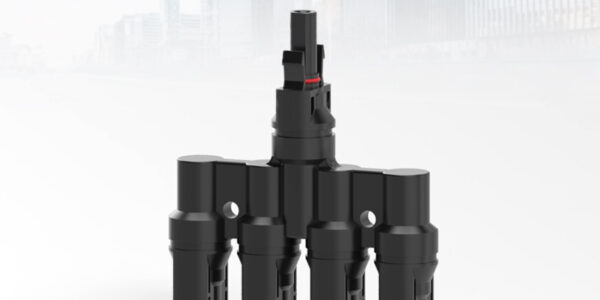

Solar Connector

Ease of Installation and Maintenance

Look for connectors that are easy to install and require minimal tools. This not only simplifies the installation process but also makes future maintenance or replacement easier.

Types of Solar Panel Connectors

There are various types of solar connectors used in the industry, with each offering unique advantages. While some may be more common in older systems, modern connectors have largely replaced them.

The following are the main types you will encounter:

MC4 Connectors

MC4 connectors are the most widely used connectors in modern solar power systems. They are compatible with most PV systems and are known for their durability and ease of use. They feature a male and female connector design and can withstand high voltage and current.

One of the key benefits of MC4 connectors is their secure locking mechanism, which ensures that they stay tightly connected, even in extreme weather conditions. They are also designed to be weather-resistant, with many models offering protection against dust and water.

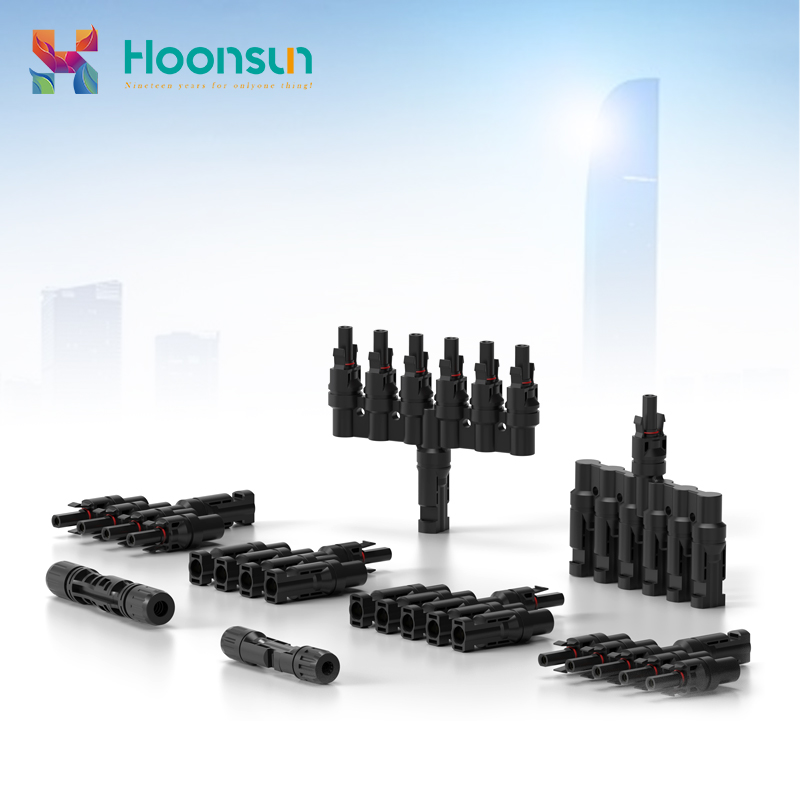

Universal Solar Connectors

Universal solar connectors are a newer type of connector that has gained popularity in recent years. They are designed to be used with various types of solar panels and offer greater versatility. These connectors often have a more streamlined design and can be easier to install than traditional connectors.

The major advantage of universal connectors is their compatibility across different brands and system types. If you plan to expand or upgrade your system over time, using universal connectors allows for greater flexibility.

T4 Connectors

T4 connectors are a relatively newer design in the solar industry, designed to carry higher current capacity. They have gained popularity in commercial and industrial systems due to their toolless installation feature and higher efficiency. While not as widespread as MC4 connectors, T4 connectors offer some advantages, including easier installation and greater electrical performance.

SolarLok Connectors

SolarLok connectors are a popular alternative to MC4 connectors. They offer similar performance in terms of high voltage and current capacity but employ a different design, potentially better suited for certain applications. These connectors are compatible with photovoltaic modules and junction boxes and provide a secure locking mechanism for reliability.

Best Practices for Installing Solar Connectors

Proper installation of solar connectors is crucial to ensuring that your system operates efficiently and safely.

Here are some best practices for installing solar connectors:

  • Turn off the power before beginning any installation work. This is to ensure that you are not working with live wires, which can be dangerous.
  • Use the right tools for stripping, crimping, and connecting the wires. Solar connectors should be installed using dedicated crimping tools designed for solar panels. Proper crimping ensures a secure connection and prevents any issues down the line.
  • Inspect connections regularly to make sure there are no loose connectors, corrosion, or other signs of wear. Tighten any loose connections and replace damaged connectors as needed.
  • Follow manufacturer’s instructions for all components in your system. This will ensure that the system functions as intended and that you are meeting safety standards.
Common Issues with Solar Connectors

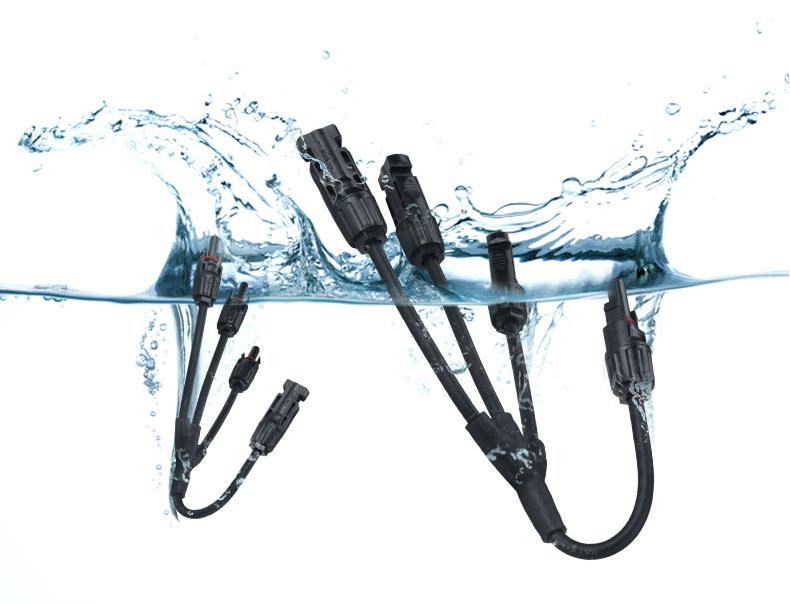

Common Issues with Solar Connectors

While solar connectors are generally reliable, there are a few issues that can arise over time.

Here are some common issues and how to troubleshoot them:

Loose Connections: If you notice a decrease in system performance or if connectors seem loose, it may be time to tighten the connections or replace the connectors altogether. Loose connectors can lead to poor electrical contact and reduce the efficiency of your system.

Corrosion: Over time, exposure to moisture and other elements can cause corrosion on the connectors. If corrosion is visible, it is essential to replace the affected connectors to prevent further damage and ensure a stable electrical connection.

Arcing: If you notice visible signs of arcing, such as burn marks or a strange smell, this may indicate an issue with the connectors. Arcing can cause electrical fires, so it is crucial to replace the connectors immediately.

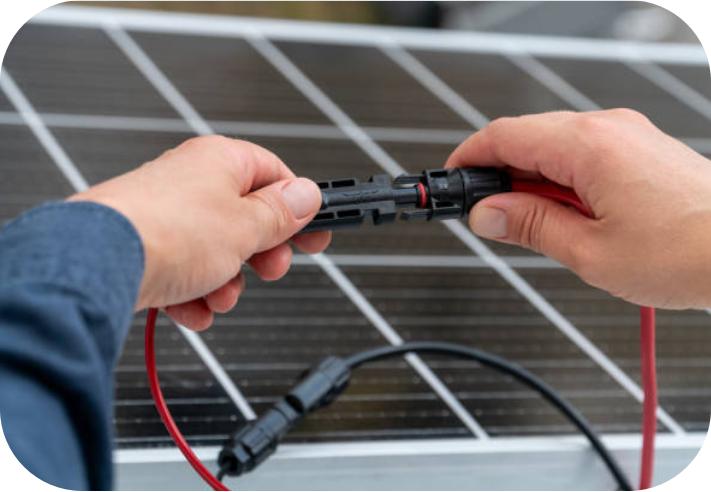

Best Practices for Installing Solar Connectors

Conclusion

Choosing high-quality, reliable connectors and ensuring proper installation maximizes the efficiency of your solar system and helps prevent costly repairs or inefficiencies in the future. Whether you’re using MC4 connectors, universal solar connectors, or newer designs like T4 or SolarLok connectors, be sure to choose products that meet your specific needs.

Hoonsun Connector offers a range of premium solar connectors designed for durability, efficiency, and ease of use, ensuring your solar system operates at its best.

If you have any questions or need assistance choosing the right connectors for your solar project, please feel free to contact us. Proper selection and installation of connectors is crucial for maintaining the smooth and efficient operation of your solar system, and we will guide you throughout the process.
