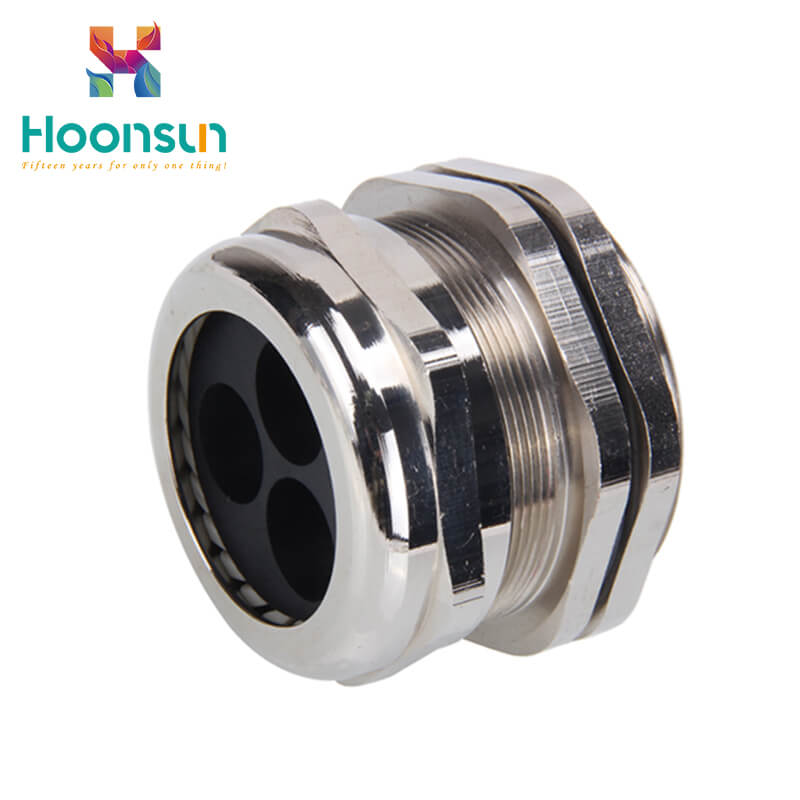

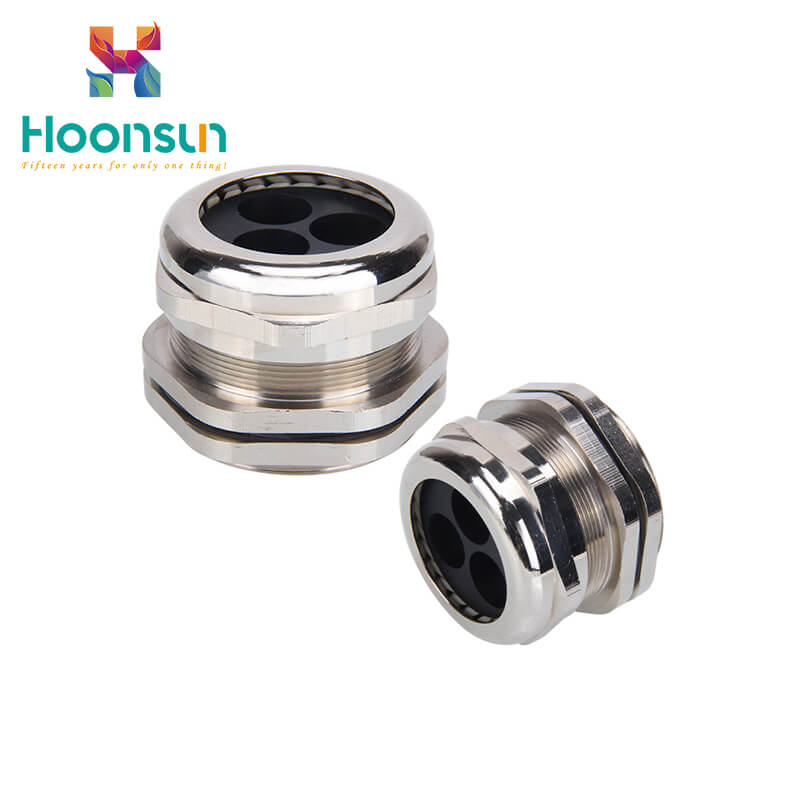

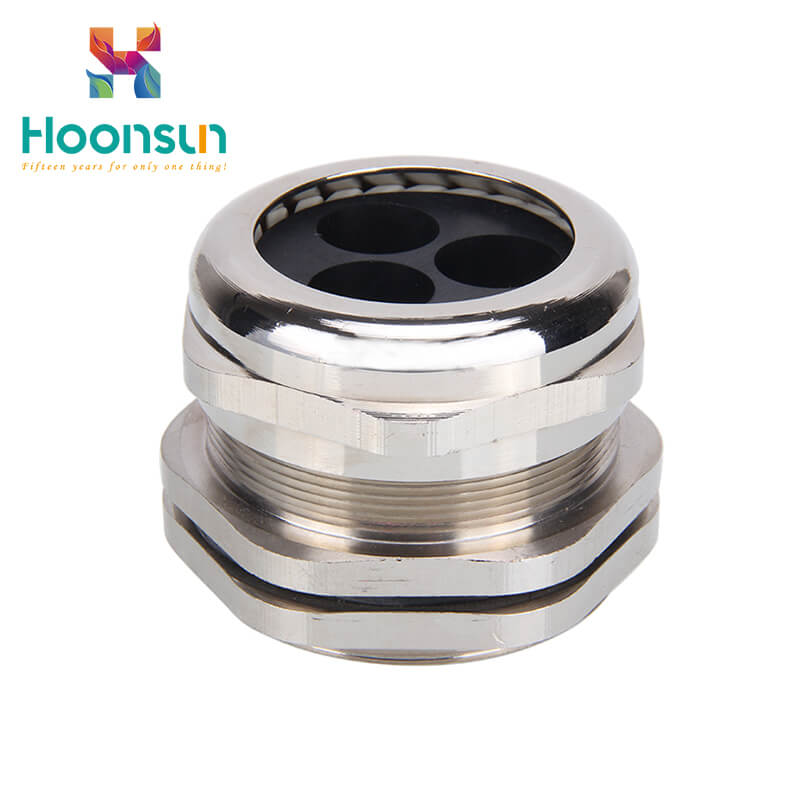

Model: HX-NP
Thread Type: Metric thread type
Hermetic seal: NBR、Silicone rubber
Material: Brass, nickel plated
Claw: PA
Sealing and sealing ring: NBR
Approvals: CE, ROHS, REACH
Protection degree: IP68
Temperature Resistance: -40℃-100℃, short time to 120℃.
Size: M8-M63 PG7-PG48 G1/4″-G3″ NPT1/4″-NPT2-1/2″
Metal cable glands usually involve electrical performance, mechanical performance, environmental adaptability and other aspects. The specific parameters will vary according to the application scenario (such as power, communication, industrial equipment, etc.) and cable type (such as high voltage, low voltage, coaxial cable, etc.)
Rated voltage: such as 0.6/1kV, 10kV, 35kV, etc., indicating the working voltage that the connector can withstand.
Rated current: determined according to the conductor cross-sectional area and material (such as copper, aluminium), such as 200A, 400A.
Insulation resistance: usually required to be ≥1000MΩ (test voltage 500V DC).
Withstand voltage level: power frequency withstand voltage (such as 3kV/5min) or impulse withstand voltage (such as lightning impulse withstand voltage 95kV).
Contact resistance: ≤1.2 times the conductor resistance (in accordance with IEC 61238 standard).
Conductor connection method: crimping, bolt connection, welding, etc.
Mechanical strength: tensile strength (such as ≥70% of the cable body strength), torsion resistance.
Protection level: IP68 (long-term immersion of 1 meter underwater), IP66 (strong water spray resistance).
Bending radius: ≥10 times the outer diameter of the cable (to avoid damage due to excessive bending).
| Item | F | M2 | M3 | M4 | M5 | M6 | M7 | M8 | Code |
| M12×1.5 | / | 2.5 | / | / | / | / | / | / | HX-ND.M12/ |
| M16×1.5 | / | 2.5 | / | / | / | / | / | / | HX-ND.M16/ |
| M18×1.5 | / | 3 | / | 2.5 | / | / | / | / | HX-ND.M18/ |
| M20×1.5 | 5*12 | 5 | / | / | / | / | 2.5 | / | HX-ND.M20/ |
| M22×1.5 | / | 6 | 3 | 2.5 | / | / | 3.4 | / | HX-ND.M22/ |
| M25×1.5 | / | / | / | / | / | / | / | / | HX-ND.M25/ |
| M27×1.5 | / | / | / | 5 | / | / | / | / | HX-ND.M27/ |
| M32×1.5 | 7*19 | 8 | 8 | 7.5 | / | / | / | / | HX-ND.M32/ |
| M37×1.5 | / | 9.5 | 9.5 | / | / | / | 7.5 | / | HX-ND.M37/ |
| M40×1.5 | 8*23 | / | / | / | / | / | / | / | HX-ND.M40/ |
| M47×1.5 | / | / | 13.3 | / | / | / | / | / | HX-ND.M47/ |
| M50×1.5 | / | / | / | / | / | / | / | 10 | HX-ND.M50/ |
| M63×1.5 | / | / | 18 | / | / | / | / | / | HX-ND.M63/ |

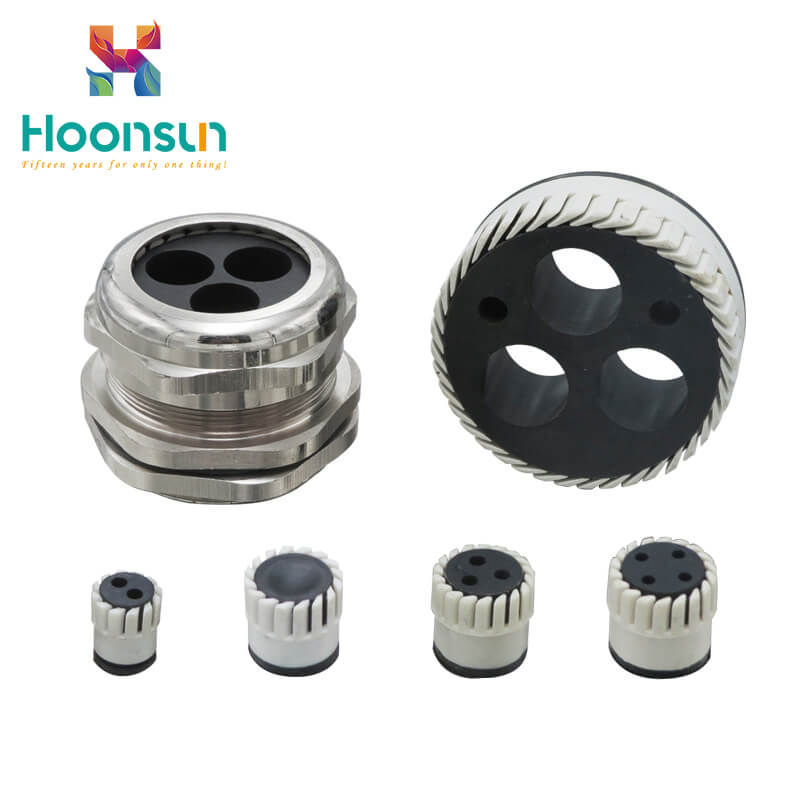

| Can be customized porous,welcome to inquire | |||||||||

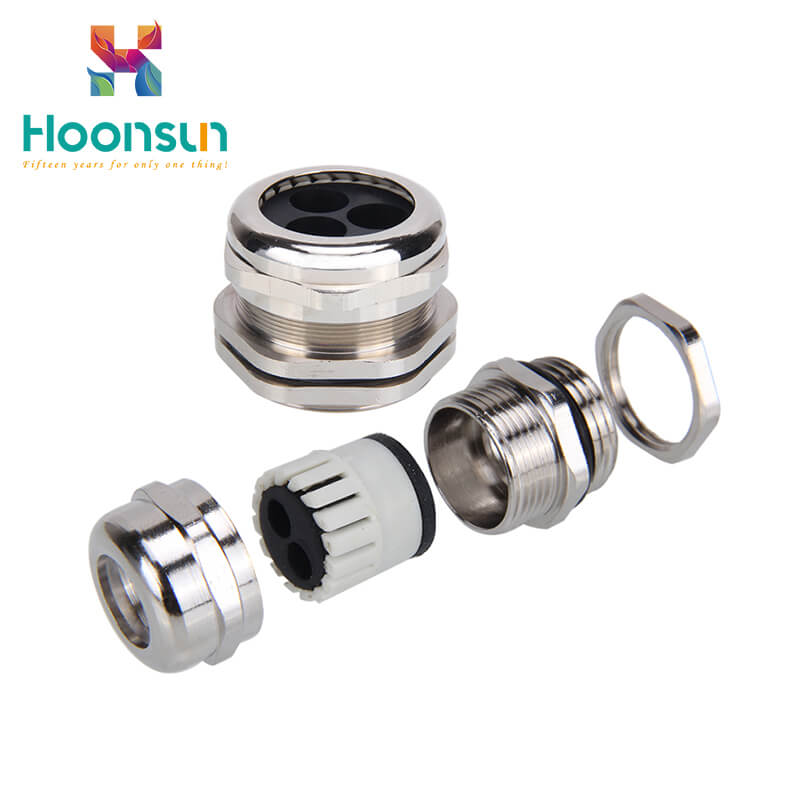

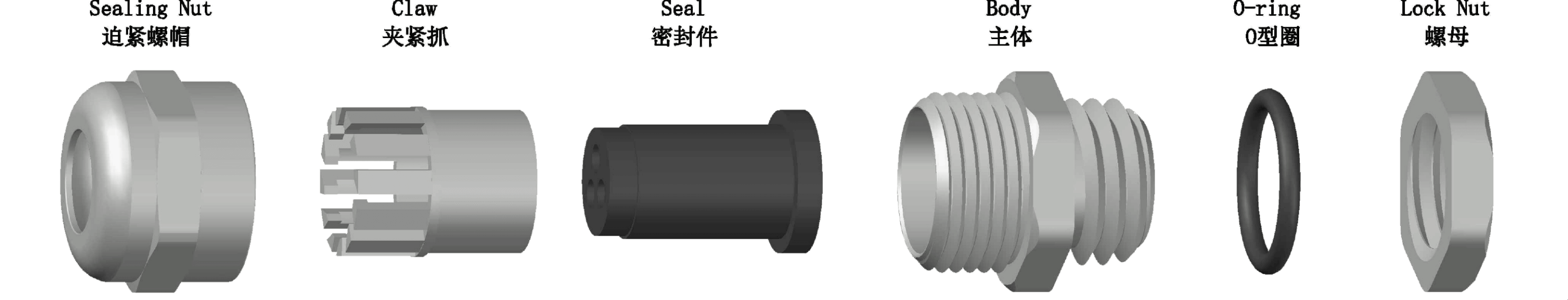

| Fitting Material | Nickel-platedbrass |  |
| Material For Clamping Jaws: | IPA66 (Nylon), UL94-V2 | |
| Material For Sealing Components: | EPDM、Silicone rubber | |
| O-ring Material: | EPDM、Silicone rubber | |
| Protection Degree: | IP68-10 bar | |
| Temperature: | Static state: -40 to 100℃, Short time to 120℃ Dynamic state: -20℃ to 80°℃, Short time to 100℃ |
Marine cable glands are applied in six core areas: explosion-hazardous areas, power machinery, electrical systems, high-temperature/corrosive environments, military/civilian vessels, and cable protection.
The terminal hose fitting is engineered with brass/stainless steel 304/316L materials and an IP66 protection rating. Its unique design ensures compatibility with oil, gas, water, and other media, while ultimate sealing performance and impact resistance eliminate leakage risks to guarantee operational safety.
It can be dust-proof, salt-proof, acid-alkaline, alcohol-grease and general solvent, suitable for outdoor harsh environments Plug and play, convenient and fast.
