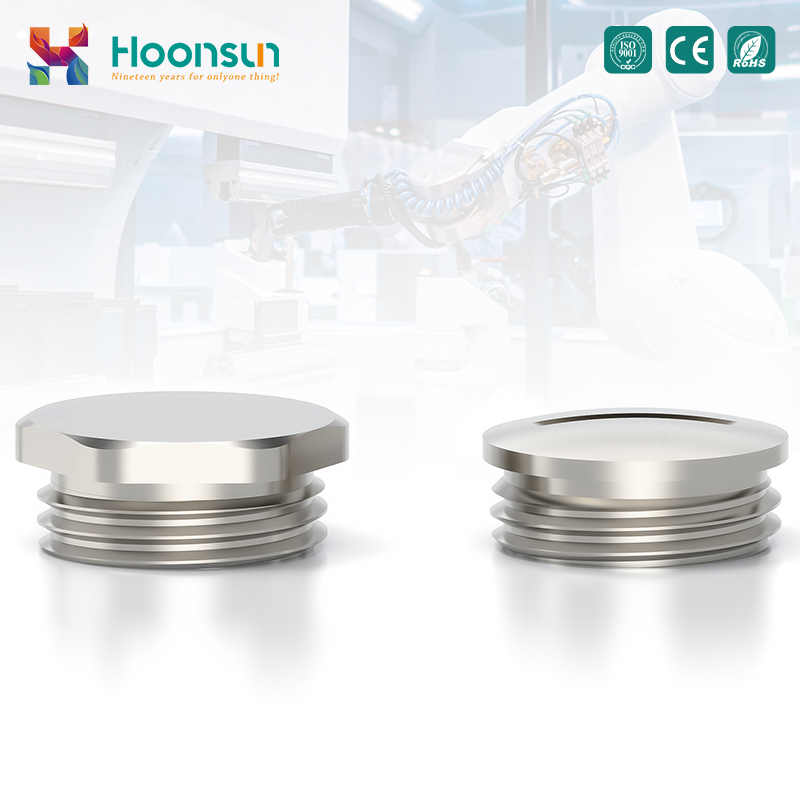

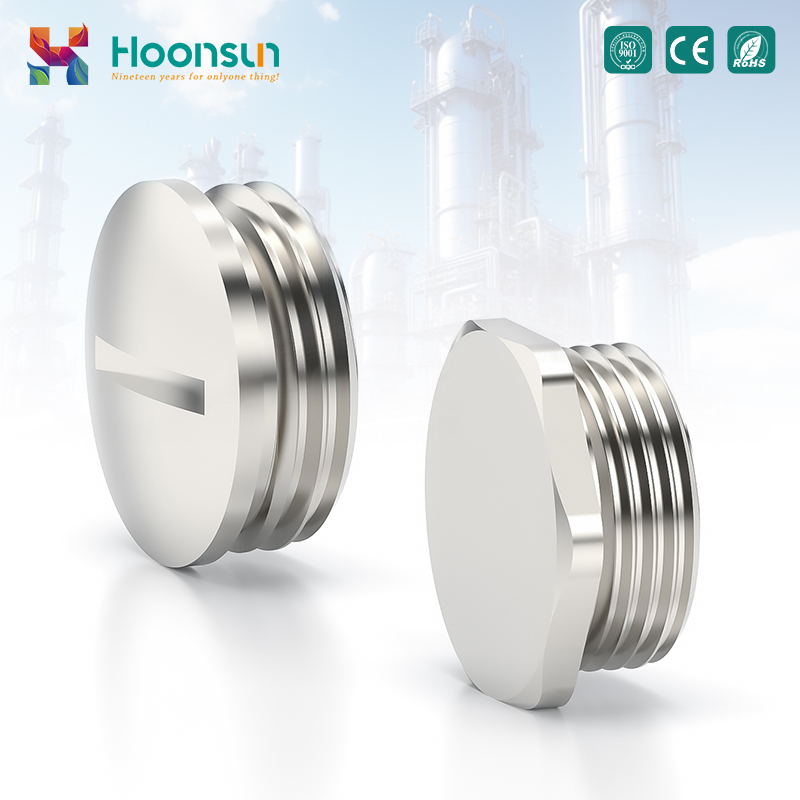

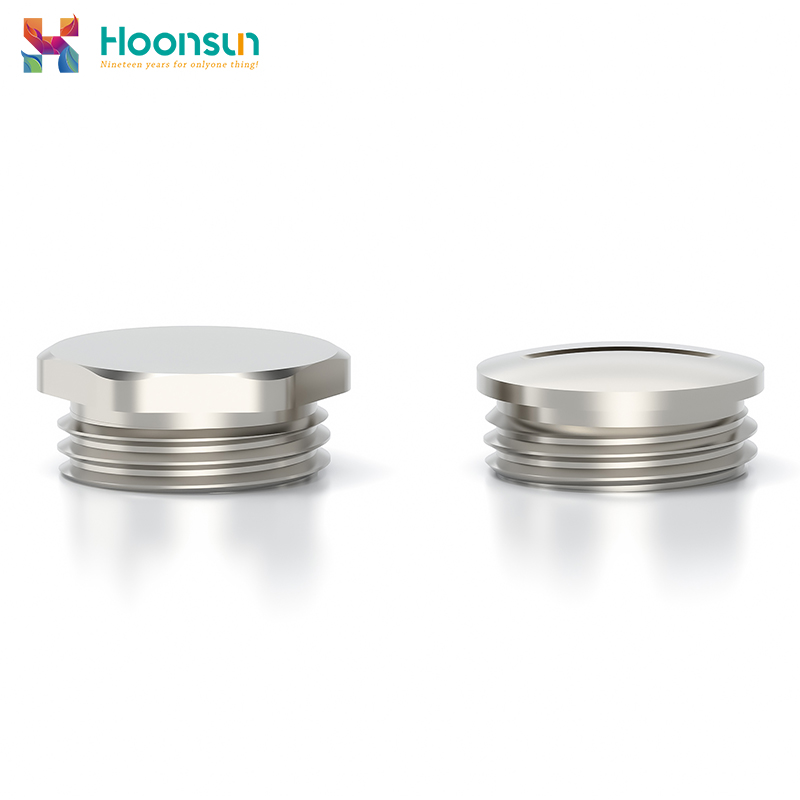

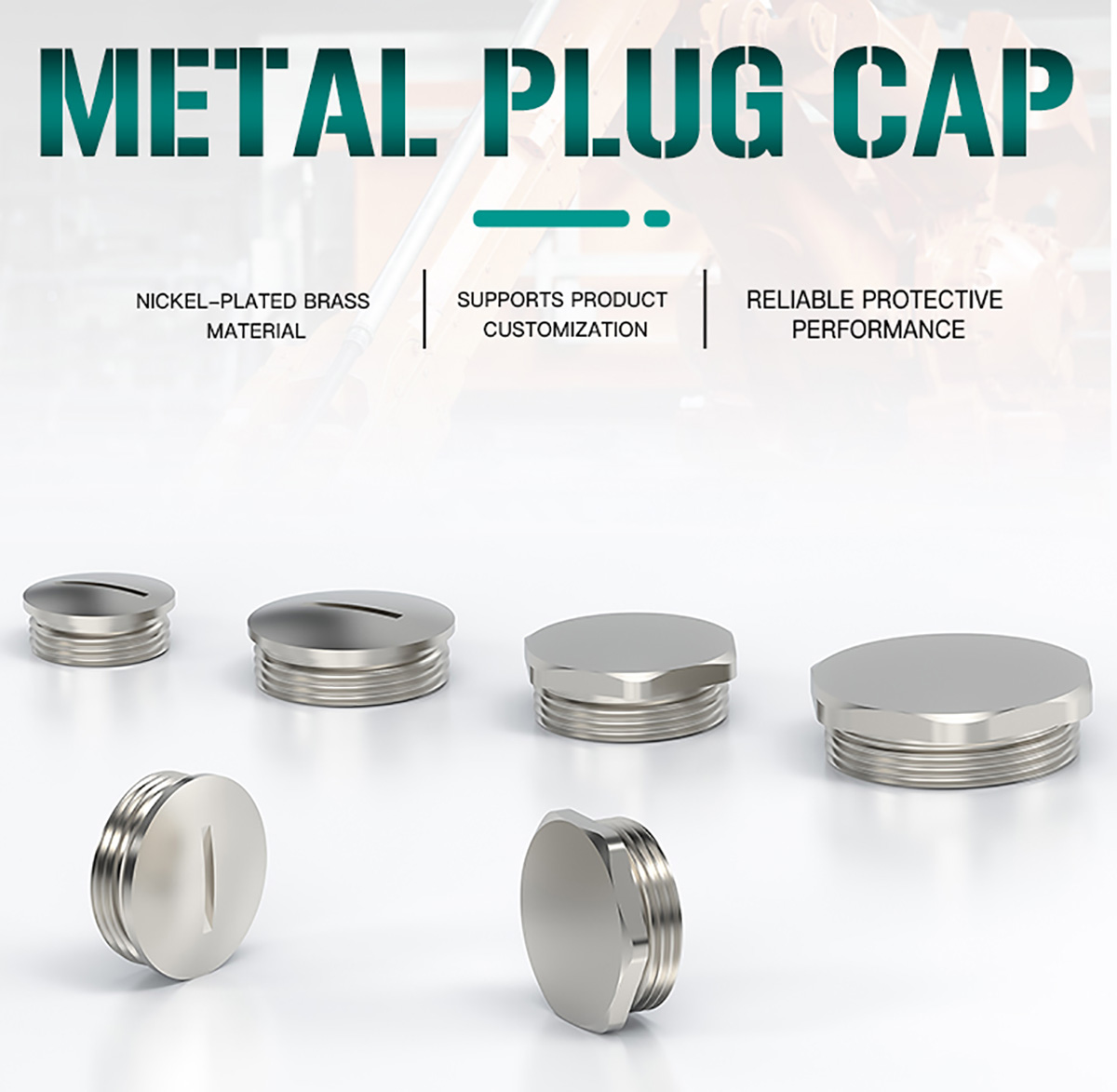

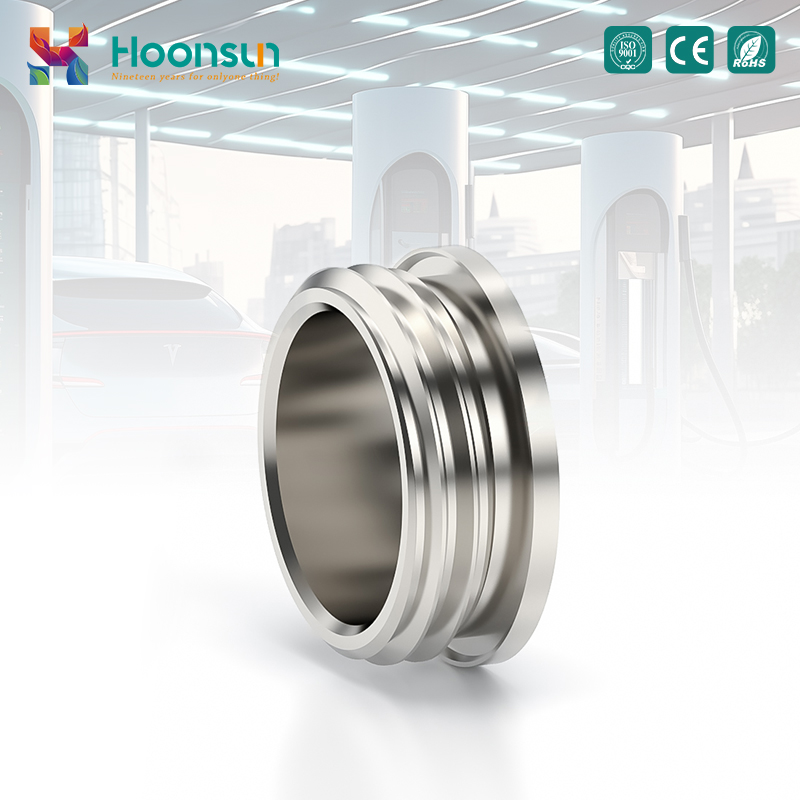

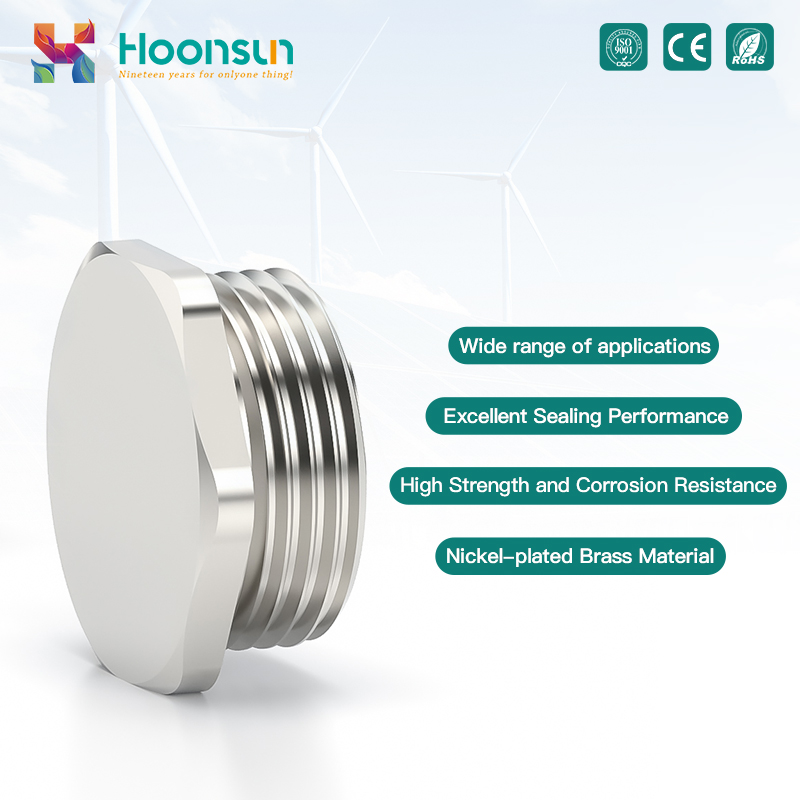

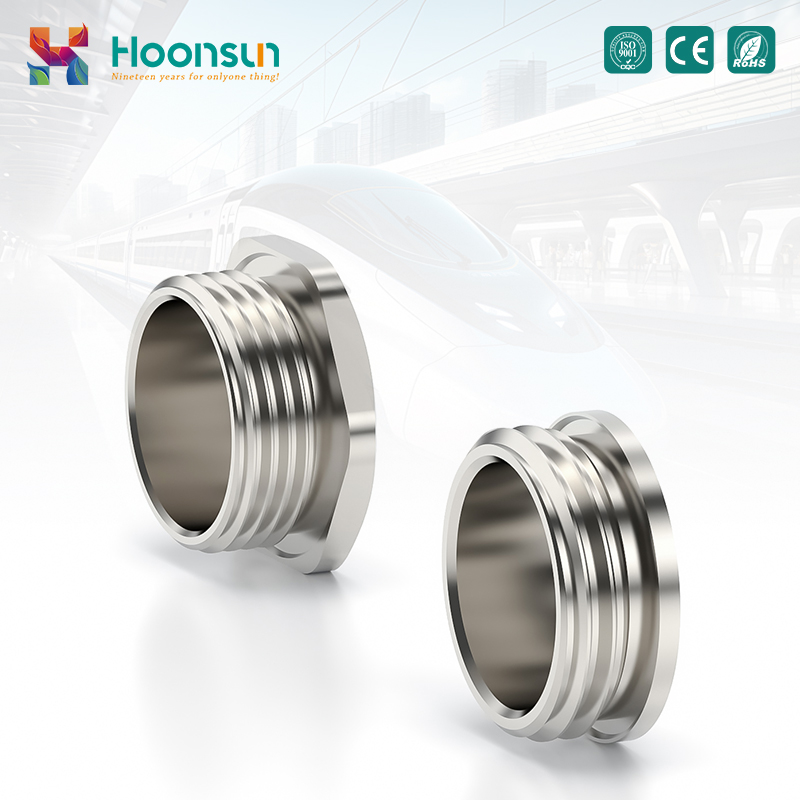

Metal Plug Cap
Material：Nickel-plated brass
O-Ring：NBR、Silicone rubber

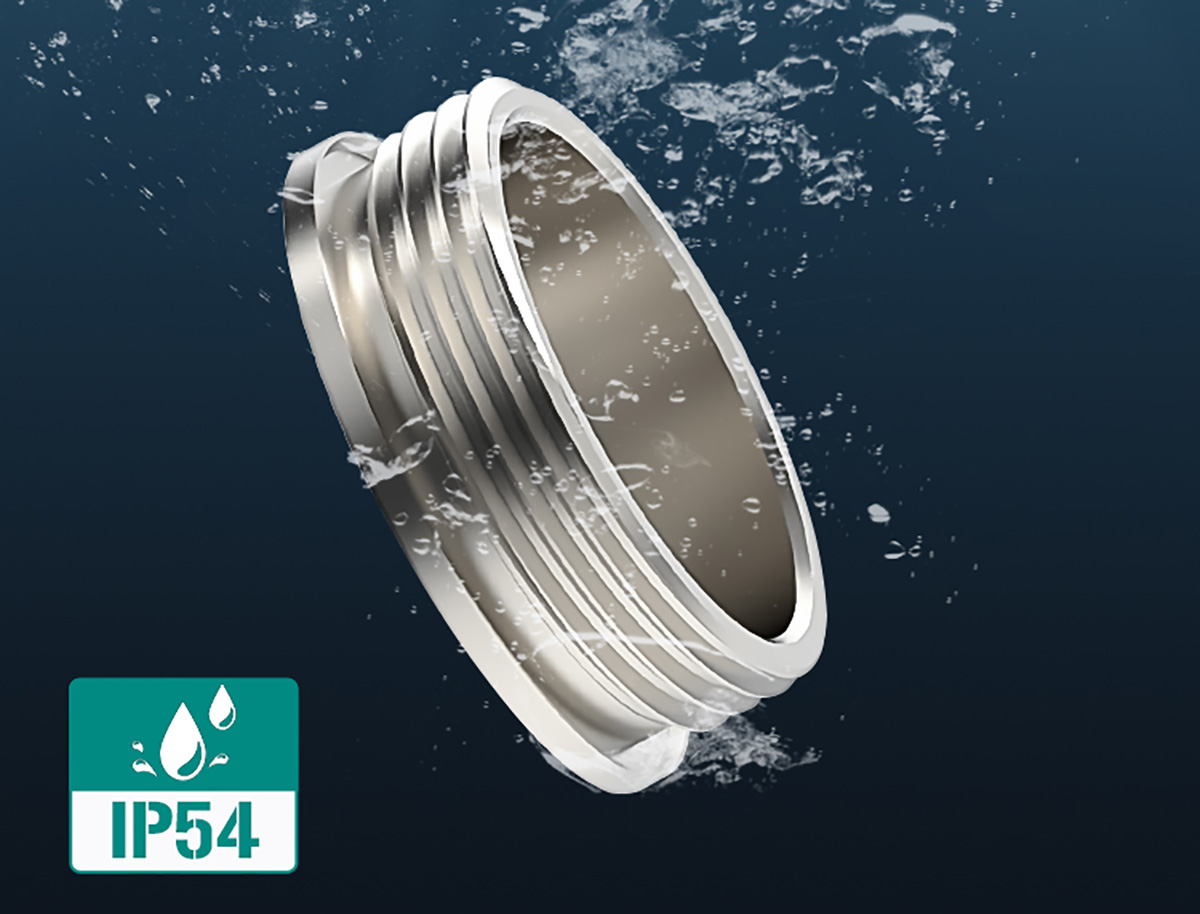

Protection degree：IP54
Temperature：Static state：-40℃ to 100℃,short time to 120℃
Products
Inquiry Now >
VIDEO
Dimension Drawing

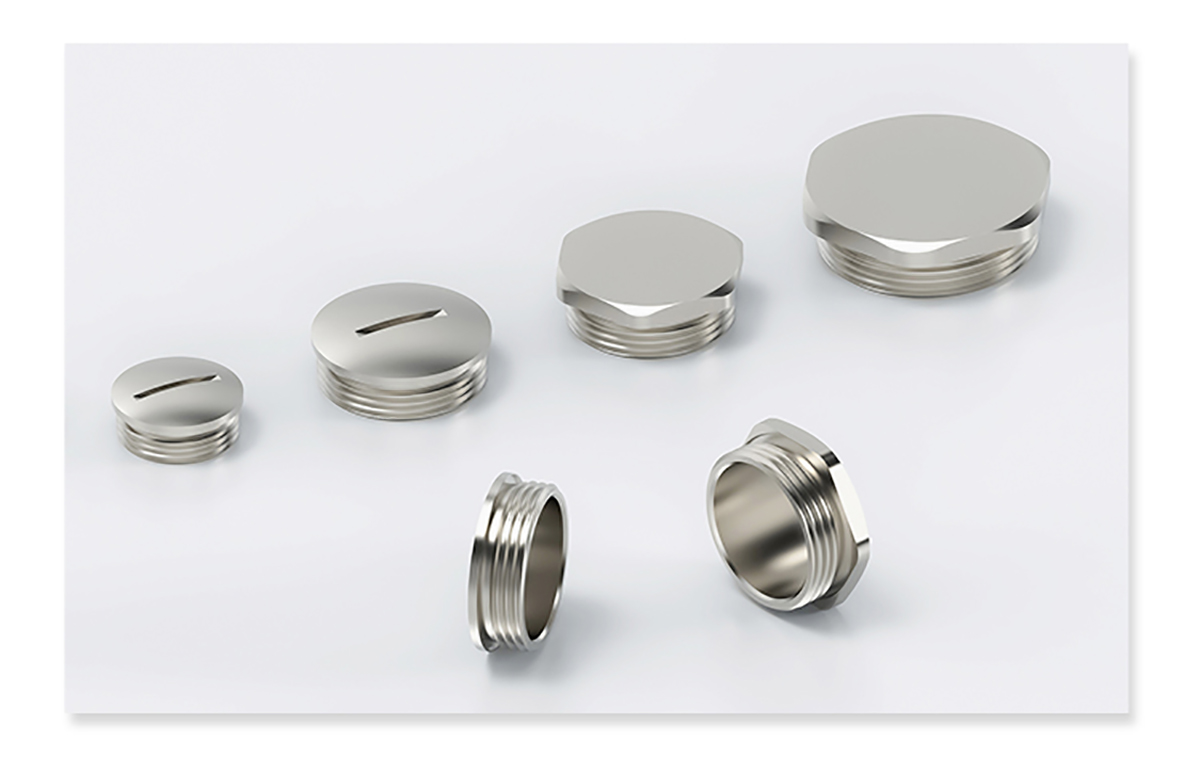

Technical Parameter
Thread Type ：M
| Item | GL | H | D |
| Thread Length | Joint Length | Spanner Size | |
| (mm) | (mm) | (mm) | |
| M8×1 | 5 | 8 | 12 |
| M10×1 | 5 | 8 | 12 |
| M12×1.5 | 5 | 8 | 14 |
| M16×1.5 | 6 | 9 | 18 |
| M18×1.5 | 6 | 9 | 20 |
| M20×1.5 | 6.5 | 9.5 | 22 |
| M22×1.5 | 6.5 | 9.5 | 24 |
| M24×1.5 | 6.5 | 10 | 27 |
| M25×1.5 | 6.5 | 10 | 27 |
| M30×1.5 | 6.5 | 10 | 32 |
| M32×1.5 | 7 | 11 | 36 |
| M36×1.5 | 8 | 12 | 40 |
| M40×1.5 | 8 | 13 | 45 |
| M50×1.5 | 9 | 15 | 55 |
| M60×1.5 | 10 | 16 | 64 |
| M63×1.5 | 10 | 16 | 68 |
| M72×2 | 10 | 16 | 78 |
Thread Type ：PG
| Item | GL | H | D |
| Thread Length | Joint Length | Spanner Size | |
| (mm) | (mm) | (mm) | |
| PG7 | 5 | 8 | 14 |
| PG9 | 6 | 9 | 18 |
| PG11 | 6 | 9 | 20 |
| PG13.5 | 6.5 | 9.5 | 22 |
| PG16 | 6.5 | 9.5 | 24 |
| PG21 | 7.5 | 11 | 30 |
| PG29 | 8 | 12 | 40 |
| PG36 | 9 | 15 | 50 |
| PG42 | 10 | 16 | 57 |
| PG48 | 10 | 16 | 64 |
