Fitting Material: Nickel-plated brass
Material For Sealing Components: EPDM Silicone rubber
Material: PA66(Nylon) UL94-V2
O-ring Material: EPDM
Material: EPDM、Silicone rubber
Protection Degree: IP68-10 bar
Temperature: -40℃ to 100℃,short time to 120℃
Dynamic state:-20℃ to 80℃,Short time to 100℃
In the world of electrical installations and industrial applications, ensuring the integrity and security of cable connections is paramount. One essential component that plays a crucial role in this process is the cable gland. Among the various types available, the metal double locking cable gland stands out for its robustness, durability, and superior performance.

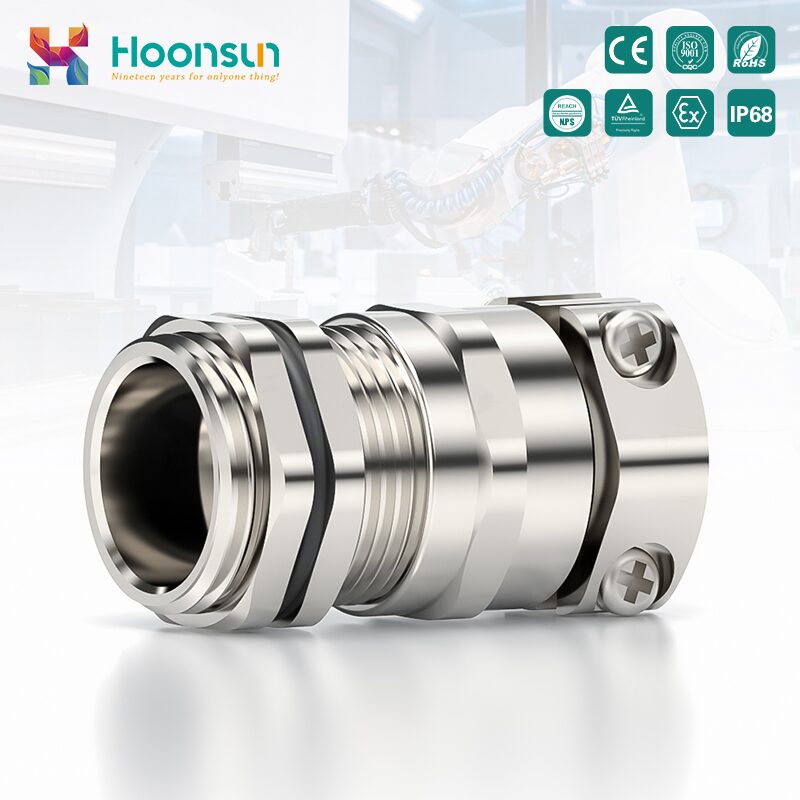

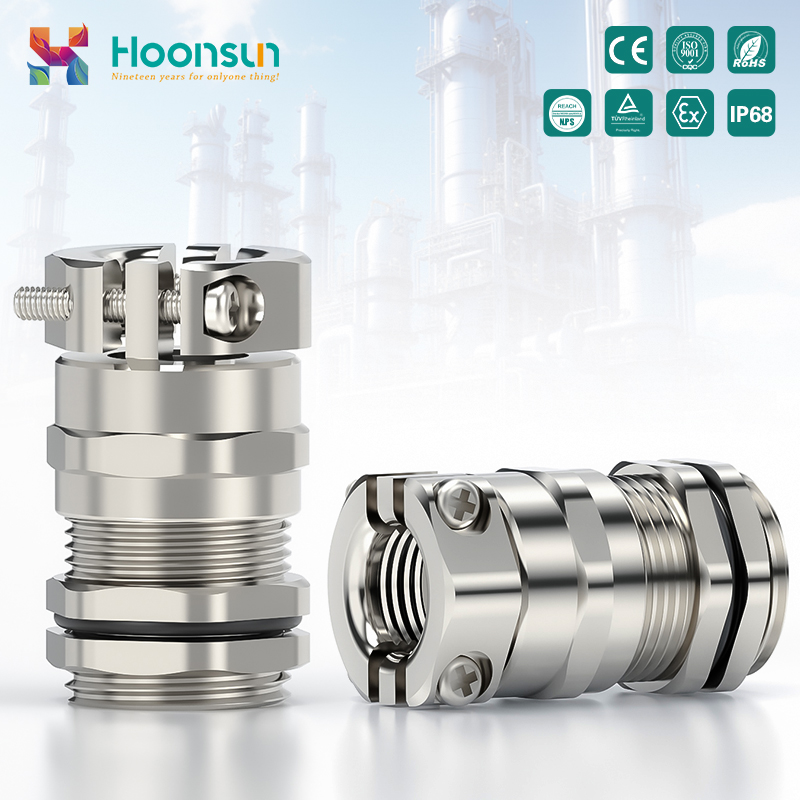

A double-lock metal cable gland is a device used to securely attach and seal the end of an electrical cable to the equipment it is connected to. It ensures that the cable remains fixed in place and protected from external elements such as dust, moisture, and mechanical stress. The term “double locking” refers to the gland’s enhanced mechanism that provides an additional layer of security, preventing accidental disconnections and ensuring a tight seal.
Advantage:

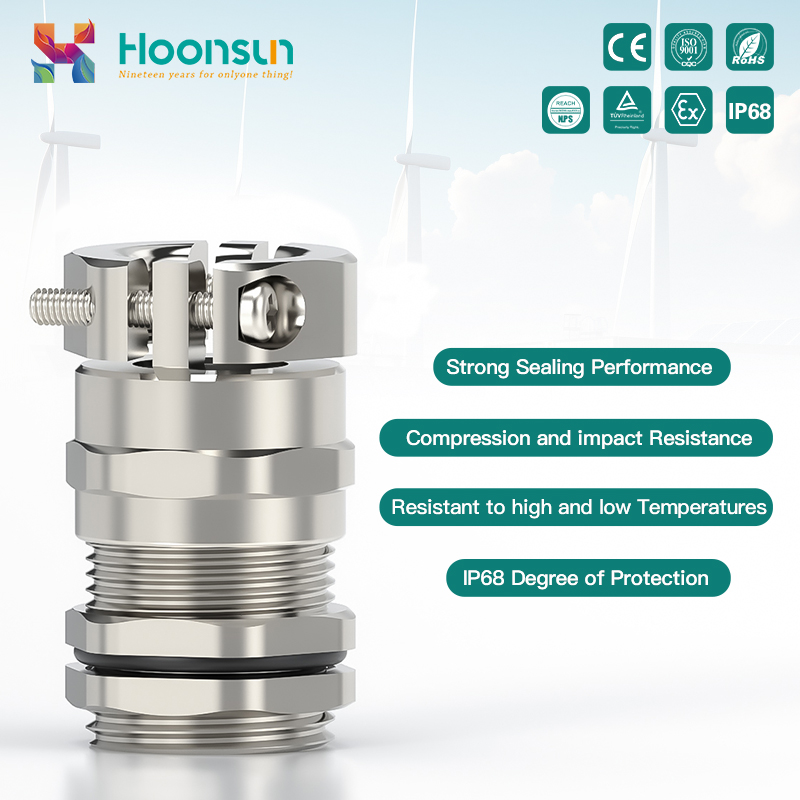

1. High quality raw materials: waterproof, dustproof, salt resistant, acid and alkali resistant
2. The appearance is beautiful, the structure is close, the strength is high
3. Specifications are complete and the quality is superior
Product certification:
European CE certification, European ROHS certification, European REACH certification
1. Precision thread, tightly connected
2. Seal rubber ring, effective seal, strong waterproof
Product details:
1. Our thread specifications are metric thread, German thread, American thread and British thread.

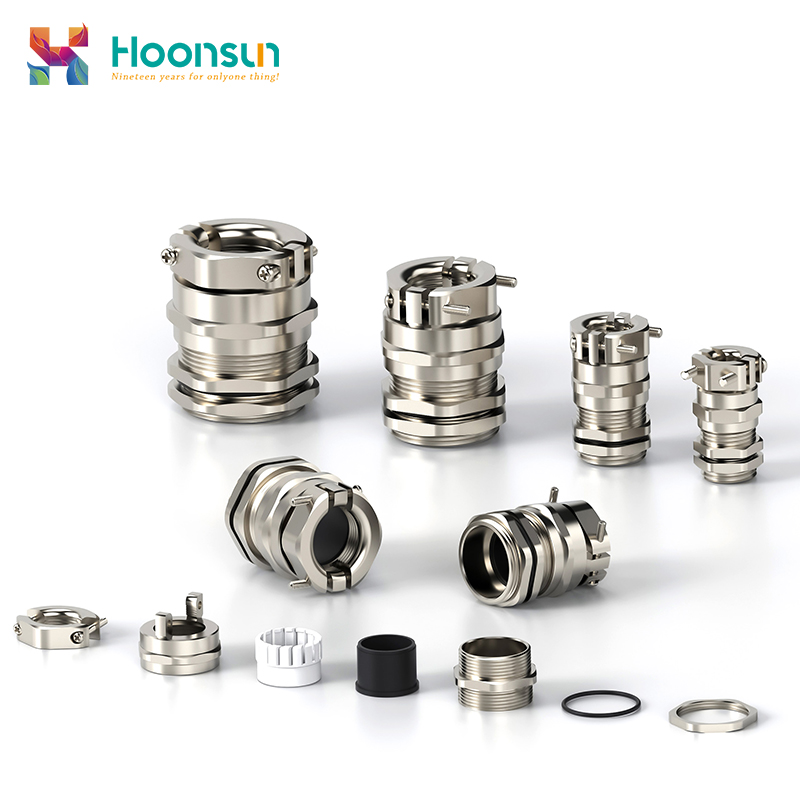

2. The product material includes a nickel-plated brass (stainless steel) shell, nylon inner core, nitrile rubber and silicone rubber seal.
3. Within the specified limits, with the sealing ring to tighten the nut, the protection level can reach IP68.
4. The inner core unique clamping claw and sealing ring are mutually buckled and designed to tighten the nut to improve the tensile performance.
5. Our products can be waterproof, dustproof, salt resistant, acid and alkali resistant, alcohol, grease and other general solvents.
6., It can adapt to bad environments such as offshore operations, mine machinery and chemical equipment.
High-end and practical design, it is widely used in shipbuilding, instrumentation, coal mine engineering and automation engineering. It can be called the excellent electrical product of locking and fixed cable.
The main advantage is the enhanced security provided by the dual locking mechanism, which ensures that the cable remains securely fastened and prevents accidental disconnections.
Yes, these cable glands are designed to withstand harsh conditions, including hazardous environments, thanks to their robust construction and superior sealing capabilities.
To choose the right size, match the gland’s entry size and thread type with the cable diameter and ensure it meets the specific requirements of your installation, such as ingress protection rating and material compatibility.
While they can be reused if in good condition, it is generally recommended to replace cable glands when performing maintenance or reinstallation to ensure optimal performance and safety.
You can contact us to purchase high-quality Metal Double Lock Cable Glands, we offer a variety of sizes and specifications to meet your needs.
 |
||||||
| PRODUCT PARAMETER | ||||||
| Welcome to Our Website. We Are Happy to Serve You | ||||||
| Fitting Material: | Nickel-platedbrass | |||||
| Material For Clamping Jaws: | PA66(Nylon),UL94-V2 | |||||
| Material For Sealing Components: | EPDM、Silicone rubber | |||||
| O-ring Material: | EPDM、Silicone rubber | |||||
| Protection Degree: | IP68-10 bar | |||||
| Temperature: | Static state: -40 to 100℃, Short time to 120℃ Dynamic state: -20℃ to 80℃,Short time to 100℃ |
|||||
| Application features: | It is suitable for occasions where there are special requirements for cable sealing and tensile resistance | |||||
| Specifications: | unit: mm | |||||
| Item | Range Φ mm |
Tread Length GL mm |
Thread O.D. AG mm |
Joint Length H mm |
Spanner size mm |
Code |
| M12×1.5 | 3-6.5 | 6.5 | 12 | 25 | 14 | HX-NS.M12 |
| M12×1.5 | 4-8 | 8 | 12 | 27 | 17/14 | HX-NS.M12-8 |
| M16×1.5 | 4-8 | 8 | 16 | 27 | 18 | HX-NS.M16 |
| M16×1.5 | 5-10 | 8 | 16 | 29 | 20/18 | HX-NS.M16-10 |
| M18×1.5 | 5-10 | 8 | 18 | 29 | 22 | HX-NS.M18 |
| M20×1.5 | 6-12 | 8 | 20 | 31 | 22 | HX-NS.M20 |
| M20×1.5 | 10-14 | 8 | 20 | 31 | 24/22 | HX-NS.M20-14 |
| M25×1.5 | 10-14 | 9 | 25 | 37 | 24/27 | HX-NS.M25-14 |
| M25×1.5 | 12-16 | 9 | 25 | 37 | 27 | HX-NS.M25-16 |
| M25×1.5 | 13-18 | 9 | 25 | 37 | 30/27 | HX-NS.M25-18 |
| M32×1.5 | 15-22 | 10 | 32 | 42 | 35 | HX-NS.M32 |
| M32×1.5 | 18-25 | 10 | 32 | 42 | 40/35 | HX-NS.M32-25 |
| M40×1.5 | 18-25 | 11 | 40 | 48 | 40/45 | HX-NS.M40-25 |
| M40×1.5 | 22-30 | 11 | 40 | 48 | 45 | HX-NS.M40-30 |
| M40×1.5 | 25-33 | 11 | 40 | 48 | 50/45 | HX-NS.M40-33 |
| M50×1.5 | 32-38 | 13 | 50 | 50 | 57/55 | HX-NS.M50 |
| M63×1.5 | 32-38 | 14 | 63 | 51 | 64/68 | HX-NS.M63 |
| M63×1.5 | 42-52 | 14 | 63 | 51 | 78/68 | HX-NS.M63-52 |
It is widely used in mechanical automation, new energy vehicles, wind power energy storage, electronic communications, marine and aviation, nuclear power plants, and various other scenarios
Built with nickel-plated brass and EPDM/silicone rubber seals,this IP68-rated metal waterproof connector guarantees cable durability in harsh conditions like sandstorms, snow, ice, and heavy rain.
It can be dust-proof, salt-proof, acid-alkaline, alcohol-grease and general solvent, suitable for outdoor harsh environments Plug and play, convenient and fast.
