The Block Type EMC Ip68 Brass Plated Nickel Metric Cable Glands

Model: HX-EMC

Code: 8547901000

Material: Brass, nickel plated

Claw: PA

Sealing and sealing ring: NBR

Approvals: CE, ROHS, REACH

Protection degree: IP68

Temperature resistance: -40℃-100℃, short time to 120℃

Size: M12-M80 PG7-PG48 G1/4-G2 NPT1/4-NPT2

Inquiry Now >

VIDEO

video video

Dimension Drawing

The Block Type EMC Ip68 Brass Plated Nickel Metric Cable Glands

The Block Type EMC Ip68 Brass Plated Nickel Metric Cable Glands

The Block Type EMC Ip68 Brass Plated Nickel Metric Cable Glands

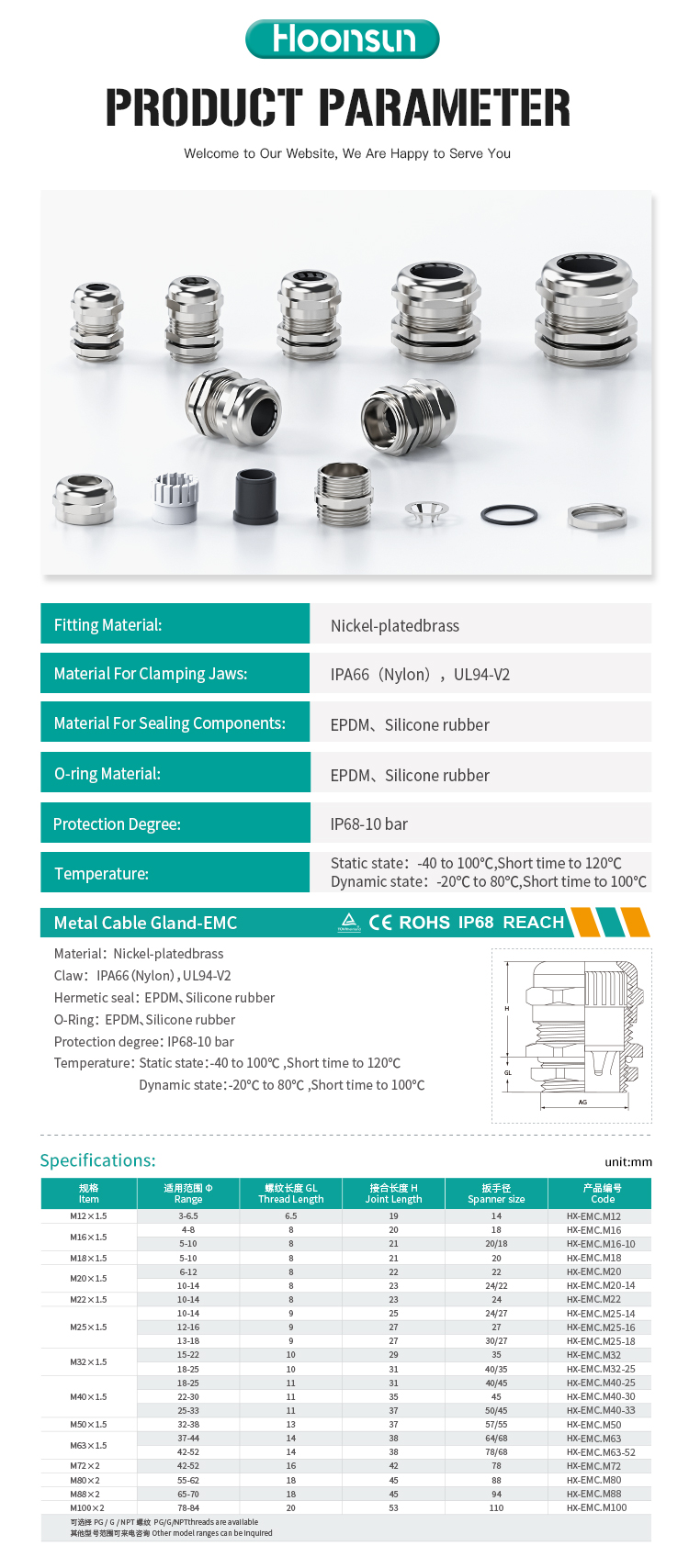

Technical Parameter

Thread Type :M

Item Range
(mm)
GL
Thread
H
Joint Length
Spanner
size
Code
M PG G NPT
M12×1.5 PG7 G1/4 NPT1/4 3-6.5 6.5 19 14 HX-EMC-“ltem”W
4-8 8 19 17/14
M16×1.5 PG9 3-6 8 20 18
4-8 8 20 18
5-10 8 21 20/18
M18×1.5 PG11 G3/8 NPT3/8 5-10 8 21 20
M2O×1.5 PG13.5 G1/2 NPT1/2 6-12 8 22 22
10-14 8 23 24/22
M22x1.5 PG16 10-14 8 23 24
M25×1.5 PG21 G314 NPT3/4 10-14 9 25 24/27
12-16 9 27 27
13-18 9 27 30/27
MG2x1.5 PG29 G1 NPT1 15-22 10 29 35
18-25 10 31 40/35
M40×1.5 PG36 G1-1/4 NPT1-1/4 18-25 11 31 40/45
22-30 11 35 45
25-33 11 37 50/45
M50×1.5 PG42 G1-1/2 NPT1-1/2 32-38 13 37 57/55
MB3×1.5 PG48 G2 NPT2 37-44 14 38 64/68
42-52 14 38 78/68
M72×2 42-52 16 42 78
MB0×2 55-62 18 45 88
