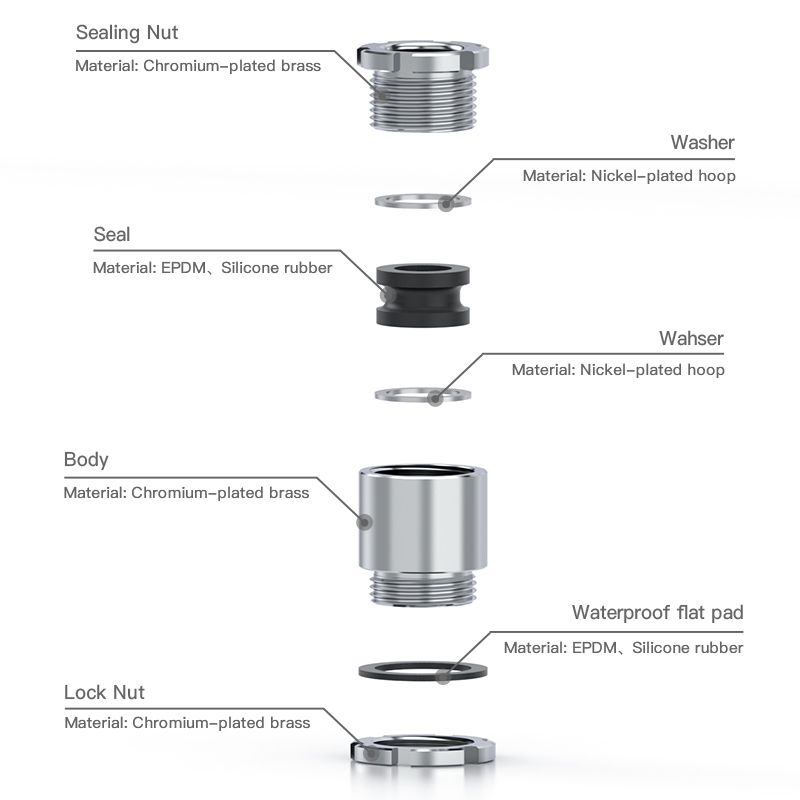

Material：Chromium-plated brass
Material For Sealing Components: EPDM、Silicone rubber
O-ring Material:EPDM、Silicone rubber
Metal Washer:Nickel-plated hoop
Protection degree：IP54
Temperature：Static state：-40℃ to 100℃,short time to 120℃
Dynamic state：-20℃ to 80℃, short time to 100℃

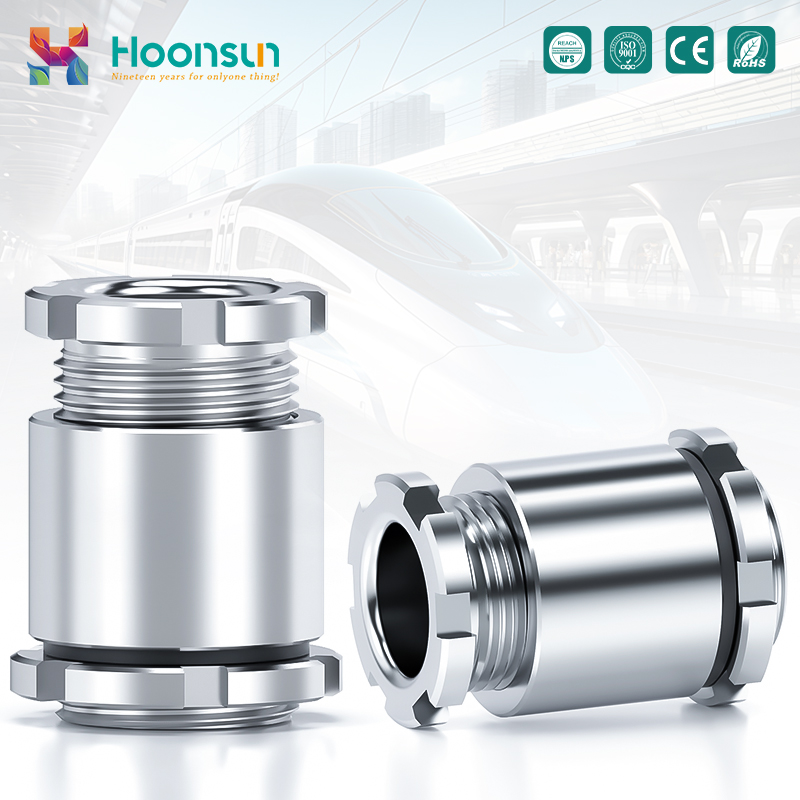

Marine Cable Gland
High-quality marine cable gland with excellent corrosion resistance, waterproof sealing, and long-term reliability for harsh offshore environments.
Product Advantages
• Superior Corrosion Resistance
Made from 316 stainless steel or nickel-plated brass, the marine cable gland provides outstanding protection against saltwater, humidity, and chemical corrosion. Ideal for ships, ports, and offshore platforms.
• Excellent Waterproof and Dustproof Performance
Rated up to IP68, ensuring perfect sealing under high humidity or water immersion. Prevents moisture, oil, and dust from entering cable junctions.
• Strong Mechanical Protection
Engineered for high vibration and impact resistance, maintaining cable stability even in rough sea conditions.
• Wide Temperature Range
Performs reliably from -40°C to +120°C, suitable for extreme marine and coastal environments.
• Flame-Retardant and Safe
Complies with marine safety standards, offering flame-retardant and anti-explosion properties to ensure operational safety on board.
• Easy Installation and Maintenance
Compatible with PG, NPT, and Metric threads for global use. Designed for quick assembly and replacement, reducing maintenance time.
• Long Service Life
High-strength materials and precision sealing components guarantee durability and long-term reliability in offshore conditions.
Applications
Ship electrical control systems
Offshore oil platforms
Marine lighting and navigation equipment
Ship communication systems
Port and dockside power systems
Key Benefits
316 stainless steel, anti-corrosion & rustproof
IP68 waterproof and dustproof
Vibration-resistant & flame-retardant
Works in harsh saltwater environments
Complies with CE, UL, and marine standards
| PRODUCT PARAMETER | |||||||
| Welcome to Our Website,We Are Happy to Serve You | |||||||
| Fitting Material: | Chromium-plated brass | ||||||
| Material For Sealing Components: | EPDM、Silicone rubber | ||||||
| O-ring Material: | EPDM、Silicone rubber | ||||||
| Metal Washer: | Nickel-plated hoop | ||||||
| Protection Degree: | IP54 | ||||||
| Temperature: | Static state:-40 to 100℃,Short time to 120℃ Dynamic state:-20℃ to 80℃,Short time to 100℃ |
||||||
| Specifications: unit:mm |
|||||||
| Item | Thread | Range | GL | AG | Spanner size | Code | |
| JIS10 | 3/8 | 6-7 | 11 | 16.6 | φ22/28 | HX-JIS10A | |
| 7-8 | HX-JIS10B | ||||||
| JIS15 | 1/2 | 8-9 | 11 | 20.9 | φ28/31 | HX-JIS15A | |
| 9-10 | HX-JIS15B | ||||||
| 9-11 | HX-JIS15C | ||||||
| JIS20 | 3/4 | 11-12 | 11 | 26.4 | φ34/37 | HX-JIS20A | |
| 12-13 | HX-JIS20B | ||||||
| 12-15 | HX-JIS20C | ||||||
| JIS25 | 1 | 15-16 | 11 | 33.2 | φ41/45 | HX-JIS25A | |
| 16-18 | HX-JIS25B | ||||||
| 16-20 | HX-JIS25C | ||||||
| JIS30 | 1-1/4 | 20-22 | 12 | 41.9 | φ49/56 | HX-JIS30A | |
| 22-24 | HX-JIS30B | ||||||
| 22-26 | HX-JIS30C | ||||||
| JIS35 | 1-1/2 | 26-28 | 12 | 47.8 | φ56/62 | HX-JIS35A | |
| 28-30 | HX-JIS35B | ||||||
| 26-30 | HX-JIS35C | ||||||
| JIS40 | 30-32 | 12 | 47.8 | φ56/62 | HX-JIS40A | ||
| 32-34 | HX-JIS40B | ||||||
| 30-34 | HX-JIS40C | ||||||
| Item | Thread | Range | GL | AG | Spanner size | Code |
| JIS45 | 2 | 34-36 | 12 | 59.6 | 中68//76 | HX-JIS45A |
| 36-38 | HX-JIS45B | |||||
| 36-40 | HX-JIS45C | |||||
| JIS50 | 40-42 | 59.6 | HX-JIS50A | |||
| 42-44 | HX-JIS50B | |||||
| 40-44 | HX-JIS50C | |||||
| JIS55 | 2-1/2 | 44-46 | 12 | 75.1 | HX-JIS55A | |
| 46-48 | HX-JIS55B | |||||
| 46-50 | HX-JIS55C | |||||
| JIS60 | 50-52 | 75.1 | HX-JIS60A | |||
| 52-54 | HX-JIS60B | |||||
| 52-56 | HX-JIS60C | |||||
| JIS65 | 3 | 56-58 | 14 | 88.0 | 中98/112 | HX-JIS65A |
| 58-60 | HX-JIS65B | |||||
| JIS70 | 60-62 | 88.0 | HX-JIS70A | |||
| 62-64 | HX-JIS70B | |||||
| JIS75 | 64-66 | 88.0 | HX-JIS75A | |||
| 66-70 | HX-JIS75B |
