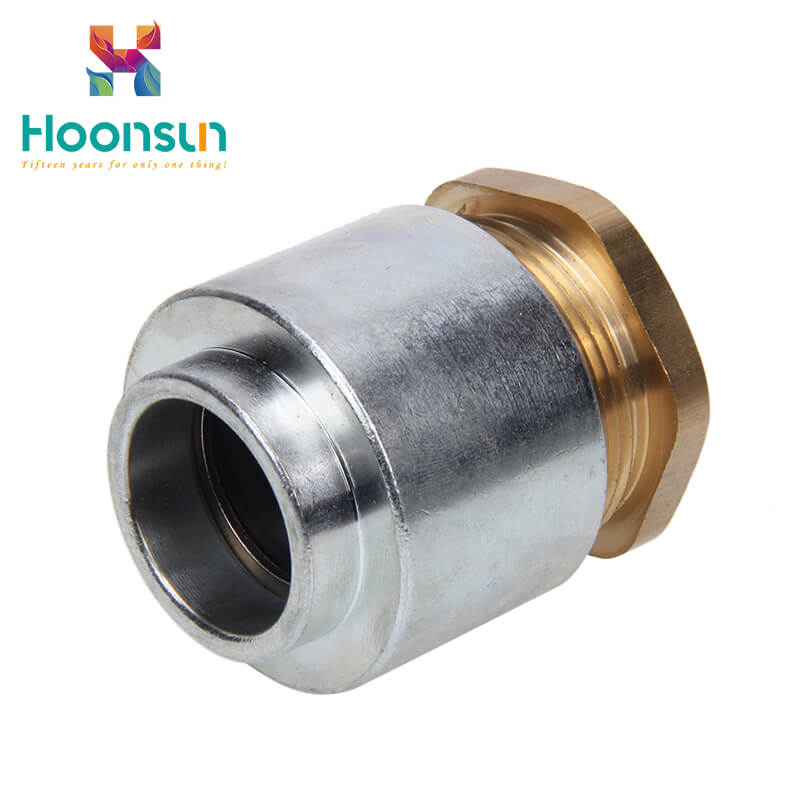

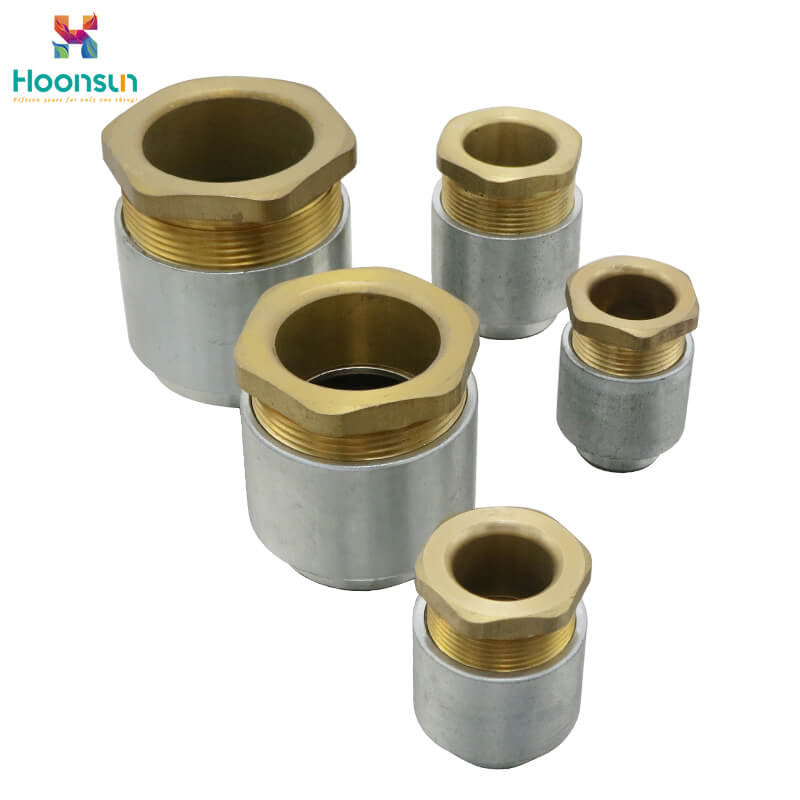

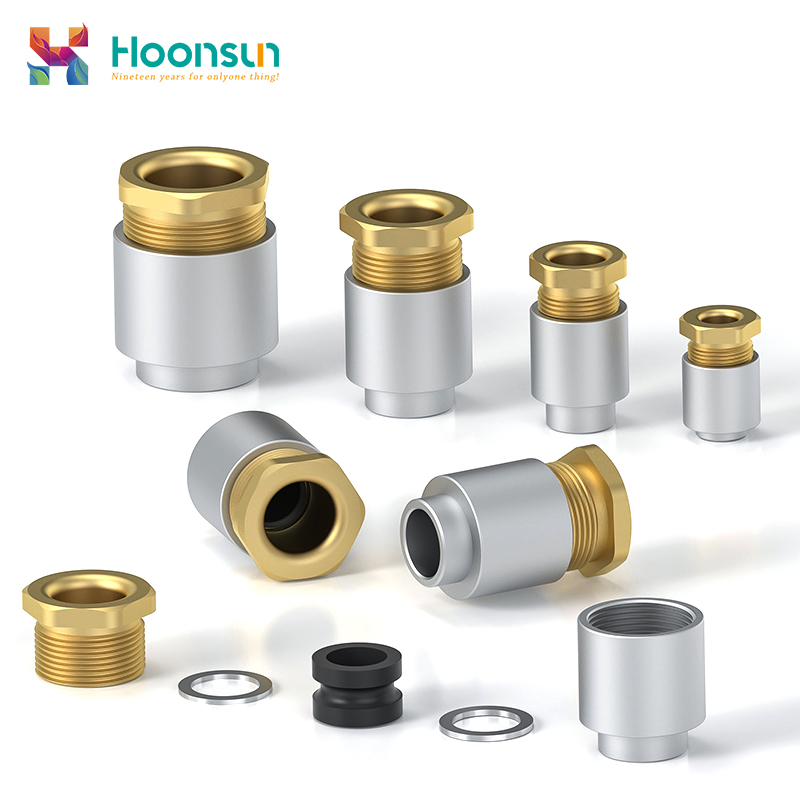

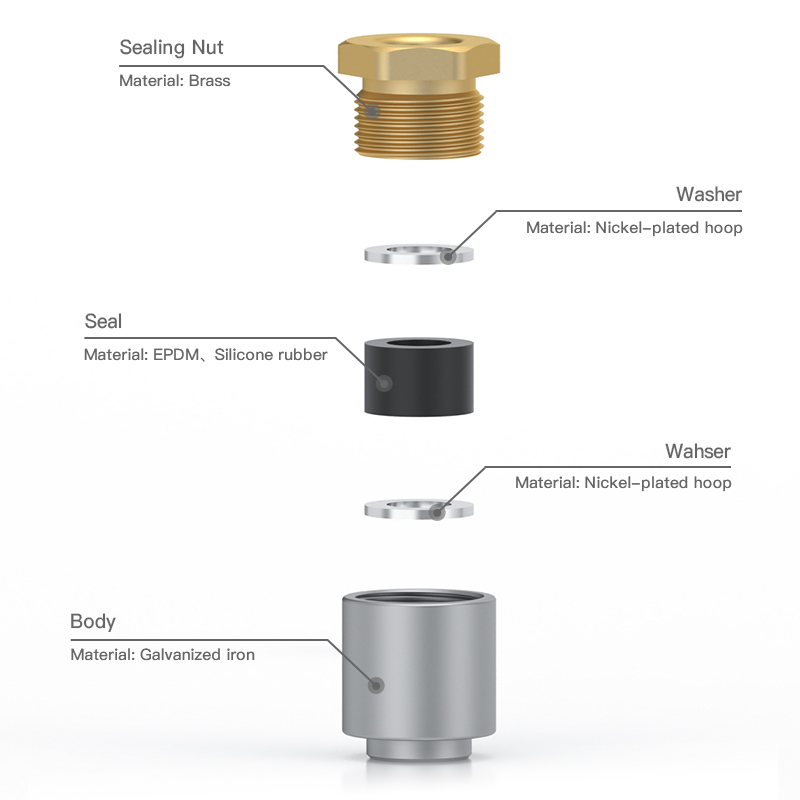

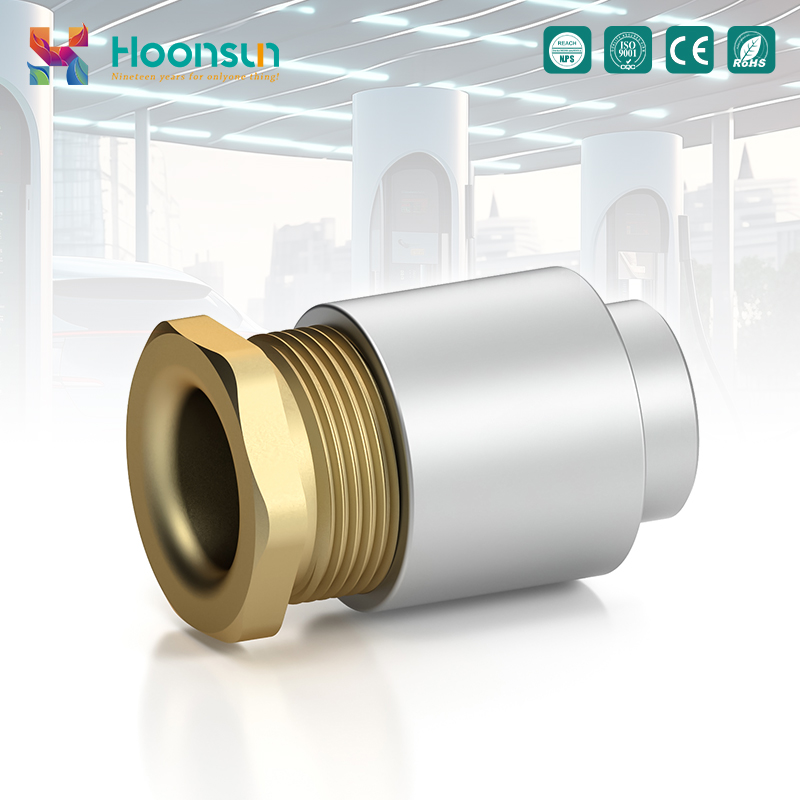

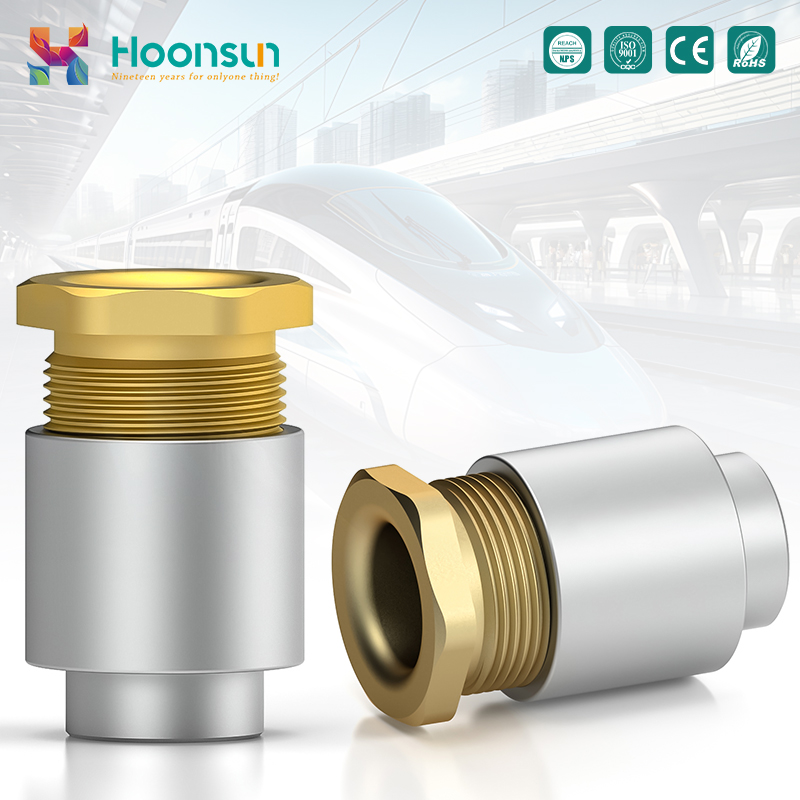

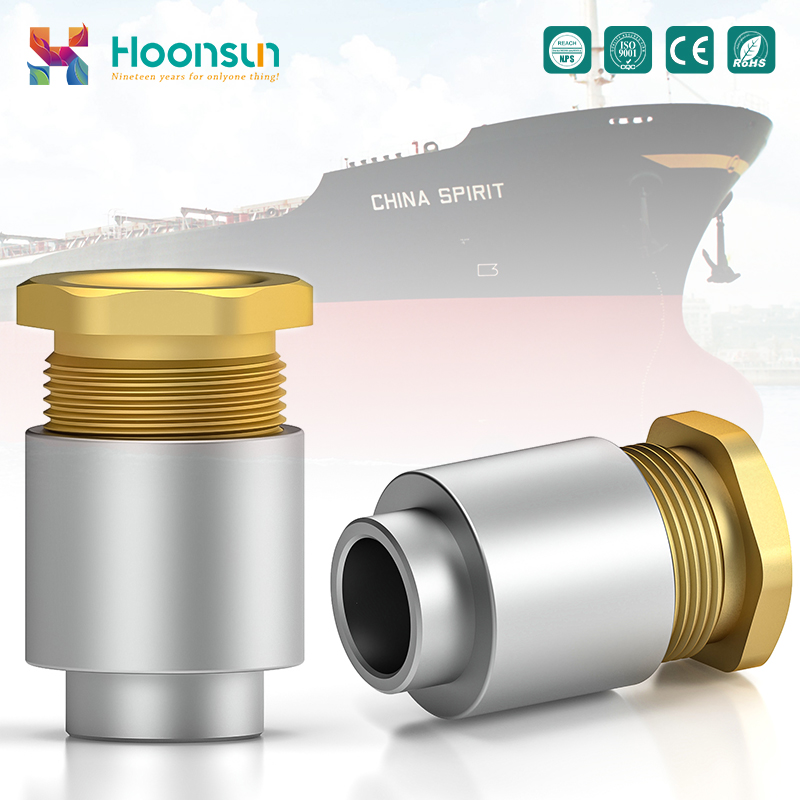

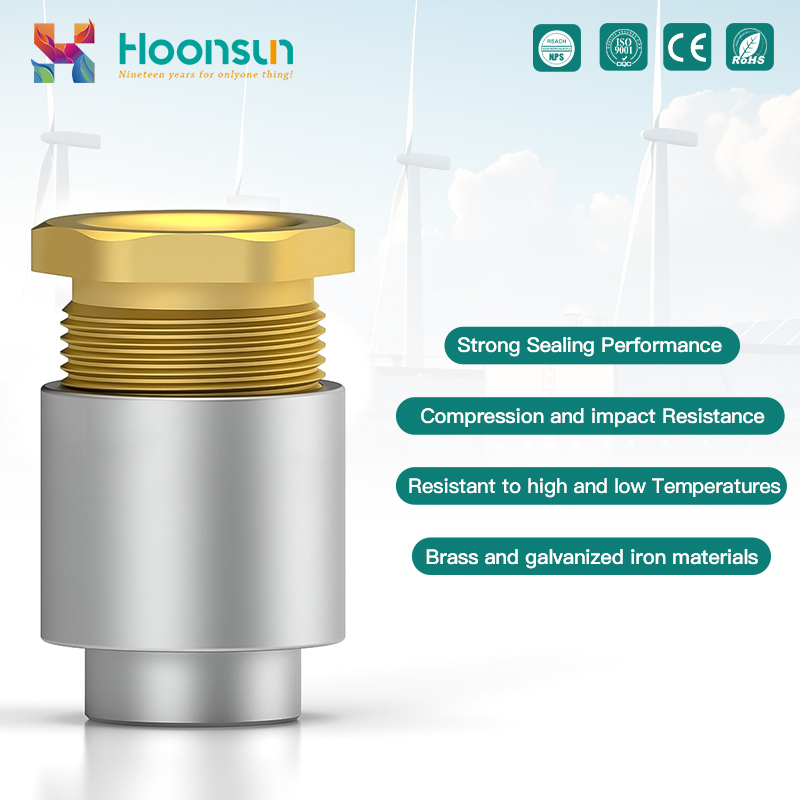

Material：Chromium-plated brass
Hermetic seal：NBR、Silicone rubber
O-Ring：NBR、Silicone rubber
Metal Washer:Nickel-plated hoop
Protection degree：IP54
Temperature：Static state：-40℃ to 100℃,short time to 120℃
Dynamic state：-20℃ to 80℃, short time to 100℃
| Item | Range (mm) |
Thread | H1 Thread Length (mm) |
D1 Thread O.D. (mm) |
H Joint Length (mm) |
Spanner size (mm) |
Code |
| TH-8 | 5-7 | M16×1 | 9 | 13 | 32 | 18 | HX-TH8 |
| TH-13 | 6-12 | M20×1 | 10 | 17 | 35 | 22 | HX-TH13 |
| TH-16 | 11-15 | M27×1.5 | 12 | 22 | 40 | 30 | HX-TH16 |
| TH-19 | 14-18 | M30×1.5 | 12 | 24 | 42 | 32 | HX-TH19 |
| TH-24 | 17-23 | M35×1.5 | 12 | 30 | 44 | 36 | HX-TH24 |
| TH-28 | 22-27 | M42×2 | 15 | 35 | 46 | 45 | HX-TH28 |
| TH-34 | 26-33 | M47×2 | 15 | 42 | 49 | 50 | HX-TH34 |
| TH-42 | 32-41 | M55×2 | 15 | 50 | 54 | 57 | HX-TH42 |
| TH-50 | 40-49 | M62×2 | 15 | 58 | 56 | 64 | HX-TH50 |
| TH-58 | 48-57 | M71×2 | 20 | 66 | 56 | 76 | HX-TH58 |
