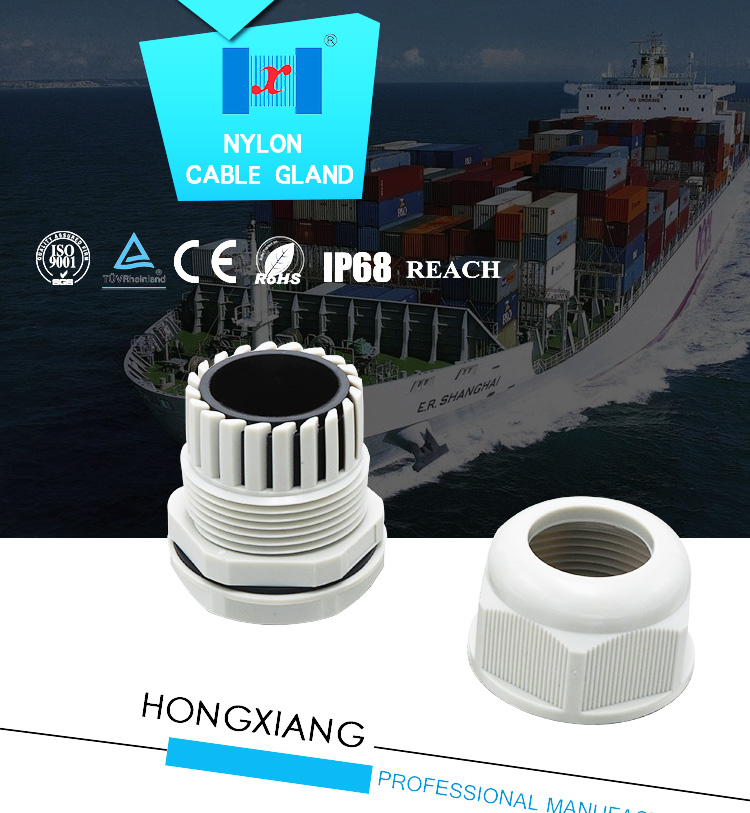

Model : HX-NL
Material : PA66(Nylon)
O-ring Material:EPDM、Silicone rubber
Material For Sealing Components: EPDM、Silicone rubber

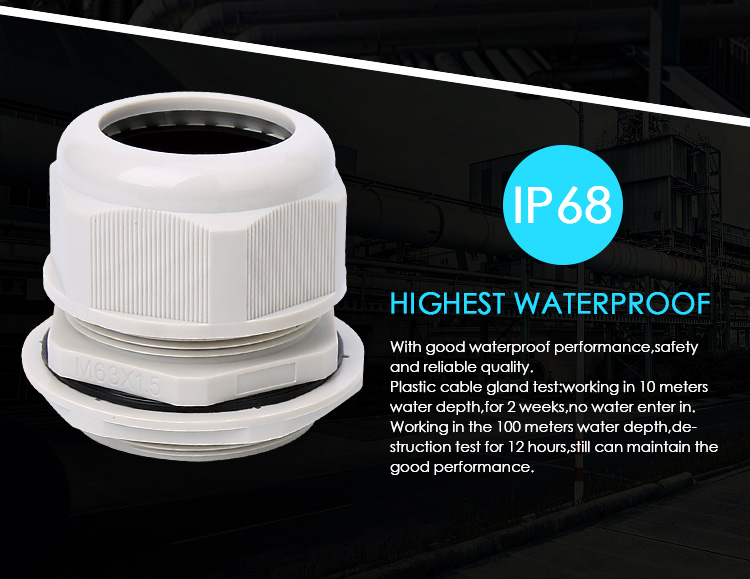

Protecion degree : IP68

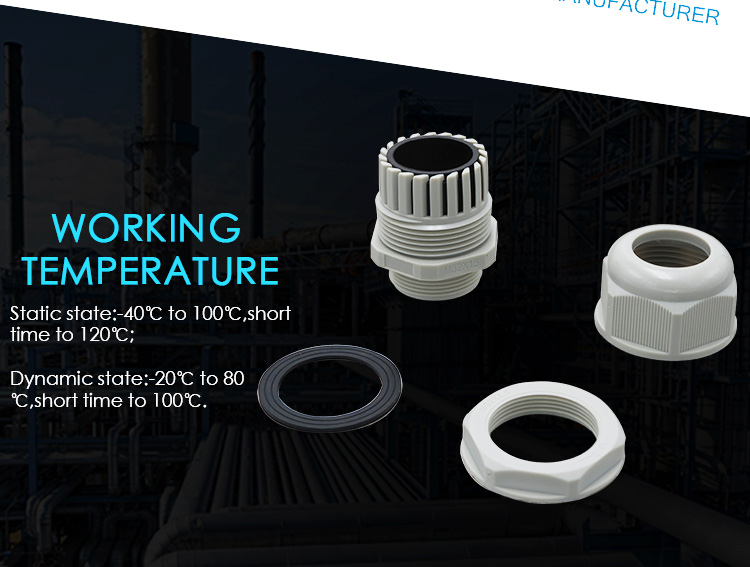

Temperature Resistance :Static state:-40 to 100℃,Short time to 120℃
Dynamic state:-20℃ to 80℃,Short time to 100℃
Color customization: Grey,Black,other color customized

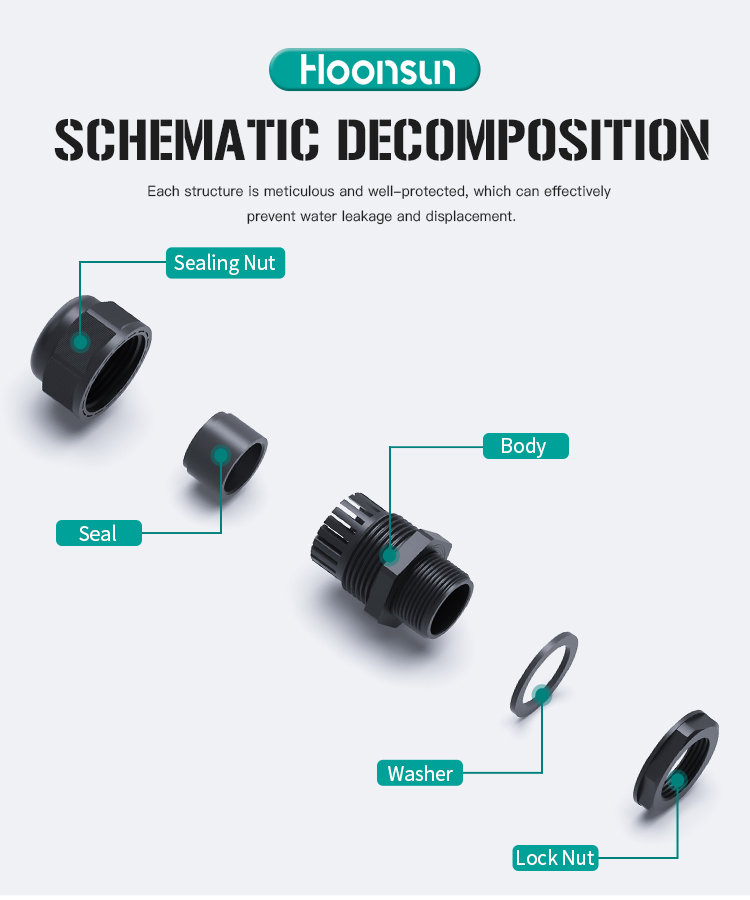

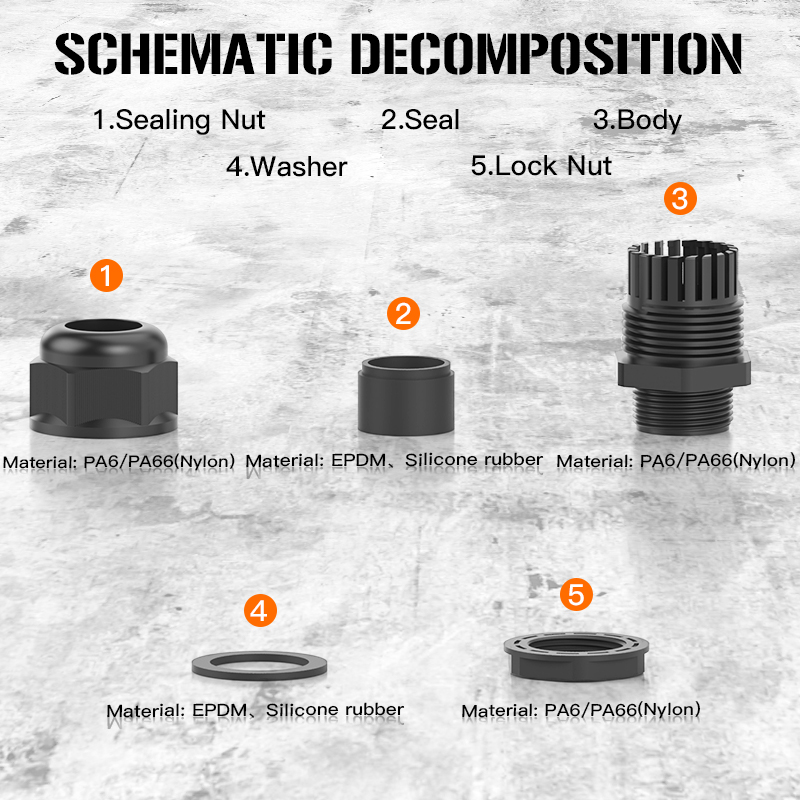

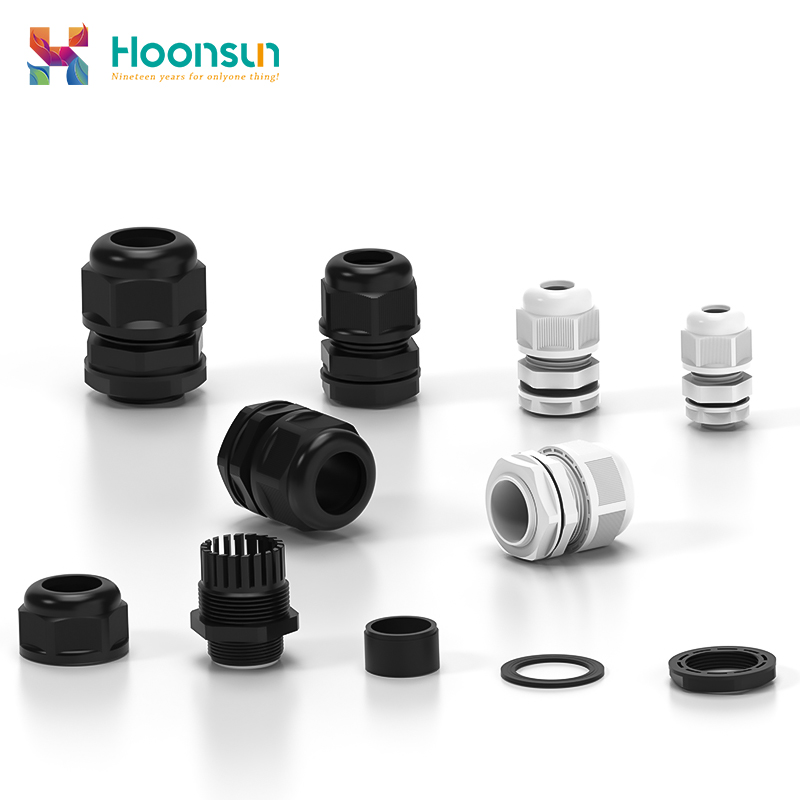

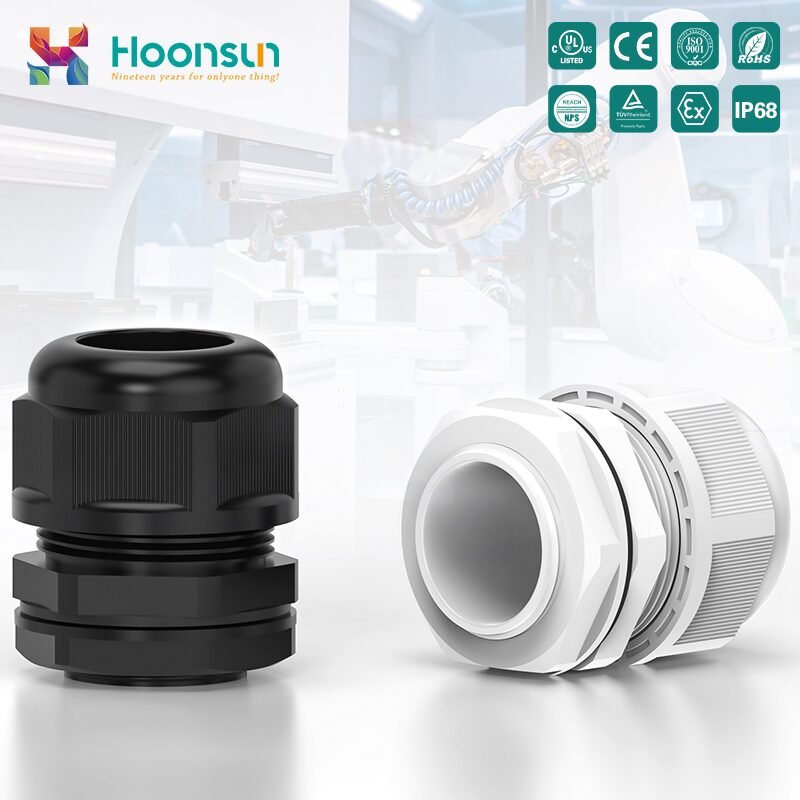

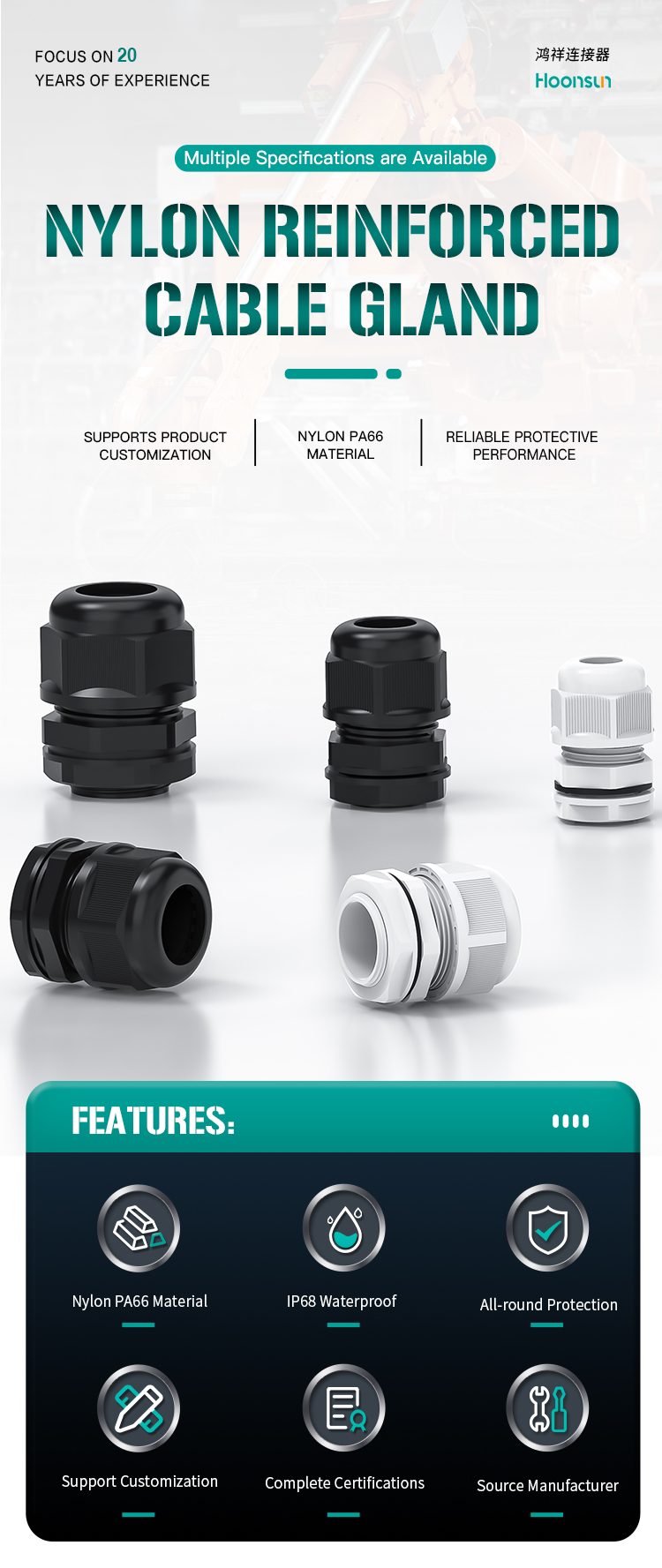

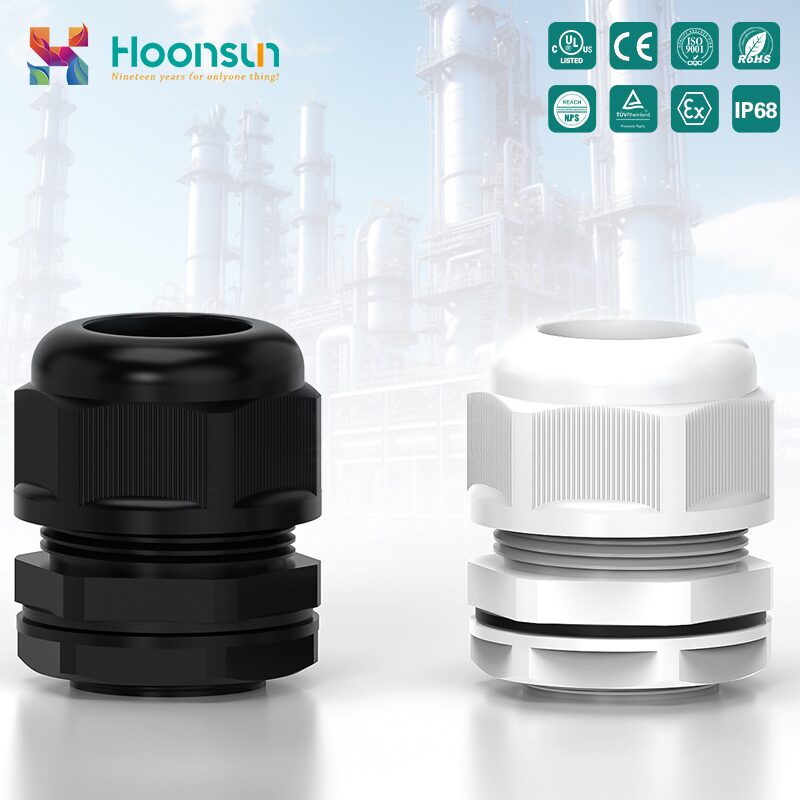

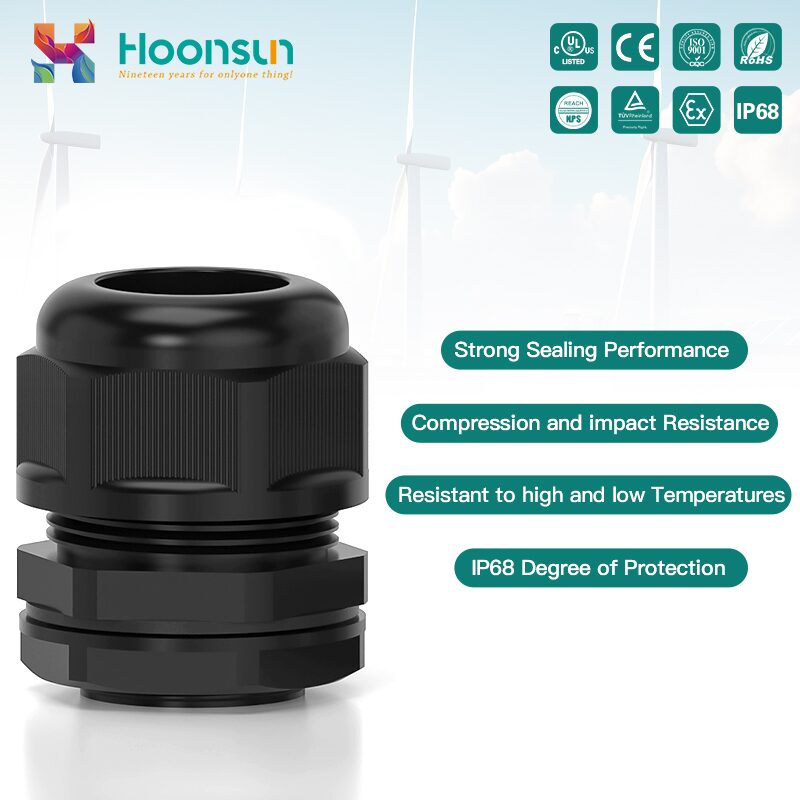

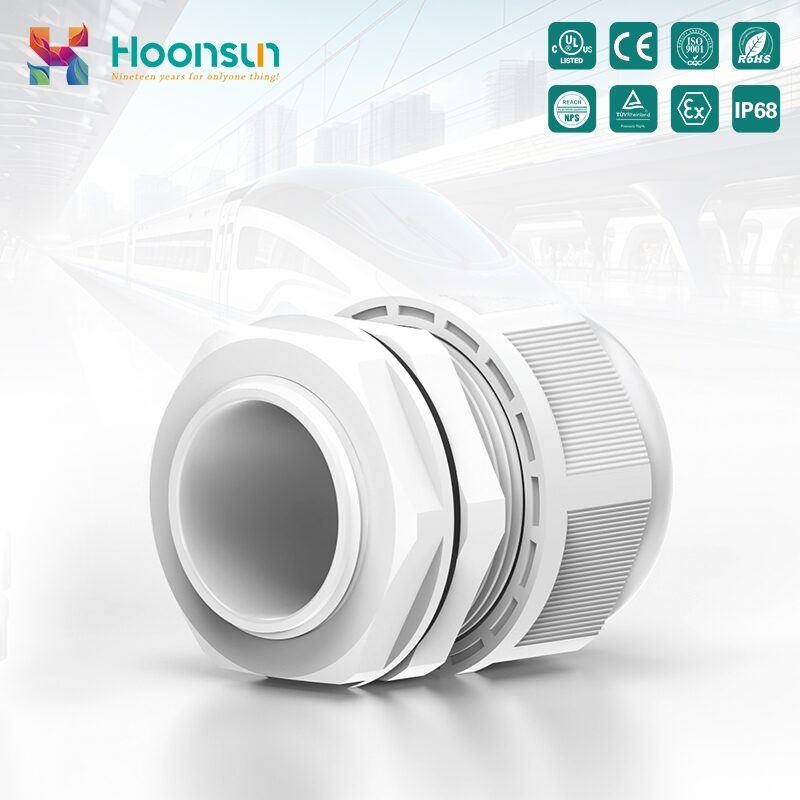

Nylon reinforced cable gland is made of plastic nylon and are available in black and white. They are mainly used for the protection of electrical boxes and cable transfer interfaces. Choose metric M-type cable glands of different calibers according to the diameter of different cables.Although the metric nylon reinforced cable gland is small in size, it is decomposed into five small partsThe arrow in the figure is the lock. When the thread is connected to the bottom, the front gear will pass through the lock. If the joint is loosened in the reverse direction under certain work, the lock has a good effect.
1,Reinforced structural design: Optimized structure based on ordinary nylon joints, with increased wall thickness or strengthened locking components. Impact resistance and tensile strength are significantly improved, avoiding damage caused by long-term use or slight external forces, and stability is superior to ordinary nylon joints.
2,Upgraded nylon base material: Made of high-strength modified nylon, retaining the advantages of light weight and low cost. At the same time, it enhances anti-aging and corrosion resistance, is not easy to deform or crack, and is suitable for more complex general industrial environments indoors and outdoors.
3,High-level sealing protection: Upgraded sealing structure with a protection level of IP66 and above. Better dustproof, waterproof and oilproof effects, effectively isolating external impurities, comprehensively protecting cable joints, and meeting working conditions with higher protection requirements.
4,Applicable scenarios: Ideal for industrial automation equipment, mechanical cabinets, outdoor distribution boxes and other scenarios that require enhanced durability on the basis of economy.
 |
||||||

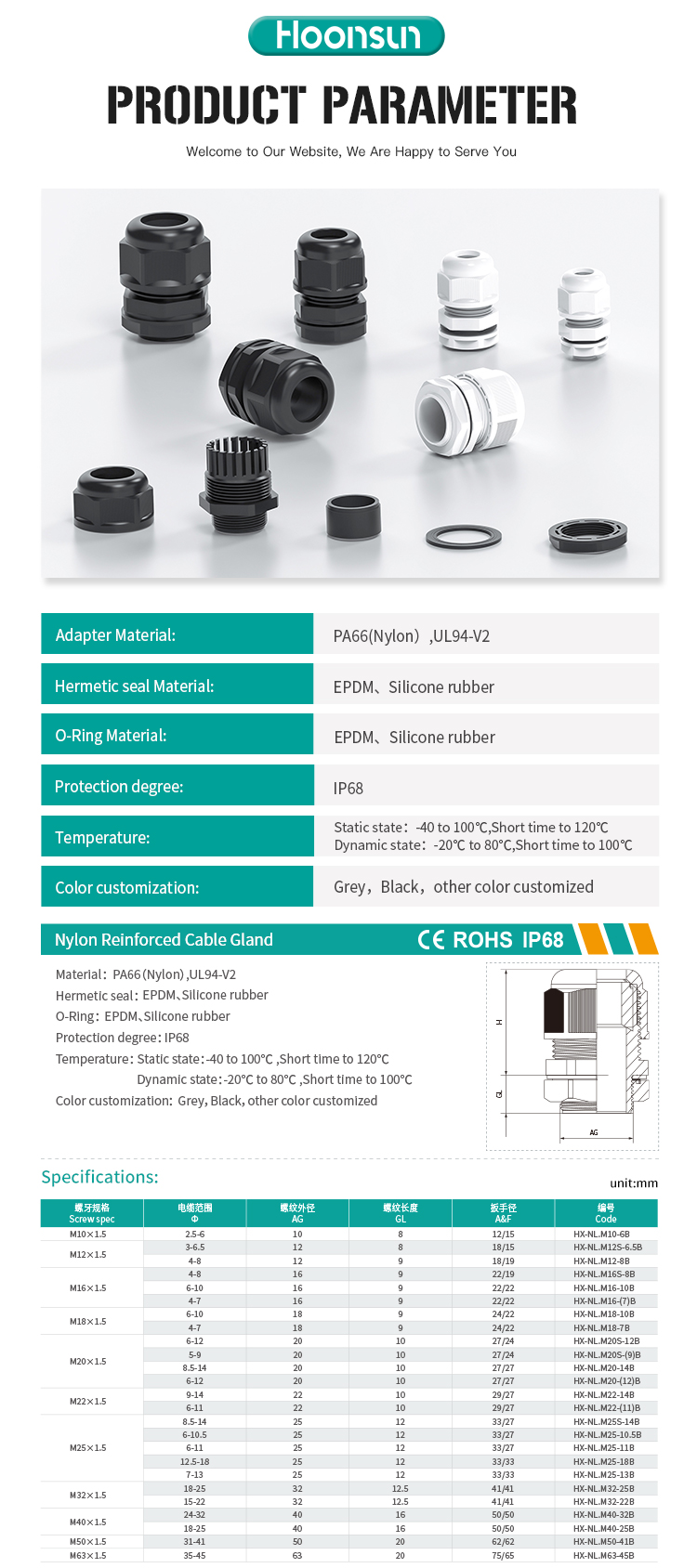

| PRODUCT PARAMETER | ||||||
| Welcome to Our Website,We Are Happy to Serve You | ||||||
| Fittng Material: | PA66(Nylon) | |||||
| Material For Sealing Components: | EPDM、Silicone rubber | |||||
| O-ring Material: | EPDM、Silicone rubber | |||||
| Protection Degree: | IP68 | |||||
| Temperature: | Static state:-40 to 100℃,Short time to 120℃ Dynamic state:-20℃ to 80℃,Short time to 100℃ |
|||||
| Color customization: | Grey,Black,other color customized | |||||
| Specifications: unit:mm | ||||||
| Screw spec | φ | AG | H Joint Length |
GL | A&F | Code |
| M10×1.5 | 2.5-6 | 10 | 22 | 8 | 12-18 | HX-NLM10-6B |
| M12×1.5 | 3-6.5 | 12 | 22 | 8 | 18/15 | HX-NLM12S-6.5B |
| M12×1.5 | 4-8 | 12 | 25 | 9 | 18/19 | HX-NLM12-8B |
| M16×1.5 | 4-8 | 16 | 25 | 9 | 22/19 | HX-NLM16S-8B |
| M16×1.5 | 6-10 | 16 | 28 | 9 | 22/22 | HX-NLM16-10B |
| M16×1.5 | 4-7 | 16 | 28 | 9 | 22/22 | HX-NLM16-(7)B |
| M18×1.5 | 6-10 | 18 | 27 | 9 | 24/22 | HX-NLM18-10B |
| M18×1.5 | 4-7 | 18 | 27 | 9 | 24/22 | HX-NLM18-7B |
| M20×1.5 | 6-12 | 20 | 30 | 10 | 27/24 | HX-NLM20S-12B |
| M20×1.5 | 5-9 | 20 | 30 | 10 | 27/24 | HX-NLM20S-(9)B |
| M20×1.5 | 8.5-14 | 20 | 30 | 10 | 27/27 | HX-NLM20-14B |
| M20×1.5 | 6-12 | 20 | 30 | 10 | 27/27 | HX-NLM20-(12)B |
| M22×1.5 | 9-14 | 22 | 31 | 10 | 29/27 | HX-NLM22-14B |
| M22×1.5 | 6-11 | 22 | 31 | 10 | 29/27 | HX-NLM22-(11)B |
| M25×1.5 | 8.5-14 | 25 | 31 | 12 | 33/27 | HX-NLM25S-14B |
| M25×1.5 | 6-10.5 | 25 | 35 | 12 | 33/27 | HX-NLM25-10.5B |
| M25×1.5 | 6-11 | 25 | 35 | 12 | 33/27 | HX-NLM25-11B |
| M25×1.5 | 12.5-18 | 25 | 35 | 12 | 33/33 | HX-NLM25-18B |
| M25×1.5 | 7-13 | 25 | 35 | 12 | 33/33 | HX-NLM25-13B |
| M32×1.5 | 18-25 | 32 | 38 | 12.5 | 41/41 | HX-NLM32-25B |
| M32×1.5 | 15-22 | 32 | 38 | 12.5 | 41/41 | HX-NLM32-22B |
| M40×1.5 | 24-32 | 40 | 44 | 16 | 50/50 | HX-NL.M40-32B |
| M40×1.5 | 18-25 | 40 | 44 | 16 | 50/50 | HX-NL.M40-25B |
| M50×1.5 | 31-41 | 50 | 49 | 20 | 62/62 | HX-NL.M50-41B |
| M63×1.5 | 35-45 | 63 | 52 | 20 | 75/65 | HX-NL.M63-45B |

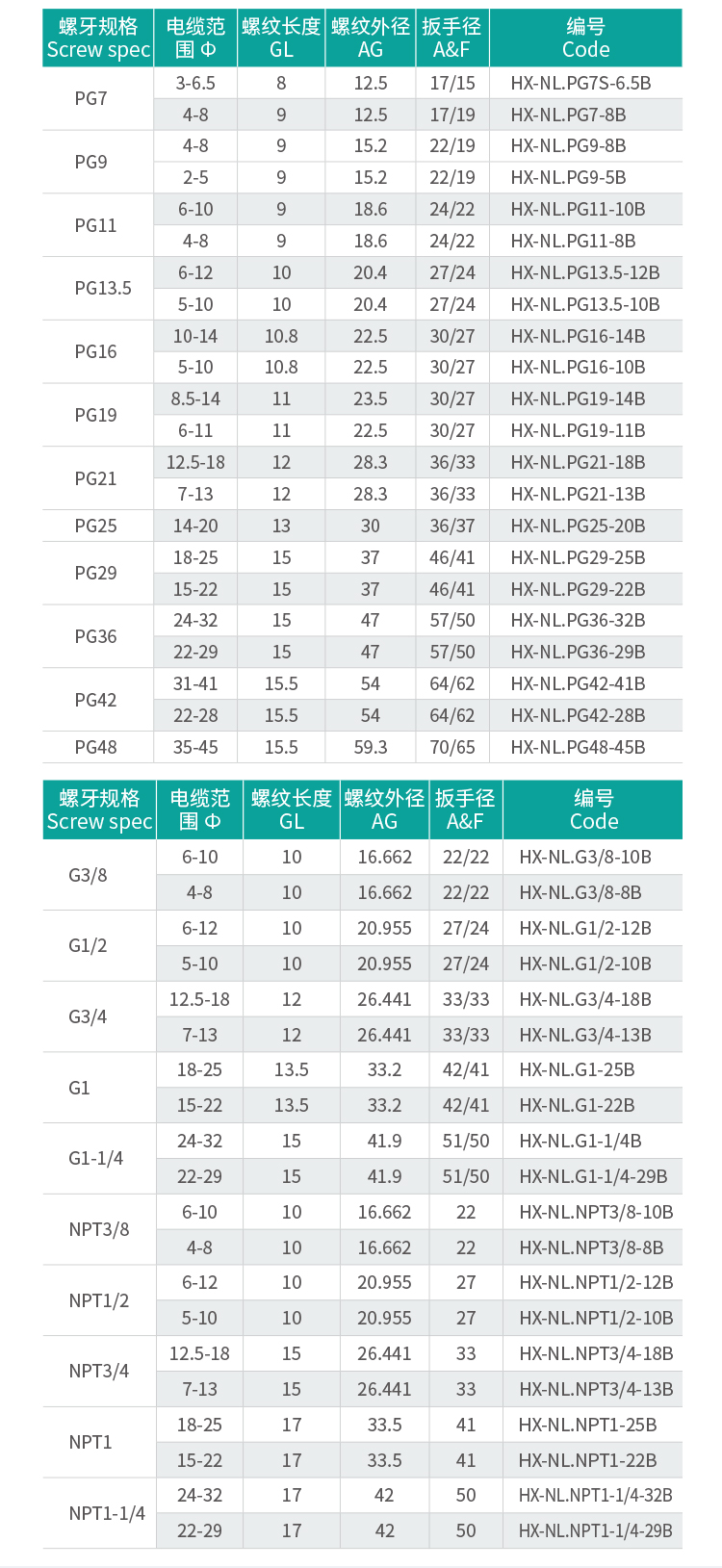

| Screw spec | φ | GL | H Joint Length |
AG | A&F | Code |
| PG7 | 3-6.5 | 8 | 22 | 12.5 | 17/15 | HX-NL.PG7S-6.5B |
| 4-8 | 9 | 25 | 12.5 | 17/19 | HX-NL.PG7-8B | |
| PG9 | 4-8 | 9 | 25 | 15.2 | 22/19 | HX-NL.PG9-8B |
| 2-5 | 9 | 25 | 15.2 | 22/19 | HX-NL.PG9-5B | |
| PG11 | 6-10 | 9 | 28 | 18.6 | 24/22 | HX-NL.PG11-10B |
| 4-8 | 9 | 28 | 18.6 | 24/22 | HX-NL.PG11-8B | |
| PG13.5 | 6-12 | 10 | 30 | 20.4 | 27/24 | HX-NL.PG13.5-12B |
| 5-10 | 10 | 30 | 20.4 | 27/24 | HX-NL.PG13.5-10B | |
| PG16 | 10-14 | 10.8 | 31 | 22.5 | 30/27 | HX-NL.PG16-14B |
| 5-10 | 10.8 | 31 | 22.5 | 30/27 | HX-NL.PG16-10B | |
| PG19 | 8.5-14 | 11 | 31 | 23.5 | 30/27 | HX-NL.PG19-14B |
| 6-11 | 11 | 31 | 22.5 | 30/27 | HX-NL.PG19-11B | |
| PG21 | 12.5-18 | 12 | 35 | 28.3 | 36/33 | HX-NL.PG21-18B |
| 7-13 | 12 | 35 | 28.3 | 36/33 | HX-NL.PG21-13B | |
| PG25 | 14-20 | 13 | 35 | 30 | 36/37 | HX-NL.PG25-20B |
| PG29 | 18-25 | 15 | 38 | 37 | 46/41 | HX-NL.PG29-25B |
| 15-22 | 15 | 38 | 37 | 46/41 | HX-NL.PG29-22B | |
| PG36 | 24-32 | 15 | 43 | 47 | 57/50 | HX-NL.PG36-32B |
| 22-29 | 15 | 43 | 47 | 57/50 | HX-NL.PG36-29B | |
| PG42 | 31-41 | 15.5 | 47 | 54 | 64/62 | HX-NL.PG42-41B |
| 22-28 | 15.5 | 47 | 54 | 64/62 | HX-NL.PG42-28B | |
| PG48 | 35-45 | 15.5 | 52 | 59.3 | 70/65 | HX-NL.PG48-45B |
| Screw spec | φ | GL | H Joint Length |
AG | A&F | Code |
| G3/8 | 6-10 | 10 | 28 | 16.662 | 22/22 | HX-NL.G3/8-10B |
| 4-8 | 10 | 28 | 16.662 | 22/22 | HX-NL.G3/8-8B | |
| G1/2 | 6-12 | 10 | 30 | 20.955 | 27/24 | HX-NL.G1/2-12B |
| 5-10 | 10 | 30 | 20.955 | 27/24 | HX-NL.G1/2-10B | |
| G3/4 | 12.5-18 | 12 | 35 | 26.441 | 33/33 | HX-NL.G3/4-18B |
| 7-13 | 12 | 35 | 26.441 | 33/33 | HX-NL.G3/4-13B | |
| G1 | 18-25 | 13.5 | 38 | 33.2 | 42/41 | HX-NL.G1-25B |
| 15-22 | 13.5 | 38 | 33.2 | 42/41 | HX-NL.G1-22B | |
| G1-1/4 | 24-32 | 15 | 43 | 41.9 | 51/50 | HX-NL.G1-1/4B |
| 22-29 | 15 | 43 | 41.9 | 51/50 | HX-NL.G1-1/4-29B | |
| NPT3/8 | 6-10 | 10 | 28 | 16.662 | 22 | HX-NL.NPT3/8-10B |
| 4-8 | 10 | 28 | 16.662 | 22 | HX-NL.NPT3/8-8B | |
| NPT1/2 | 6-12 | 10 | 30 | 20.955 | 27 | HX-NL.NPT1/2-12B |
| 5-10 | 10 | 30 | 20.955 | 27 | HX-NLNPT1/2-10B | |
| NPT3/4 | 12.5-18 | 15 | 35 | 26.441 | 33 | HX-NL.NPT3/4-18B |
| 7-13 | 15 | 35 | 26.441 | 33 | HX-NL.NPT3/4-13B | |
| NPT1 | 18-25 | 17 | 38 | 33.5 | 41 | HX-NL.NPT1-25B |
| 15-22 | 17 | 38 | 33.5 | 41 | HX-NL.NPT1-22B | |
| NPT1-1/4 | 24-32 | 17 | 43 | 42 | 50 | HX-NL.NPT1-1/4-32B |
| 22-29 | 17 | 43 | 42 | 50 | HX-NL.NPT1-1/4-29B |
