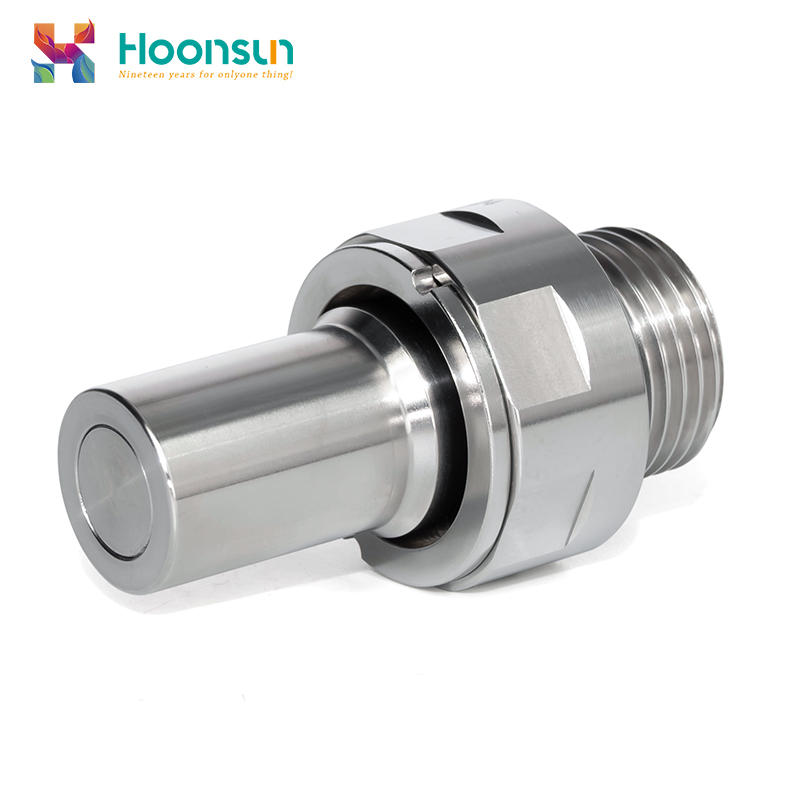

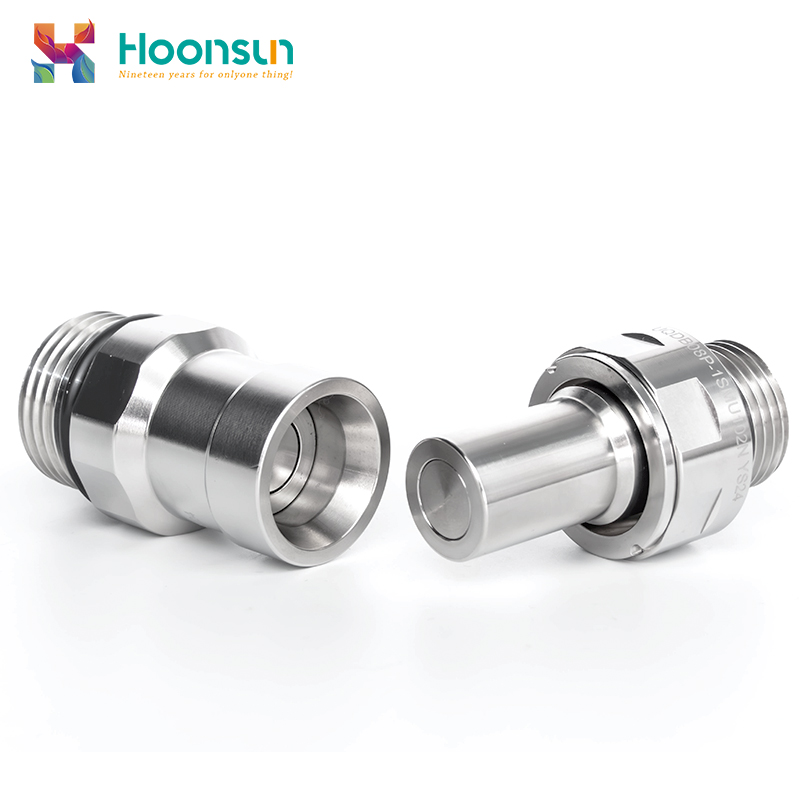

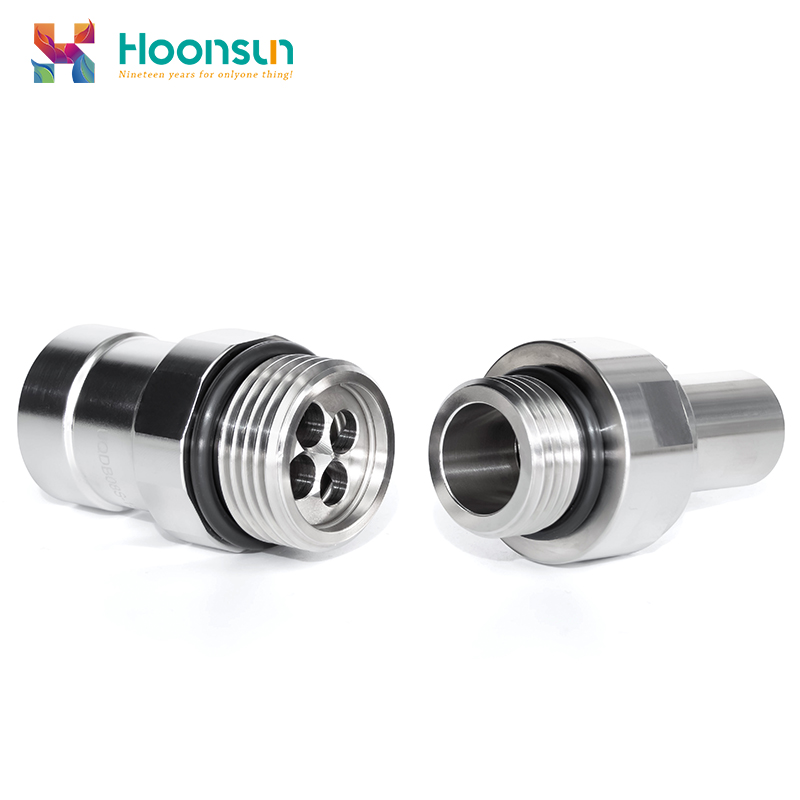

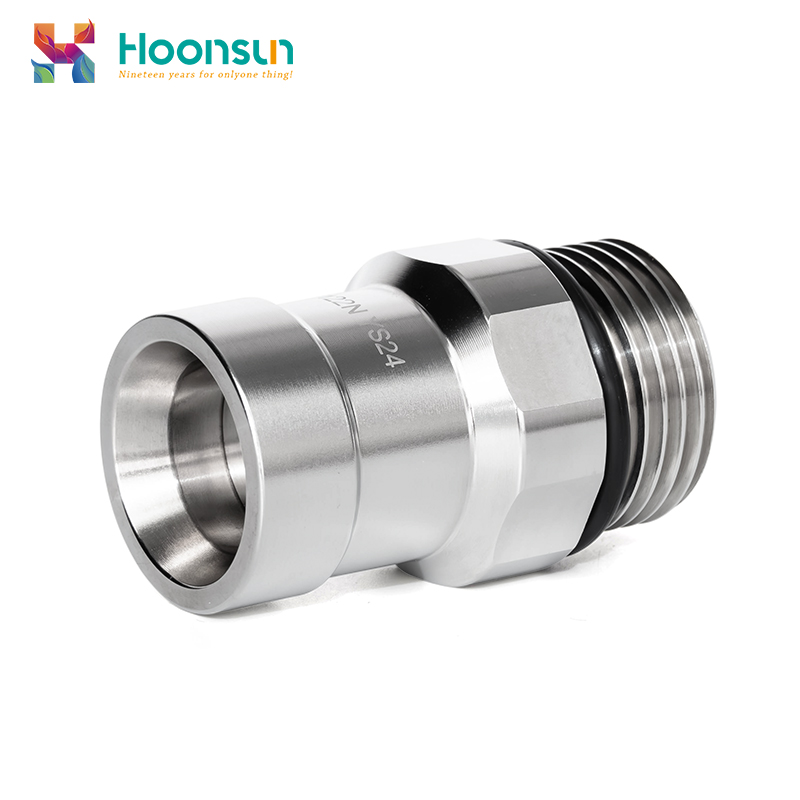

UQDB08S Series Blind Plug Quick Connectors

Product Description

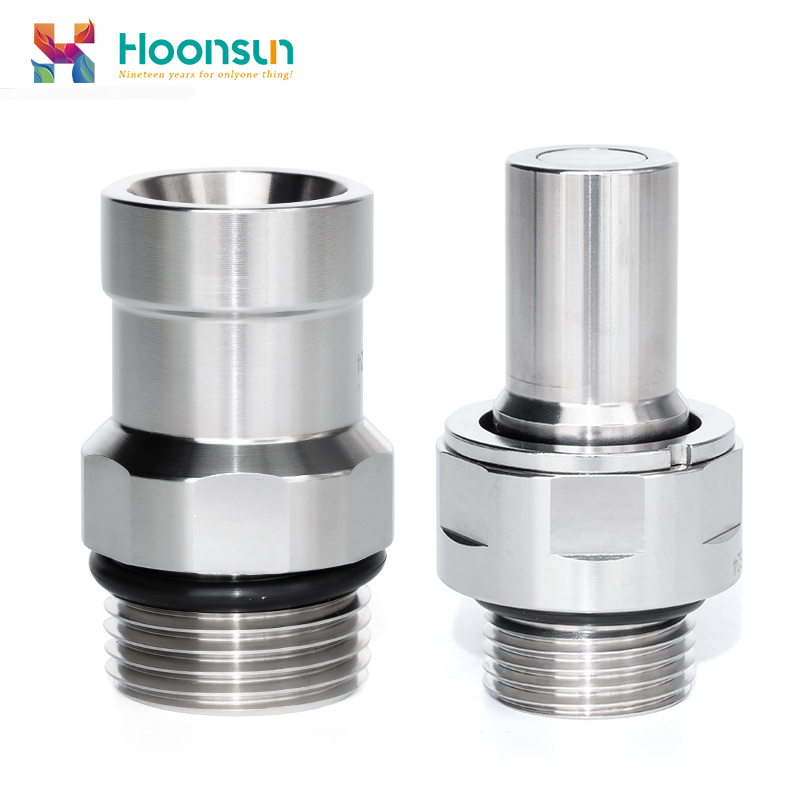

The UQDB Series Blind-Mate Quick Connector by Hoonsun is a high-precision, self-aligning fluid connection solution engineered for automated, high-density liquid cooling systems. Crafted from corrosion-resistant 316L stainless steel with an advanced EPDM sealing system, this coupling delivers leak-proof performance in blind-mating environments, eliminating the need for visual alignment or manual manipulation.

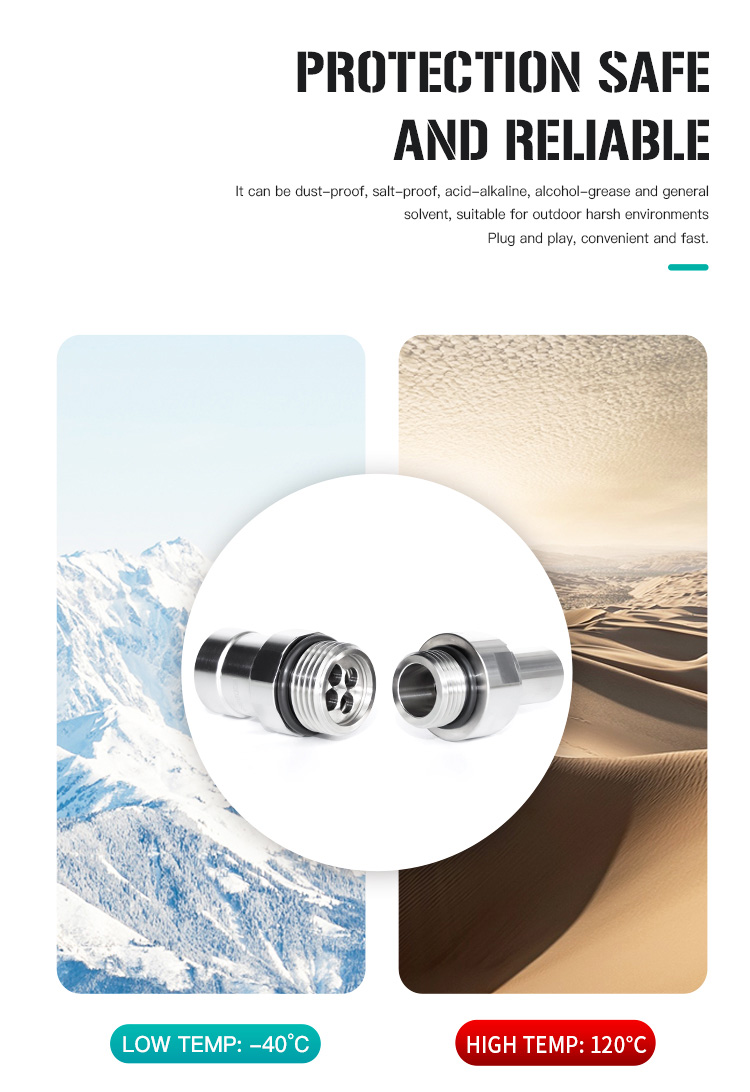

Designed for demanding industrial applications, it supports a rated working pressure of 20 bar (burst pressure 80 bar) and operates reliably across a wide temperature range of -40°C to +120°C. With four sizes (DN03 to DN10) and standard UNF thread connections, it offers versatile integration and compatibility with common liquid cooling media, including deionized water, glycol solutions, and fluorinated fluids.

Applications

• Data Center & HPC Liquid Cooling: High-density server rack liquid cooling connections
• EV Charging Piles & Thermal Management: Automated blind-mate connections for electric vehicle systems
• Industrial Laser Equipment: Precision cooling for high-power industrial lasers
• Medical Equipment: MRI machines, diagnostic devices, and precision instrument cooling
• Photovoltaic Inverters: Outdoor solar and wind power electronic cooling systems
• Automated Assembly & Test Benches: Blind-mate connections for automated fluid transfer systems
• High-Density Electronic Systems: Compact, error-proof fluid connections in limited-access environments

Installation Process

• Preparation: Ensure the connector and mating components are clean, free of debris, and undamaged. Depressurize the fluid system before installation.
• Blind-Mate Connection: The self-aligning design automatically guides the plug into the socket as the components are brought together. No visual alignment or manual manipulation is required.
• Verification: Once the components are fully mated, the connector will lock into place. Perform a pressure test to confirm no leaks before bringing the system online.
• Disconnection: Simply separate the components; the connector will automatically disengage and seal to prevent fluid loss. No tools are required.

⚠️ Safety Note: Never force the connection. The self-aligning design should guide the plug into the socket smoothly. Always depressurize the system before disconnection.

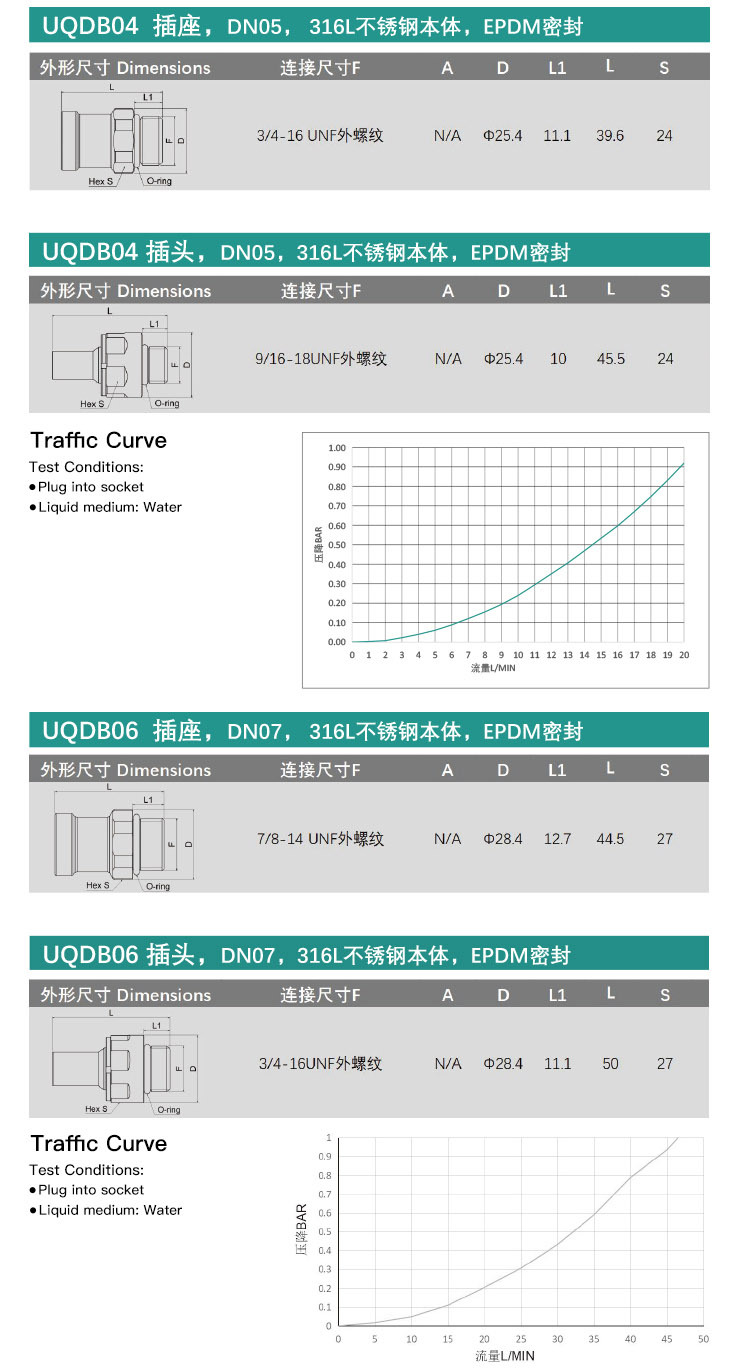

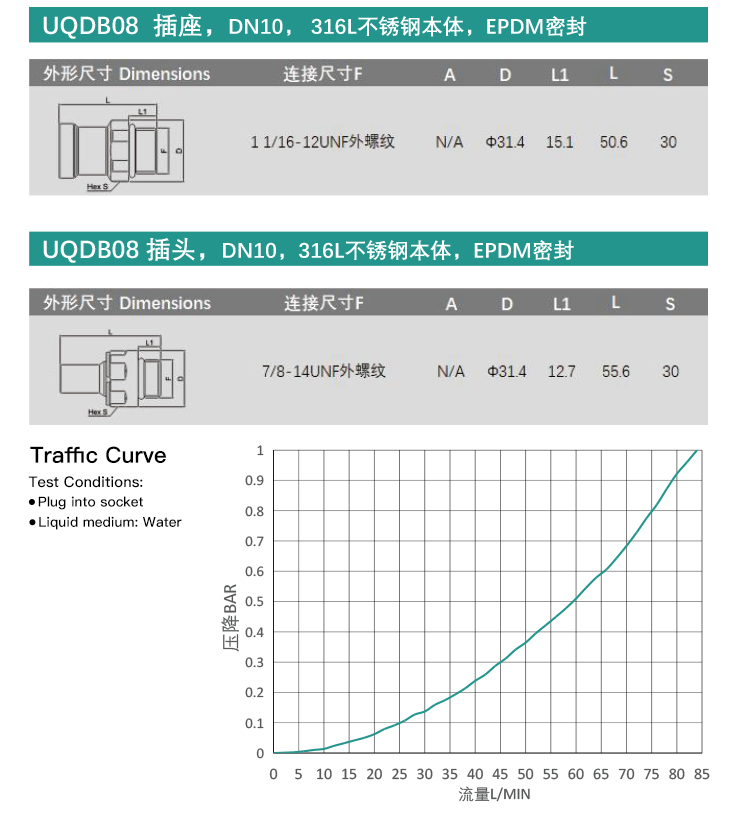

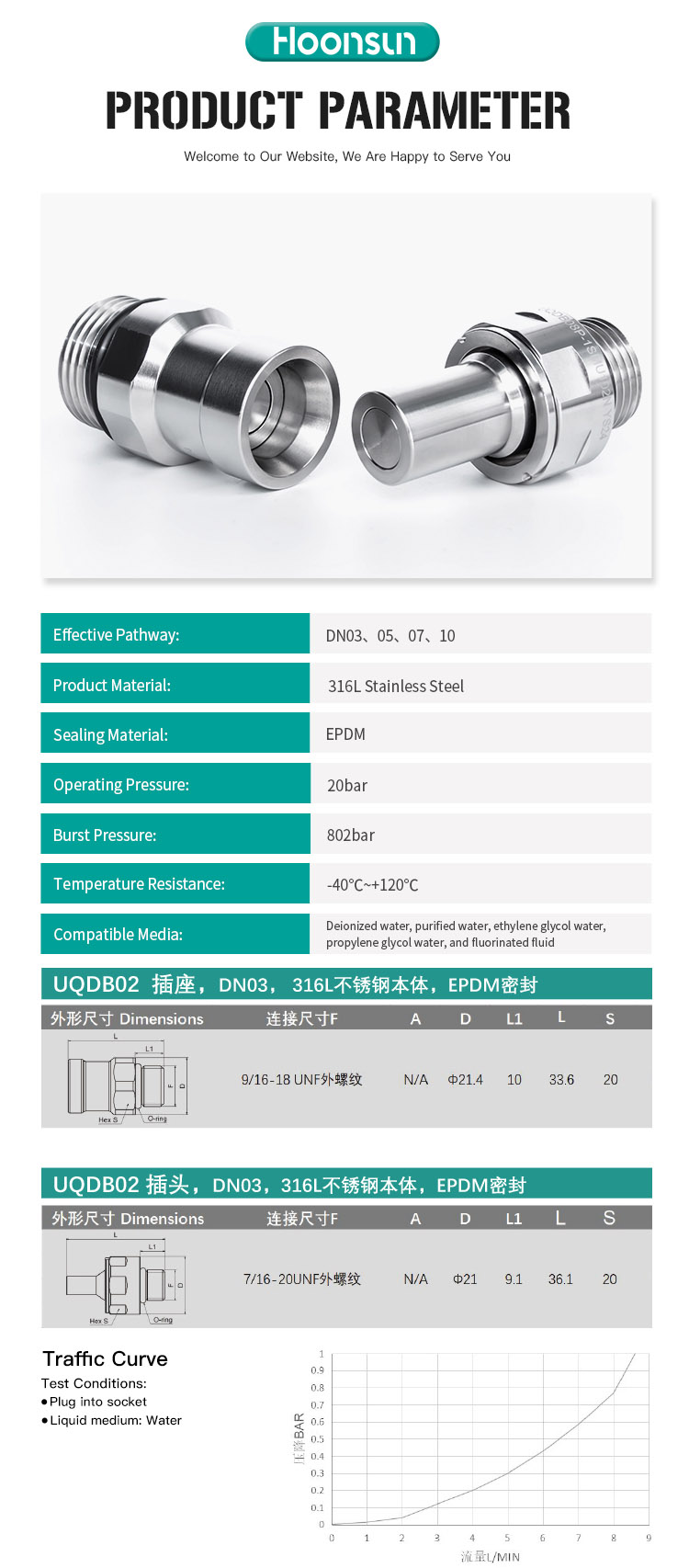

Technical Parameter
