The Factory Price Metal Enlarger From Hoonsun
Model : HX-RE
Code : NCode
Material : Brass nickel palted or Brass ,chrome plated
Protecion degree : IP54

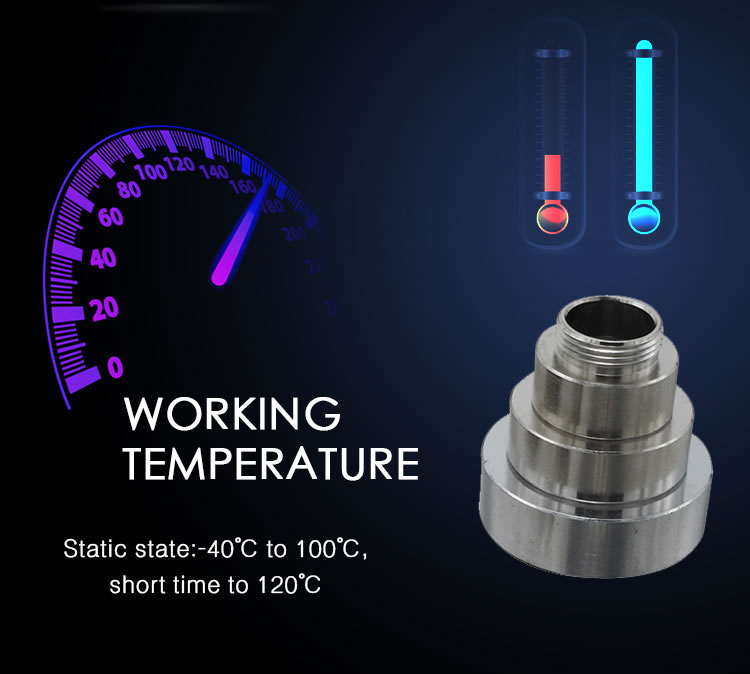

Temperature Resistance : 40℃-100℃ ，temporary to 120℃ .
Products
VIDEO
Dimension Drawing
Technical Parameter
Thread Type ：M/PG
| ltem | Thread | GL Thread Length (mm) |
H Joint Length (mm) |
Spanner size (mm) |
Code | |
| outer (mm） |
lnner (mm) |
|||||
| M12-M16 | M12x1.5 | M16×1.5 | 5 | 10.5 | 18 | HX-REM12-M16 |
| M16-M20 | M16×1.5 | M20×1.5 | 5 | 10.5 | 22 | HX-REM16-M20 |
| M2O-M25 | M20×1.5 | M25×1.5 | 6 | 11.5 | 27 | HX-REM20-M25 |
| M25-M32 | M25×1.5 | M32×1.5 | 7 | 12 | 34 | HX-REM25-M32 |
| M32-M4O | M32×1.5 | M40×1.5 | 7 | 13 | 42 | HX-REM32-M4O |
| M4O-M50 | M40x1.5 | M50×1.5 | 8 | 16 | 52 | HX-REM4O-M50 |
| M50-M63 | M50×1.5 | M63×1.5 | 9 | 17 | 66 | HX-REM50-M63 |
| PG7-PG9 | PG7 | PG9 | 6 | 10.5 | 17 | HX-REPG7-PG9 |
| PG9-PG11 | PG9 | PG11 | 6.5 | 10.5 | 20 | HX-REPG9-PG11 |
| PG11-PG13.5 | PG11 | PG13.5 | 6.5 | 10.5 | 22 | HX-REPG11-PG13.5 |
| PG13.5-PG16 | PG13.5 | PG16 | 6.5 | 11 | 24 | HX-REPG13.5-PG16 |
| PG16-PG21 | PG16 | PG21 | 7.5 | 11 | 30 | HX-REPG16-PG21 |
| PG21-PG29 | PG21 | PG29 | 8 | 11 | 39 | HX-REPG21-PG29 |
| PG29-PG36 | PG29 | PG36 | 9 | 13 | 50 | HX-REPG29-PG36 |
| PG36-PG42 | PG36 | PG42 | 10 | 15 | 57 | HX-REPG36-PG42 |
| PG42-PG48 | PG42 | PG48 | 10 | 16 | 64 | HX-REPG42-PG48 |
