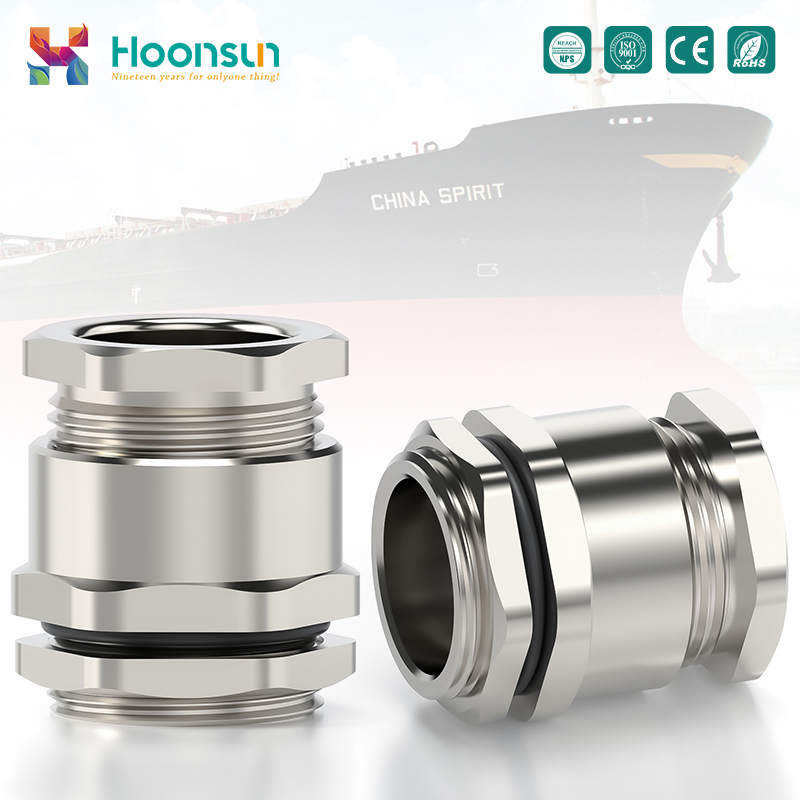

  • Marine Cable Gland

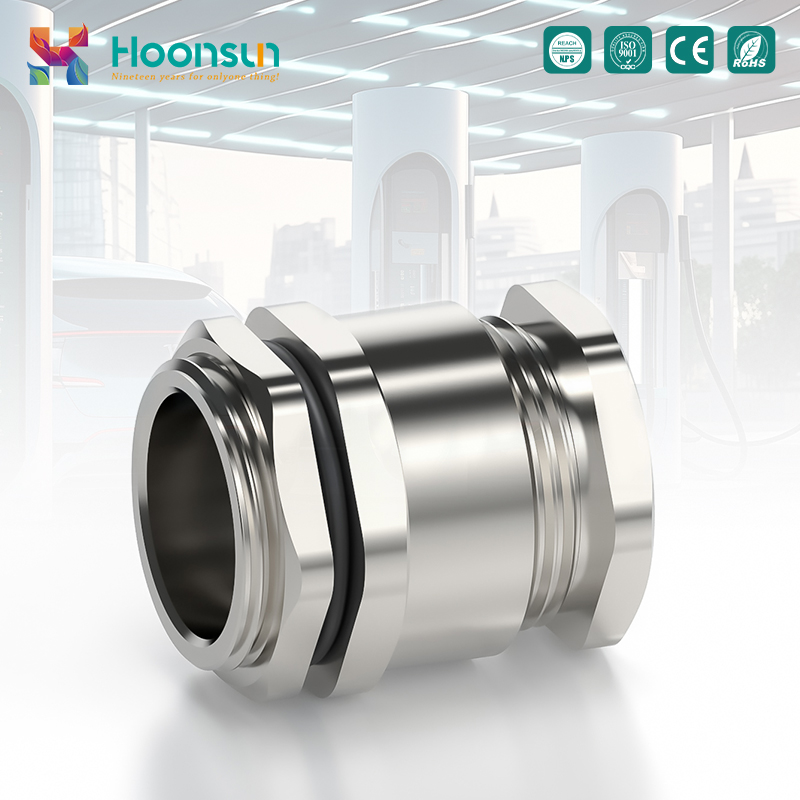

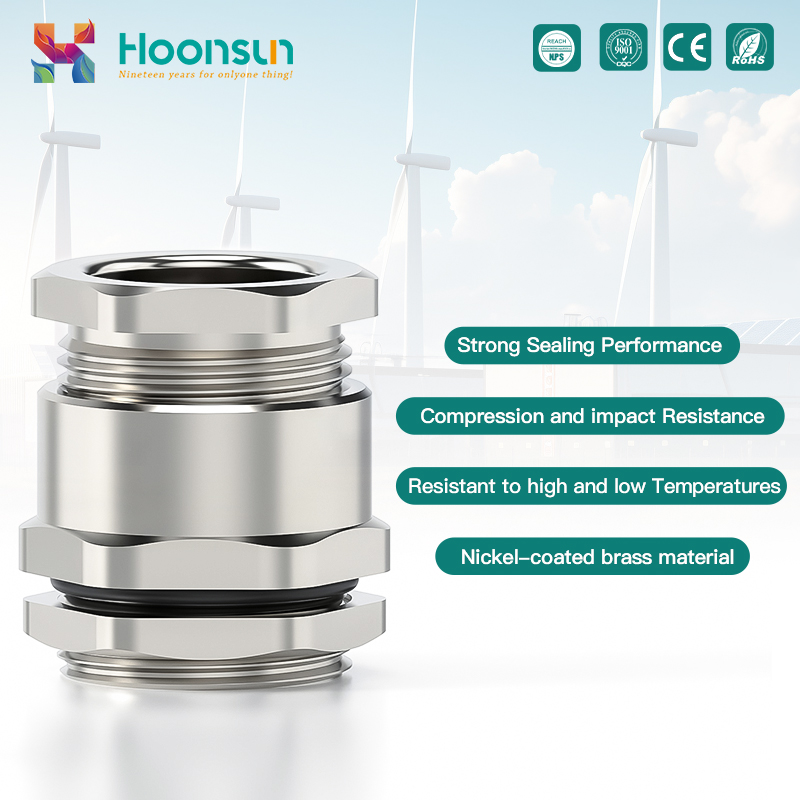

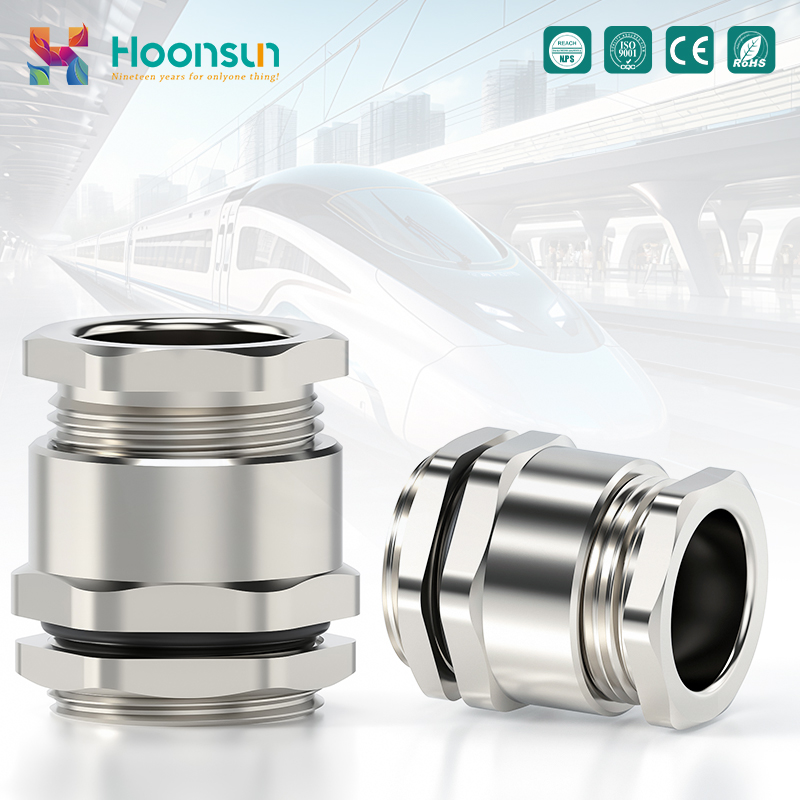

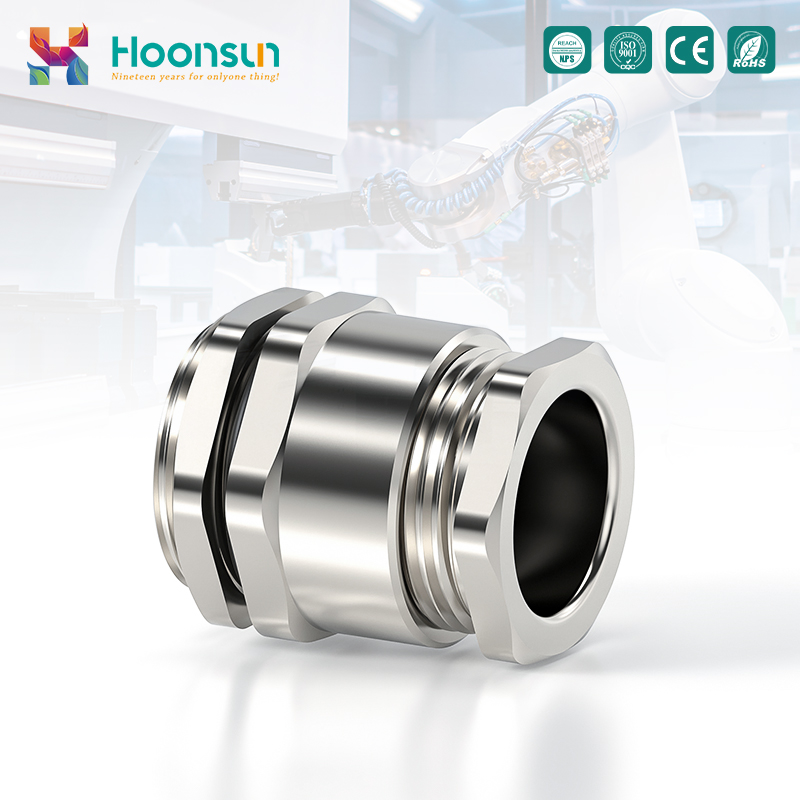

  • Single Compression Type Cable Gland

    Material:Chromium-plated brass
    Hermetic seal:NBR、Silicone rubber
    O-Ring:NBR、Silicone rubber
    Metal Washer:Nickel-plated hoop
    Protection degree:IP54
    Temperature:Static state:-40℃ to 100℃,short time to 120℃
    Dynamic state:-20℃ to 80℃, short time to 100℃

    Inquiry Now >

    VIDEO

    video video

    Dimension Drawing

    Single Compression Type Cable Gland Single Compression Type Cable Gland

    Technical Parameter

    Item Thread Range
    mm
    GL
    mm
    Thread O.D.
    mm
    Joint Length
    mm
    Spanner size
    mm
    Code
    DCG7 PG7 5-6.5 5.0 12.5 16.5 14/15 HX-DCG7
    DCG9 PG9 6-8 6.2 15.2 17.5 16/18 HX-DCG9
    DCG11 PG11 8-11 6.5 18.6 17.5 20/21 HX-DCG11
    DCG13.5 PG13.5 9-11.5 7.5 20.4 20.5 22/23 HX-DCG13.5
    DCG16 PG16 11-14 8.0 22.5 22.2 24/26 HX-DCG16
    DCG21 PG21 15-17.5 8.0 28.3 23.5 30/32 HX-DCG21
    DCG29 PG29 20-23 8.0 37.0 25.5 40/41 HX-DCG29
    DCG36 PG36 29-31 10.0 47.0 29.0 50/52 HX-DCG36
    DCG42 PG42 32-38 11.0 54.0 33.0 57/57 HX-DCG42
    DCG48 PG48 37-44 12.0 59.3 34.0 64/64 HX-DCG48
