  • Explosion Proof Cable Gland

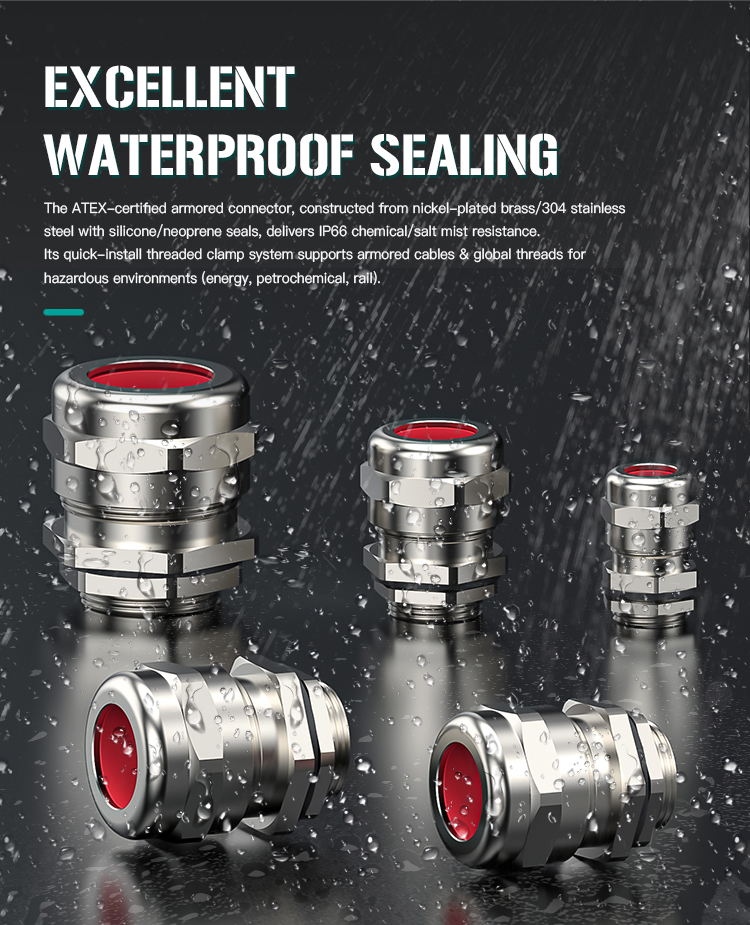

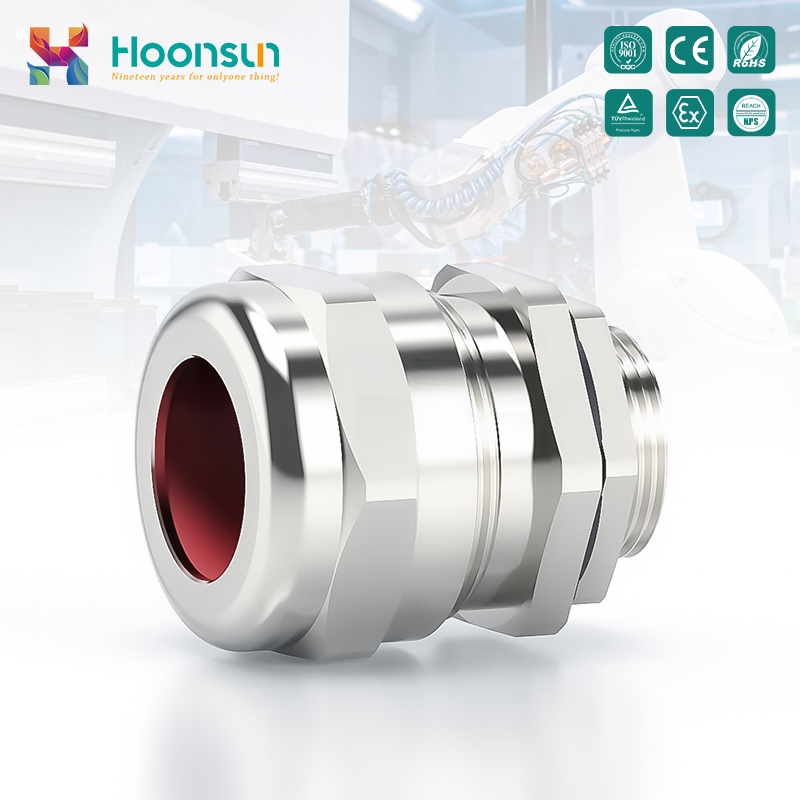

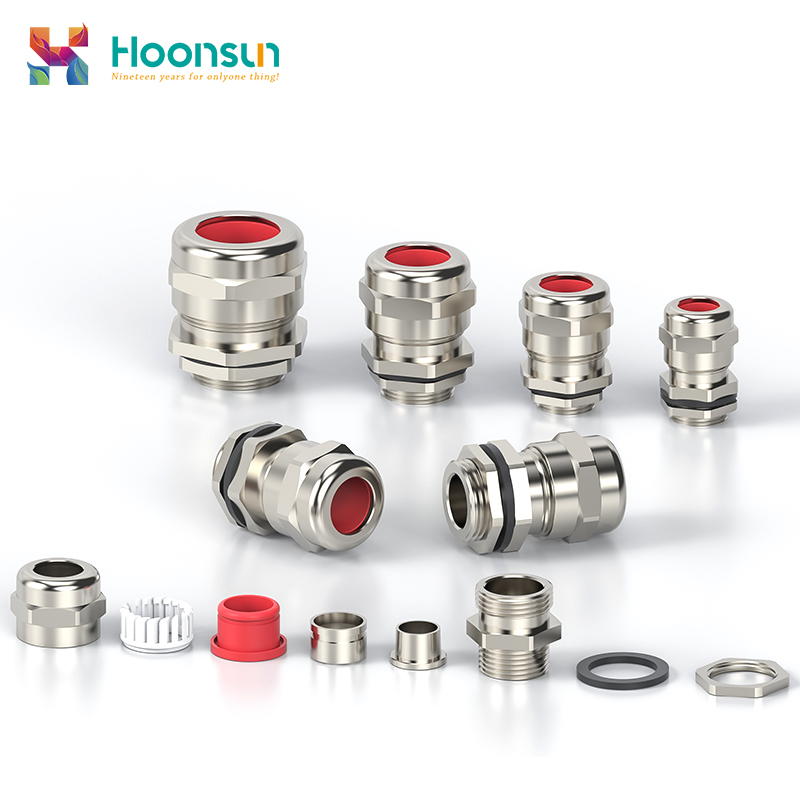

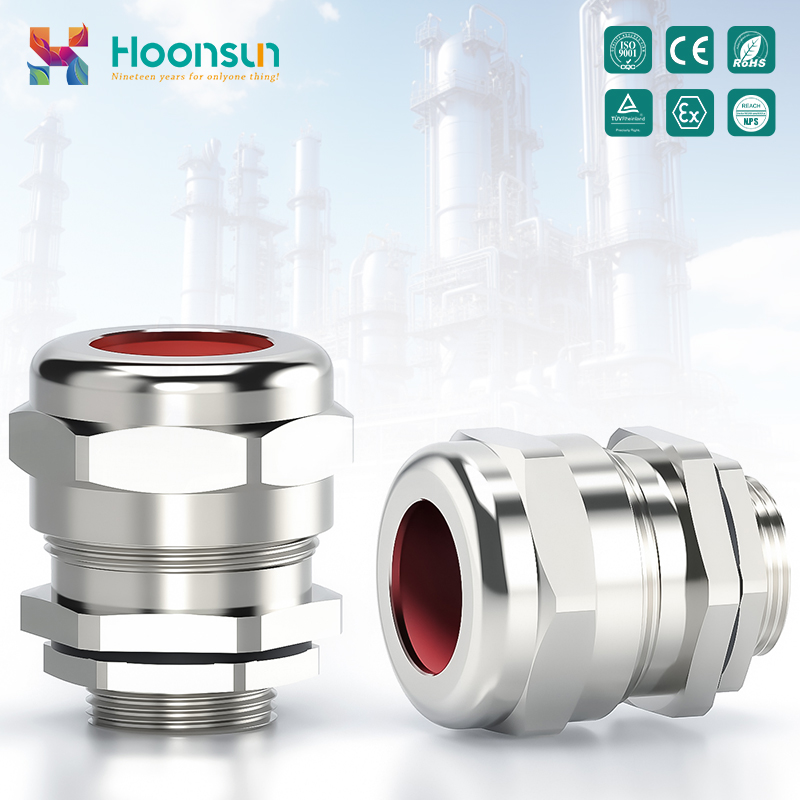

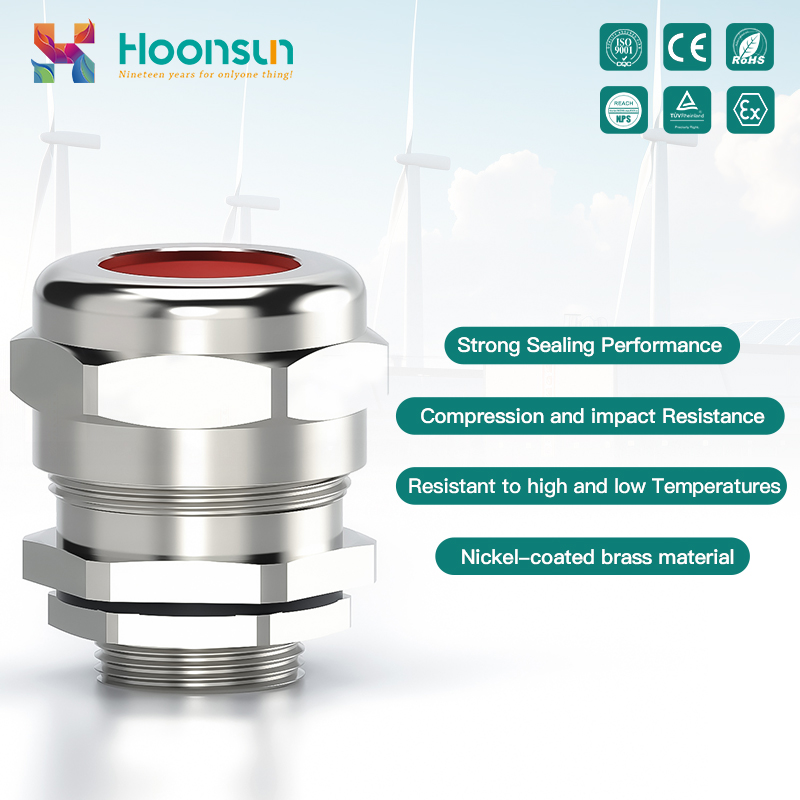

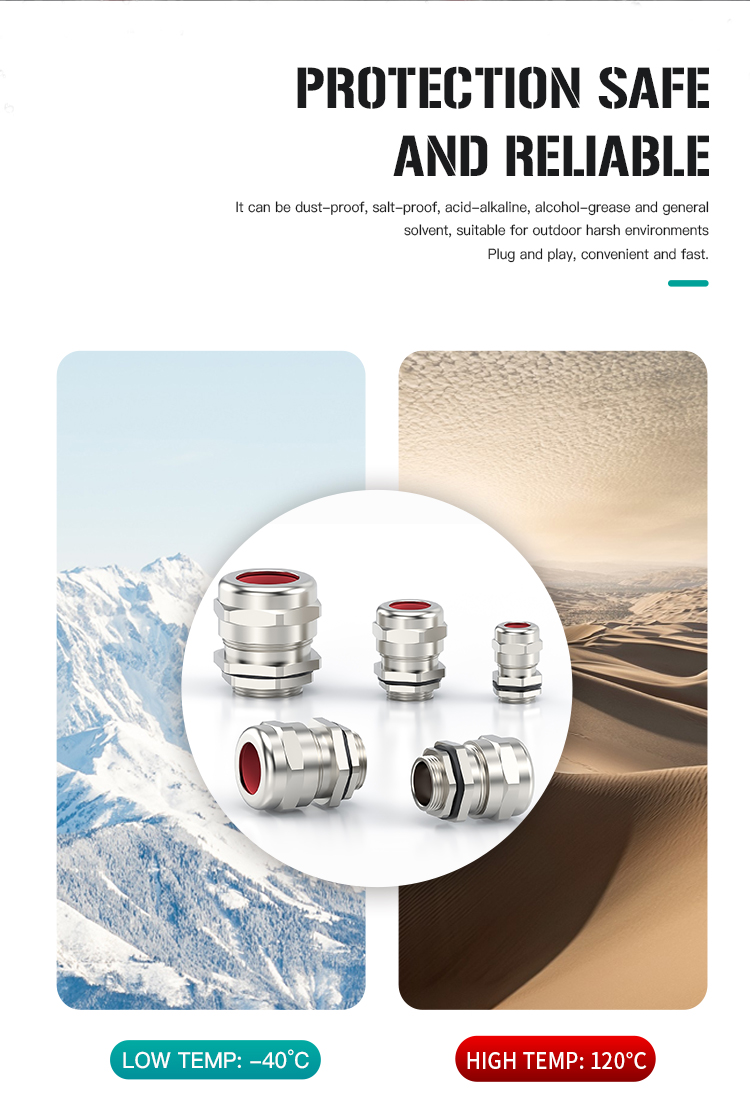

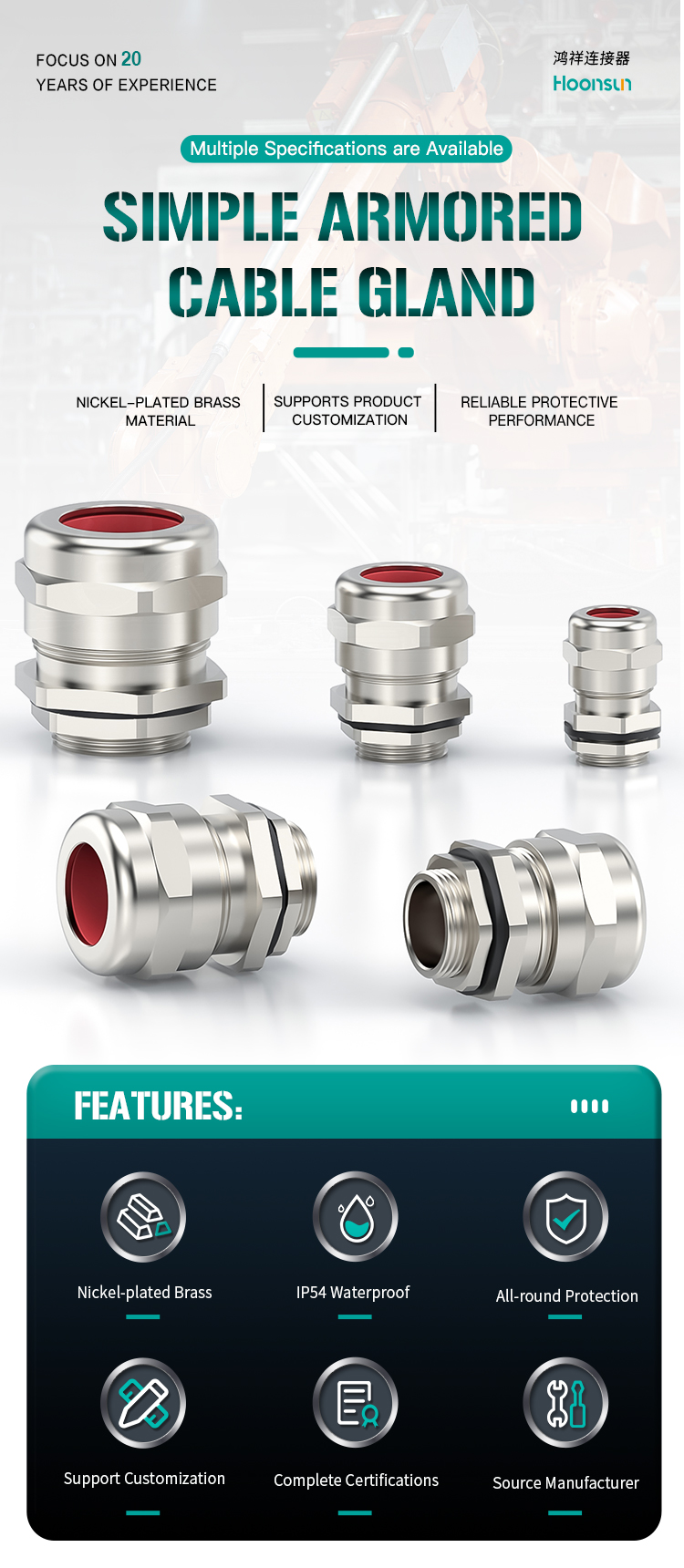

  • Simple Armored Cable Gland

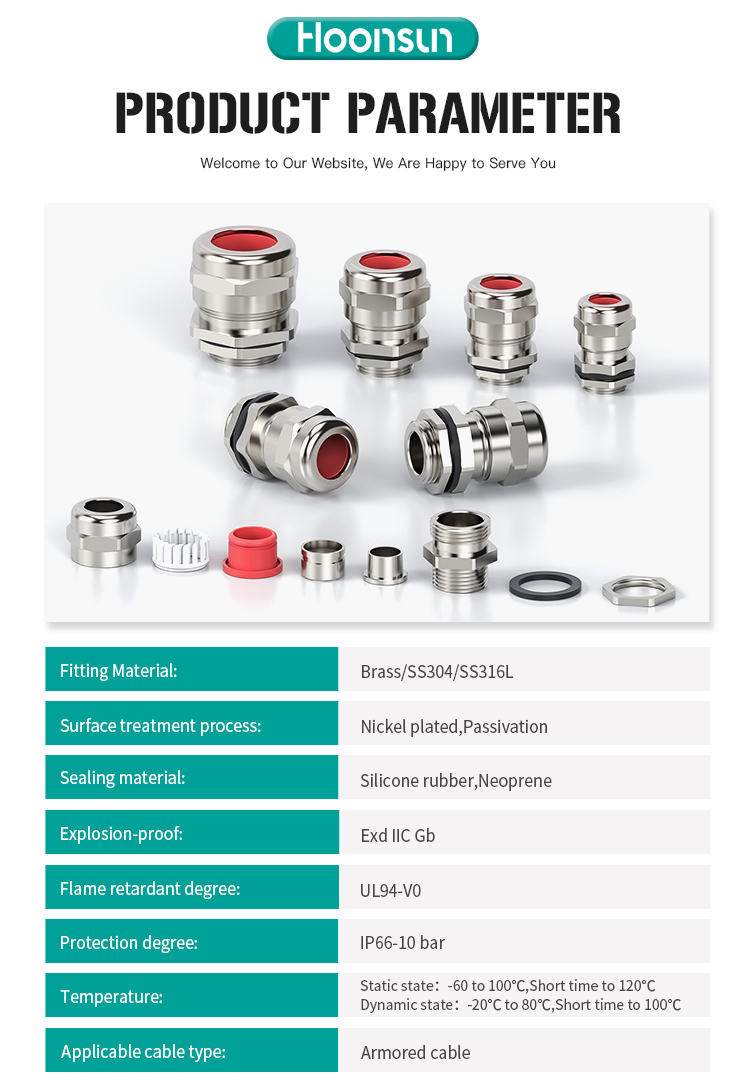

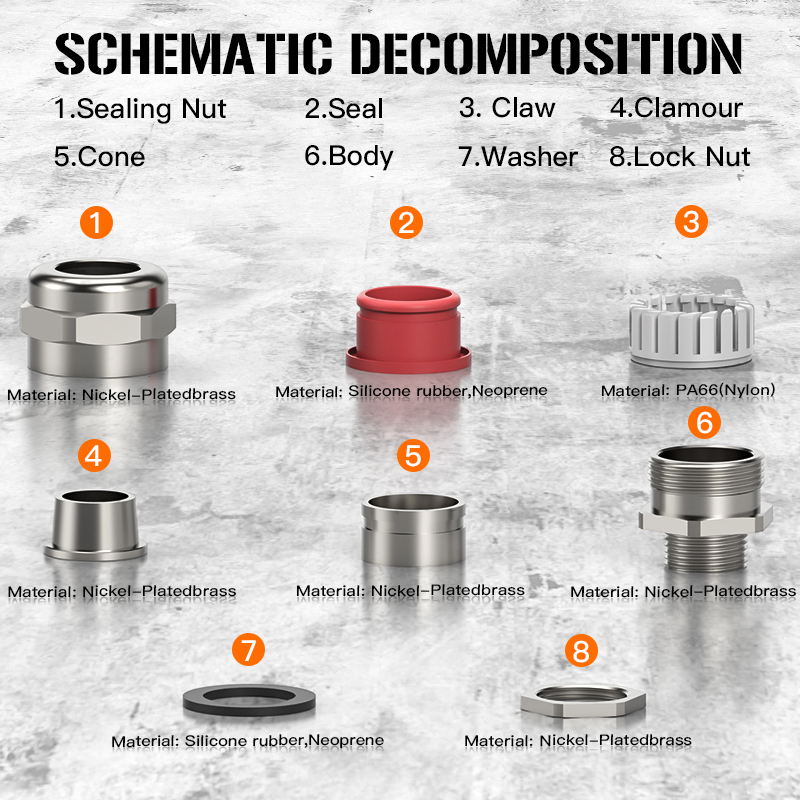

    Material:Brass/SS304/SS316L

    Suface treatment:Nickel plating,Passivation

    Sealing materials:silastic、Neoprene

    Explosion-proot mark:Exd IIC Gb

    Fireproof classification:UL94-V0

    Protecyion grade:IP66-10bars

    Ambinent temperature:Static from -60℃to100℃,short time 120℃

    Dymamic from -20℃to80℃,short time 100℃

    Inquiry Now >

    VIDEO

    video video

    Dimension Drawing

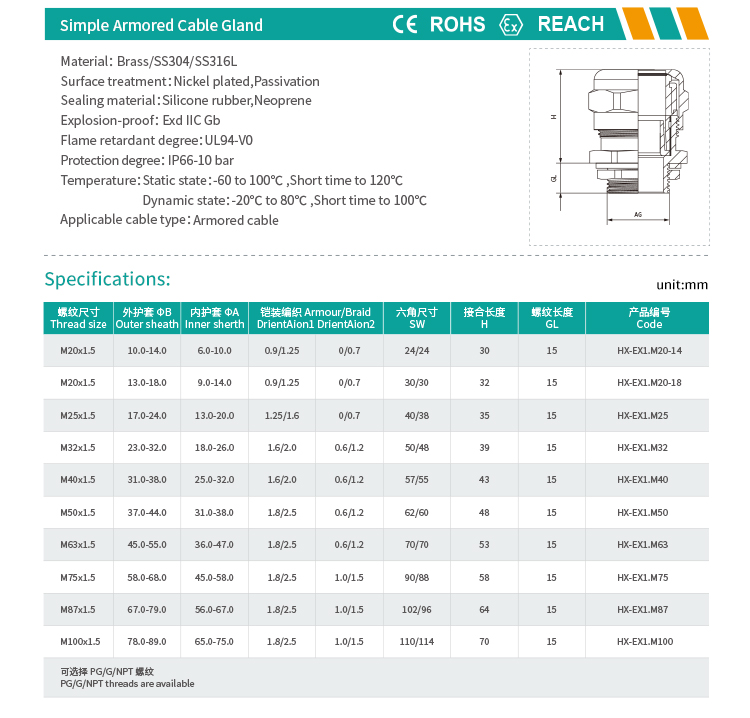

    Technical Parameter

    Model specificatin  Application cable range  Armor/knits AC L GL       Six angle size
    Outer shealth Inner sheath 1 2 Metric M  Inch   On the edge  Diagonal
    HX-EX-1-1Ka Φ5-Φ8 Φ3-Φ5 0.9/1.25 0/0.7 M20×1.5 1/2″ 30 15 24 28
    HX-EX-1-1Kb Φ6-Φ10 Φ4-Φ8 0.9/1.25 0/0.7 M20×1.5 1/2″ 30 15 24 28
    HX-EX-1-1K Φ9-Φ14 Φ6-Φ11 0.9/1.25 0/0.7 M20×1.5 1/2″ 30 5 24 28
    HX-EX-1-2K Φ13-Φ18 Φ9-Φ14 0.9/1.25 0/0.7 M20×1.5 1/2″ 32 15 30 35
    HX-EX-1-3Ka Φ15-Φ21 Φ11-Φ17 1.25/1.6 0/0.7 M25×1.5 3/4″ 1″ 35 15 36 42
    HX-EX-1-3K Φ17-Φ24 Φ13-Φ20 1.25/1.6 0/0.7 M25×1.5 3/4″ 1″ 35 15 40 47
    HX-EX-1-4Ka Φ20-28 Φ16-23 1.6/2.0 0.6/1.2 M32×1.5 1″ 1 1/4″ 39 15 46 53
    HX-EX-1-4K Φ23-Φ32 Φ18-Φ26 1.6/2.0 0.6/1.2 M32×1.5 1″ 1 1/4″ 39 15 46 53
    HX-EX-1-5Ka Φ26-Φ35 Φ21-Φ29 1.6/2.0 0.6/1.2 M40×1.5 1 1/4″ 11/2″ 43 15 55 64
    HX-EX-1-5K Φ31-Φ38 Φ25-Φ32 1.6/2.0 0.6/1.2 M40×1.5 1 1/4″ 11/2″ 43 15 55 64
    HX-EX-1-6Ka Φ34-Φ41 Φ28-Φ35 1.6/2.0 0.6/1.2 M50×1.5 1 1/2″ 2″ 48 15 65 75
    HX-EX-1-6K Φ37-Φ44 Φ31-Φ38 1.8/2.5 0.6/1.2 M50×1.5 1 1/2″ 2″ 48 15 65 75
    HX-EX-1-7Ka Φ40-Φ50 Φ33-Φ43 1.8/2.5 0.6/1.2 M63×1.5 2″ 2 1/2″ 53 16 80 92
    HX-EX-1-7K Φ43-Φ55 Φ36-Φ47 1.8/2.5 0.6/1.2 M63×1.5 2″2 1/2″ 53 16 80 92
    HX-EX-1-8Ka Φ50-Φ63 Φ42-Φ53 1.8/2.5 1.0/1.5 M75×1.5 2 1/2″3″ 58 16 96 111
    HX-EX-1-8K Φ54-Φ68 Φ45-Φ58 1.8/2.5 1.0/1.5 M75×1.5 2 1/2″3″ 58 16 86 111
    HX-EX-1-9Ka Φ62-Φ72 Φ52-Φ62 1.8/2.5 1.0/1.5 M87×1.5 3″3 1/2″ 64 18 114 134
    HX-EX-1-9K Φ67-Φ79 Φ56-Φ67 1.8/2.5 1.0/1.5 M87×1.5 3″3 1/2″ 64 18 114 134
    HX-EX-1-10Ka Φ78-Φ89 Φ65-Φ75 1.8/2.5 1.0/1.5 M100×1.5 4″ 70 18 128 148
    HX-EX-1-10K Φ88-Φ104.5 Φ74-Φ91 1.8/2.5 1.0/1.5 M100×1.5 4″ 70 18 128 148

    According the customer’s requirements the extended GL screws are available
