Material: PA66
Protection level: IP68
Applicable cable specifications: 3 – 5.5mm, 5.5 – 9mm, etc. (depending on the specific model)
Electrical parameters: meet the rated voltage and current requirements (depending on the internal terminal configuration)

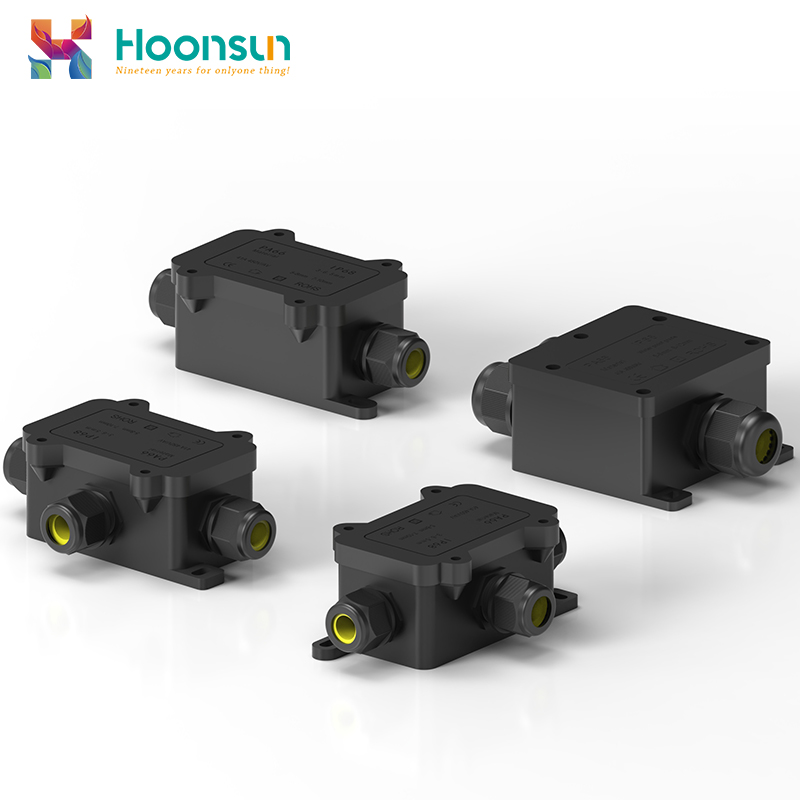

The Mini waterproof box is a key component for protecting electrical connections.
Made of high-quality PA66 material, it has excellent waterproof and dustproof performance (IP68 rating) and is designed to meet the needs of electrical safety protection in compact spaces.
Its sophisticated structural design and high reliability make it an ideal choice for protecting circuit connections in industrial automation, outdoor equipment, smart homes and other fields.
As shown in the usage diagram, open the waterproof box, pass the cables through the connectors at both ends according to the specifications, connect them to the internal terminals and fix them. Make sure the sealing ring is installed correctly, then close and lock the box body, and finally tighten the connectors at both ends to complete the sealing installation and ensure the waterproof and dustproof effect.

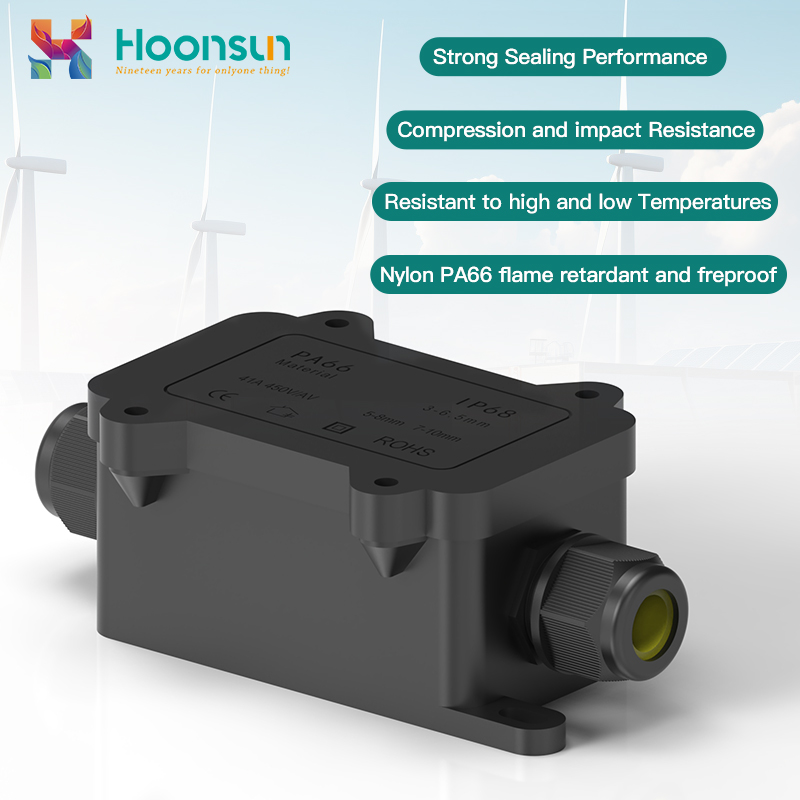

High strength and flame retardancy: The main body is made of PA66 material, which has good mechanical strength and flame retardancy (in compliance with relevant standards), ensuring stable use in harsh environments.
Top protection level: IP68 protection level, effectively resists intrusion of water, dust, etc., and can ensure the safety of internal circuits even after long-term immersion.
Compact design: Small size, saving installation space, suitable for scenes with demanding space requirements, and equipped with mounting holes for easy fixation.
Strong durability: Through strict aging tests, wide temperature resistance range, adapt to different environmental conditions, and extend service life.

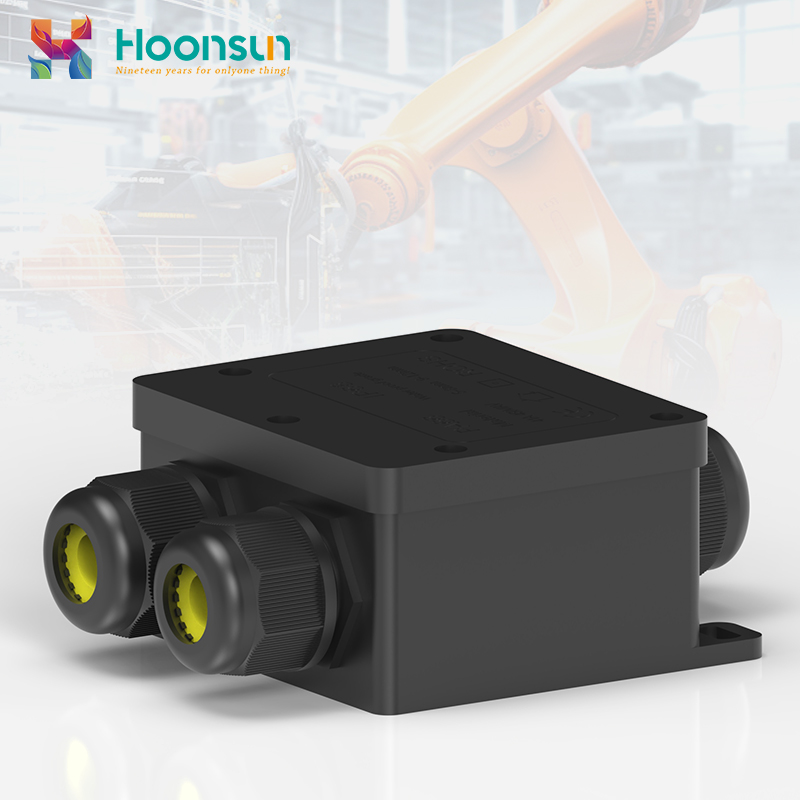

Industrial automation: protect the circuit connections of sensors and actuators, and deal with moisture, dust and oil in the workshop.
Outdoor equipment: such as outdoor lighting, power or signal connections of surveillance cameras, to resist wind, rain, sand and dust.
Smart home: used for equipment such as sweeping robots and smart door locks to prevent humid environments from affecting circuits.
Automotive electronics: adapt to in-vehicle sensors or external device connections to deal with vibration, humidity and other environments.
The mini waterproof box provides reliable protection for electrical connections with its compact size and powerful protection capabilities. When selecting and using it, it is necessary to make a reasonable choice based on the cable specifications, environmental conditions and electrical requirements to ensure that it plays the best protection performance and improves system stability and safety.
