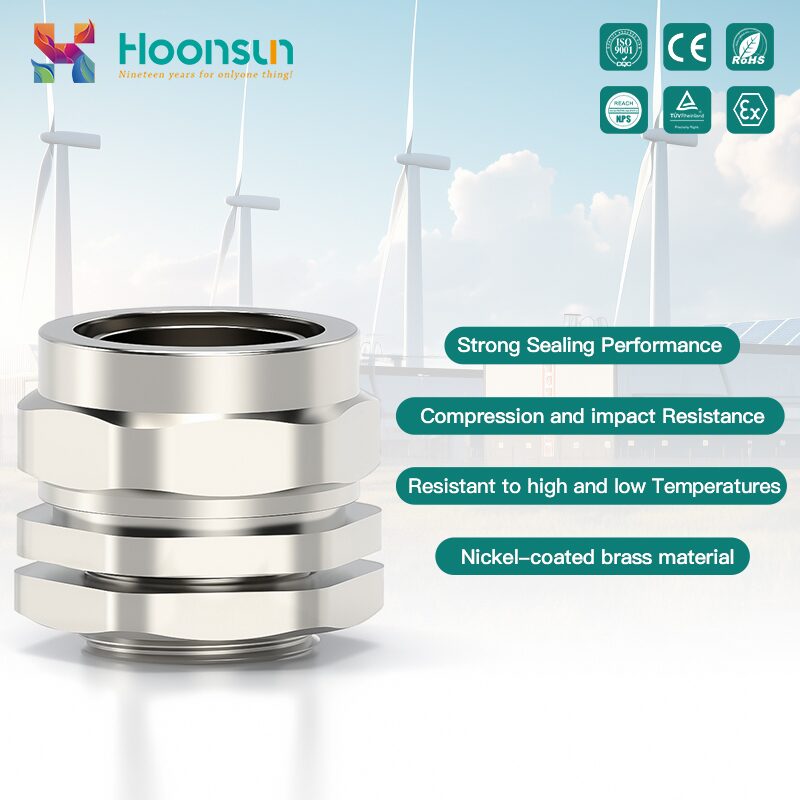

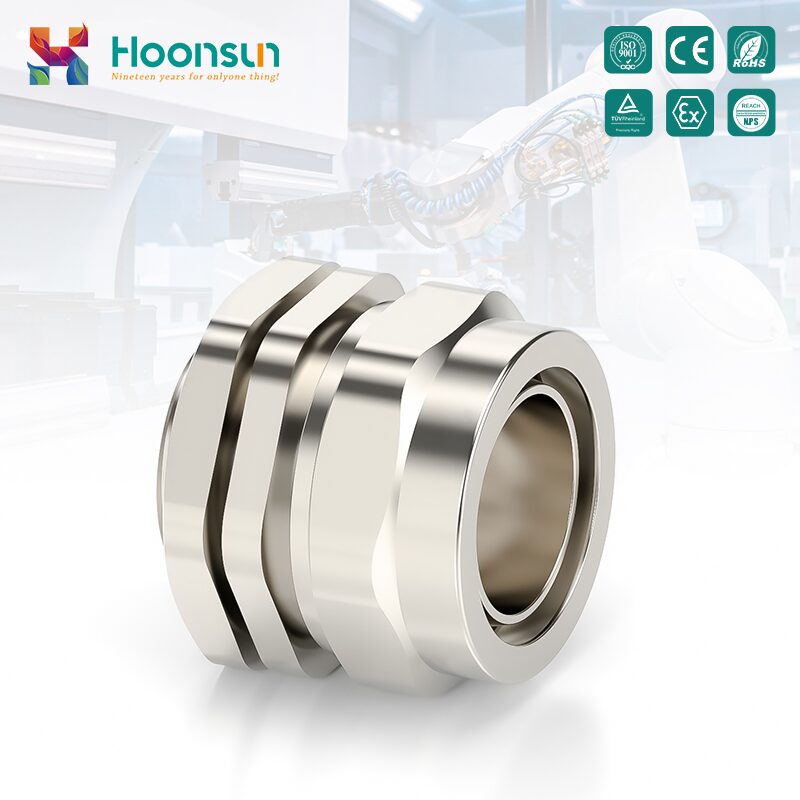

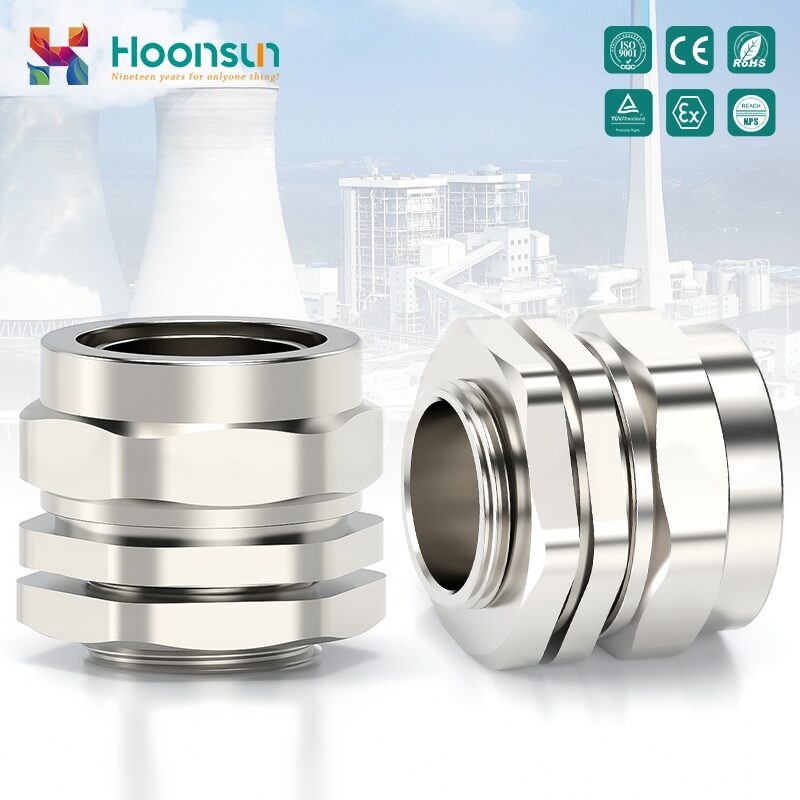

M20 Explosion Proof Cable Gland Size Chart

Model : HX-BW

Code : 8538900000

Material : nickle-plated brass

Protecion degree : IP68-10 bar

Size : M20-M100

Inquiry Now >

VIDEO

video video

Dimension Drawing

M20 Explosion Proof Cable Gland Size Chart

M20 Explosion Proof Cable Gland Size Chart

M20 Explosion Proof Cable Gland Size Chart

M20 Explosion Proof Cable Gland Size Chart

M20 Explosion Proof Cable Gland Size Chart

Technical Parameter

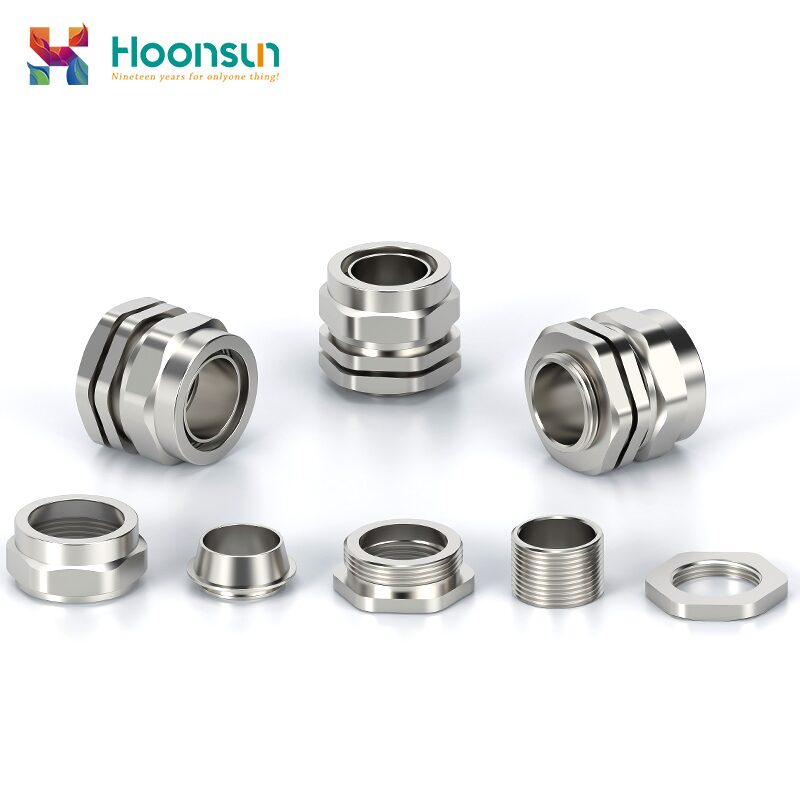

BW Series Cable Gland Product Introduction

Application scenario

BW Series Cable Gland is suitable for all plastic or rubber insulated single-core armored cables used in indoor or outdoor applications. If used in indoor applications, the internal and external sealing of weather resistance characteristics is not required.

Features

BW Series Cable Gland can seal the inner sheath and outer sheath of the cable, and maintain the mechanical retention of the cable and the continuity of power transmission by cutting the armored wire, and the armored clamp can maintain the armored cable and cable joint Electrical connection.



Item Thread Range GL
Thread Length
(mm)
AG
Thread o.D.
(mm)
Joint Length
(mm)
Spanner size
(mm)
Code
Min. Max.
BW-o M2o×1.5 12.6 16.5 10 20 23 22 HX-BWo
BW-1 M20×1.5 15.9 19.0 10 20 26 27/25/24 HX-BW1
BW-2 M25×1.5 20.6 26.5 10 25 29 35 HX-BW2
BW-3 M32×1.5 26.5 33.0 10 32 32 40 HX-BW3
BW-4 M40×1.5l 34.9 40.5 15 40 36 50 HX-BW4
BW-5 M50×1.5 44.5 51.0 15 50 45 64 HX-BW5
BW-6 M3×1.5 57.0 67.o 15 63 50 82 HX-BW6
BW-7 M5×2 68.0 79.5 15 75 60 96 HX-BW7
BW-8 MB2×2 74.0 83.0 15 82 65 100 HX-BWB
BW-9 M90×2 82.0 91.0 15 9o 69 110 HX-BW9
BW-10 M10ox2l 03.0 100.o 15 100 88 120 HX-BW10
