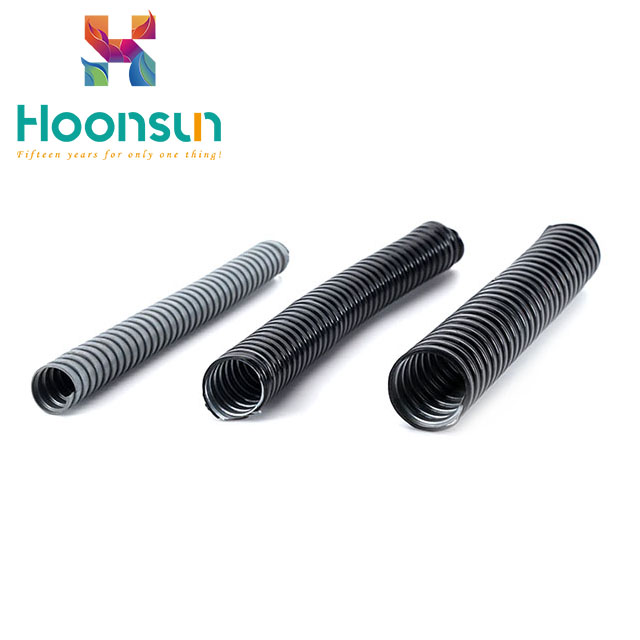

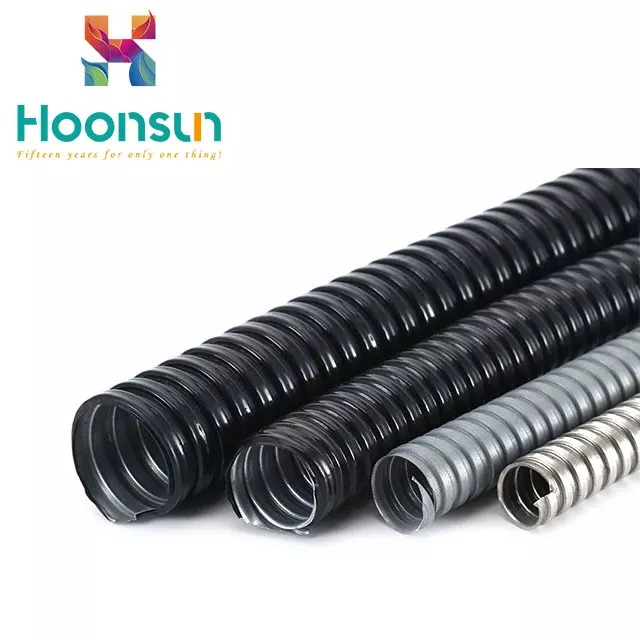

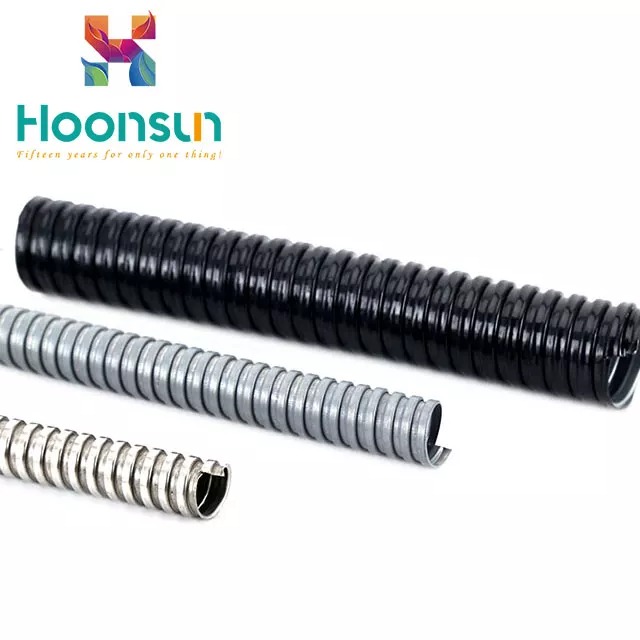

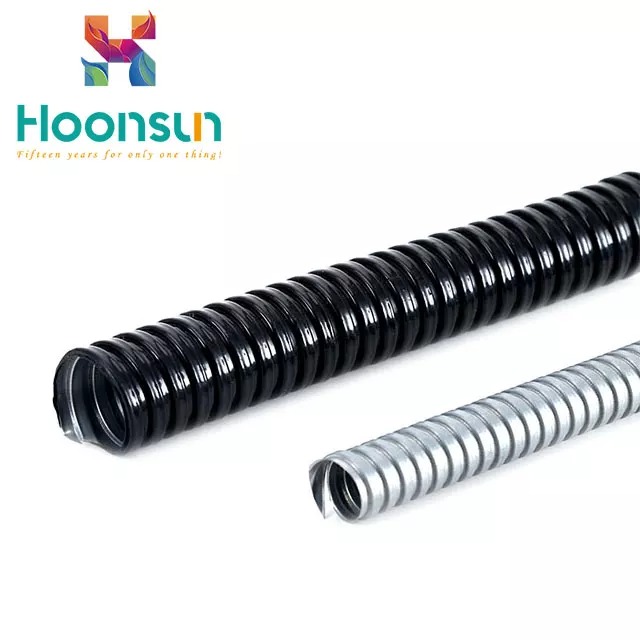

Model : HX-PM
Code : 7370990000
Material : hot dip galvanized steel plate and special insulation treatment
Approvals : CE ,REACH , ROHS
Temperature Resistance : -30℃-85℃ ，short time to 100℃ .
| ltem No. | Trade sizes | d lnner diameter |
D Outer diameter |
Bending radius |
M Packing |
||
| Black | Gray | M | BSp | ||||
| HX-PM- o1B |
HX-PM- o1G |
6 | 3/16″ | 6.010.3 | 9.210.5 | 40 | 100M |
| HX-PM- 02B |
HX-PM- o2G |
8 | 5/16* | 8.010.3 | 11.810.5 | 45 | 100M |
| HX-PM- 03B |
HX-PM- 03G |
10 | 1/4″ | 10.0r0.3 | 14.5±0.5 | 55 | 100M |
| HX-PM- 04B |
HX-PM- 04G |
13 | 3/8 | 12.510.3 | 16.810.5 | 65 | 100M |
| HX-PM- 05B |
HX-PM- o5G |
16 | 1/2 | 15.510.3 | 20.210.5 | 85 | 100M |
| HX-PM- 06B |
HX-PM- 066 |
20 | 3/4″ | 20.010.3 | 25.010.5 | 10o | 50M |
| HX-PM- 08B |
HX-PM- o8G |
25 | r” | 25.010.3 | 30.710.5 | 120 | 50M |
| HX-PM- 10B |
HX-PM- 10G |
32 | 1 1/4″ | 32.010.3 | 38.610.5 | 15o | 25M |
| HX-PM- 12B |
HX-PM- 12G |
38 | 11/2″ | 38.01.0 | 44.611.0 | 18o | 25M |
| HX-PM- 16B |
HX-PM- 16G |
51 | 2” | 51.0r1.0 | 59.0±1.0 | 220 | 10M |
| HX-PM- 20B |
HX-PM- 20G |
64 | 21/2″ | 64.011.5 | 73.511.5 | 310 | 10M |
| HX-PM- 24B |
HX-PM- 24G |
75 | 3″ | 75.012.0 | 83.512.0 | 350 | 10M |
| HX-PM- 32B |
HX-PM- 32G |
100 | 4” | 100.0±3.0 | 109.5±3.0 | 410 | 10M |
| HX-PM- 36B |
HX-PM- 36G |
125 | 5” | 125.00±3.0 | 135.513.0 | 460 | 5M |
| HX-PM- 38B |
HX-PM- 38G |
150 | 6” | 150.014.0 | 160.514.0 | 500 | 5M |
