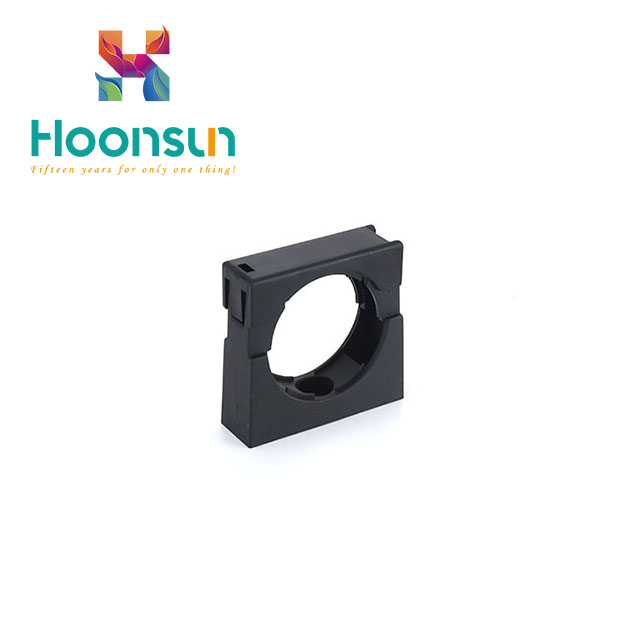

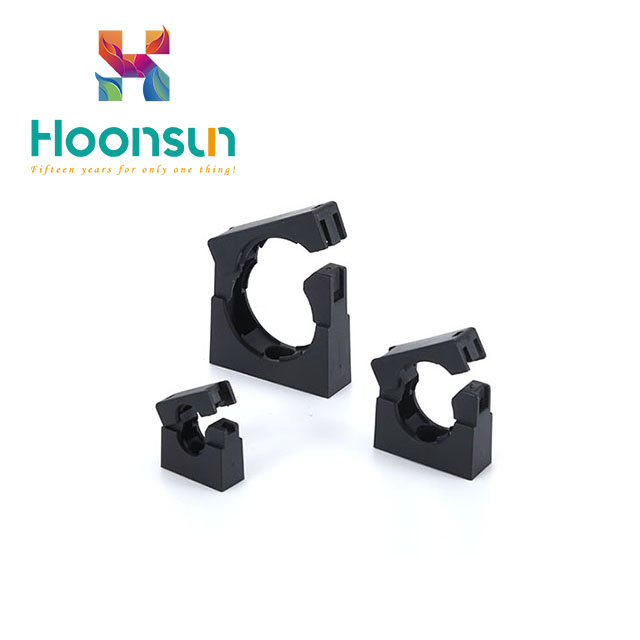

High Quality Black Bellows Fixed Frame Price
Model : HX-NB
Code : 3926909090
Material : PA nylon
Temperature Resistance : -40℃ to 100℃
Products
Inquiry Now >
VIDEO
Dimension Drawing
Technical Parameter
| Conduit size | B | H | T | M | A | Code |
| AD10.0 | 25.0 | 26.0 | 12.5 | 4.0 | 6.5 | HX-NBAD10 |
| AD13.0 | 30.0 | 26.0 | 12.5 | 4.0 | 6.5 | HX-NBAD13 |
| AD15.8 | 30.0 | 26.0 | 12.5 | 5.0 | 6.5 | HX-NBAD15.8 |
| AD18.5 | 35.0 | 33.0 | 15.0 | 6.0 | 6.5 | HX-NBAD18.5 |
| AD21.2 | 35.0 | 34.0 | 15.0 | 6.0 | 6.5 | HX-NBAD21.2 |
| AD25.0 | 42.0 | 38.0 | 16.0 | 6.0 | 11.5 | HX-NBAD25 |
| AD28.5 | 42.0 | 42.0 | 16.0 | 6.0 | 11.5 | HX-NBAD28.5 |
| AD34.5 | 51.0 | 49.0 | 16.0 | 6.0 | 11.5 | HX-NBAD34.5 |
| AD42.5 | 58.0 | 57.0 | 18.0 | 6.0 | 11.5 | HX-NBAD42.5 |
| AD54.5 | 73.0 | 70.0 | 20.0 | 7.0 | 12.0 | HX-NBAD54.5 |
