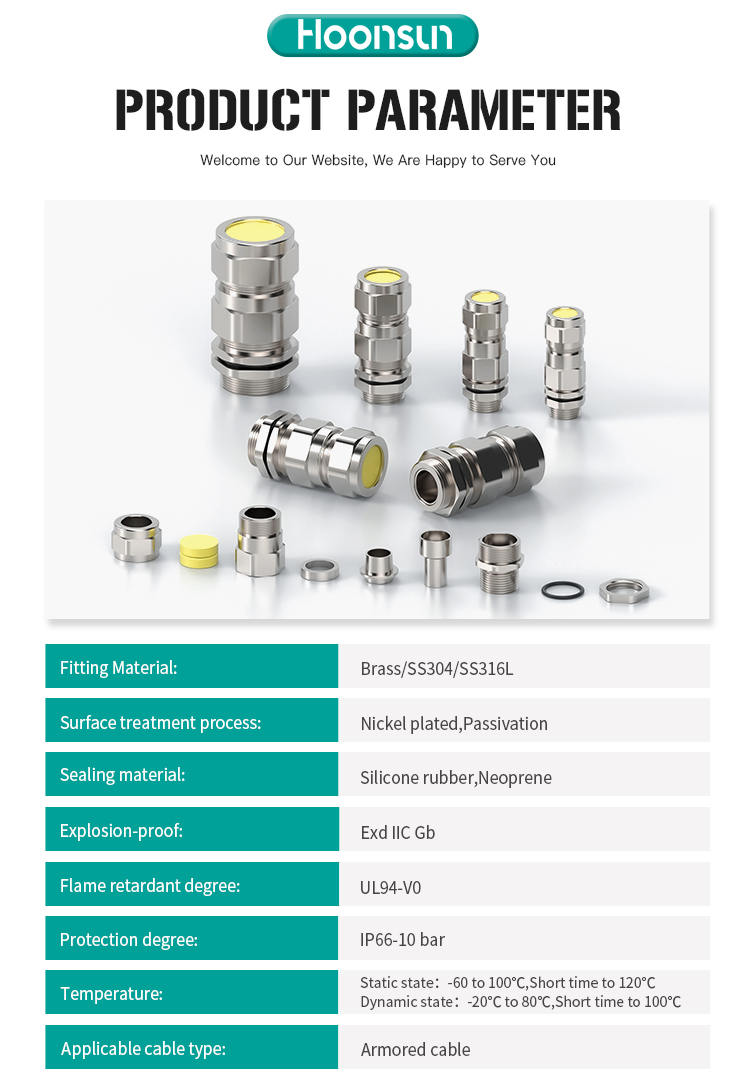

Material: Brass/SS304/SS316L
Surface treatment: Nickel plating, Passivation
Sealing materials: Silastic, Neoprene
Explosion-proof mark: Exd IIC Gb
Fireproof classification: UL94-V0
Protection grade: IP66-10bars
Ambient temperature: Static from -60℃to100℃，short time 120℃
Dynamic from -20℃to80℃，short time 100℃

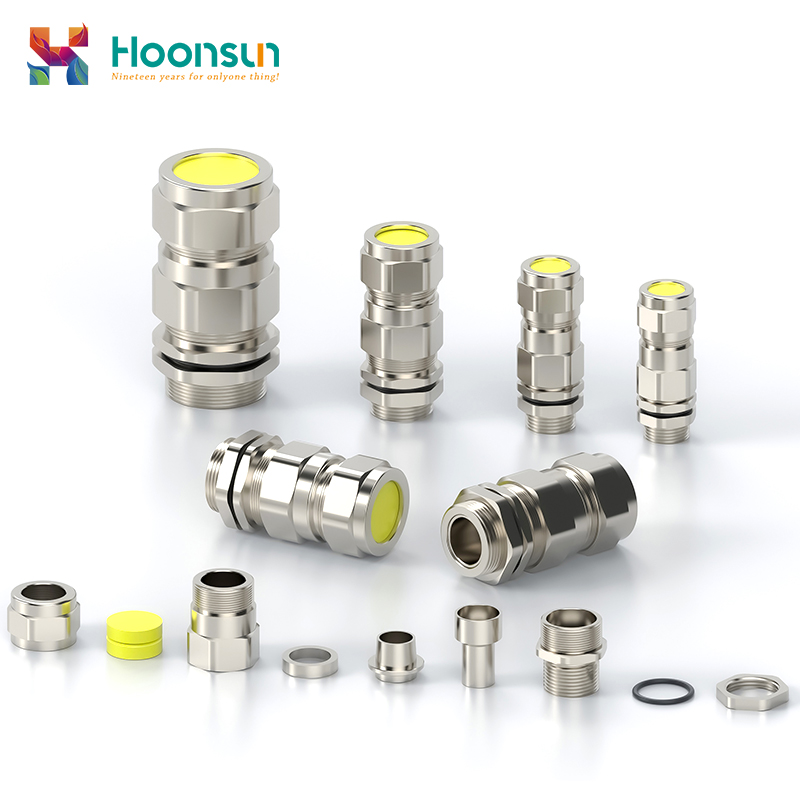

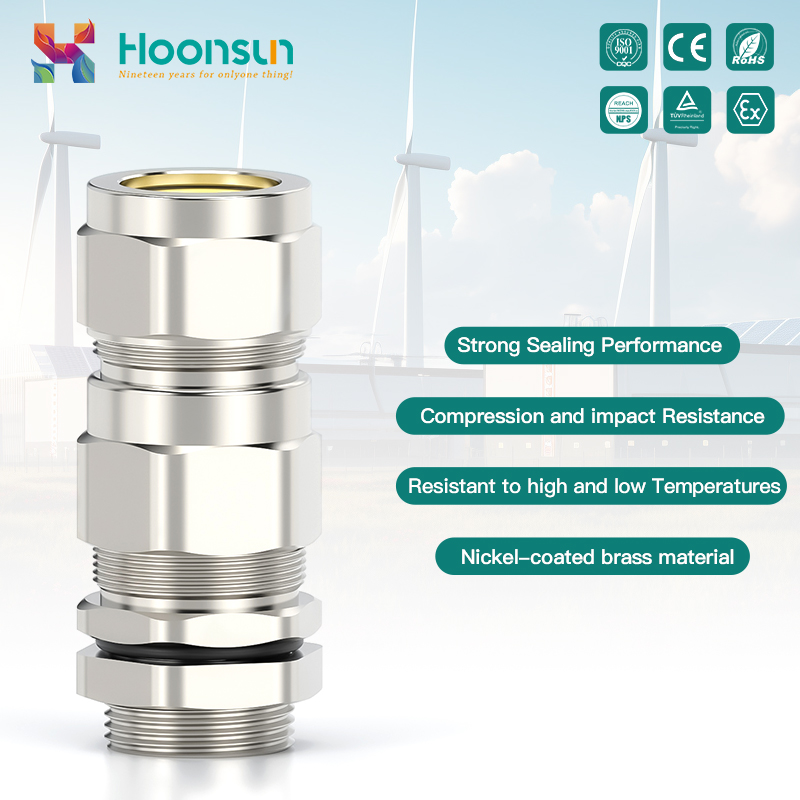

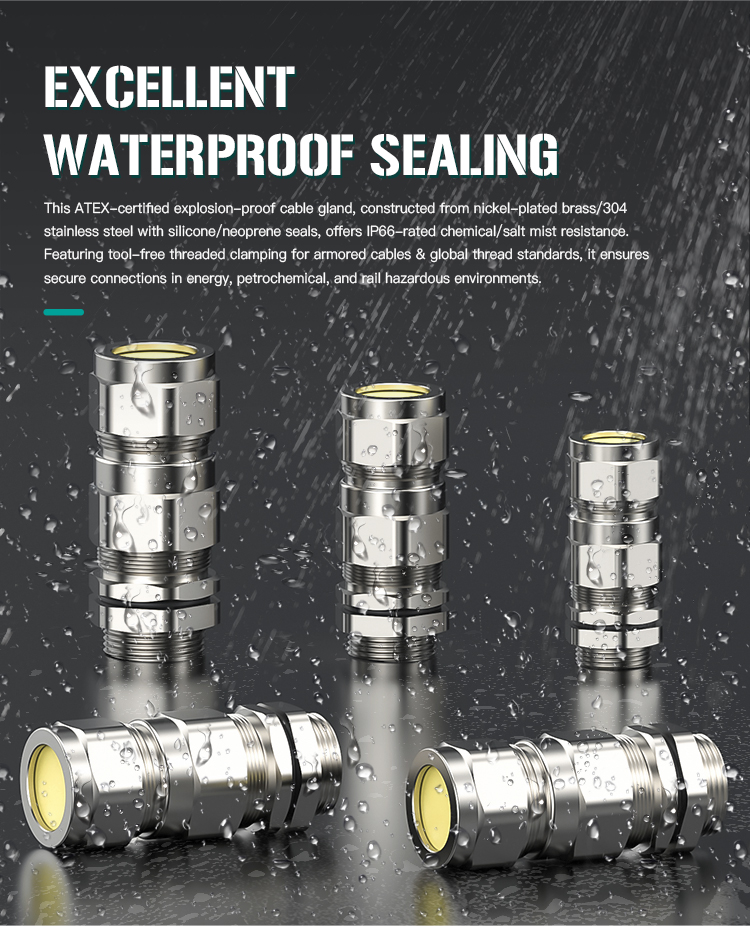

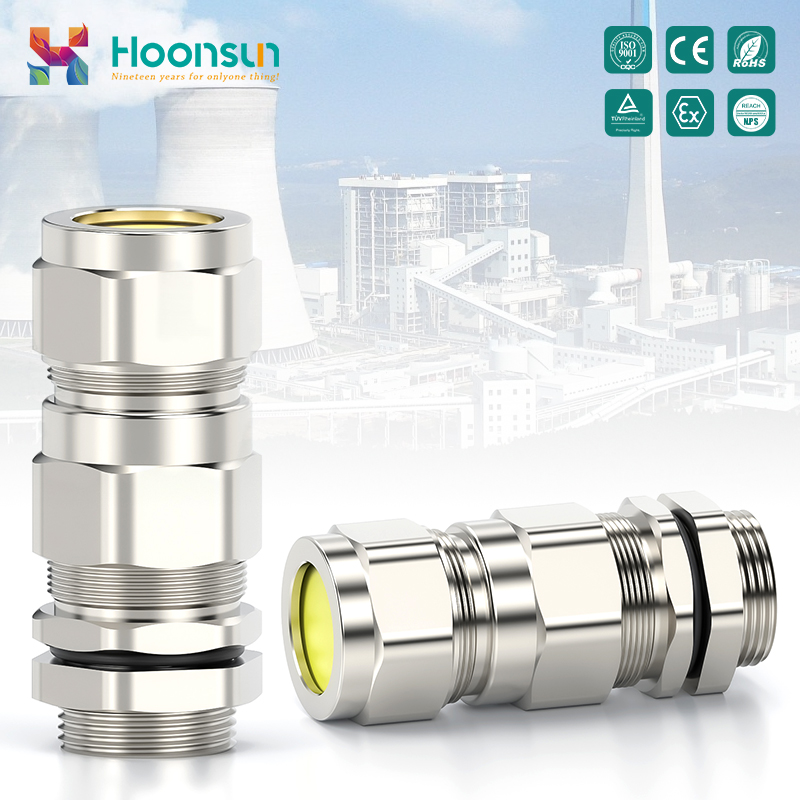

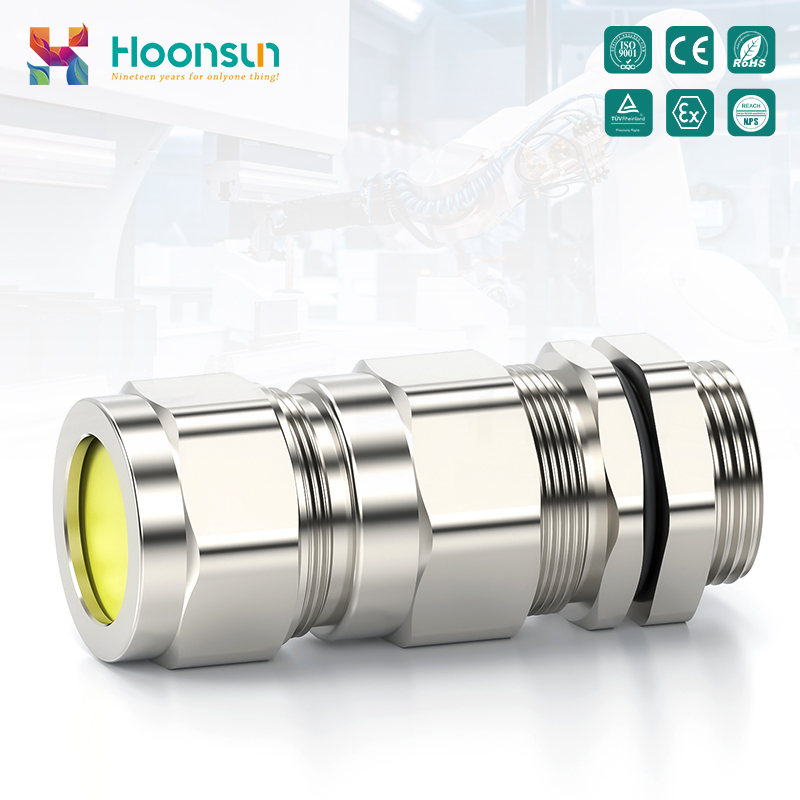

Explosion-proof cable clamp sealing joint is used for the sealing joints of braided armored and steel tape armored cables. It provides waterproof and dustproof sealing on the cable inner sheath. The cable clamp sealing joint provides mechanical support and armor through the cable armored end. Continuity of the installation grounding.
Explosion-proof cable clamp sealing joint can also be installed with a detachable armor cone so that the cable clamp sealing joint can be installed indirectly and the cable can be disconnected from the device. Cable clamp sealing joint can also be installed with a round jacket ring for flood protection.

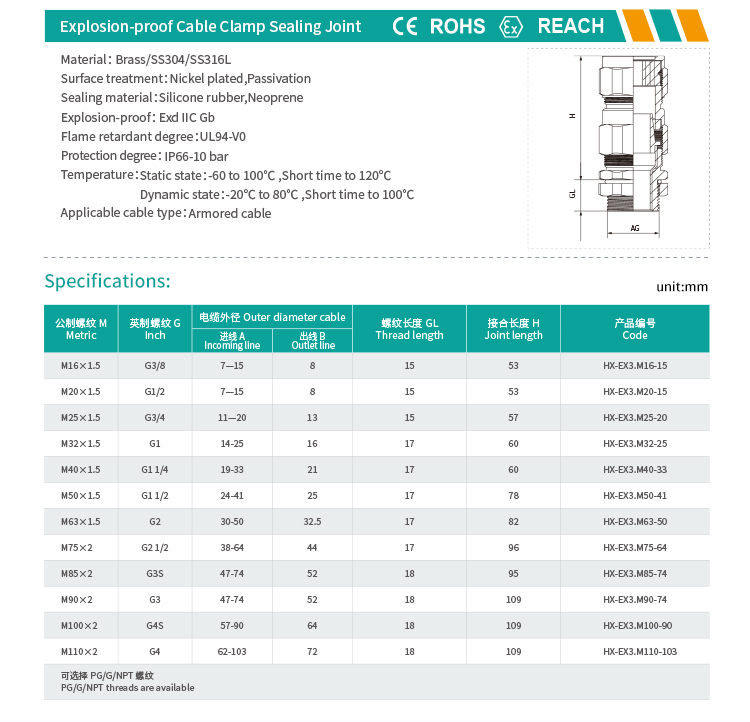

| Metric thread(M) | Inch screw threads(G) | Outer diameter cable(mm) | L1 Thread length (mm) | L length(mm） | L2 length(mm） | EX-mark | Protection level | |
| Outlet A | incoming line B | |||||||
| M16×1.5 | — | 8 | 7—15 | 15 | 68 | 85 | Exd IIC Gb | Ip66 |
| M20×1.5 | G1/2 | 8 | 7—15 | 15 | 68 | 85 | ||
| M25×1.5 | G3/4 | 13 | 11—20 | 15 | 72 | 87 | ||
| M32×1.5 | G1 | 16 | 14-25 | 17 | 77 | 92 | ||
| M40×1.5 | G1 1/4 | 21 | 19-33 | 17 | 77 | 95 | ||
| M50×1.5 | G1 1/2 | 25 | 24-41 | 17 | 95 | 100 | ||
| M63×1.5 | G2 | 32.5 | 30-50 | 17 | 99 | 110 | ||
| M75×1.5 | G2 1/2 | 44 | 38-64 | 17 | 113 | 127 | ||
| M85×1.5 | G3S | 52 | 47-74 | 18 | 113 | 127 | ||
| M90×1.5 | G3 | 52 | 47-74 | 18 | 127 | 137 | ||
| M100×1.5 | G4S | 64 | 57-90 | 18 | 127 | 137 | ||
| M110×1.5 | G4 | 72 | 62-103 | 18 | 127 | 137 | ||
According the customer’s requirements the extended GL screws are available
