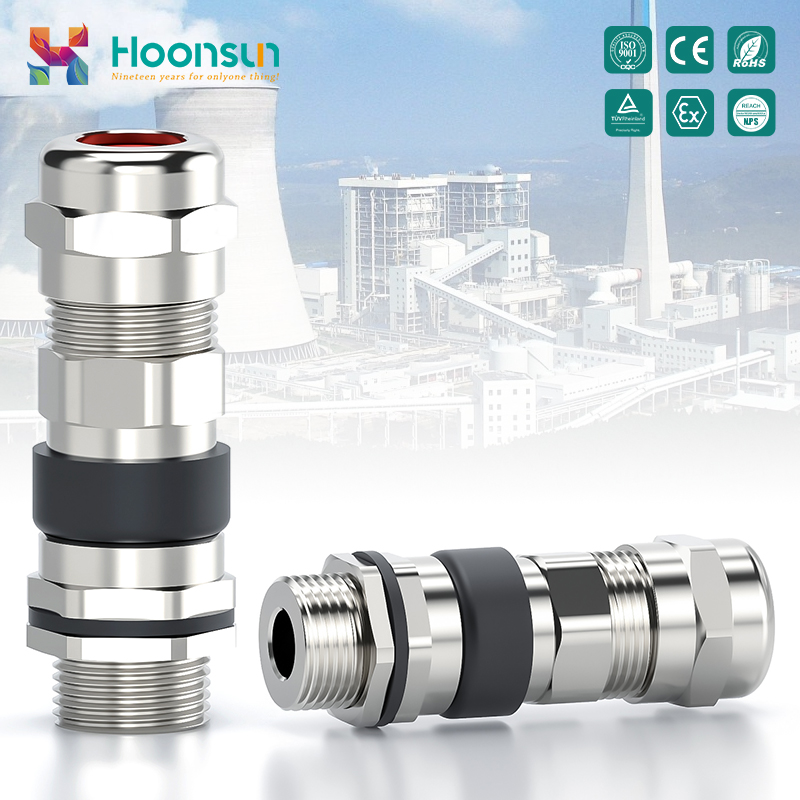

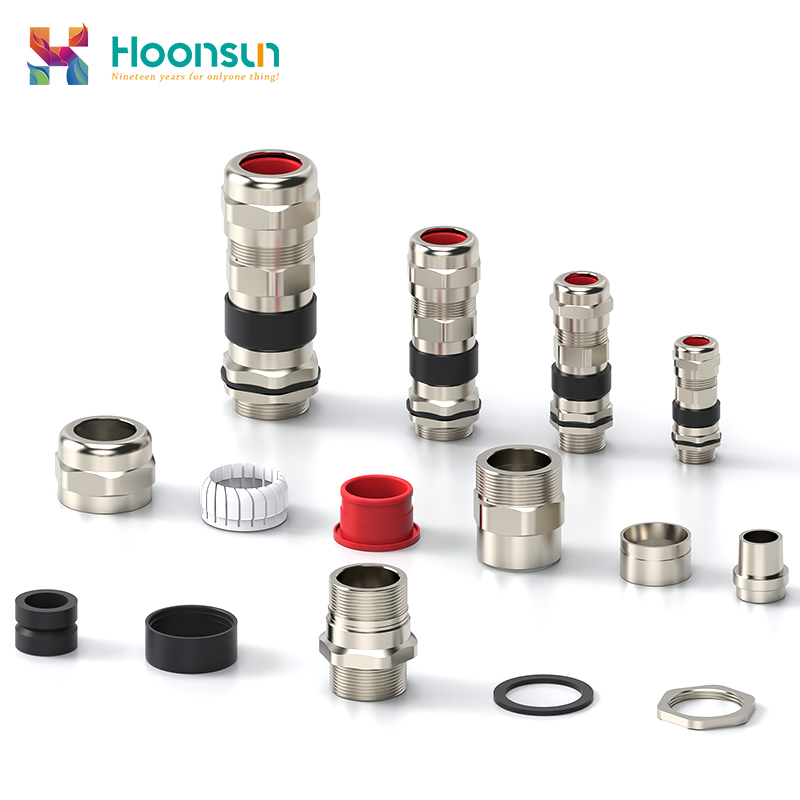

Double Seal Armored Cable Gland

Material:Brass/SS304/SS316L
Suface treatment:Nickel plating,Passivation
Sealing materials:silastic、Neoprene
Explosion-proot mark:Exd IIC Gb
Fireproof classification:UL94-V0
Protecyion grade:IP66-10bars
Ambinent temperature:Static from -60℃to100℃,short time 120℃
Dymamic from -20℃to80℃,short time 100℃

Inquiry Now >

VIDEO

video video

Dimension Drawing

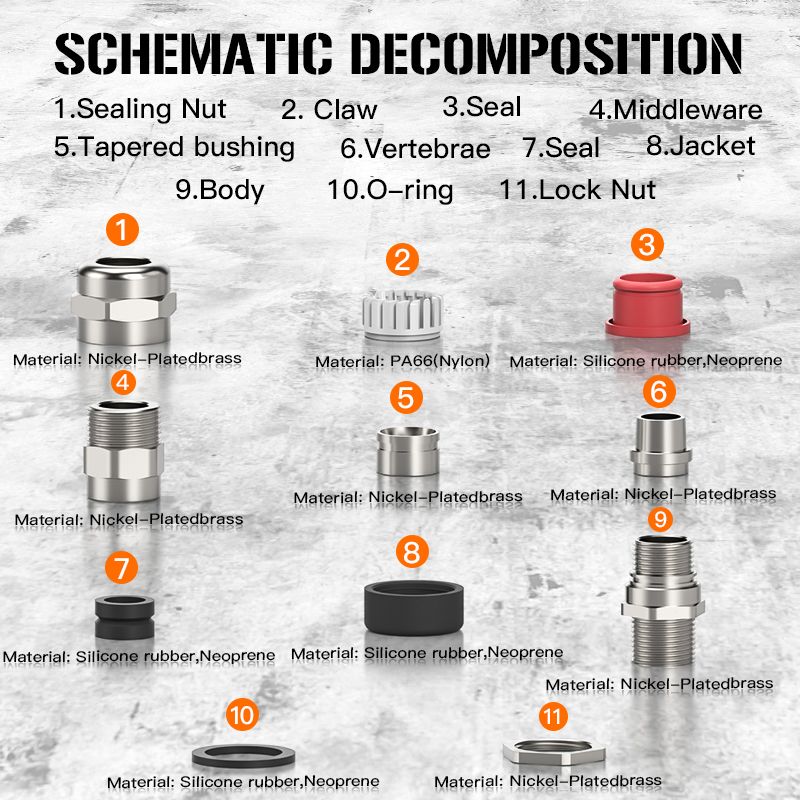

Double Seal Armored Cable Gland

Technical Parameter

Double Seal Armored Cable Gland Product Parameter

Double seal armored cable gland (steel pipe wiring) is used as a sealing joint for braided armored and steel tape armored cables in hazardous areas in Zone 1, Zone 2, Zone 21 and Zone 22, and provides explosion-proof sealing and waterproofing on the cable inner sheath Dust-proof and sealed, the cable gland provides mechanical support and continuity of the armored grounding through the cable armored end.

The detachable double seal armored cable gland’s armored cone is installed so that the cable gland can be installed indirectly, and the cables can be disconnected from the equipment, which is convenient for maintenance and replacement, and the operation of reconnecting them is also convenient and quick. At the same time, the pipe connection design of the clamping part can connect the metal pipe and the explosion-proof flexible pipe. Double seal armored cable gland is also equipped with a round sheath ring to meet flood protection.



Specifications              insert thread size(AG)  Cable acceptance detail maximum length  (H) GL          Six angle size
               Inner sheath/core line Cable outside dameter(B)
Metric NPT.G Corelinemaximum  inner innersheath  maximum core line  minimum maximum  Dirction 1  direction 2           on the edge   Diagonal
HX-EX-2-01o M20×1.5 1/2″ 9 10 6 5.5 12 0.9/1.25 0/0.7 65.5 15 24 27.7
HX-EX-2-01S M20×1.5 1/2″ 9 10 6 9.5 16 0.9/1.25 0/0.7 65.5 15 24 27.7
HX-EX-2-02 M20×1.5 1/2″-3/4″ 11.2 12.5 10 12.5 20.5 0.9/1.25 0/0.7 67.5 15 30 34.6
HX-EX-2-03 M25×1.5 3/4″-1″ 16.3 18.4 21 16.9 26 1.25/1.6 0/0.7 71.4 15 36 41.6
HX-EX-2-04 M32×1.5 1″-1 1/4″ 22 24.7 42 22 33 1.6/2.0 0/0.7 76 15 46 53.1
HX-EX-2-05 M40×1.5 1 1/4″-1 1/2″ 26.5 29.7 60 28 41 1.8/2.5 0/0.7 78.2 15 55 63.5
HX-EX-2-06 M50×1.5 1-1/2″-2″ 37.2 41.7 80 36 52.6 1.8/2.5 0/1 91 15 65 75.1
HX-EX-2-07 M63×1.5 2″-2 1/2″ 47.6 53.5 100 46 65.3 1.8/2.5 0/1 98 15 80 92.4
HX-EX-2-08 M75×2 2 1/2″-3″ 60 65.3/66.2 120 57 78 1.8/2.5 0/1 102.2 15 95 109.6

According the customer’s requirements the extended GL screws are available
