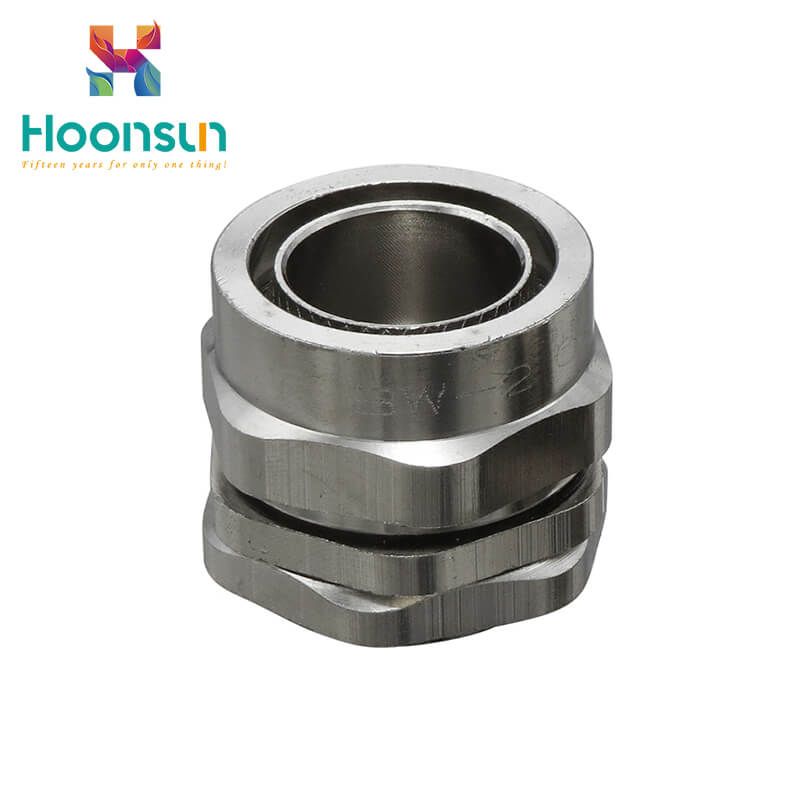

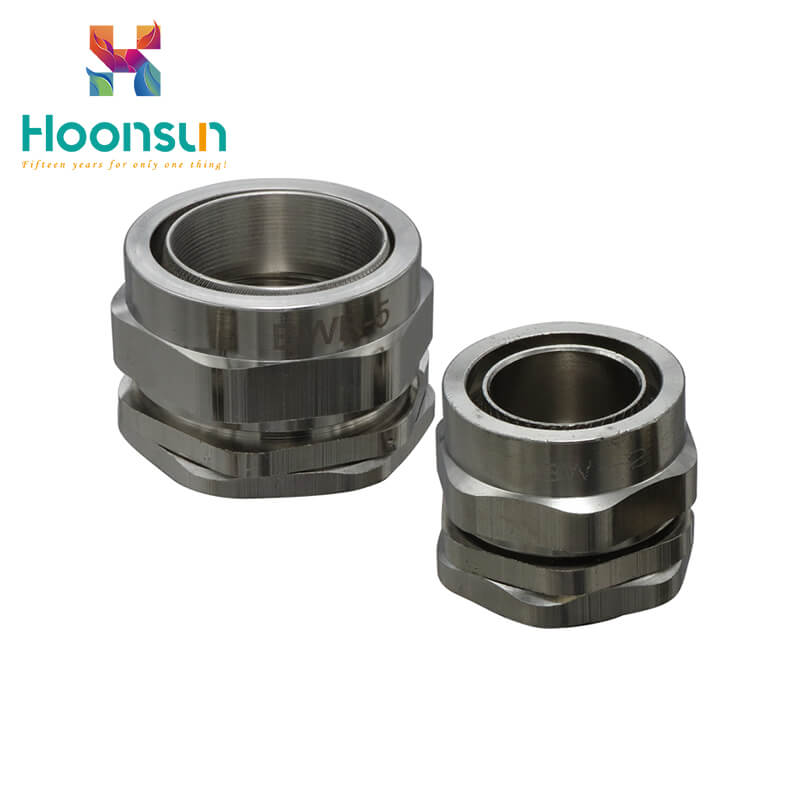

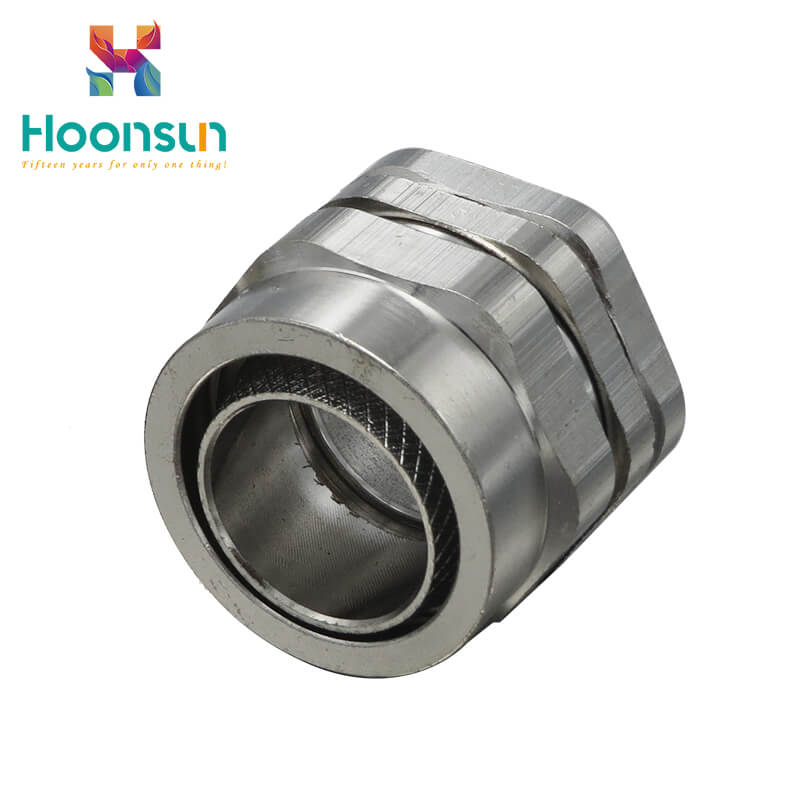

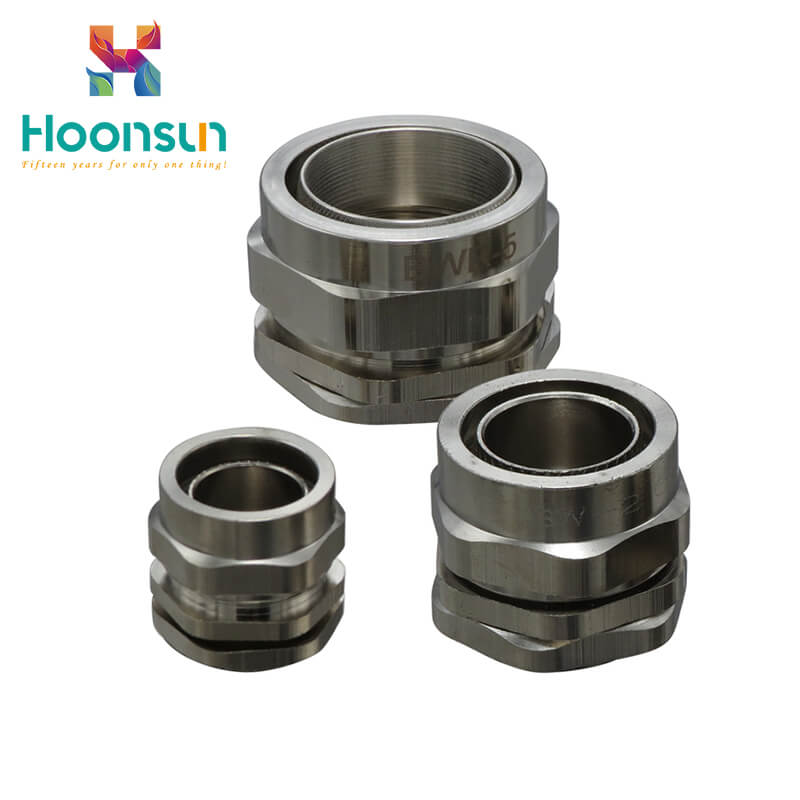

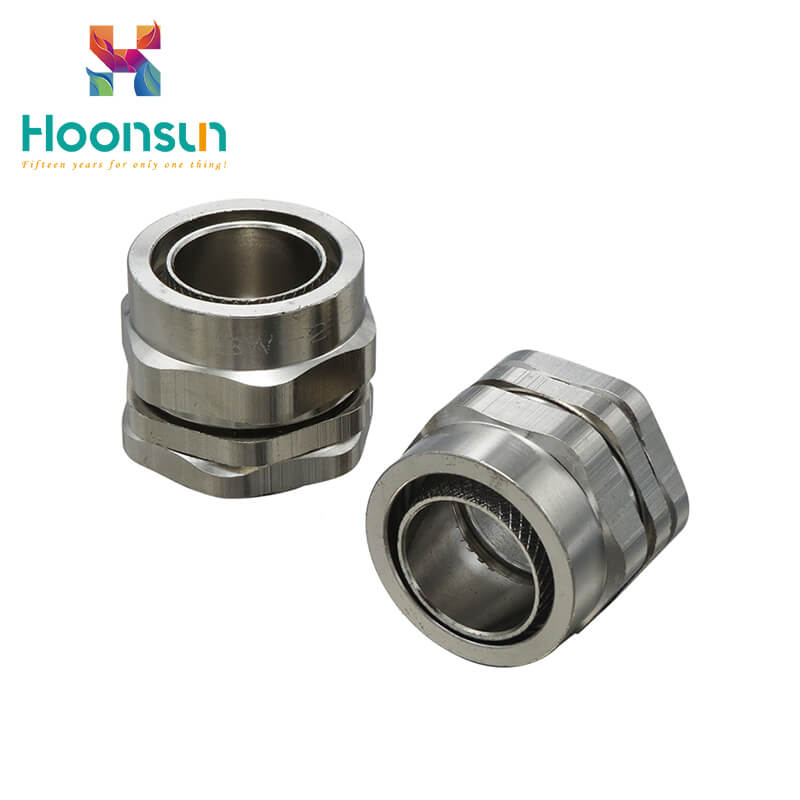

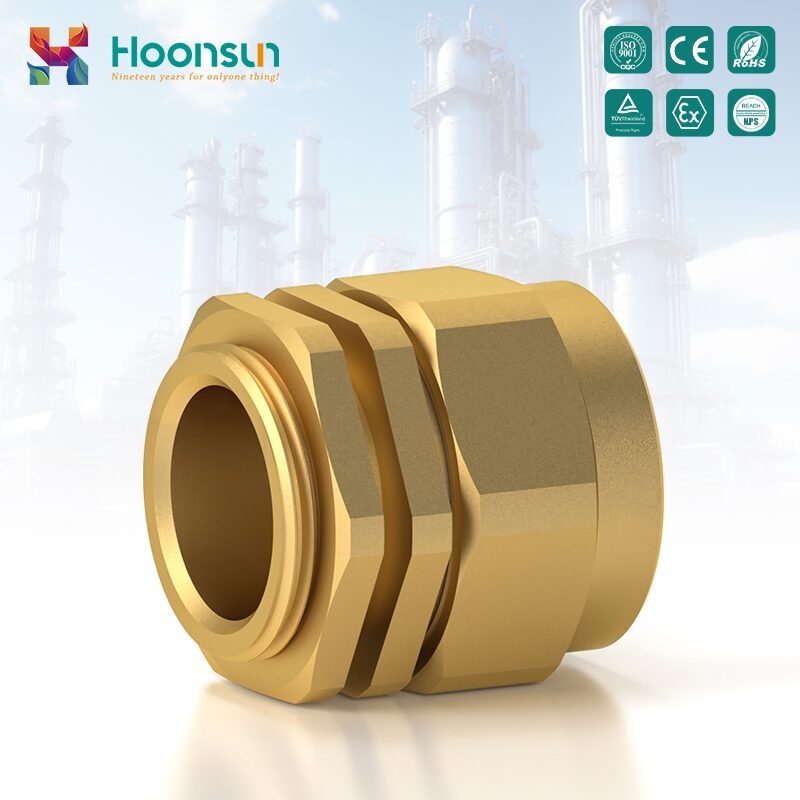

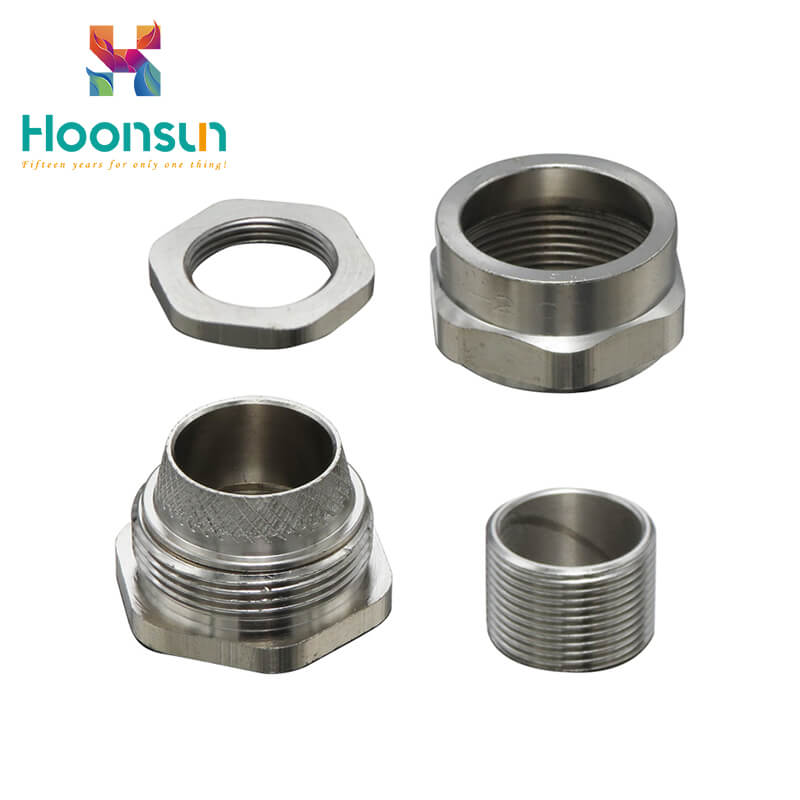

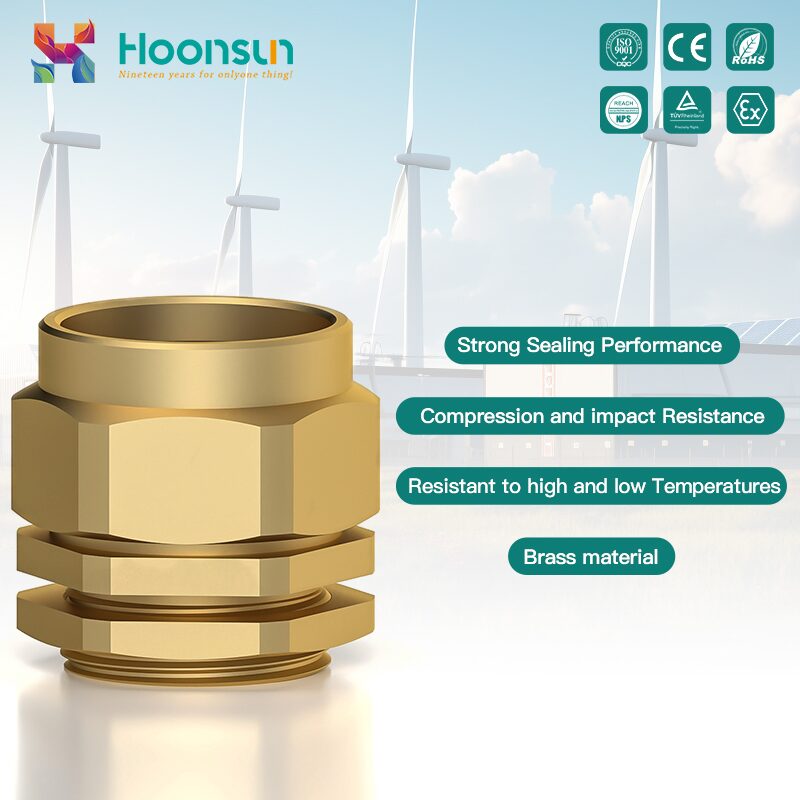

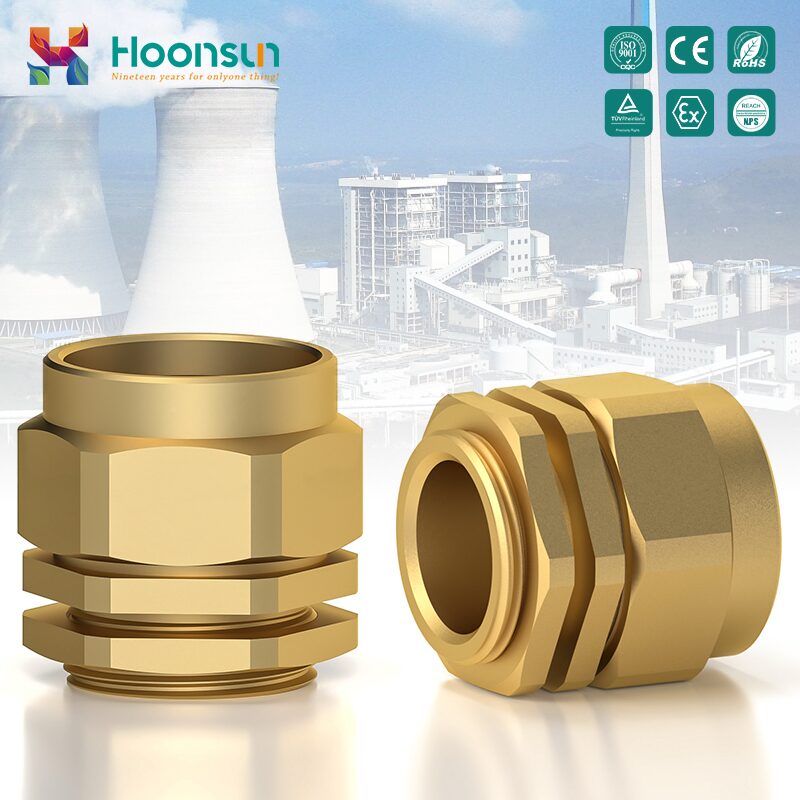

BW Series Cable Gland
Material：Nickel-plated brass
Protection degree：IP68-10 bra
Temperature：Static state：-40℃ to 100℃,short time to 120℃
Dynamic state：-20℃ to 80℃, short time to 100℃
Products
VIDEO
Dimension Drawing
Technical Parameter
BW Series Cable Gland Product Introduction
Application scenario
BW Series Cable Gland is suitable for all plastic or rubber insulated single-core armored cables used in indoor or outdoor applications. If used in indoor applications, the internal and external sealing of weather resistance characteristics is not required.
Features
BW Series Cable Gland can seal the inner sheath and outer sheath of the cable, and maintain the mechanical retention of the cable and the continuity of power transmission by cutting the armored wire, and the armored clamp can maintain the armored cable and cable joint Electrical connection.
| Item | Thread | Range | GL mm |
Thread O.D. mm |
Joint Length mm |
Spanner size mm |
Code | |
| Min. | Max. | |||||||
| BW-0 | M20×1.5 | 12.6 | 16.5 | 10 | 20 | 23 | 22 | HX-BW0 |
| BW-1 | M20×1.5 | 15.9 | 19.0 | 10 | 20 | 26 | 27/25/24 | HX-BW1 |
| BW-2 | M25×1.5 | 20.6 | 26.5 | 10 | 25 | 29 | 35 | HX-BW2 |
| BW-3 | M32×1.5 | 26.5 | 33.0 | 10 | 32 | 32 | 40 | HX-BW3 |
| BW-4 | M40×1.5 | 34.9 | 40.5 | 15 | 40 | 36 | 50 | HX-BW4 |
| BW-5 | M50×1.5 | 44.5 | 51.0 | 15 | 50 | 45 | 64 | HX-BW5 |
| BW-6 | M63×1.5 | 57.0 | 67.0 | 15 | 63 | 50 | 82 | HX-BW6 |
| BW-7 | M75×2 | 68.0 | 79.5 | 15 | 75 | 60 | 96 | HX-BW7 |
| BW-8 | M82×2 | 74.0 | 83.0 | 15 | 82 | 65 | 100 | HX-BW8 |
| BW-9 | M90×2 | 82.0 | 91.0 | 15 | 90 | 69 | 110 | HX-BW9 |
| BW-10 | M100×2 | 93.0 | 100.0 | 15 | 100 | 88 | 120 | HX-BW10 |
