Effective Pathway: DN03~05
Product Material: Option of aluminium alloy or 316L stainless steel
Sealing Material: Standard material: EPDM, optional upgrades include FVMO and others
Operating Pressure: 16bar
Burst Pressure: 64bar

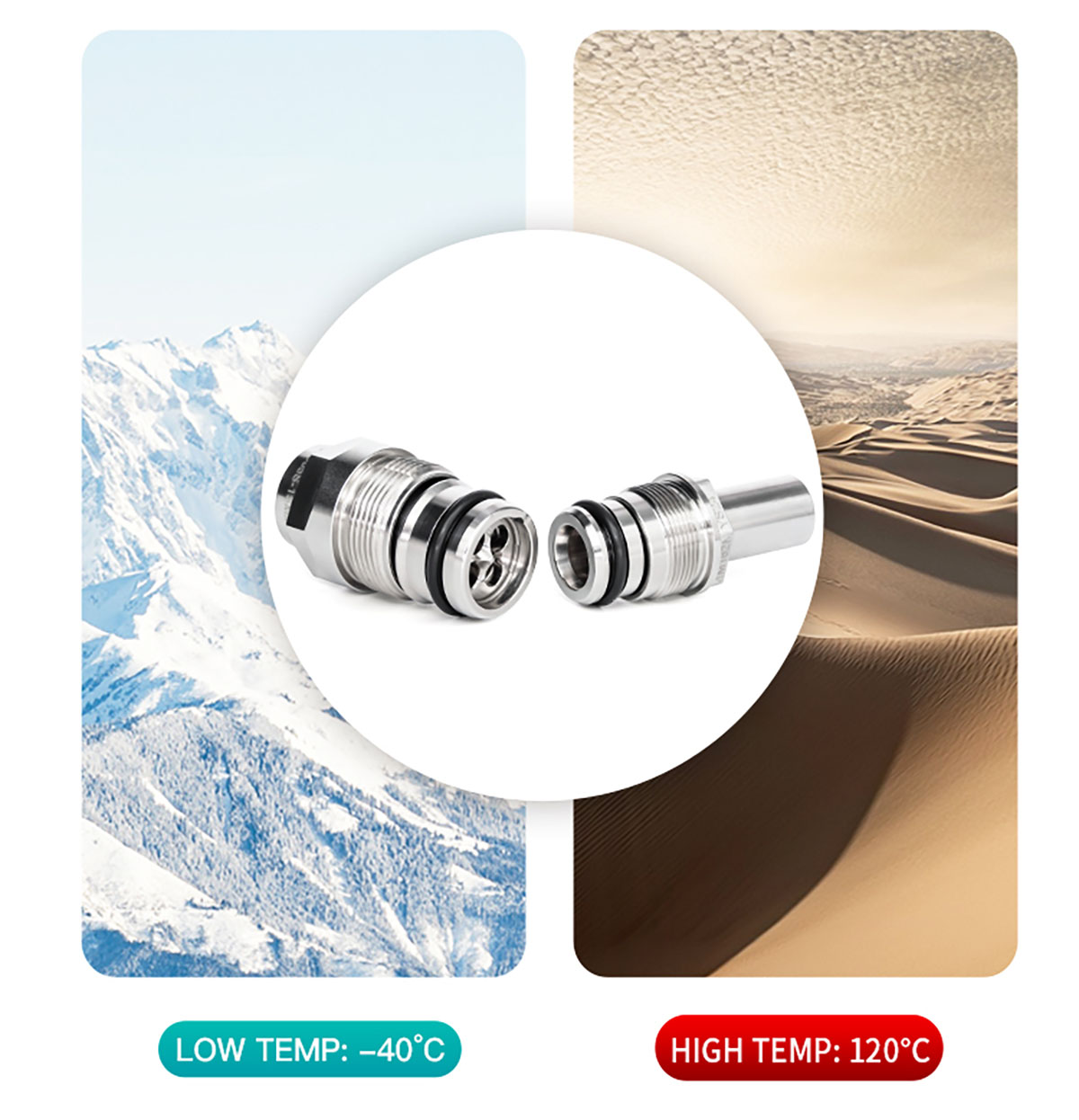

Temperature Resistance: -40℃~+120℃
Compatible Media: Deionised water, purified water, ethylene glycol water, propylene glycol water, and fluorinated fluid

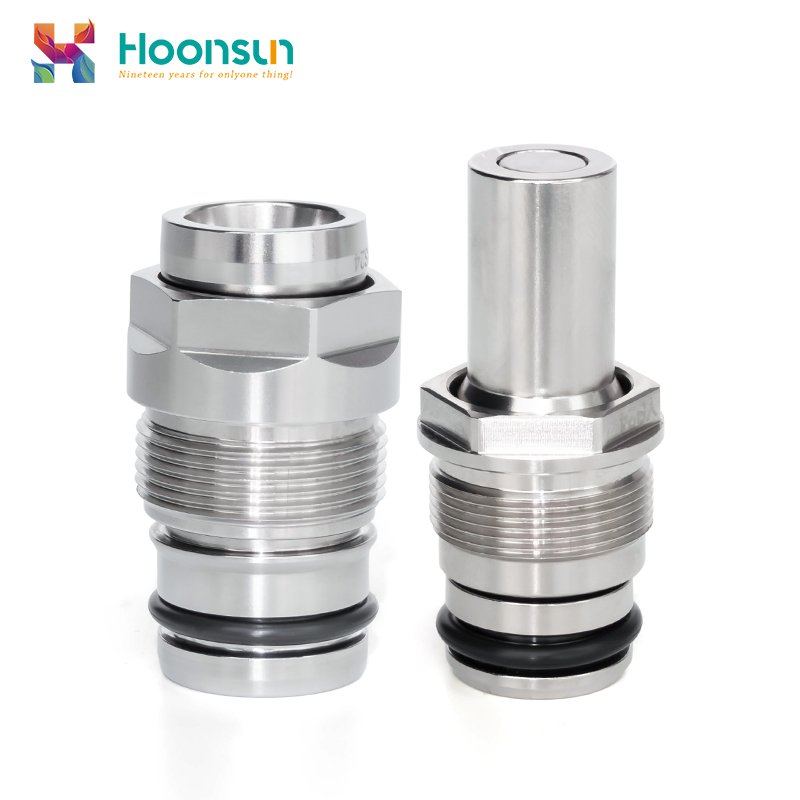

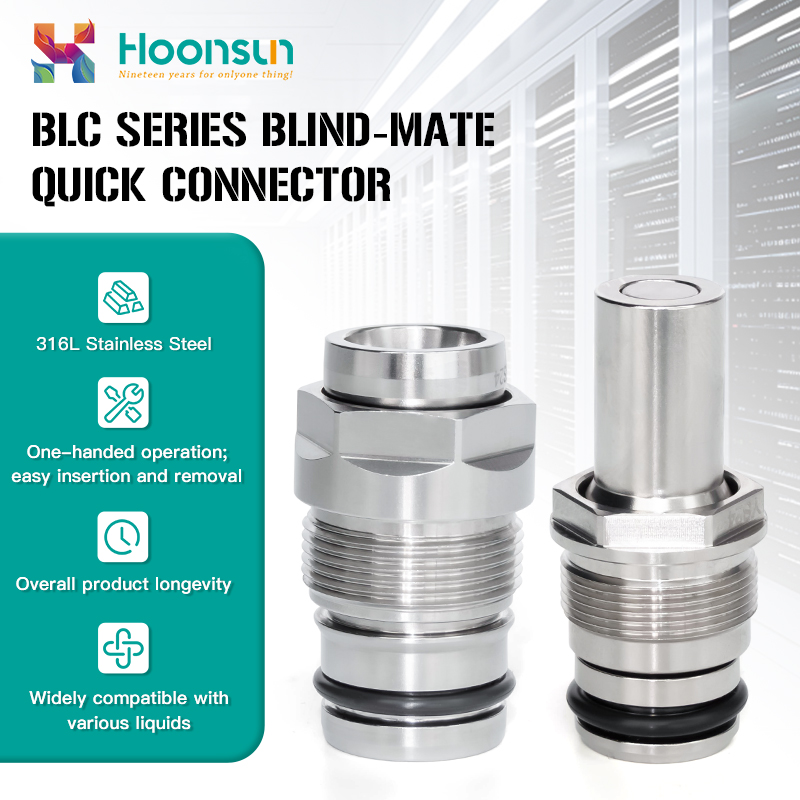

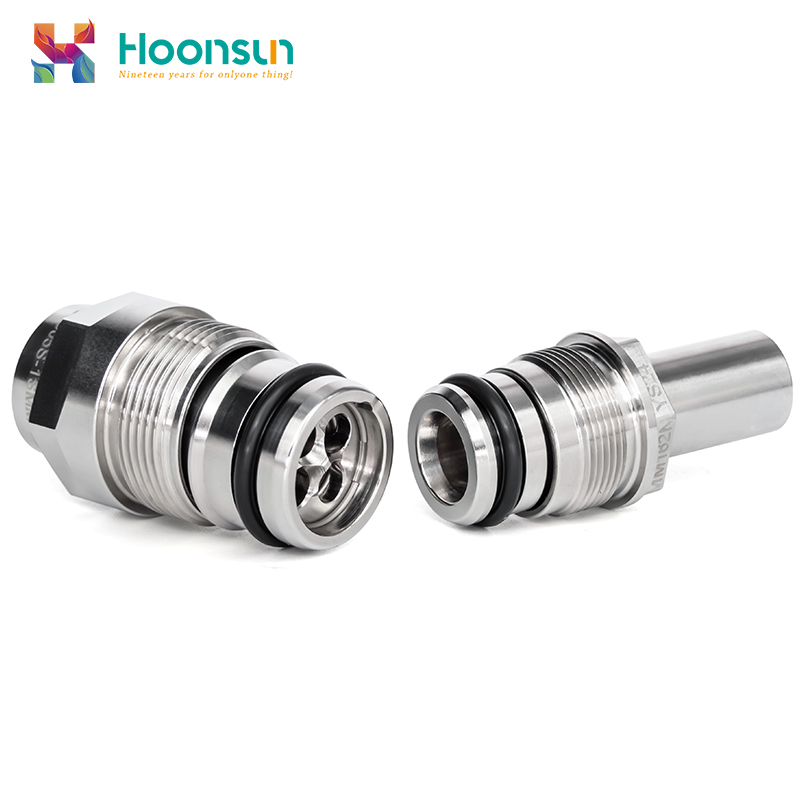

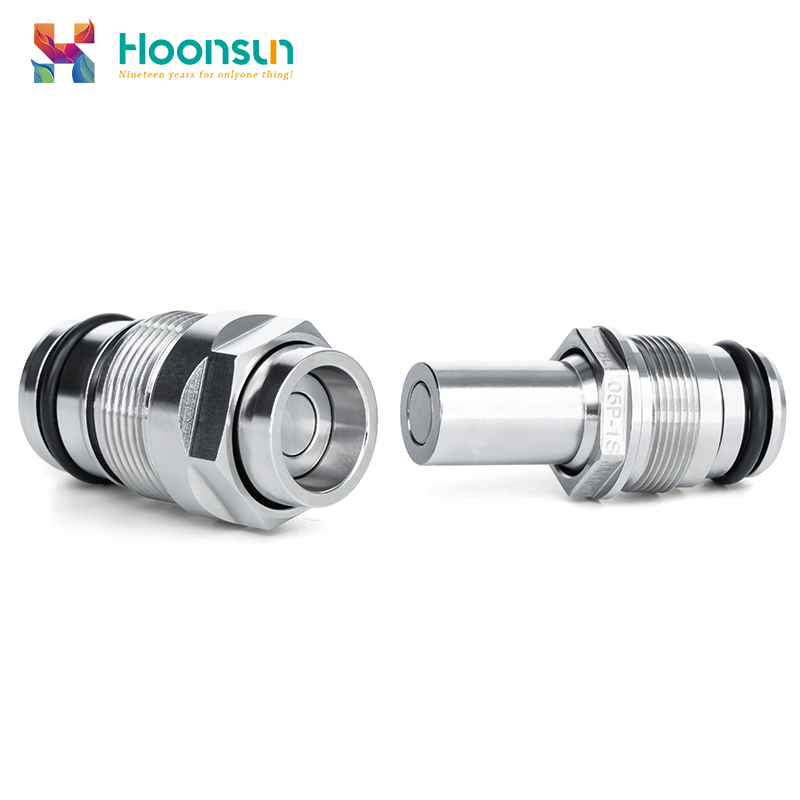

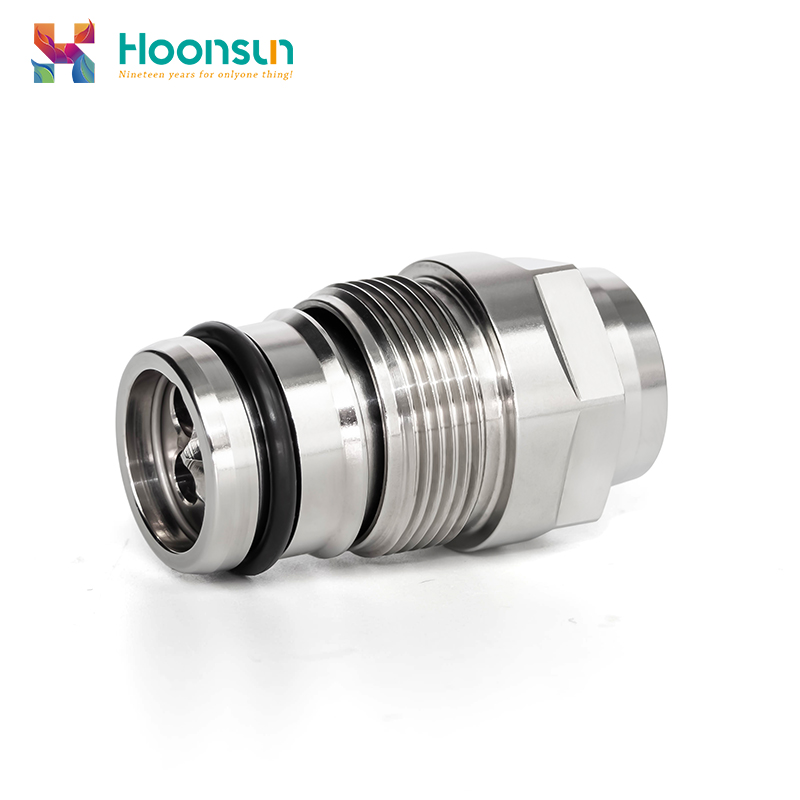

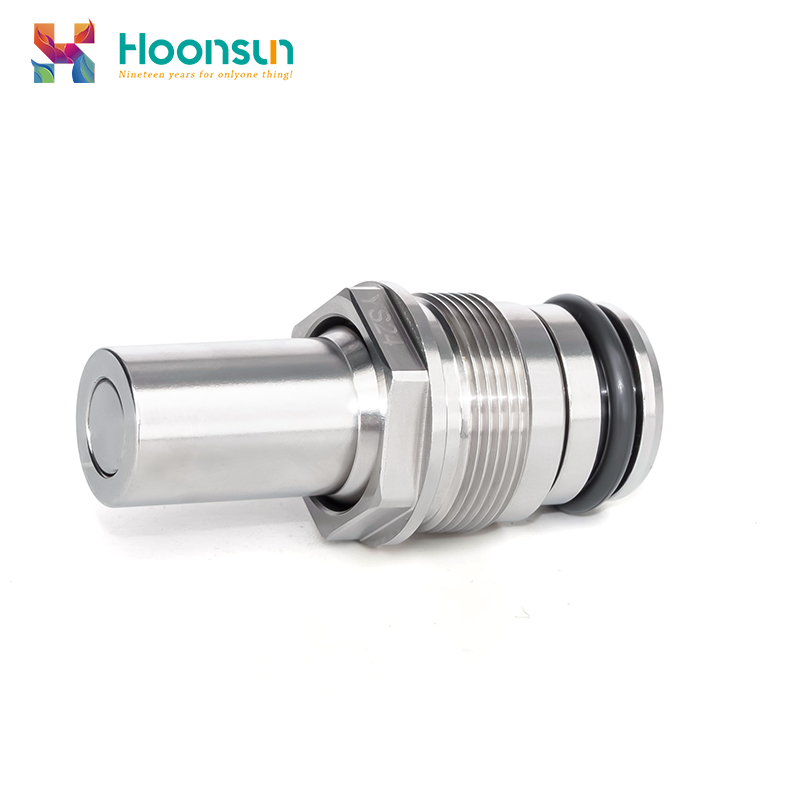

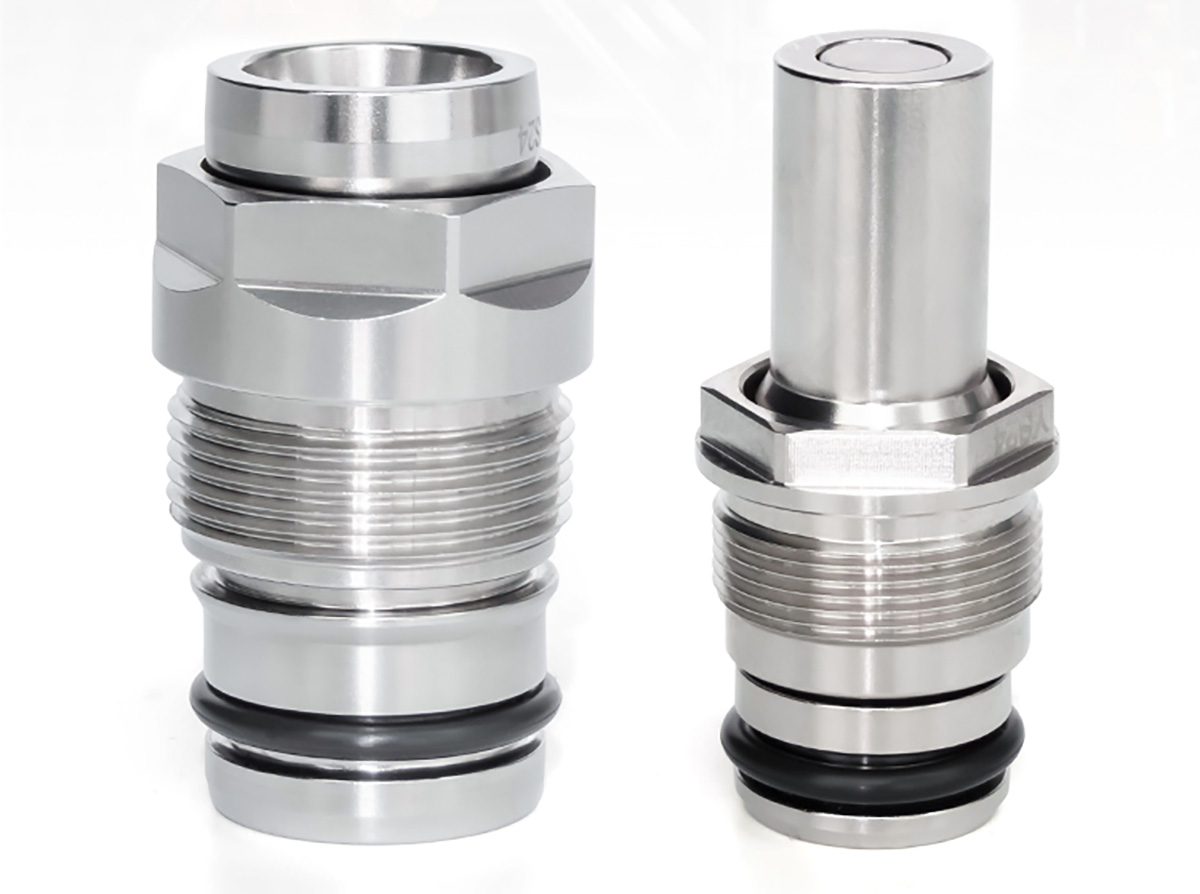

The HOONSUN BLC Series Liquid Cooling Connector with UL Certification is a high-performance component designed for reliable liquid cooling systems. Engineered from high-temperature and corrosion-resistant materials, this connector ensures stable operation under high pressure and extreme temperatures.
It provides secure and leak-proof connections for transferring coolant, preventing overheating and protecting critical equipment. With excellent sealing performance, pressure resistance, and long-term durability, the BLC series is ideal for various cooling applications.
| BLCO3 socket, DN03, aluminium alloy body, EPDM seal | ||||||
| Dimensions | Connection size F | A | D | L1 | L | S |
 |
M10X0.75 External thread | N/A | ∅11 | N/A | 23 | 10 |
 |
M10X0.75 External thread | N/A | ∅11.5 | N/A | 23.4 | 10 |

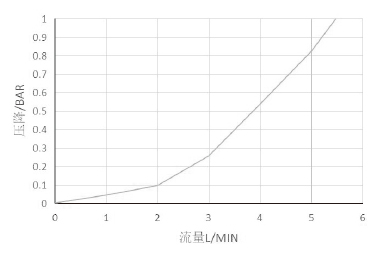

| Traffic Curve | ||||||
| Test Conditions:
Plug into the socket Liquid medium: Water |
 |
|||||
| BLC05 socket, DN05, aluminium alloy body, EPDM seal | ||||||
| Dimensions | Connection size F | A | D | L1 | L | S |
 |
M10X0.75 External thread | N/A | ∅11 | N/A | 23 | 10 |
 |
M10X0.75 External thread | N/A | ∅11.5 | N/A | 23.4 | 10 |

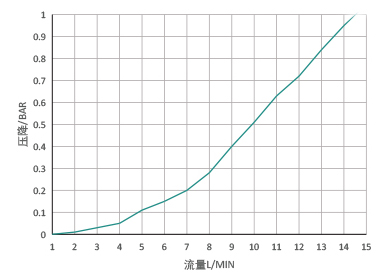

| Traffic Curve | ||||||
| Test Conditions:
Plug into the socket Liquid medium: Water |
 |
|||||
| BLC05 socket, DN05, 316L stainless steel body, EPDM seal | ||||||
| Dimensions | Connection size F | A | D | L1 | L | S |
 |
M19X1 External thread | N/A | ∅20.5 | 20.1 | 35.1 | 18 |
 |
M16X0.75 External thread | N/A | ∅17.5 | 17 | 37.6 | 15 |

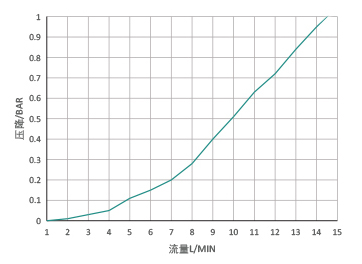

| Traffic Curve | ||||||
| Test Conditions:
Plug into the socket Liquid medium: Water |
 |
|||||
| BLCO8 socket, DN08, aluminium alloy body, EPDM seal | ||||||
| Dimensions | Connection size F | A | D | L1 | L | S |
 |
M21X1 External thread | N/A | ∅26.5 | 21.4 | 37.9 | 24 |
 |
M22X1 External thread | N/A | ∅23.5 | 17 | 38.5 | 21 |

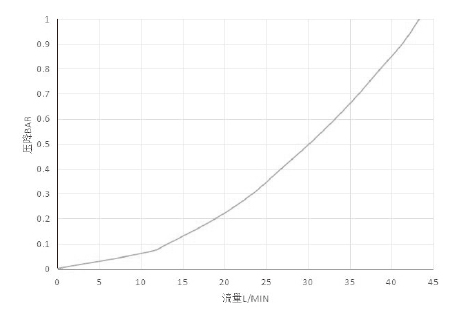

| Traffic Curve | ||||||
| Test Conditions:
Plug into the socket Liquid medium: Water |
 |
|||||

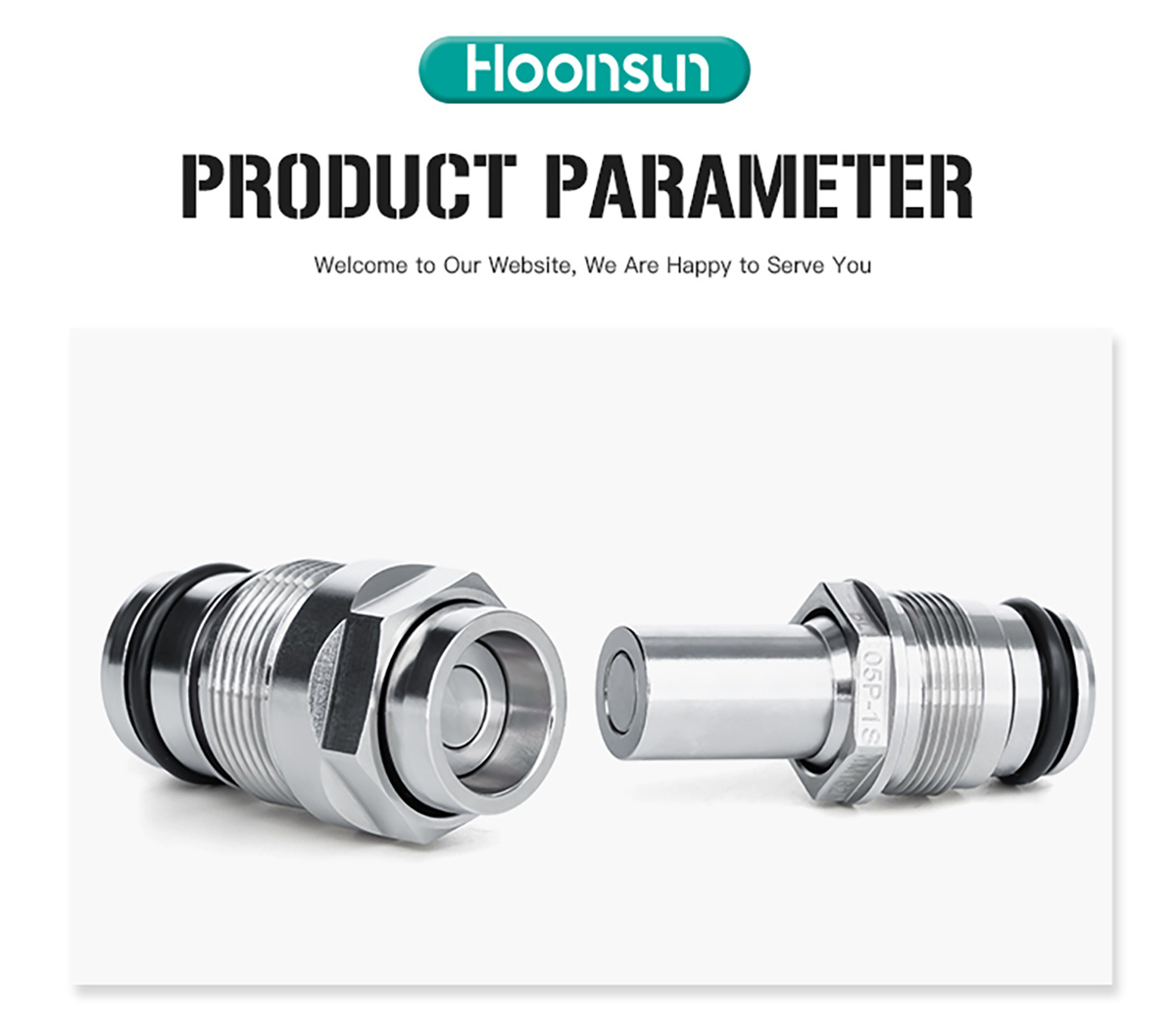

| Effective Pathway: | DN03~05 |
| Product Material: | Option of aluminium alloy or 316L stainless steel |
| Sealing Material: | Standard material: EPDM, optional upgrades include FVMO and others |
| Operating Pressure: | 16bar |
| Burst Pressure: | 64bar |
| Temperature Resistance: | -40℃~+120℃ |
| Compatible Media: | Deionised water, purified water, ethylene glycol water, propylene glycol water, and fluorinated fluid |
It is widely used in mechanical automation, new energy vehicles, wind power energy storage, electronic communications, marine and aviation, nuclear power plants, and various other scenarios

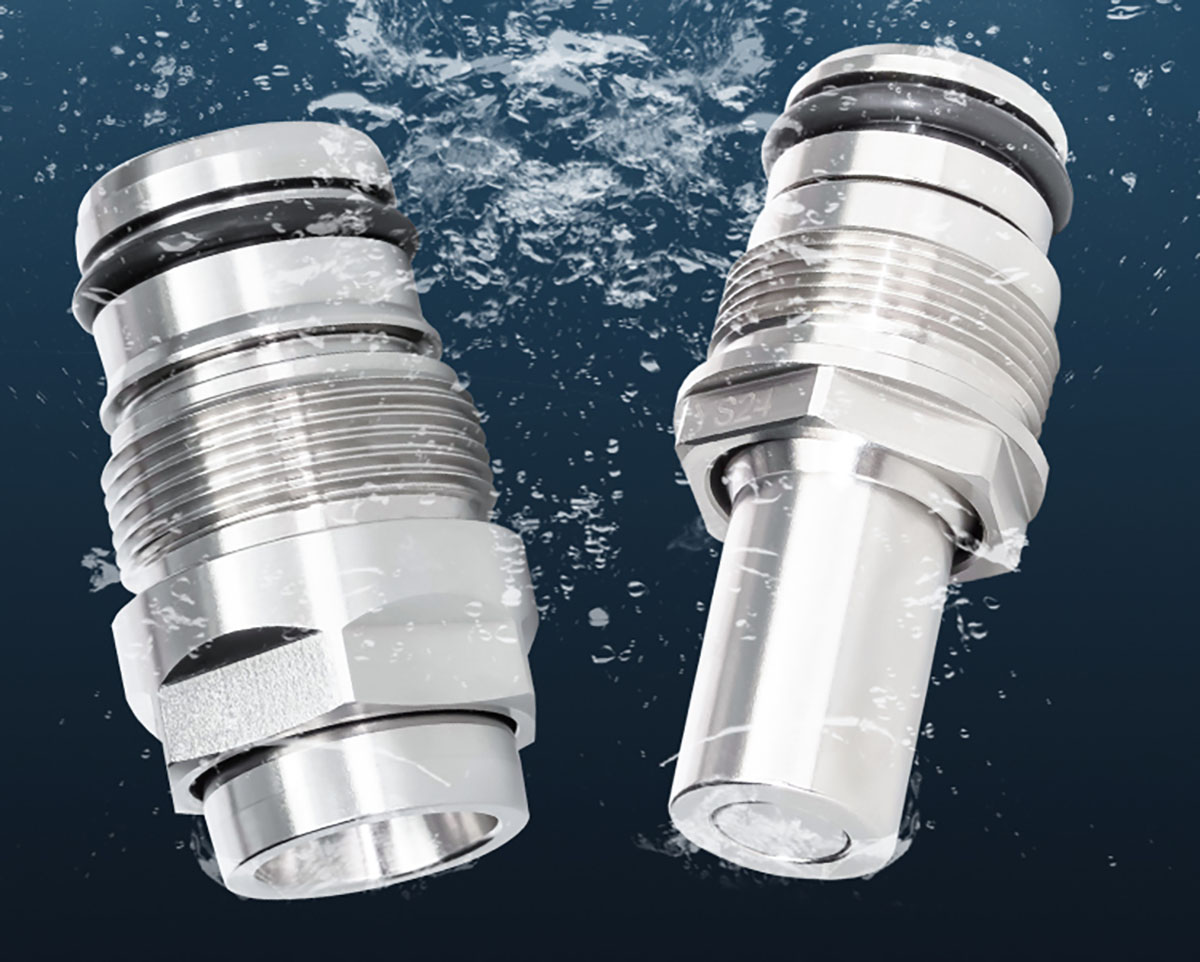

Liquid cooling quick connectors enable plug-and-play efficiency with leak-proof sealing, high-pressure resistance, corrosion-resistant construction, long service life, and multi-coolant compatibility.
It can be dust-proof, salt-proof, acid-alkaline, alcohol-grease and general solvent, suitable for outdoor harsh environments Plug and play, convenient and fast.
