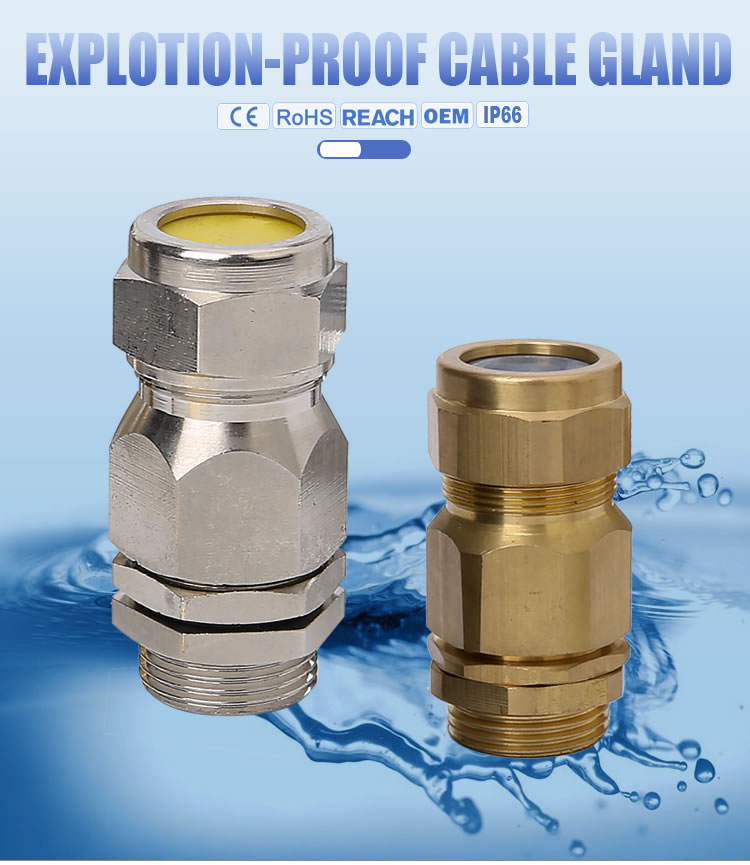

2018 New Products Explosion-proof Brass Cable Gland From Hoonsun
Model : HX-EX
Code : 8538900000
Material : Brass SS304 SS316

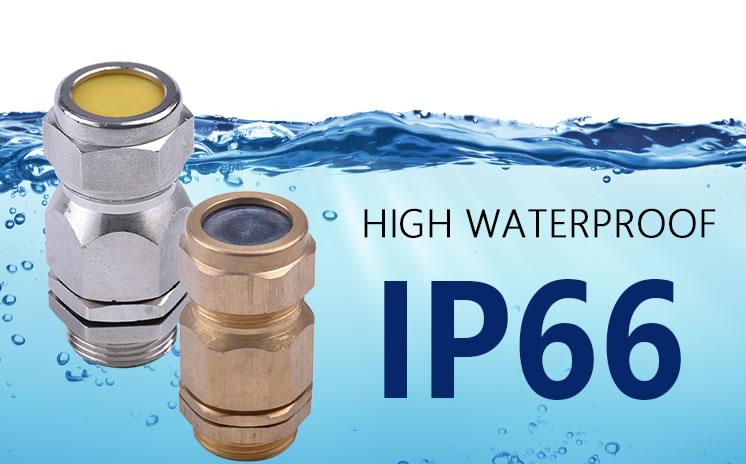

Protecion degree : IP68-10 bar
Size : M16-M110
Products
Inquiry Now >
VIDEO
Dimension Drawing
Technical Parameter
Explosion-proof Cable Clamp Sealing Goint Product Parameter

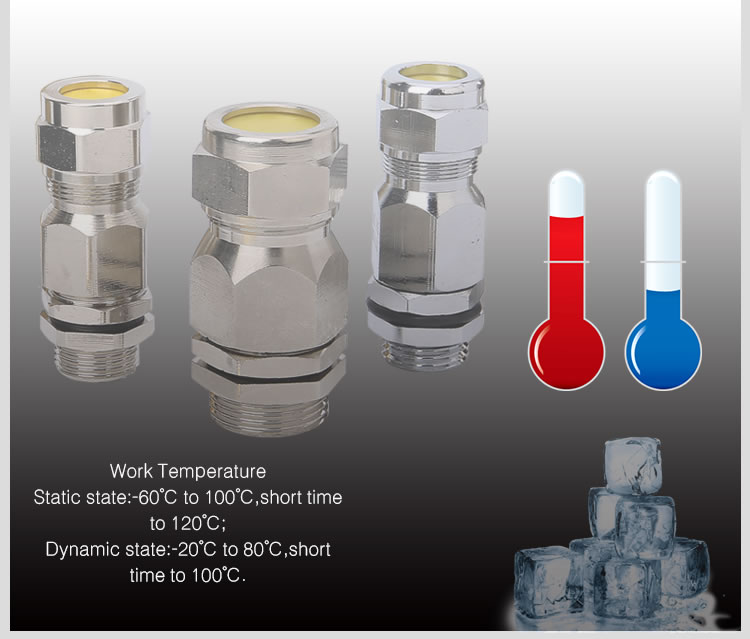

Applicable environment
Applicable to A, BⅡ, Ⅱ, C explosive gas environment. It is also suitable for explosive and dangerous environments such as petroleum exploration, storage, chemical industry, medicine, military and military facilities. As a supporting accessory for explosion-proof electrical equipment, it is suitable for clamping various armored non-armored cables.
Features
It is made of high-quality stainless steel or carbon steel, and different specifications of cable joints can meet different installation requirements. Suitable for the shell of the flameproof cavity as a cable entry device.
Thread specifications can be customized according to user requirements, such as non-standard thread, thread length is extended.
| Metric Thread M) |
lnch Thread (G) |
outer diameter cable | L1 Thread length |
L Length mm |
EX-mark | Protection degree |
Code | |
| outgoing lineA |
lncoming line B |
|||||||
| M16×1.5 | 一 | 5—8 | 7—15 | 15 | 75 | Exd IIC Gb | IP66 | HX-CW-“Itme” |
| M20×1.5 | G1/2 | 5—12 | 8—15 | 15 | 75 | |||
| M25×1.5 | G3/4 | 8—17 | 11—20 | 15 | 80 | |||
| M32x1.5 | G1 | 11—22 | 14—27 | 17 | 88 | |||
| M40×15 | G1 1/4 | 14—28 | 19—33 | 17 | 123 | |||
| M50×1.5 | G1 1/2 | 16—33 | 22—40 | 17 | 123 | |||
| M63×1.5 | G2 | 29—43 | 29—50 | 17 | 123 | |||
| M75×1.5 | G2 1/2 | 38—57 | 35—63 | 17 | 142 | |||
| M85×15 | G3S | 38—72 | 41—77 | 18 | 144 | |||
| M90×1.5 | G3 | 38—72 | 41—77 | 18 | 161 | |||
| M100×1.5 | G4S | 48—83 | 55—90 | 18 | 161 | |||
| M110×1.5 | G4 | 48—94 | 61—104 | 18 | 166 | |||
| Customizaion:Accept lengthen GL thread | ||||||||
According the customer’s requirements the extended GL screws are available
