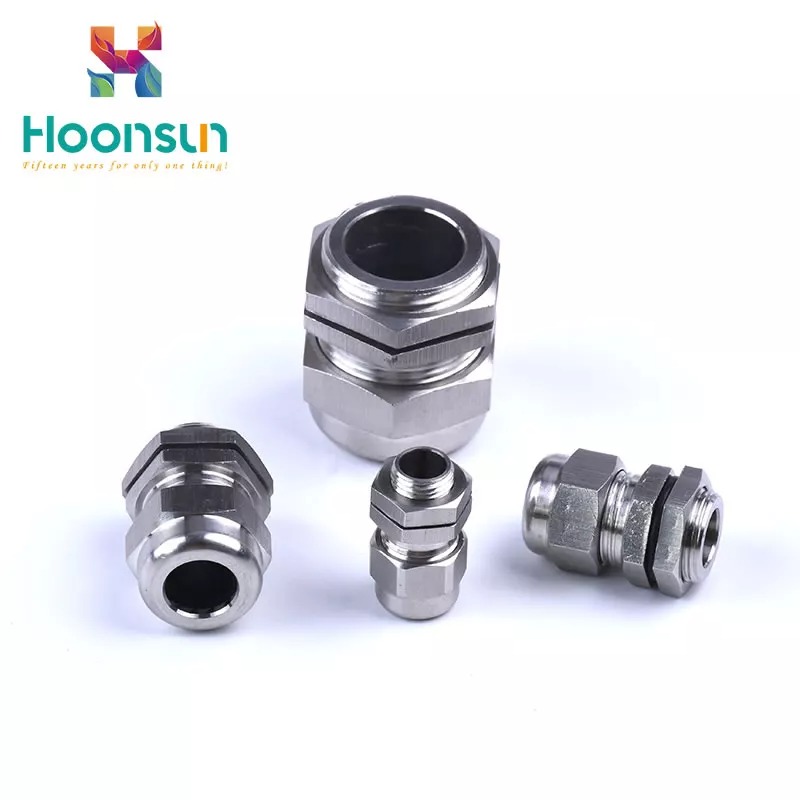

Top Quality Waterproof Ip68 Stainless Steel Cable Gland Size

Model: HX-SS

Code: 8538900000

Thread type: Stainless steel SS304

Size: M8-M72 PG7-PG63 G1/4-G3 NPT1/4-NPT3

Specification of thread: Metric, PG, G, NPT

Approvals: CE, ROHS, REACH

Hermetic seal: NBR, Silicone rubber

O-Ring: NBR, Silicone rubber

Inquiry Now >

VIDEO

video video

Dimension Drawing

Top Quality Waterproof Ip68 Stainless Steel Cable Gland Size

Top Quality Waterproof Ip68 Stainless Steel Cable Gland Size

Top Quality Waterproof Ip68 Stainless Steel Cable Gland Size

Technical Parameter

Thread Type :M

ltem Range
(mm)
GL
Thread Length
(mm)
AG
Thread o.D.
(mm)
H
Joint Length
(mm)
Spanner size
(mm)
Code
MBx1 2.5 5 8 12 16 Hx-SSMB
M10×1 2-5 7 10 14 19 Hx-SSM10-5
3.6.5 7 10 14 19 Hx-SSM10
M12×1.5 2-5 7 12 14 19 HX-SSM12-5
3-6.5 7 12 14 19 Hx-SSM12
4-8 8 12 17/14 19 Hx-SSM12-8
M14×1.5 3-6 8 14 17 19 Hx-SSM14-6
4-8 8 14 17 19 HX-SSM14
M16×1.5 3-6 8 16 18 20 HX-SSM166
4-8 8 16 18 20 HX-SSM16
5-10 8 16 20/18 21 Hx-SSM16-10
M18×1.5 3.7 8 18 20/21 21 Hx-SSM18-7
5-10 8 18 20/21 21 HX-SSM18
6-12 8 18 22/20 22 HX-SSM18-12
M201.5 5-10 8 20 22 22 Hx-SSM20-10
6-12 8 20 22 22 HX-SSM2o
10-14 8 20 24/22 23 HX-SSM20-12
M22×1.5 8-12 8 22 24 23 HX-SSM22-12
10-14 8 22 24 23 HX-SSM22
12-16 8 2 27/24 23 HX-SSM22-16
M24×1.5 8-12 g 24 24/27 25 HX-SSM24-12
10-14 9 24 24/27 25 HX-SSM4
12-16 9 24 27 27 HX-SSM24-16
M25*1.5 8-12 9 25 24/27 25 HX-SSM512
10-14 9 25 24/27 27 HX-SSM5-14
12-16 9 25 27 27 HX-SSM5-16
13-18 g 25 30/27 27 HX-SSM25-18
M27×1.5 13-18 9 27 30 27 HX-SSM27
M30×1.5 13-18 9 30 30/32 29 HX-SSM3o
15-22 9 30 35/32 29 HX-SSM30-22
MG2×1.5 13-18 10 32 35 29 HX-SSM32-18
15-22 10 32 35 29 HX-SSM32
18-25 10 32 40/35 31 HX-SSM32-25
M33×2 15-22 10 33 35/36 29 HX-SSM33
M36×1.5 13-18 10 36 40 31 HX-SSM36-18
15-22 10 36 40 31 HX-SSMo6-22
18-25 10 36 40 31 HX-SSM36
M0×1.5 18-25 11 40 40/45 31 HX-SSM40-25
22-30 11 40 45 35 HX-SSM40-30
25-33 11 40 50/45 37 HX-SSM40-33
M71.5
M8×2
25-33 11 47 50 37 HX-SSM7
25-33 11 48 50/52 37 HX-SSM8
M50×1.5 30-35 12 50 57/55 37 HX-SSM50-35
32-38 12 50 57/55 37 HX-SSM50
37-44 13 50 64/55 38 HX-SSM50-44
MB0×1.5 37-44 13 60 65 38 HX-SSM0
MB3×1.5 37-44 13 63 64/68 38 HX-SSM83
42-52 13 63 78/68 42 HX-SSM3-52
MB4×2 37-44 13 64 64/68 38 HX-SSM54
42-52 13 64 76/68 42 HX-SSM34-52
M72×2 42-52 15 72 76/80 42 HX-SSM72
48-58 15 72 76/80 45 HX-SSM72-58



Thread Type :PG

Item Range
(mm)
GL
Thread Length
(mm)
Thread o.D.
(mm)
H
Joint Length
(mm)
spanner size
(mm)
Code
PG7 3-6.5 7 12.5 19.0 14/15 HX-SSPG7
PG9 4-8 8 15.2 20.0 17/18 Hx-SSPG9
PG11 5-10 8 18.6 21.0 20/21 HX-SSPG11
PG13.5 6-12 8 20.4 22.0 22/23 HX-SSPG13.5
PG16 10-14 8 22.5 23.0 24/25 HX-SSPG16
PG21 13-18 9 28.3 27.0 30 HX-SSPG21
PG29 18-25 10 37.0 31.0 40 HX-SSPG29
PG36 25-33 11 47.0 37.0 5o HX-SSPG36
PG42 32-38 13 54.0 38.0 60 HX-SSPG42
PG48 37-44 14 59.3 38.0 65 HX-SSPG48
PG63 42-52 16 72.0 42.0 76/80 HX-SSPG63



Thread Type :G/NPT

ltem Range
(mm)
GL
Thread Length
(mm)
AG
Thread o.D.
(mm)
H
Joint Length
(mm)
Spanner size
(mm)
Code
G1/4 3-6.5 7 19 13.1 14 HX-SSG114
G3/8 4-8 8 21 16.6 17/20 HX-SSG3/8
G1/2 6-12 8 22 20.9 22/23 HX-SSG1/2
G3/4 13-18 9 25 26.4 30 HX-SSG3/4
G1 18-25 10 29 32.2 40 HX-SSG1/2
G1-1/4 25-33 11 35 41.9 50 HX-NPG1-1/4
G1-1/2 32-38 12 37 47.8 57/55 HX-NPG1-12
G2 37-44 14 38 59.6 65 HX-NPG2
G2-1/2 42-52 16 42 75.1 78 HX-NPG2-1/2
3 65-70 18 45 88 94 HX-NPG3
NPT Thread
NPT114 3-6.5 11 19 13.6 14 HX-SSNPT114
NPT3/8 4-8 11 21 17.0 17/20 HX-SSNPT3/8
NPT1/2 6-12 13 23.5 21.2 22/24 HX-SSNPT1/2
NPT3/4 13-18 13 26 26.5 30 HX-SSNPT3/4
NPT1 18-25 16 33 33.2 40 HX-SSNPT1
NPT1-114 22-32 16 37.5 41.9 50 HX-SSNPT1 1/4
NPT1-1/2 30-38 18 38.5 48.0 55/58 HX-SSNPT1 12
NPT2 37-44 18 40 60.0 65 HX-SSNPT2
NPT2-1/2 42-52 18 40 72.6 77 HX-SSNPT2-1/2
NPT3 55-61 18 41 88.6 94 HX-SSNPT3
