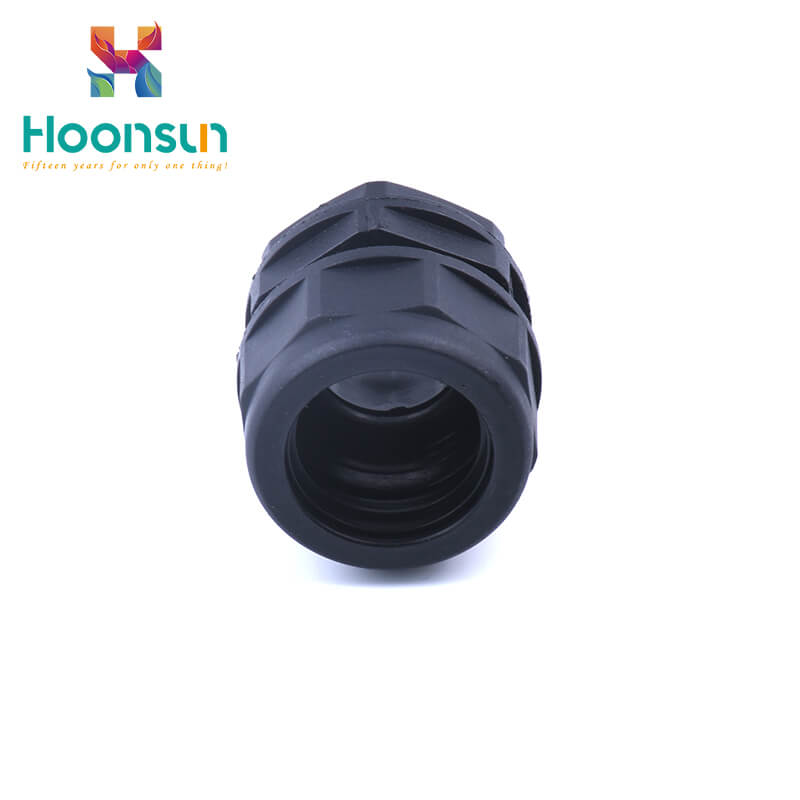

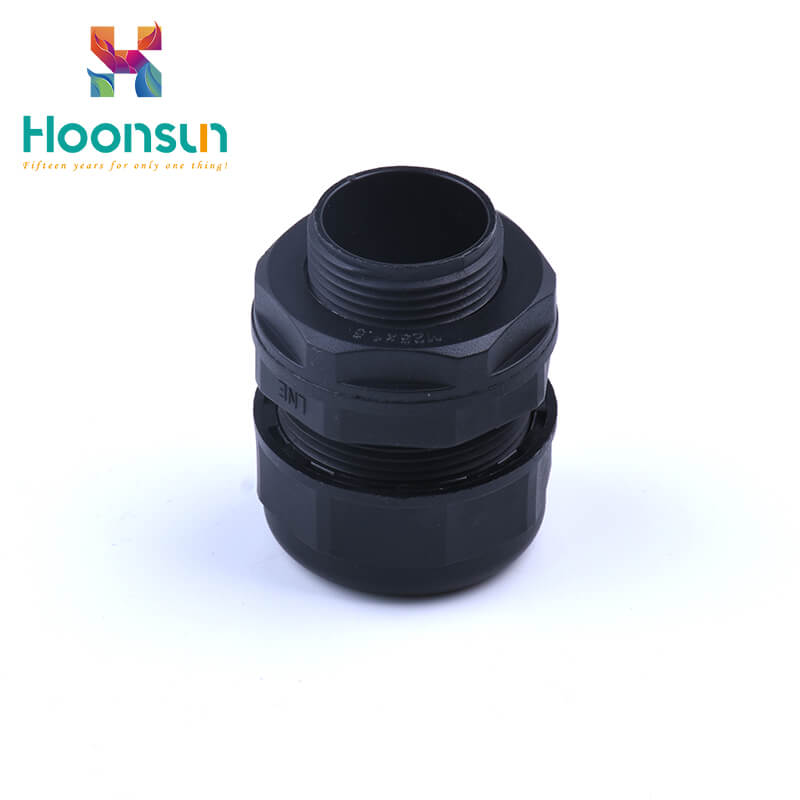

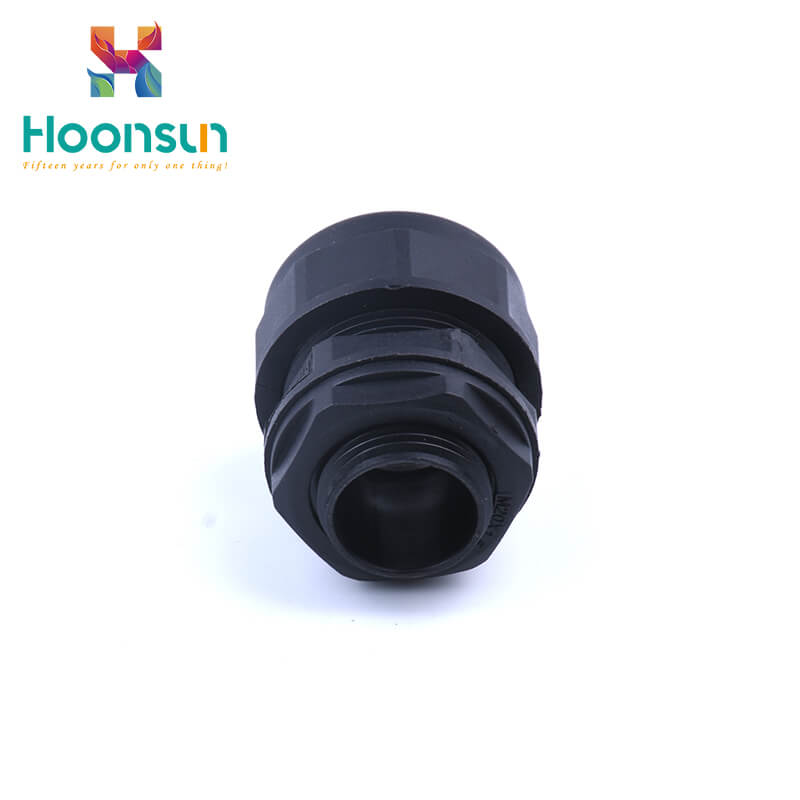

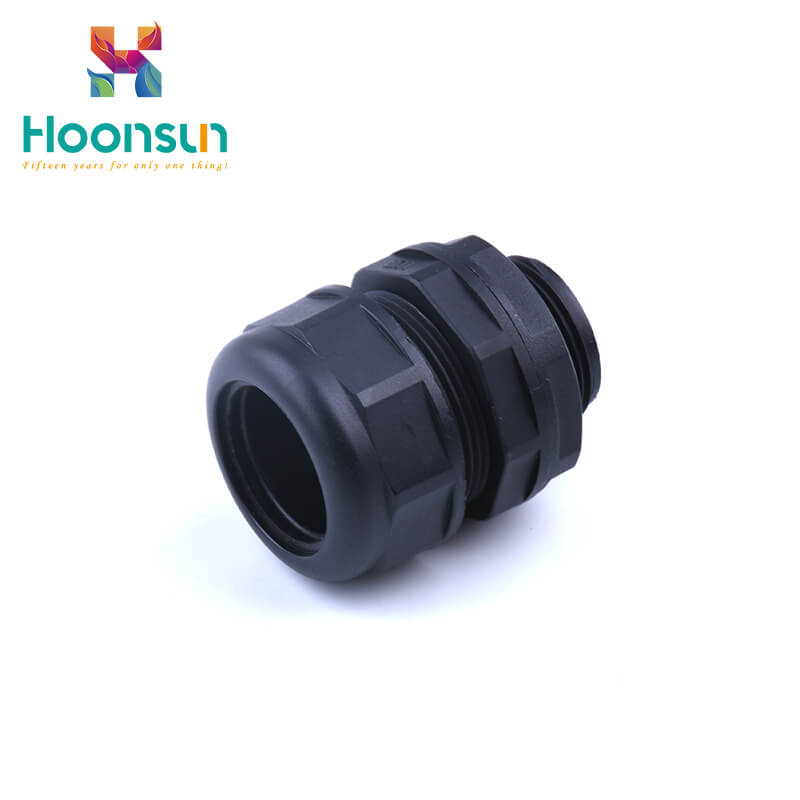

Nylon Flexible Pipe Fitting

Material:PA(NYLON),UL 94 V-2

Temperature:Static state:-40℃ to 100℃,short time to 120℃

Dynamic state:-20℃ to 80℃, short time to 100℃

Color customization: Grey,Black,other color customized

Inquiry Now >

VIDEO

video video

Dimension Drawing

Nylon Flexible Pipe Fitting

Technical Parameter

Thread Type :M

Conduit size Thread size AG  OD AG   ID GL H Item
AD10.0 M12x1.5 12 7 10 26 HX-NLRM12-10.0
AD13.0 M12x1.5 12 7 10 26 HX-NLRM12-13.0
AD10.0 M16x1.5 16 7 10 26 HX-NLR-M16-10.0
AD13.0 M16x1.5 16 10 10 26 HX-NLRM16-13.0
AD15.8 M16x1.5 16 11 10 26 HX-NLRM16-15.8
AD13.0 M18x1.5 18 10 10 26 HX-NLRM18-13.0
AD15.8 M18x1.5 18 12 10 26 HX-NLRM18-15.8
AD15.8 M20x1.5 20 12 10 26 HX-NLRM20-15.8
AD18.5 M20x1.5 20 14.5 10 27 HX-NLRM20-18.5
AD21.2 M20x1.5 20 16 10 27 HX-NLRM20-21.2
AD21.2 M22x1.5 22 17 10 27 HX-NLRM22-21.2
AD21.2 M24x1.5 24 18 10 27 HX-NLRM24-21.2
AD21.2 M25x1.5 25 18 10 27 HX-NLRM25-21.2
AD25.0 M25x1.5 25 20 15 35 HX-NLRM25-25.0
AD28.5 M25x1.5 25 21 14 35 HX-NLRM25-28.5
AD28.5 M27x1.5 27 21 14 35 HX-NLRM27-28.5
AD28.5 M30x1.5 30 23 14 35 HX-NLRM30-28.5
AD28.5 M32x1.5 32 23 14 35 HX-NLRM32-28.5
AD34.5 M32x1.5 32 26 14 35 HX-NLRM32-34.5
AD34.5 M36x1.5 36 29 14 35 HX-NLRM36-34.5
AD34.5 M40x1.5 40 35 15 40 HX-NLRM40-34.5
AD42.5 M40x1.5 40 34 14 44 HX-NLRM40-42.5
AD42.5 M48x1.5 48 36 14 44 HX-NLRM48-42.5
AD54.5 M50x1.5 50 43 15 20 HX-NLRM50-54.5
AD54.5 M63x1.5 63 48 15 20 HX-NLRM63-54.5

Thread Type :PG

Conduit size Thread size AG  OD AG   ID GL H Item
AD10.0 PG7 12.5 7 10 26 HX-NLRPG7-10.0
AD13.8 PG9 15.2 10 10 26 HX-NLRPG9-13.0
AD15.8 PG11 18.6 12 10 26 HX-NLRPG11-15.8
AD18.5 PG13.5 20.4 14.5 10 27 HX-NLRPG13.5-18.5
AD21.2 PG16 22.5 15 10 27 HX-NLRPG16-21.2
AD28.5 PG21 28.3 23 14 34 HX-NLRPG21-28.5
AD34.5 PG29 37 29 14 34 HX-NLRPG29-34.5
AD42.5 PG36 47 36 14 44 HX-NLRPG36-42.5
AD54.5 PG48 59.3 48 15 50 HX-NLRPG48-54.5



Thread Type :G

Conduit size Thread size AG  OD AG   ID GL H Item
AD21.2 G1/2″ 20.4 15 10 27 HX-NLRG1/2-21.2
AD25.0 G1/2″ 20.4 15 15 35 HX-NLRG1/2-25.0
AD28.5 G3/4″ 26 20 14 34 HX-NLRG3/4-28.5
AD34.5 G1″ 36 26 14 34 HX-NLRG1-34.5
