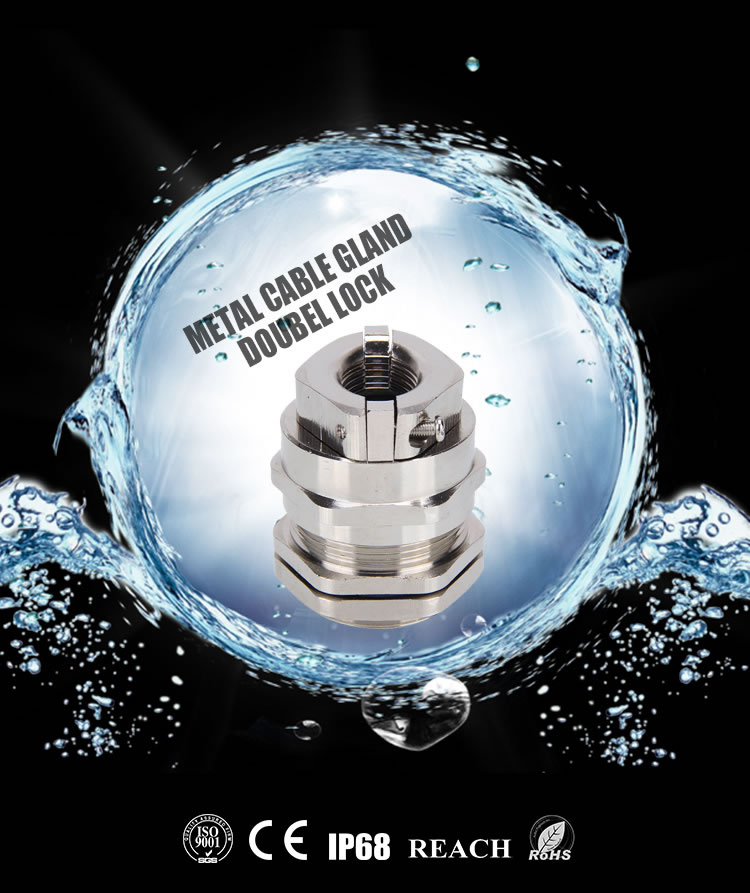

Model: HX-NS
Code: 8547901000
Thread type: M thread type

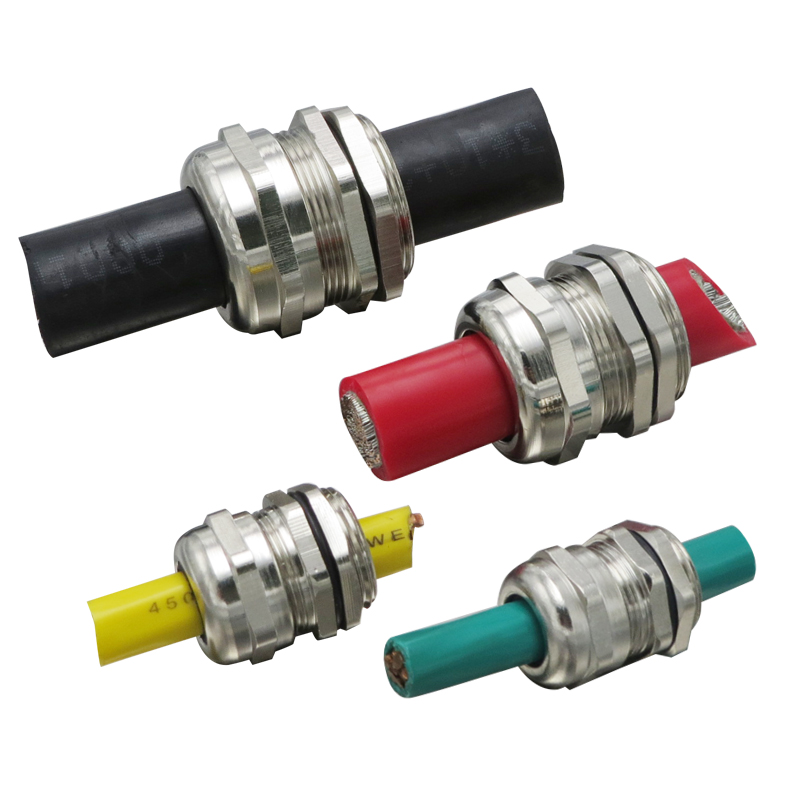

Material: Brass, nickel plated
Claw: PA
Sealing and sealing ring: NBR
Approvals: CE, ROHS, REACH
Protection degree: IP68

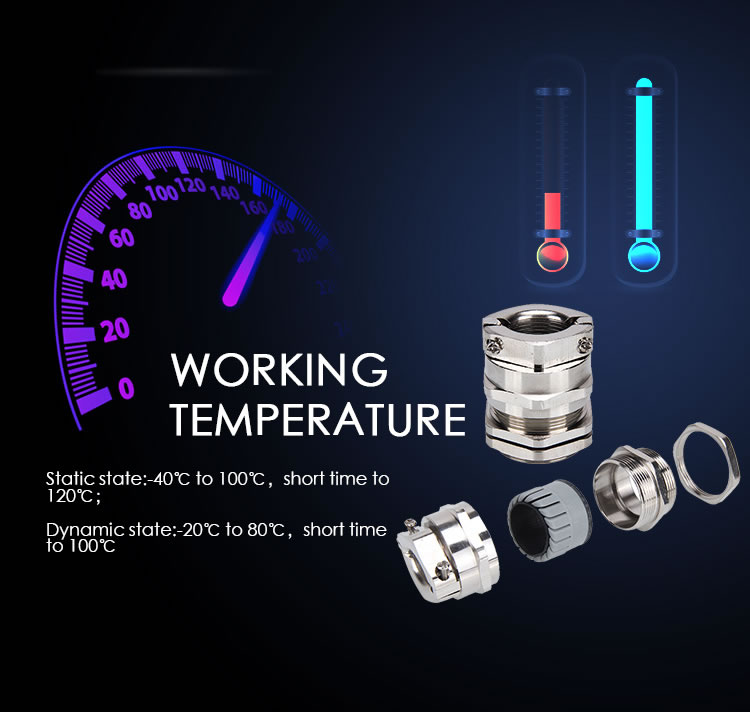

Temperature resistance: -40℃-100℃, short time to 120℃
Size: M12-M63
Thread Type ：M
| ltem | Range (mm) |
GL Thread Length (mm) |
Thread o.D. (mm) |
H Joint Length (mm) |
Spanner size (mm) |
Code | |
| M12x1.5 | 3-6.5 | 6.5 | 12.0 | 25 | 14 | HX-NSM12 | |
| 4.8 | 8 | 12.0 | 27 | 17/14 | HX-NSM12-8 | ||
| M16×1.5 | 3-6 | 8 | 16.0 | 27 | 18 | HX-NSM16-6 | |
| 4-8 | 8 | 16.0 | 27 | 18 | HX-NSM16 | ||
| 5-10 | 8 | 16.0 | 29 | 20/18 | HX-NSM16-10 | ||
| M18×1.5 | 5-10 | 8 | 18.0 | 29 | 20 | HX-NSM18 | |
| M20×1.5 | 6-12 | 8 | 20.0 | 31 | 22 | HX-NSM20 | |
| 10-14 | 8 | 20.0 | 31 | 24/22 | HX-NSM20-12 | ||
| M25×1.5 | 10-14 | g | 25.0 | 37 | 24/27 | HX-NSM25-14 | |
| 12-16 | 9 | 25.0 | 37 | 27 | HX-NSM25-16 | ||
| 13-18 | 9 | 25.0 | 37 | 30/27 | HX-NSM25-18 | ||
| M321.5 | 15-22 | 10 | 32.0 | 42 | 35 | HX-NSM32 | |
| 18-25 | 10 | 32.0 | 42 | 40/35 | HX-NSM32-25 | ||
| M0×1.5 | 18-25 | 11 | 40.0 | 48 | 40/45 | HX-NSM40-25 | |
| 22-30 | 11 | 40.0 | 48 | 45 | HX-NSM40-30 | ||
| 25-33 | 11 | 40.0 | 48 | 50/45 | HX-NSM4o-33 | ||
| M50×1.5 | 32-38 | 13 | 50.0 | 50 | 57/155 | HX-NSM50 | |
| M63×1.5 | 37-44 | 14 | 63.0 | 51 | 64/68 | HX-NSM63 | |
| 42-52 | 14 | 63.0 | 51 | 78/68 | HX-NSM63-52 | ||
