Thread Type ：M/PG
Material：Nickel-plated brass
Claw：PA（Nylon），UL94-V2
Hermetic seal：NBR、Silicone rubber
O-Ring：NBR、Silicone rubber
Protection degree：IP68-10 bra
Temperature：Static state：-40℃ to 100℃
Dynamic state：-20℃ to 80℃

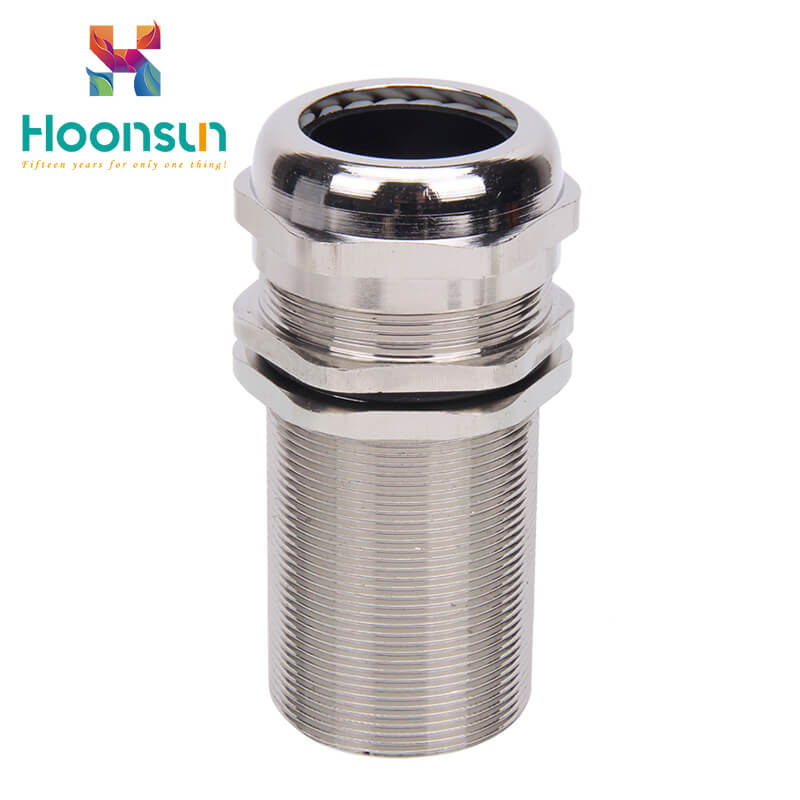

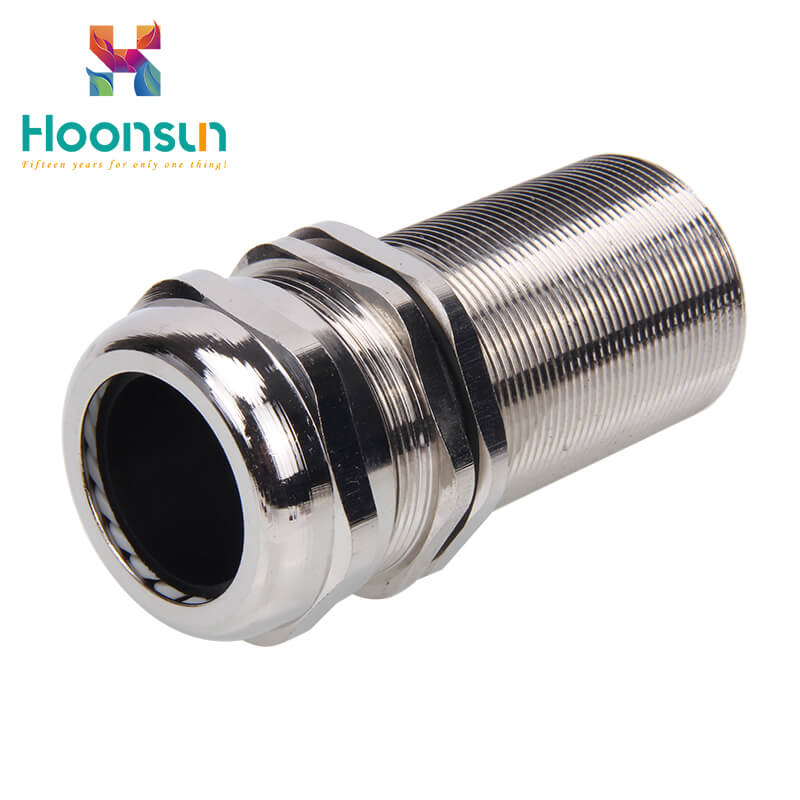

Product selection: The lengthen brass cable gland is made of brass, the surface is electroplated with nickel, the inner core is made of nylon, and the seal is made of silicon rubber.
Scope of application: Lengthen brass cable gland is often used to fix cables on electrical box equipment. It mainly plays the role of anti-sweeping, waterproof, dustproof, explosion-proof, shielding and grounding. Lengthen brass cable gland main industries are used in rail transit, industrial automation, equipment manufacturing and other electrical system connections.
Thread Type ：M
| Item | Range | Tread Length | Thread O.D. | Joint Length | Spanner size | Code |
| Φ mm | GL mm | AG mm | H mm | mm | ||
| M12×1.5 | 3-6.5 | 10 | 12 | 17 | 14 | HX-NPM12L |
| M16×1.5 | 4-8 | 12 | 16 | 19 | 18 | HX-NPM16L |
| M18×1.5 | 5-10 | 12 | 18 | 21 | 20 | HX-NPM18L |
| M20×1.5 | 6-12 | 12 | 20 | 22 | 22 | HX-NPM20L |
| M22×1.5 | 10-14 | 12 | 22 | 23 | 24 | HX-NPM22L |
| M25×1.5 | 10-14 | 12 | 25 | 25 | 24/27 | HX-NPM25-14L |
| M25×1.5 | 13-18 | 12 | 25 | 27 | 30/27 | HX-NPM25-18L |
| M32×1.5 | 15-22 | 15 | 32 | 29 | 35 | HX-NPM32L |
| M40×1.5 | 18-25 | 15 | 40 | 31 | 40/45 | HX-NPM40-25L |
| M40×1.5 | 22-30 | 15 | 40 | 35 | 45 | HX-NPM40-30L |
| M50×1.5 | 32-38 | 15 | 50 | 37 | 57/55 | HX-NPM50L |
| M63×1.5 | 37-44 | 18 | 63 | 38 | 64/68 | HX-NPM63L |
Thread Type ：PG
| Item | Range | Tread Length | Thread O.D. | Joint Length | Spanner size | Code |
| Φ mm | GL mm | AG mm | H mm | mm | ||
| PG7 | 3-6.5 | 10 | 12.5 | 17 | 14/15 | HX-NPPG7L |
| PG9 | 4-8 | 12 | 15.2 | 19 | 17/18 | HX-NPPG9L |
| PG11 | 5-10 | 12 | 18.6 | 21 | 20/21 | HX-NPPG11L |
| PG13.5 | 6-12 | 12 | 20.4 | 22 | 22/23 | HX-NPPG13.5L |
| PG16 | 10-14 | 12 | 22.5 | 23 | 24/25 | HX-NPPG16L |
| PG21 | 13-18 | 12 | 28.3 | 27 | 30 | HX-NPPG21L |
| PG29 | 18-25 | 15 | 37 | 31 | 40 | HX-NPPG29L |
| PG36 | 25-33 | 15 | 47 | 37 | 50 | HX-NPPG36L |
| PG42 | 32-38 | 15 | 54 | 37 | 57 | HX-NPPG42L |
| PG48 | 37-44 | 18 | 59.3 | 38 | 64 | HX-NPPG48L |
