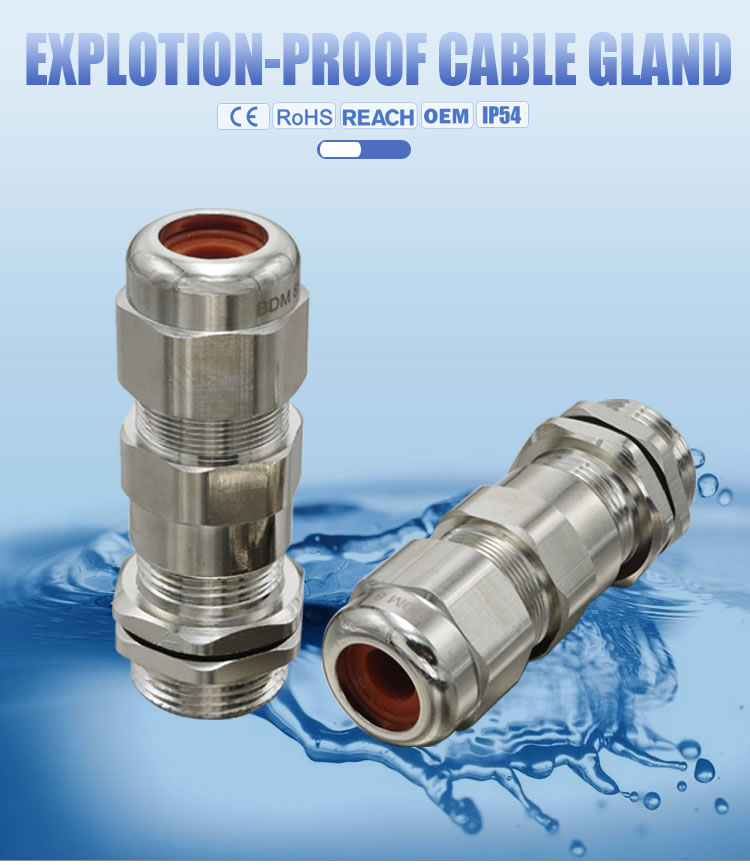

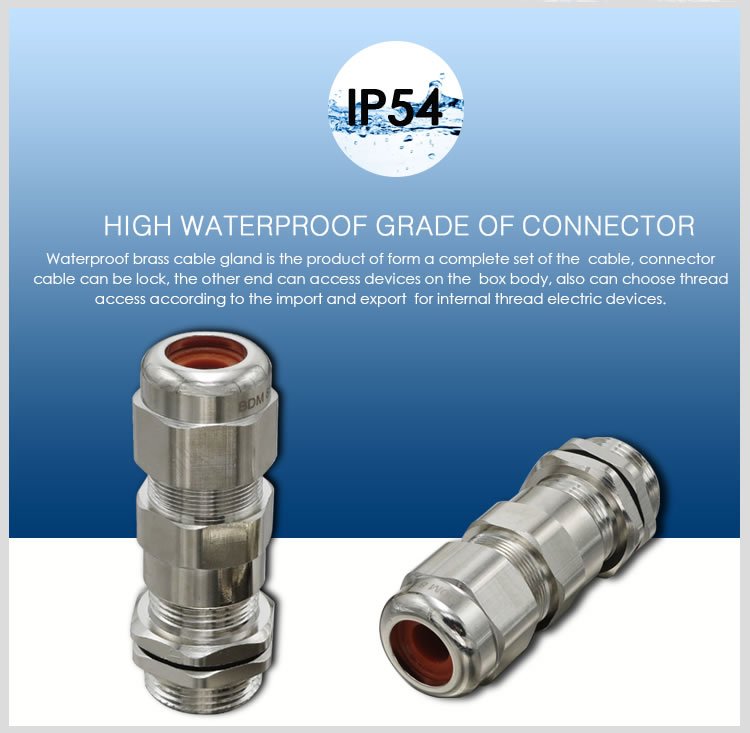

IP66 Explosionproof Brass Armoured 3/4″npt Cable Gland

Model : HX-EX

Code : 8538900000

Material : Brass SS304 SS316

Protecion degree : IP68-10 bar

Size : M20-M75

Inquiry Now >

VIDEO

video video

Dimension Drawing

IP66 Explosionproof Brass Armoured 3/4"npt Cable Gland

IP66 Explosionproof Brass Armoured 3/4"npt Cable Gland

IP66 Explosionproof Brass Armoured 3/4"npt Cable Gland

IP66 Explosionproof Brass Armoured 3/4"npt Cable Gland

IP66 Explosionproof Brass Armoured 3/4"npt Cable Gland

Technical Parameter

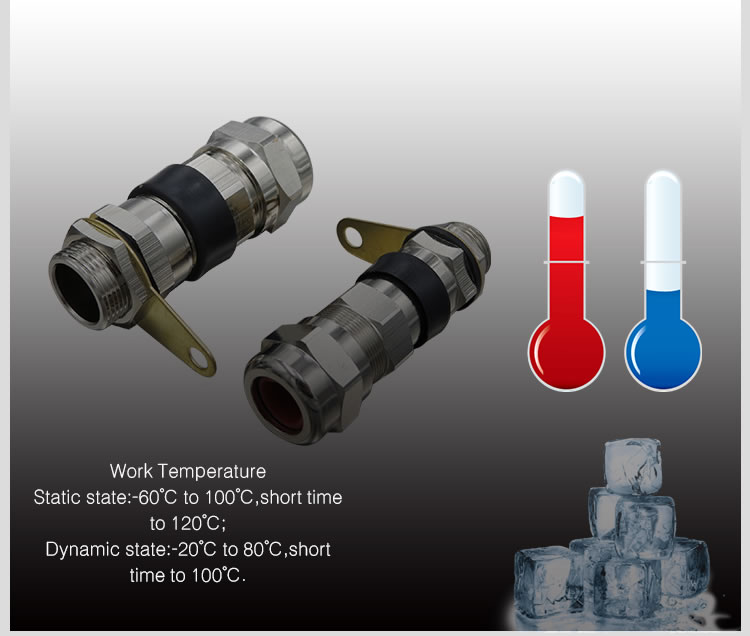

Double Seal Armored Cable Gland Product Parameter

Double seal armored cable gland (steel pipe wiring) is used as a sealing joint for braided armored and steel tape armored cables in hazardous areas in Zone 1, Zone 2, Zone 21 and Zone 22, and provides explosion-proof sealing and waterproofing on the cable inner sheath Dust-proof and sealed, the cable gland provides mechanical support and continuity of the armored grounding through the cable armored end.

The detachable double seal armored cable gland’s armored cone is installed so that the cable gland can be installed indirectly, and the cables can be disconnected from the equipment, which is convenient for maintenance and replacement, and the operation of reconnecting them is also convenient and quick. At the same time, the pipe connection design of the clamping part can connect the metal pipe and the explosion-proof flexible pipe. Double seal armored cable gland is also equipped with a round sheath ring to meet flood protection.



According the customer’s requirements the extended GL screws are available
