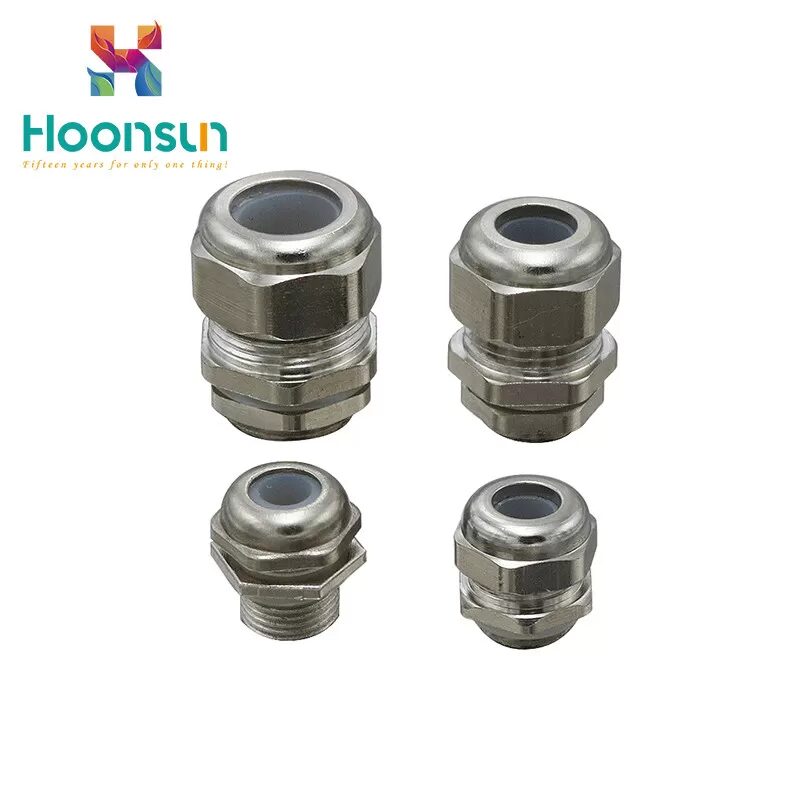

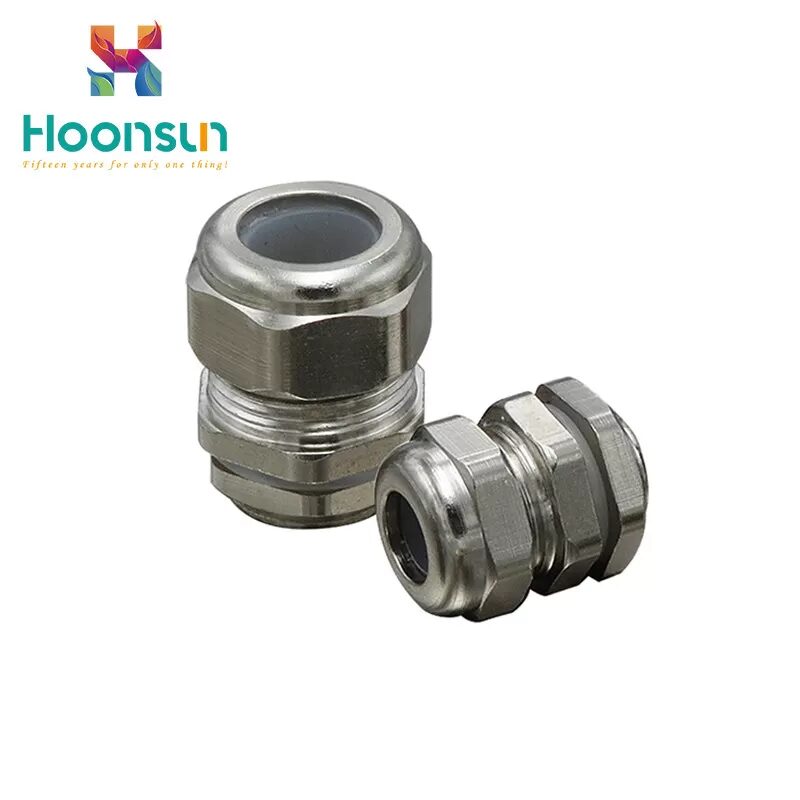

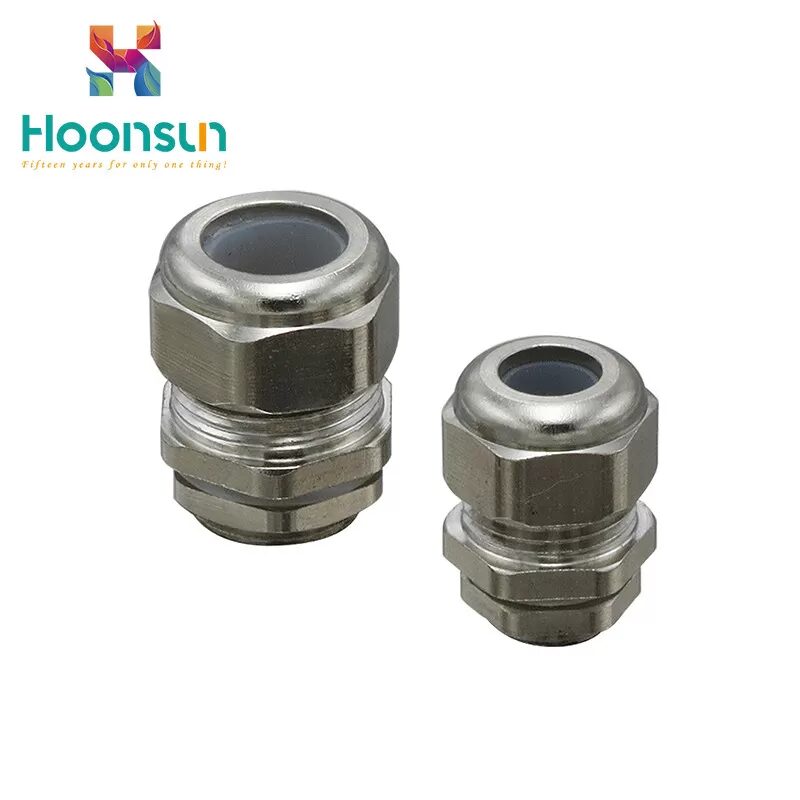

High Temperature Resistant Silicone Copper Cable Gland

Product Name:

High-temperature resistant metal cable gland

Product structure:

Sealing nut, seal, main body, O-ring and lock nut

Material:

Nickel-plated brass and silicone rubber

Characteristics:

Silicone core, strong heat resistance.

Applicable places:

High-temperature places such as lamps, cars and so on

Working temperature:

– 60 ℃ to 250 ℃

Inquiry Now >

Dimension Drawing

The waterproof silicone copper cable gland is an essential accessory for cables, widely used in industries such as oil, chemical, machinery, nuclear power, shipbuilding, paper, pharmaceuticals, food, and aerospace.

This gland can secure the cable and connect to the upper part of an equipment box, with an option for a screw thread connection. It is suitable for use in the import and export of internal threads on electrical equipment, as well as in general mechanical control boxes, distribution panels, and machines.

By firmly clamping the cable, the gland ensures effective waterproofing. Its primary functions are to keep the cable path clear, maintain a sealed environment, and ensure the cable’s insulation level for safe and reliable operation. Poor sealing can lead to oil leakage, drying out oil-impregnated paper, and moisture intrusion, which can degrade the paper’s insulation performance.

Product details

1. Our thread specifications are metric thread, German thread, American thread and British thread.

2. The product material includes a nickel-plated brass (stainless steel) shell, nylon inner core, nitrile rubber and silicone rubber seal.

3. Within the specified limits, with the sealing ring to tighten the nut, the protection level can reach IP68.

4. The inner core unique clamping claw and sealing ring are mutually buckled and designed to tighten the nut to improve the tensile performance.

5. Our products can be waterproof, dustproof, salt resistant, acid and alkali resistant, alcohol, grease and other general solvents.

6. It can adapt to bad environments such as offshore operations, mine machinery and chemical equipment.

FAQs

Are you trading company or manufacturer?

We are factory. However, we can export the goods by ourselves.

How long is your delivery time?

Generally, we can send out the the goods within 3-7 days if the goods are in stock. Or it should be 7-30 days if the goods are not in stock, it is according to your order quantity.

Do you provide samples? Is it free or extra?

Yes, we could offer the samples for free charge but do not pay the cost of freight.

What is your terms of payment?

Payment<= 1000 USD, 100% in advance. Payment>= 1000 USD, 30% T/T in advance, balance before shipment.

How about the after-sale service?

Any feedback or comments are welcomed. We will try to make the best assistant to give you maximum satisfaction.

Technical Parameter

Type: High-Temperature Resistance Type Characteristic: Resist High Temp
Max Temperature: 250℃ Performance: Watertight
Surface Treatment: Electroplating Model NO.: M12-M72,PG7-PG13.5
High Light: Metal cable gland brass
Double compression cable gland



Item Range Thread Length Thread O.D. Spanner size Code
Φ mm GL mm AG mm mm
M12×1.5 3-7 7 12 16/14 HX-NPM12S
M12×1.5 4-8 7 12 16/14 HX-NPM12S-8
M14×1.5 4-8 7 14 18/17 HX-NPM14S
M16×1.5 5-9 8 16 20/18 HX-NPM16S
M18×1.5 8-12 8 18 22/20 HX-NPM18S
M20×1.5 8-12 8 20 24/22 HX-NPM20S
PG7 3-7 7 12.5 16/15 HX-NPPG7S
PG9 4-8 7 15.2 18/18 HX-NPPG9S
PG11 5-9 8 18.5 22/21 HX-NPPG11S
PG13.5 8-12 8 20.4 24/23 HX-NPPG13.5S



Item Range Thread Length Joint Length Spanner size Code
M PG G NPT Φ mm GL mm mm mm
M12×1.5 PG7 G1/4 NPT1/4 4-7 7 21 18 HX-NP
M16×1.5 PG9 4-11 7 25 20 “Item” S
M18×1.5 PG11 G3/8 NPT3/8 4-11 7 25 22
M20×1.5 PG13.5 G1/2 NPT1/2 5-14 8 29 24
M22×1.5 PG16 5-14 8 29 24
M25×1.5 PG21 G3/4 NPT3/4 11-20 9 30 30
M32×1.5 PG29 G1 NPT1 15-25 10 32 36
M40×1.5 PG36 G1-1/4 NPT1-1/4 22-32 11 35 44
M50×1.5 PG42 G1-1/2 NPT1-1/2 31-42 13 37 58
M63×1.5 PG48 G2 NPT2 41-51 14 40 68
M72×2 50-54 16 47 81
