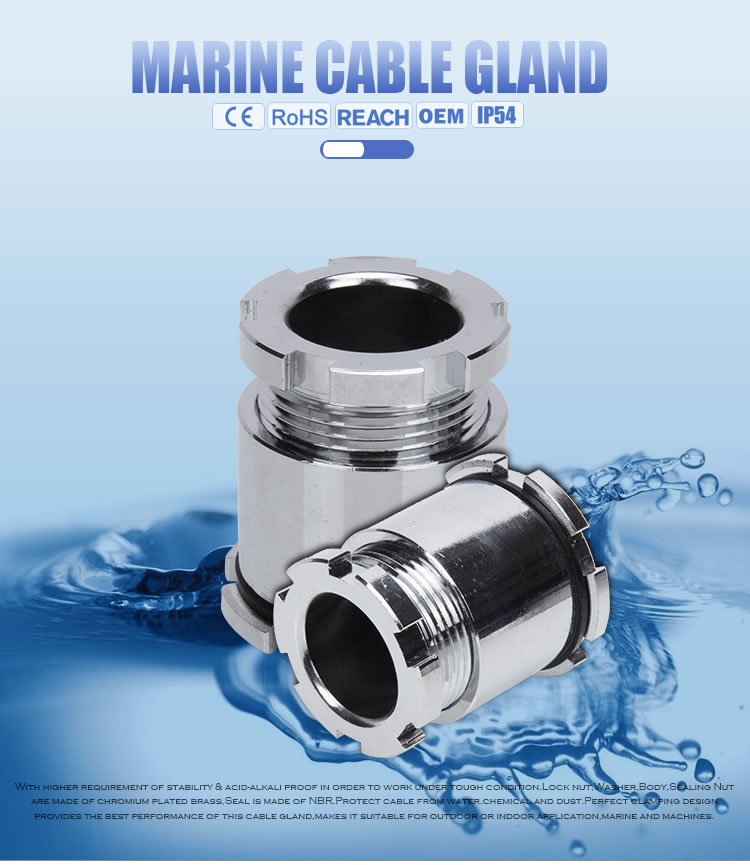

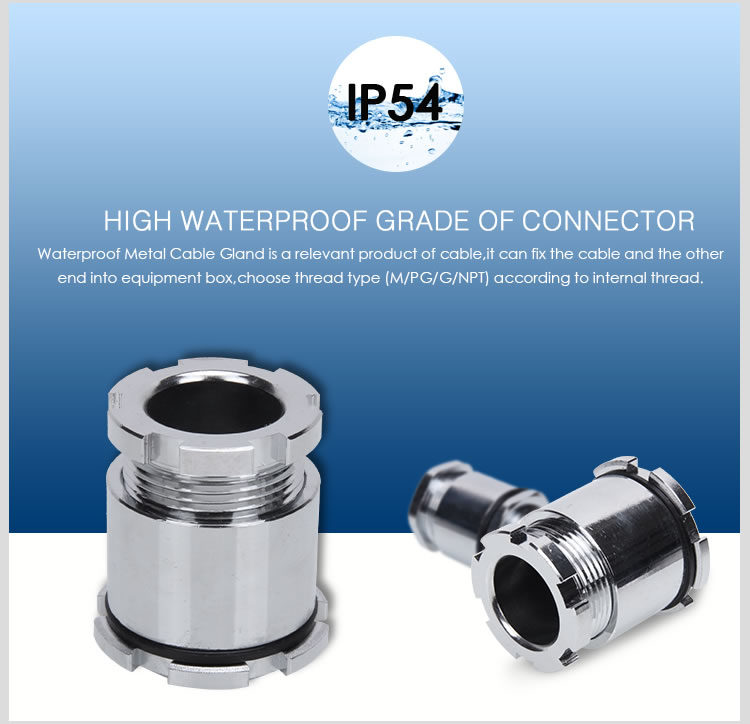

High Quality JIS Type Marine Cable Gland Price
Model : HX-JIS
Code : 7419999900

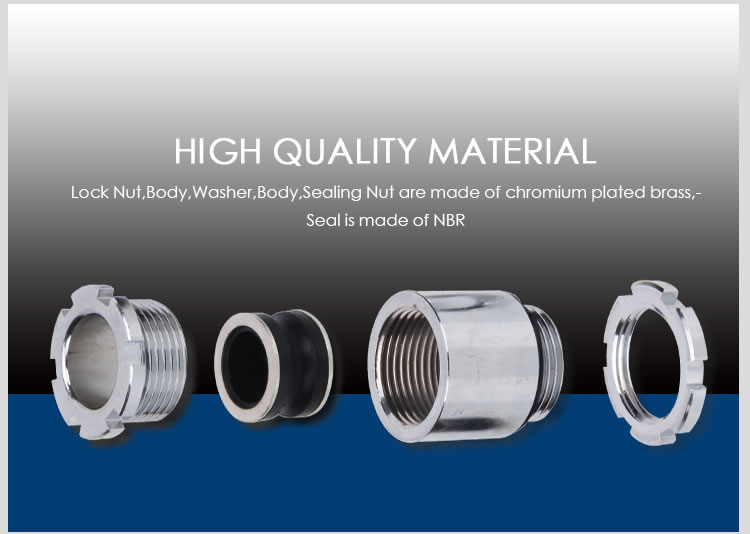

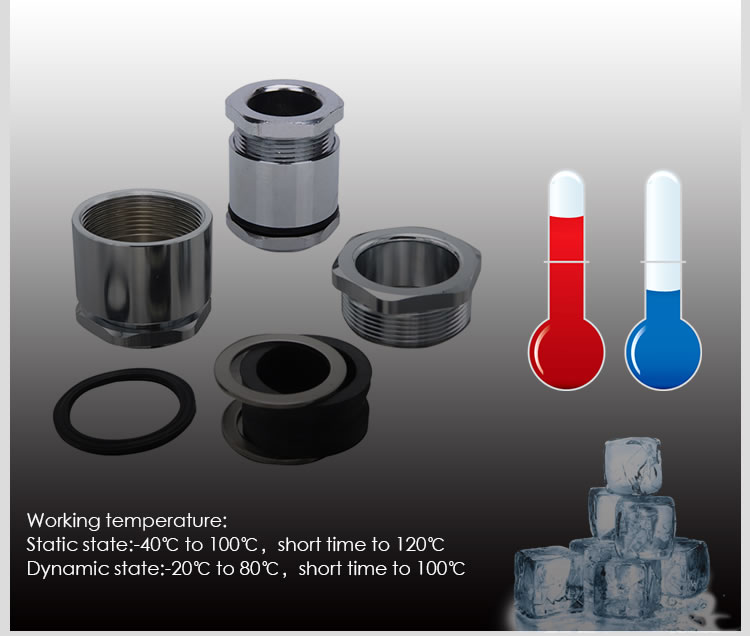

Material : Chromium-plated brass
Approvals : CE.ROHS.IP68.REACH
Hermetic seal : NBR . Silicone
O-Ring : NBR . Silicone
Products
Inquiry Now >
VIDEO
Dimension Drawing
Technical Parameter
| Item | Thread | Range (mm) | GL Thread Length (mm) | AG Thread O.D. (mm) | Spanner size (mm) | Code |
| JIS 10 | 3/8〃 | 6-7 | 11 | 16.6 | Φ22/28 | HX-JIS10A |
| 7-8 | HX-JIS10B | |||||
| JIS 15 | 1/2〃 | 8-9 | 11 | 20.9 | Φ28/31 | HX-JIS15A |
| 9-10 | HX-JIS15B | |||||
| 9-11 | HX-JIS15C | |||||
| JIS 20 | 3/4〃 | 11-12 | 11 | 26.4 | Φ34/37 | HX-JIS20A |
| 12-13 | HX-JIS20B | |||||
| 12-15 | HX-JIS20C | |||||
| JIS 25 | 1〃 | 15-16 | 11 | 33.2 | Φ41/45 | HX-JIS25A |
| 16-18 | HX-JIS25B | |||||
| 16-20 | HX-JIS25C | |||||
| JIS 30 | 1-1/4〃 | 20-22 | 12 | 41.9 | Φ49/56 | HX-JIS30A |
| 22-24 | HX-JIS30B | |||||
| 22-26 | HX-JIS30C | |||||
| JIS 35 | 1-1/2〃 | 26-28 | 12 | 47.8 | Φ56/62 | HX-JIS35A |
| 28-30 | HX-JIS35B | |||||
| 26-30 | HX-JIS35C | |||||
| JIS 40 | 30-32 | 47.8 | HX-JIS40A | |||
| 32-34 | HX-JIS40B | |||||
| 30-34 | HX-JIS40C | |||||
| JIS 45 | 2〃 | 34-36 | 12 | 59.6 | Φ68/76 | HX-JIS45A |
| 36-38 | HX-JIS45B | |||||
| 36-40 | HX-JIS45C | |||||
| JIS 50 | 40-42 | 59.6 | HX-JIS50A | |||
| 42-44 | HX-JIS50B | |||||
| 40-44 | HX-JIS50C | |||||
| JIS 55 | 2-1/2〃 | 44-46 | 12 | 75.1 | Φ84/94 | HX-JIS55A |
| 46-48 | HX-JIS55B | |||||
| 46-50 | HX-JIS55C | |||||
| JIS 60 | 50-52 | 75.1 | HX-JIS60A | |||
| 52-54 | HX-JIS60B | |||||
| 52-56 | HX-JIS60C | |||||
| JIS 65 | 3〃 | 56-58 | 14 | 88.0 | Φ98/112 | HX-JIS65A |
| 58-60 | HX-JIS65B | |||||
| JIS 70 | 60-62 | 88.0 | HX-JIS70A | |||
| 62-64 | HX-JIS70B | |||||
| JIS 75 | 64-66 | 88.0 | HX-JIS75A | |||
| 66-70 | HX-JIS75B |
