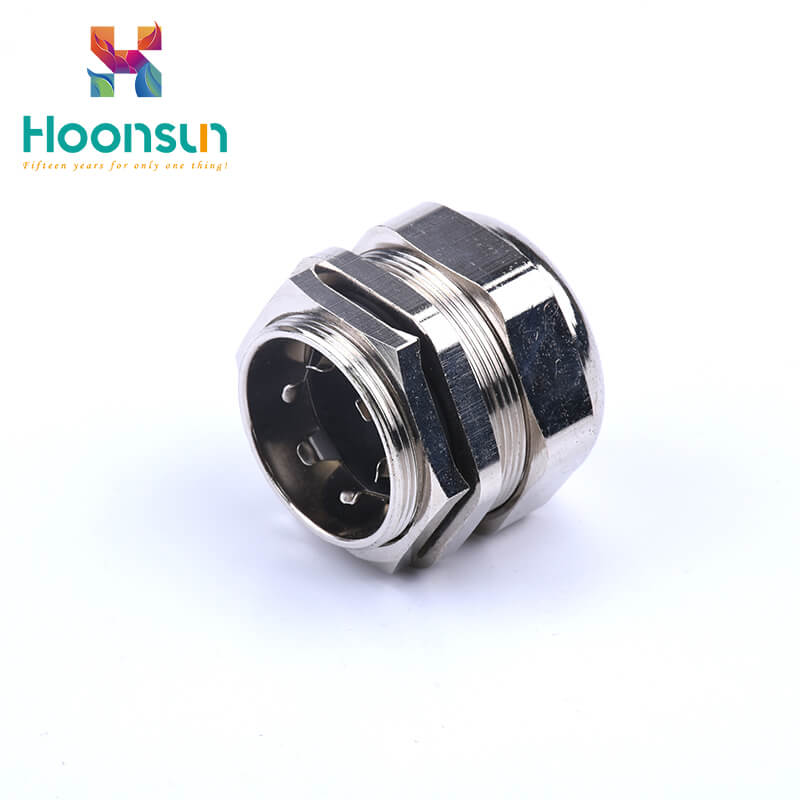

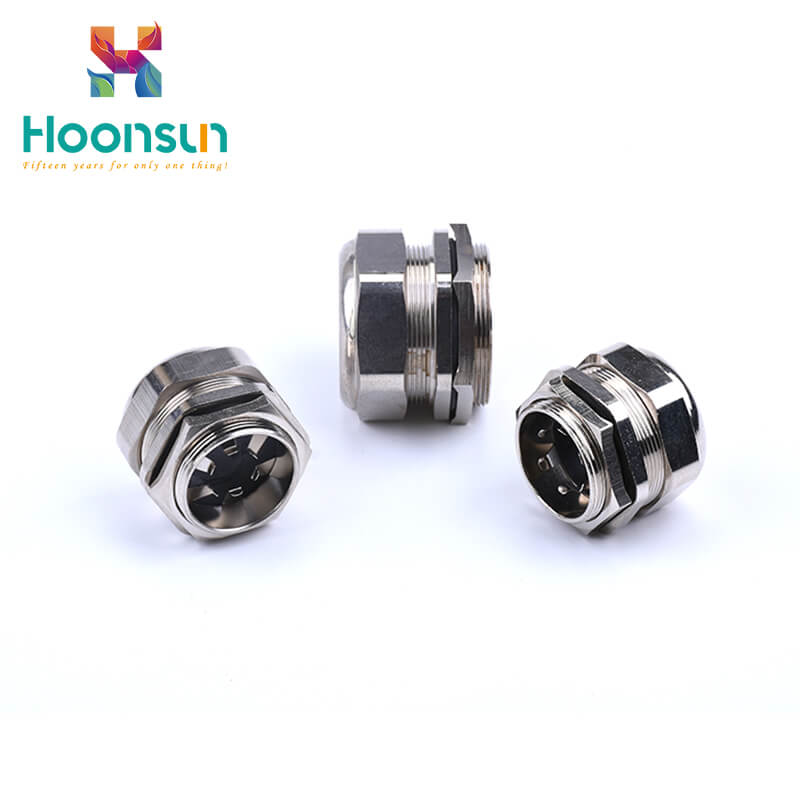

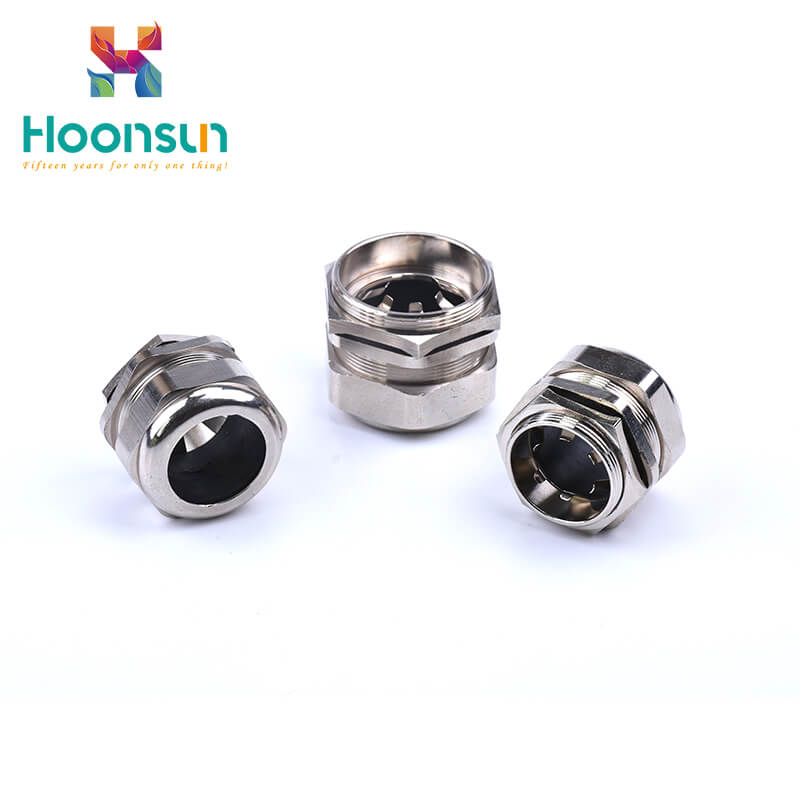

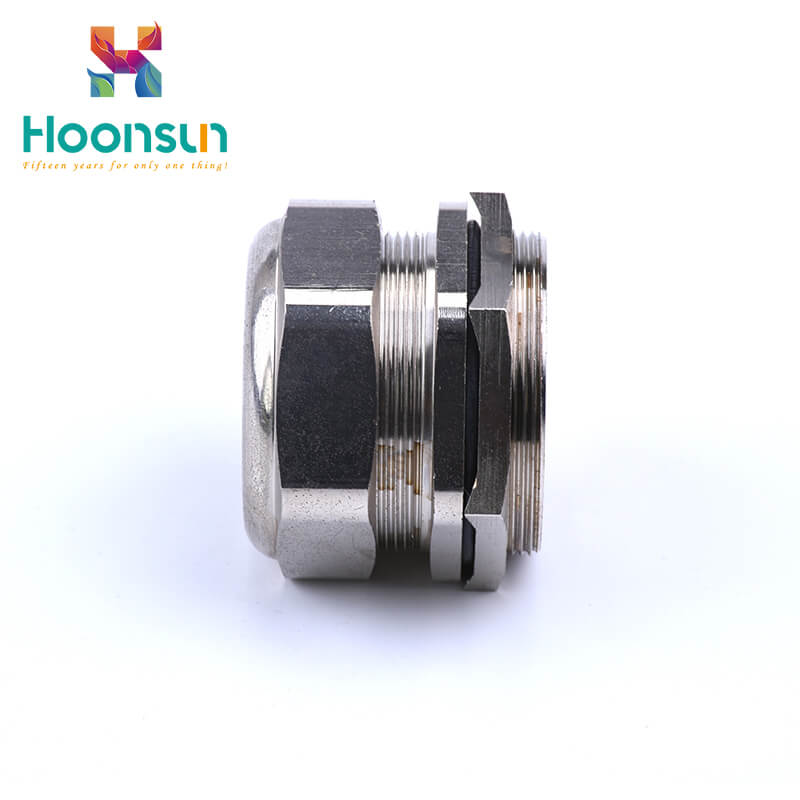

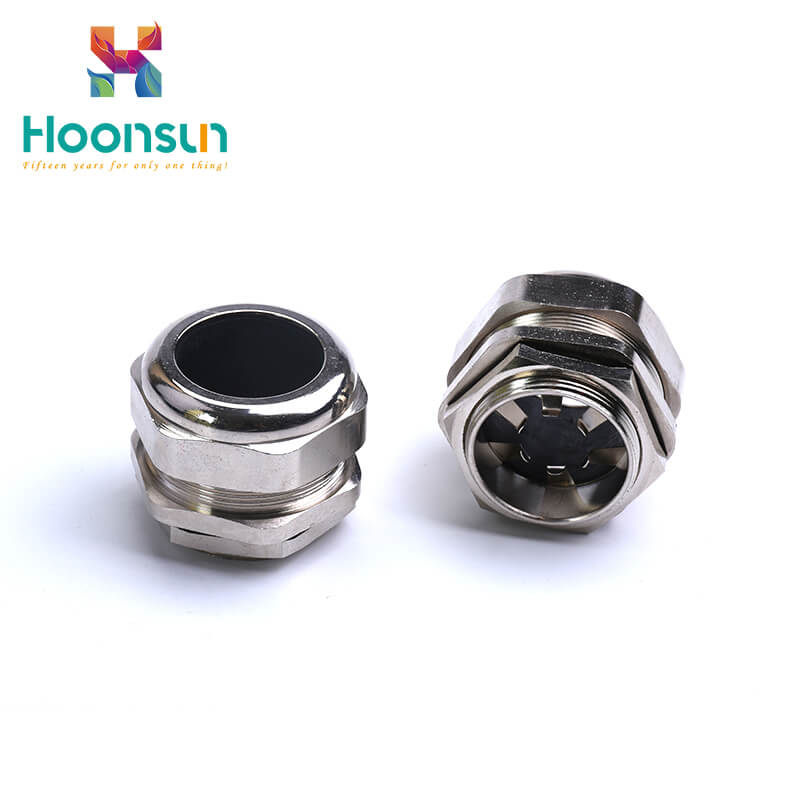

EMC Cable Gland W Type
Material：Nickel-plated brass
Claw：PA（Nylon），UL94-V2
Hermetic seal：NBR、Silicone rubber
O-Ring：NBR、Silicone rubber
Protection degree：IP68-10 bra
Temperature：Static state：-40℃ to 100℃
Dynamic state：-20℃ to 80℃
Products
VIDEO
Dimension Drawing
Technical Parameter
EMC W Type Cable Gland Product Introcution
Product specifications and material: EMC W type cable gland material is Metric. Some are made of copper alloy nickel plating, some are made of nylon PA66 (fire rating UL94V-2), and some are made of EPDM weather-resistant rubber. Metallic.

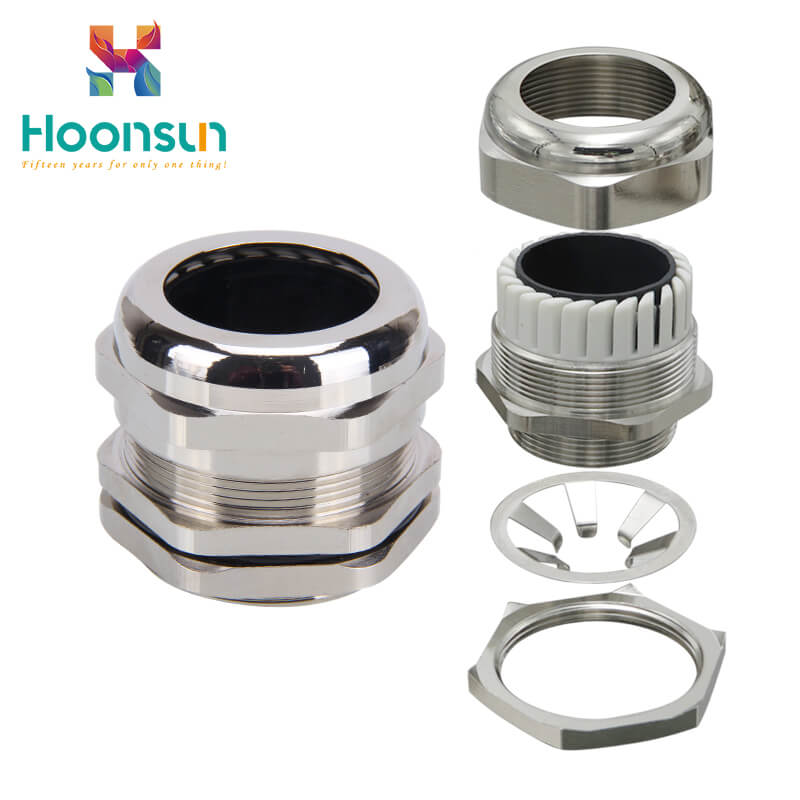

Product features: Special clamping jaw and clamping ring design, large clamping cable range, strong tensile strength, waterproof, dustproof, salt-resistant, weak acid, alcohol, oil, grease and general solvents. This product is specially designed to use low-voltage electromagnetic waves to reduce and weaken when using isolated cables.
| Item | Range Φ mm |
Tread Length GL mm |
H Joint Length mm |
Spanner size mm |
Code | |||
| M | PG | G | NPT | |||||
| M12×1.5 | PG7 | G1/4 | NPT1/4 | 3-6.5 | 6.5 | 19 | 14 | HX-EMC- “Item”-W |
| 4-8 | 8 | 19 | 17/14 | |||||
| M16×1.5 | PG9 | 3-6 | 8 | 20 | 18 | |||
| 4-8 | 8 | 20 | 18 | |||||
| 5-10 | 8 | 21 | 20/18 | |||||
| M18×1.5 | PG11 | G3/8 | NPT3/8 | 5-10 | 8 | 21 | 20 | |
| M20×1.5 | PG13.5 | G1/2 | NPT1/2 | 6-12 | 8 | 22 | 22 | |
| 10-14 | 8 | 23 | 24/22 | |||||
| M22×1.5 | PG16 | 10-14 | 8 | 23 | 24 | |||
| M25×1.5 | G3/4 | NPT3/4 | 10-14 | 9 | 25 | 24/27 | ||
| PG21 | 12-16 | 9 | 27 | 27 | ||||
| 13-18 | 9 | 27 | 30/27 | |||||
| M32×1.5 | 15-22 | 10 | 29 | 35 | ||||
| PG29 | G1 | NPT1 | 18-25 | 10 | 31 | 40/35 | ||
| M40×1.5 | 18-25 | 11 | 31 | 40/45 | ||||
| 22-30 | 11 | 35 | 45 | |||||
| PG36 | G1-1/4 | NPT1-1/4 | 25-33 | 11 | 37 | 50/45 | ||
| M50×1.5 | PG42 | G1-1/2 | NPT1-1/2 | 32-38 | 13 | 37 | 57/55 | |
| M63×1.5 | PG48 | G2 | NPT2 | 37-44 | 14 | 38 | 64/68 | |
| 42-52 | 14 | 38 | 78/68 | |||||
| M72×2 | 42-52 | 16 | 42 | 78 | ||||
| M80×2 | 55-62 | 18 | 45 | 88 | ||||
