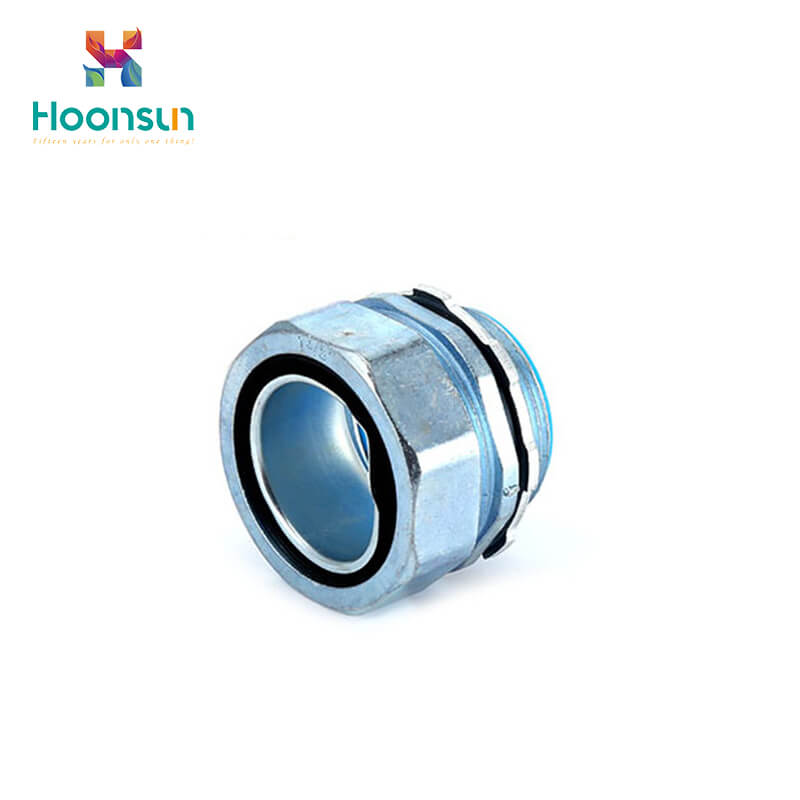

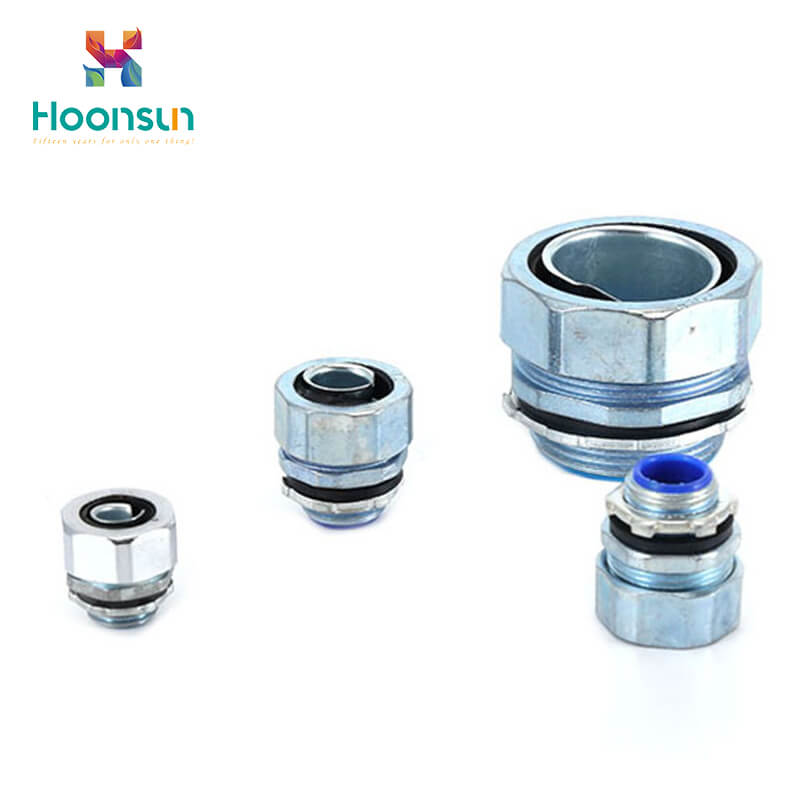

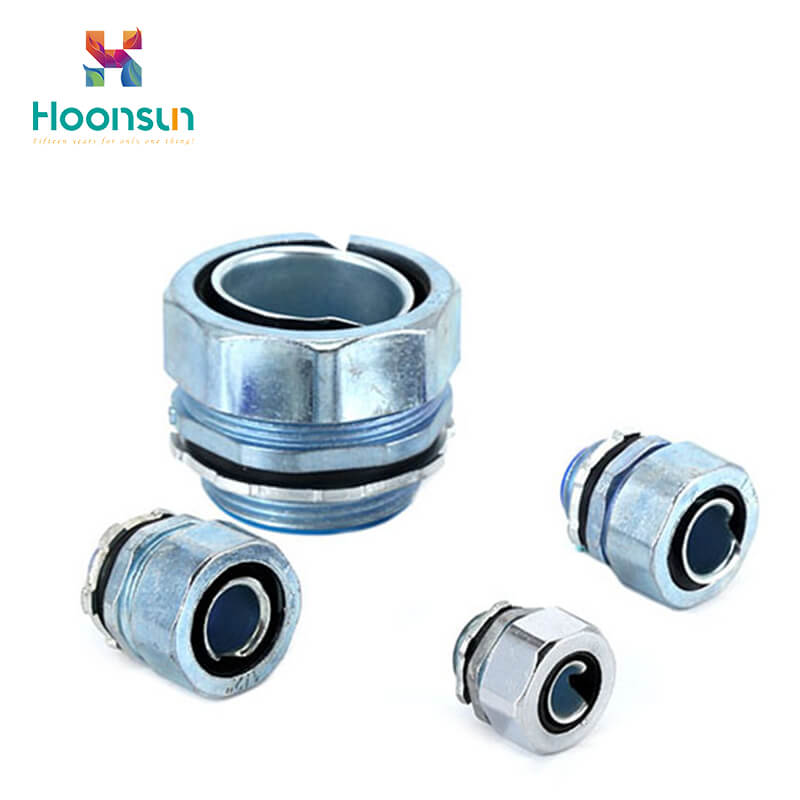

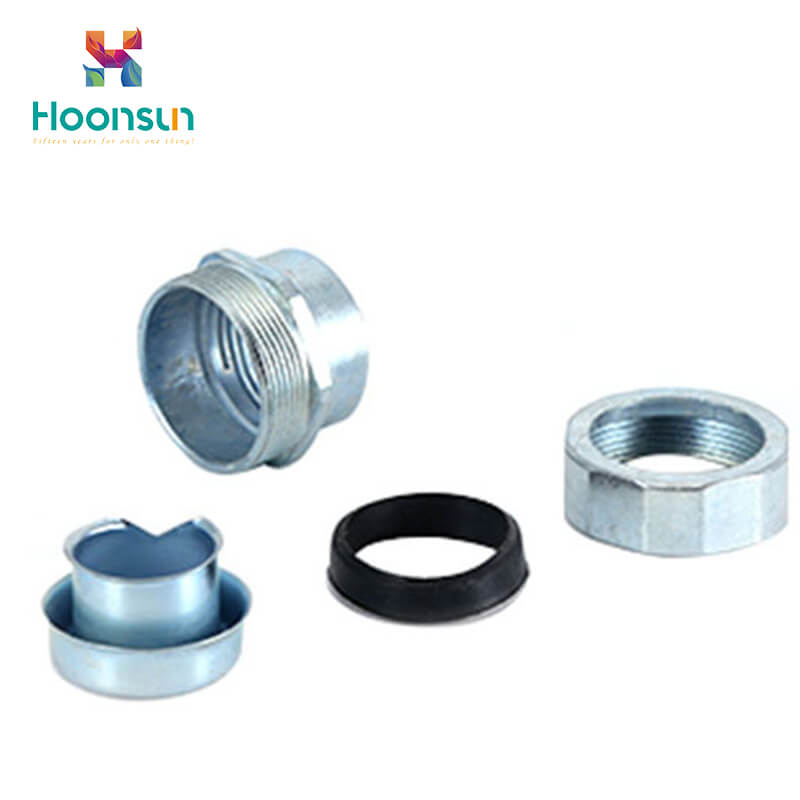

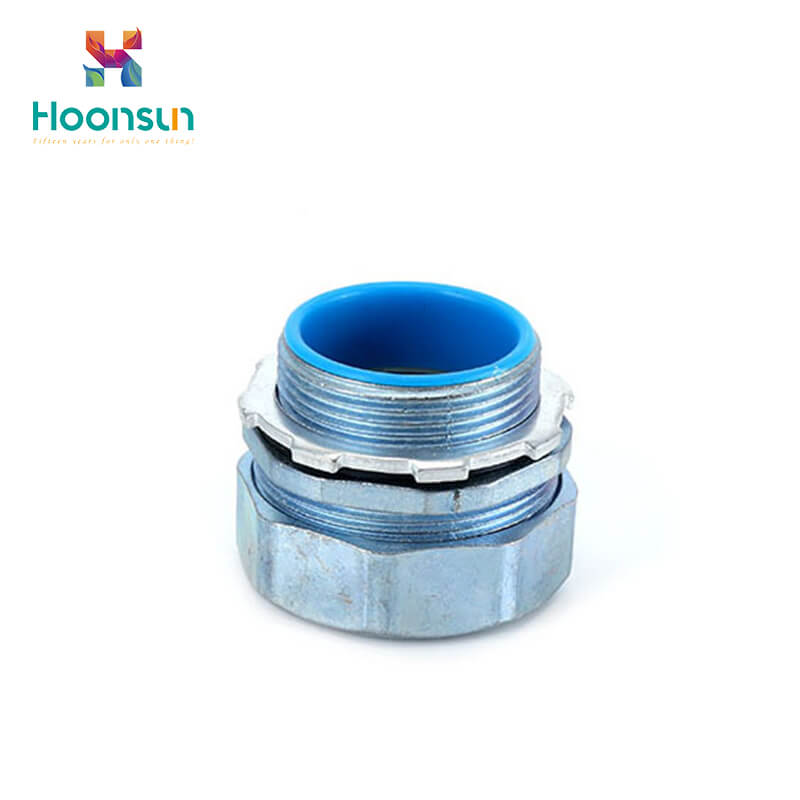

DPJ Standard

Material: the main part is made of high quality zinc alloy
Thread specifications: G, Metric, PG, NPT
Product size: 3/8″-4″
Treatment process: Zinc die casting, stainless steel, brass (surface galvanized, chrome, nickel plated)
Color: Metallic (silver white)
Application: one end of outer tooth connection box or inner tooth fitting, one end of metal hose connection

Inquiry Now >


Dimension Drawing

Technical Parameter

CAT # Flexible conduit Thin Steel Thread Metric Thread German Units
Metric SIZE
DPJ-12 Φ12(13) 3/8″ C19 M20×1.5 PG11/PG13.5
DPJ-15 Φ15(16) 1/2″ C19 M20×1.5/M24×1.5 PG13.5/PG16
DPJ-20 Φ20(19) 3/4″ C25 M27×2/M30×2 PG21
DPJ-25 Φ25 1″ C31 M33×2/M36×2 PG29
DPJ-32 Φ32 1-1/4″ C39 M42×2/M48×2 PG29
DPJ-38 Φ38(40) 1-1/2″ C51 M48×2/M60×2 PG36/PG42
DPJ-50 Φ51(50) 2″ C63 M60×2/M72×2 PG48
DPJ-64 Φ64(70) 2-1/2″ C75 M76×2
DPJ-75 Φ75(80) 3″ M88×2
DPJ-100 Φ100 4″ M114×2
