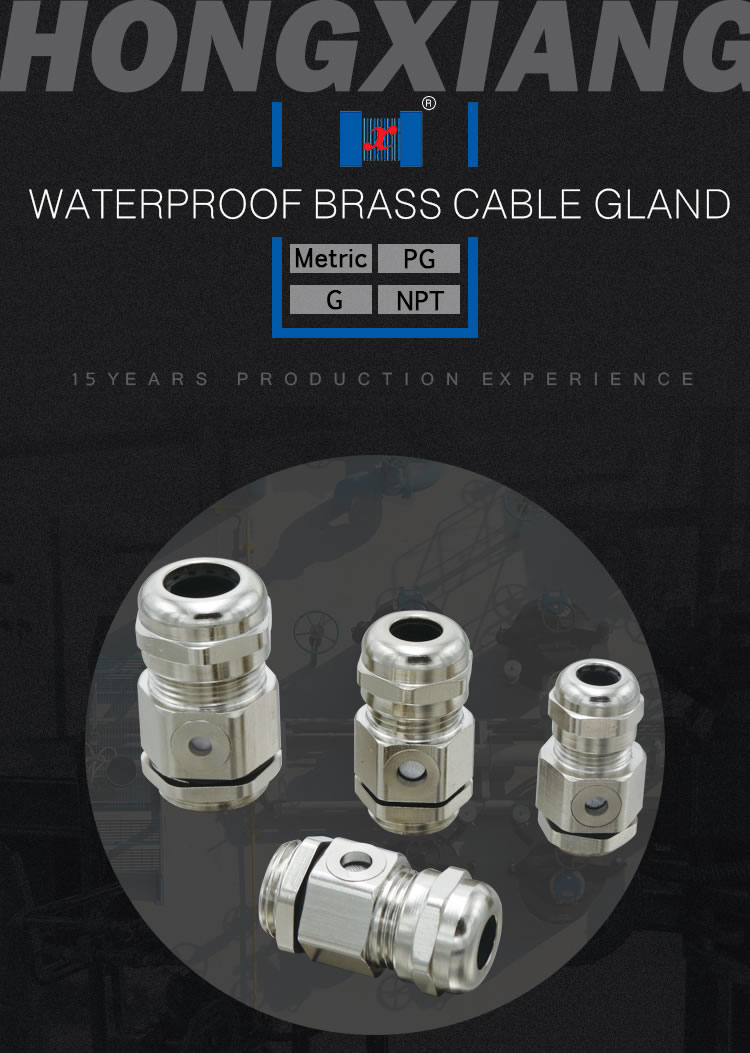

Cheap Low Price Breathable Type Cable Gland From Hongxiang

Model: HX-NF

Code: 8547901000

Material: nickel plated

Claw: nylon V2 (UL94)

Protection degree: In the specified cable outer diameter and the appropriate o-ring protection level can reach IP68, the waterproof depth reaches 3M – 5M

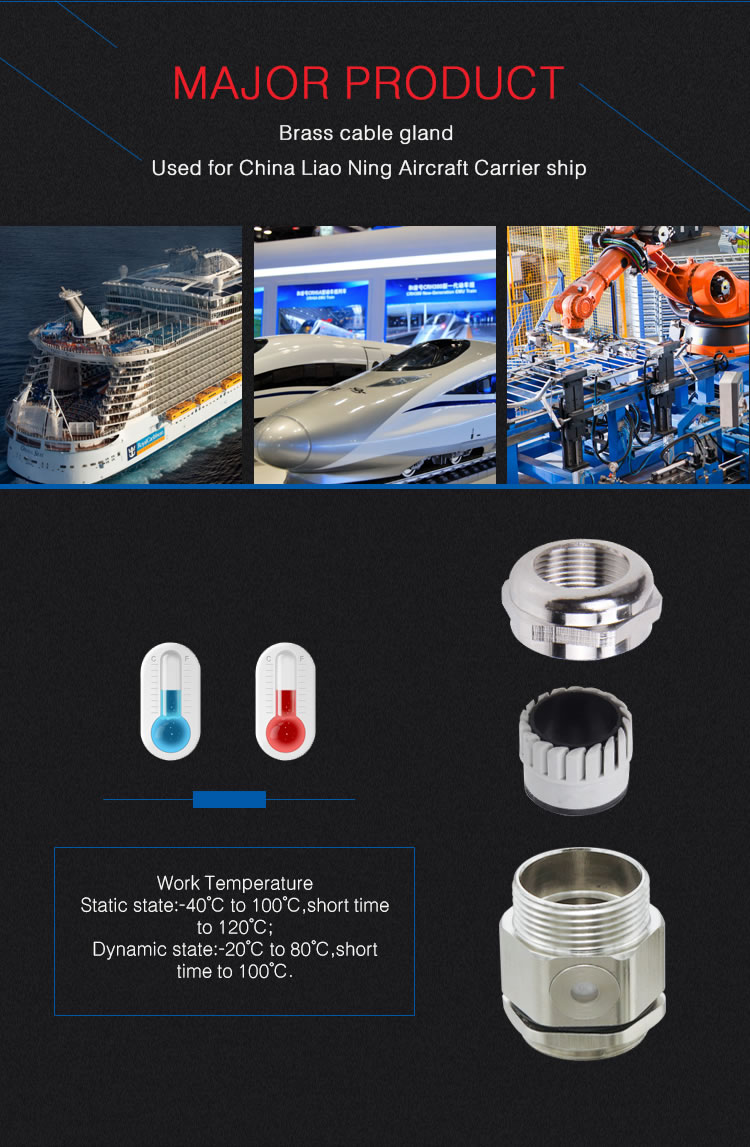

Temperature resistance: -40℃-100℃,short time to120℃

Size: M12-M63

Inquiry Now >

VIDEO

video video

Dimension Drawing

Cheap Low Price Breathable Type Cable Gland From Hongxiang

Cheap Low Price Breathable Type Cable Gland From Hongxiang

Cheap Low Price Breathable Type Cable Gland From Hongxiang

Technical Parameter

Thread Type :M

Range
(mm)
GL
Thread Length
(mm)
AG
Thread o.D.
(mm)
H
Joint Length
(mm)
Spanner size
(mm)
M12×1.5 3-6.5 6.5 12.0 27 16 HX-NFM12
4-8 8 12.0 27 16/14 HX-NFM12-8
M16×1.5 3-6 8 16.0 27 18 HX-NFM16-6
4-8 8 16.0 27 18 HX-NFM16
5-10 8 16.0 27 20-18 HX-NFM16-10
M18x1.5 5-10 8 18.0 29 20 HX-NFM18
M20×1.5 5-10 8 20.0 32 22 HX-NFM20-10
6-12 8 20.0 32 22 HX-NFM20
10-14 8 20.0 32 24/22 HX-NFM20-12
M25×1.5 8-12 9 25.0 35 24/27 HX-NFM25-12
10-14 9 25.0 35 24/27 HX-NFM25-14
12-16 9 25.0 35 27 HK-NFM25-16
13-18 9 25.0 35 30/27 HX-NFM25-18
M32×1.5 13-18 10 32.0 54 35 HX-NFM32-18
15-22 10 32.0 54 35 HX-NFM32
18-25 10 32.0 54 40/35 HX-NFM32-25
M40×1.5 18-25 11 40.0 46 40/45 HX-NFM40-25
22-30 11 40.0 50 45 HX-NFM40-30
25-33 11 40.0 52 50/45 HX-NFM40-33
M50×1.5 32-38 13 50.0 55 57/55 HX-NFM50
M63×1.5 37-44 14 63.0 55 64/68 HX-NFM63
42-52 14 63.0 55 1 5/34 HX-NFM63-52

Customizable PGIG/NPT Thead
